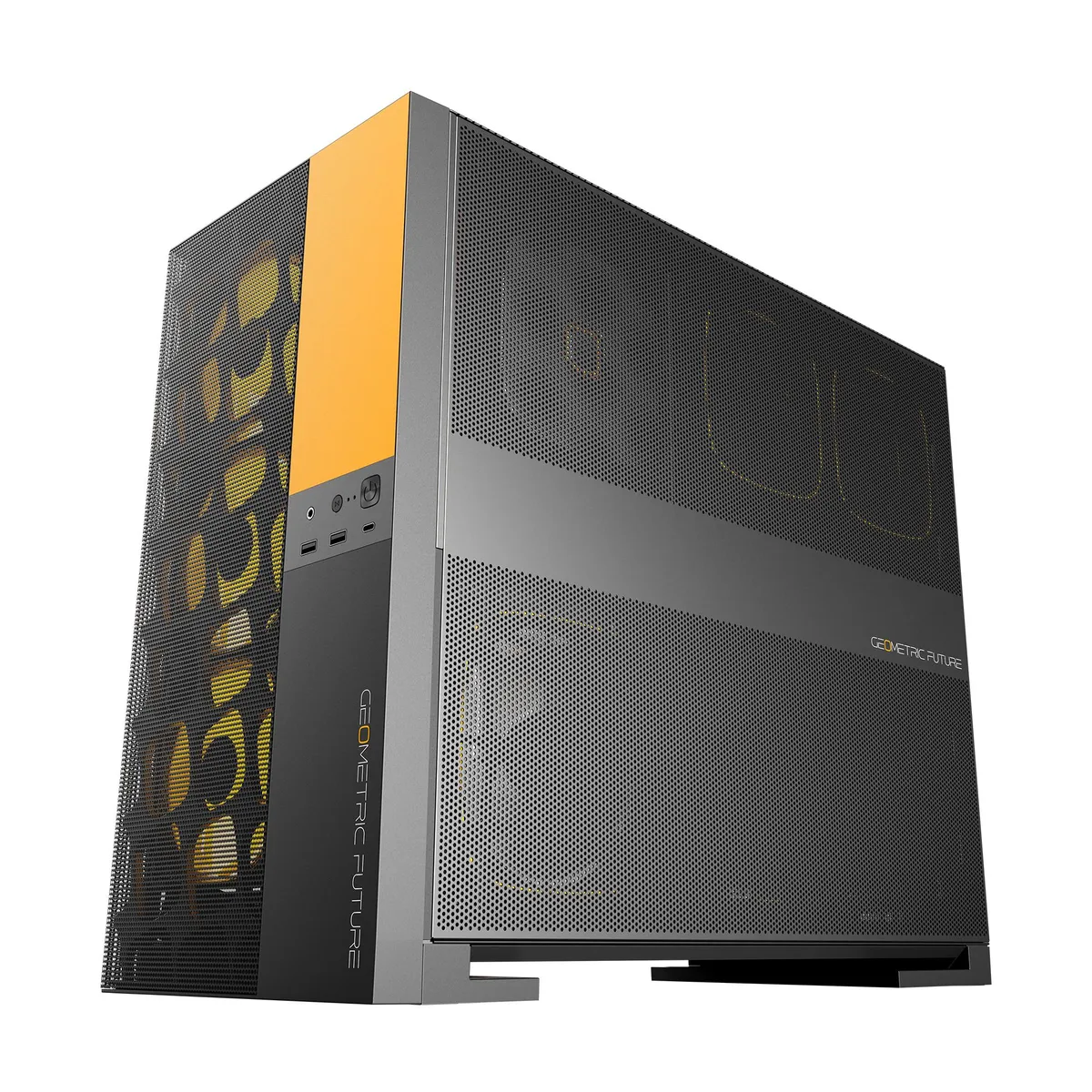

Black and yellow dual-chamber mid-tower case with mesh front panel and tempered glass side panel

Geometric Future

Geometric Future M5 Vent Dual-Chamber PC Case Black/Yellow

SKU CH-RJPJ-3PFM6

Mid-tower case with mesh front panel and tempered glass, dual-chamber layout for E-ATX boards, 430 mm GPU clearance, 180 mm CPU cooler height, 160 mm PSU depth.

  • TypeATX Mid Tower
  • ColorBlack/Yellow
  • Motherboard CompatibilityExtended ATX
  • Fan OptionsTop : 120/140mm x 3 Rear : 120 /140mm x1 Right Front : 120/1
  • Radiator OptionsTop : 360/420mm Rad Rear : 120 /140mm Rad Bottom : 360mm Rad
  • Max GPU Length430mm

Model M5 Vent

Color Black / Yellow

  • Optimised mesh front panel delivers maximum airflow
  • Supports up to 13 120mm fans for extensive cooling options
  • Dual-chamber design fits 420mm radiators and 430mm GPUs
  • 8-1.2mm steel chassis provides rigid structural integrity
  • Accommodates E-ATX motherboards with 180mm CPU cooler clearance

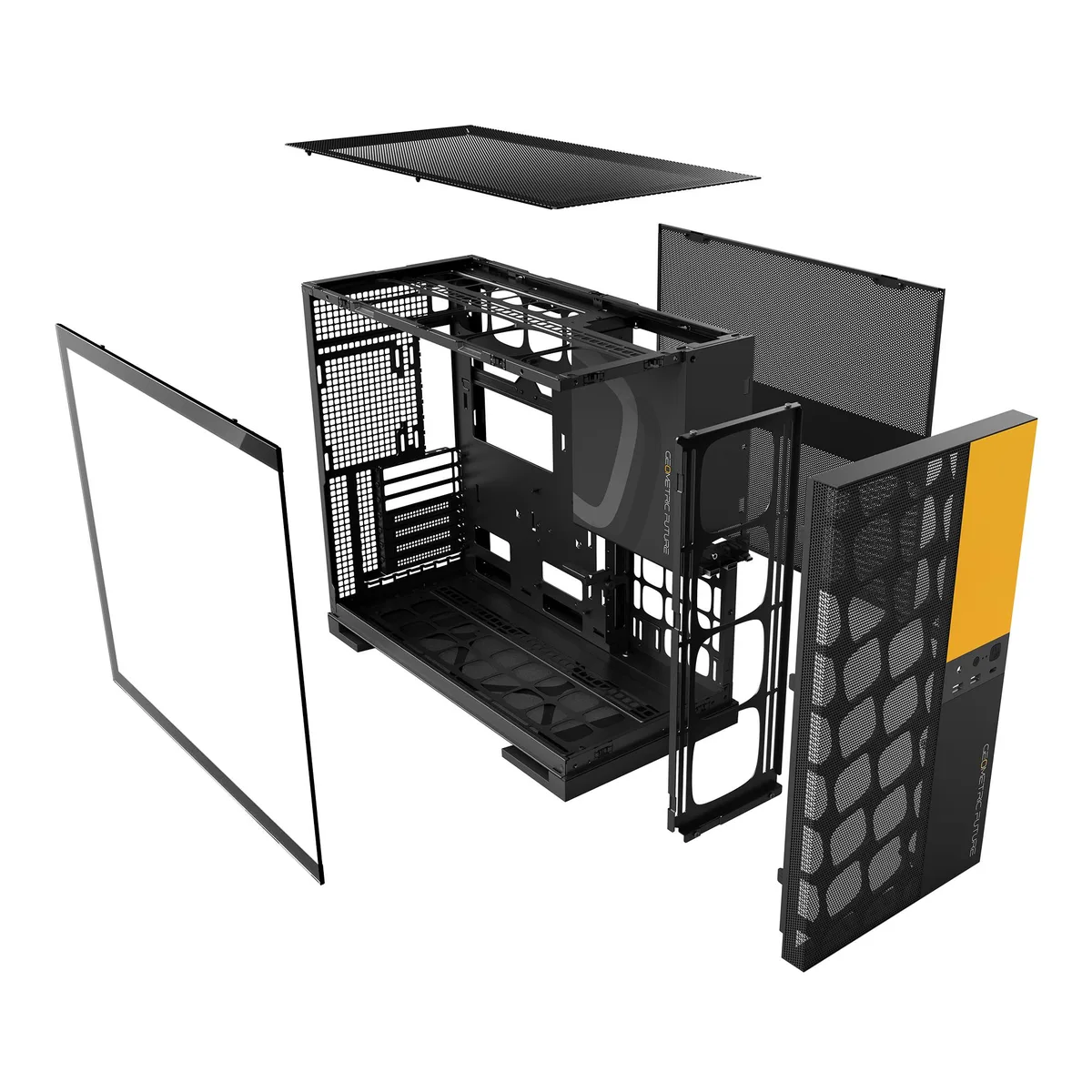

Dual-chamber mid-tower for E-ATX builds

The Geometric Future M5 Vent is a dual-chamber ATX mid-tower finished in black and yellow. It accepts Extended ATX motherboards and graphics cards up to 430 mm long. CPU coolers up to 180 mm tall and power supplies up to 160 mm deep also fit. The layout separates the motherboard tray from the power supply and drive bays for cleaner cable routing.

Mesh front panel rated for 420 mm radiator support

A full-height mesh front panel feeds air directly to intake fans and radiators. The top and front mounts each accept 360 mm or 420 mm radiators, while the bottom takes a 360 mm unit and the rear takes 120 mm or 140 mm. This coverage lets builders run custom loops or large AIOs without changing case geometry.

Thirteen 120 mm fan slots and 1.2 mm steel chassis

Up to 13 x 120 mm fans can be installed across top, bottom, rear, right-front and motherboard-back positions. The entire chassis uses 0.8–1.2 mm thick steel for rigidity. A built-in display platform on the right-front chamber provides a dedicated spot for small screens or decorative items.

Highlights

  • Optimised mesh front panel delivers maximum airflow
  • Supports up to 13 120mm fans for extensive cooling options
  • Dual-chamber design fits 420mm radiators and 430mm GPUs
  • 8-1.2mm steel chassis provides rigid structural integrity
  • Accommodates E-ATX motherboards with 180mm CPU cooler clearance

Specifications

BrandGeometric Future
SeriesM5 Vent
TypeATX Mid Tower
ColorBlack/Yellow
Motherboard CompatibilityExtended ATX
Fan OptionsTop : 120/140mm x 3
Rear : 120 /140mm x1
Right Front : 120/140/160mm x1
Motherboard back : 120mm x2
Bottom : 120/140mm x 3
Radiator OptionsTop : 360/420mm Rad
Rear : 120 /140mm Rad
Bottom : 360mm Rad
Front : 360mm Rad
Max GPU Length430mm
Max CPU Cooler Height180mm
Max PSU Length160mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 430 mm maximum GPU length mean for my build?

It lets you install virtually any modern graphics card, including most triple-fan models, without hitting the front panel or radiator mounts.

How does the dual-chamber layout affect radiator support at the top and bottom?

The top chamber fits a 360 mm or 420 mm radiator, while the bottom chamber accepts a 360 mm radiator, so you can run two thick AIOs simultaneously.

What motherboard form factors and PSU length will physically fit inside?

The case takes Extended ATX boards and power supplies up to 160 mm long, leaving room for cable routing behind the motherboard tray.
