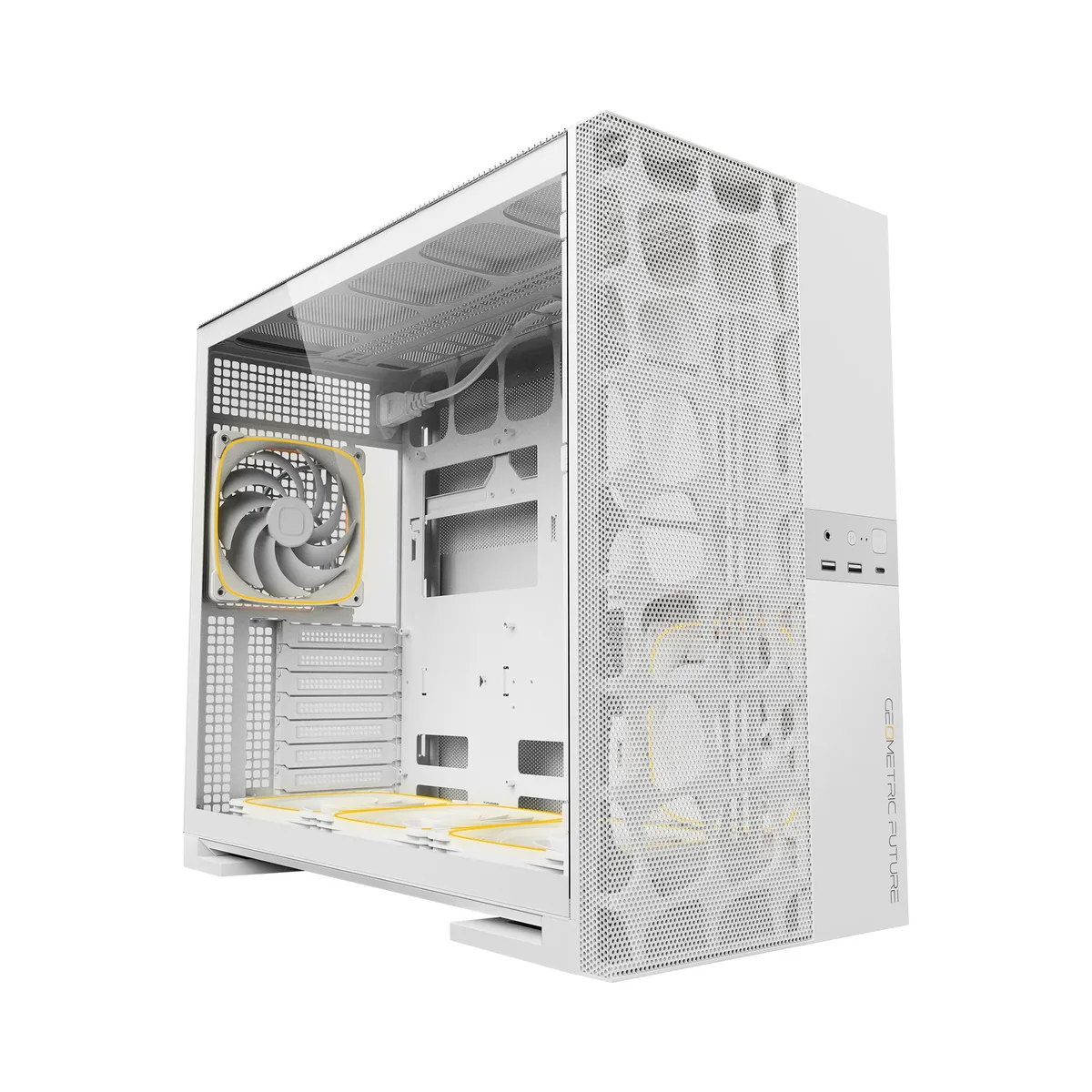

White mid-tower case with mesh front panel and tempered glass side panel

Geometric Future

Geometric Future M5 Vent White PC case

SKU CH-AHHY-198A9

White mid-tower case with mesh front panel, tempered glass, five pre-installed 140mm ARGB PWM fans, E-ATX support, 420mm radiator clearance and 430mm GPU length

  • TypeATX Mid Tower
  • ColorWhite
  • Motherboard CompatibilityExtended ATX
  • Fan OptionsTop : 120/140mm x 3 Rear : 120 /140mm(pre-installed) x1 Righ
  • Radiator OptionsTop : 360/420mm Rad Rear : 120 /140mm Rad Bottom : 360mm Rad
  • 140mm Fans5

Model M5 Vent

Color White / Includes 5 fans

  • Optimized mesh front panel delivers maximum airflow performance
  • Supports 420mm radiator, E-ATX boards and 430mm graphics cards
  • Built-in display platform adds personality and utility
  • Up to 13 x 120mm fans can be installed for extreme cooling
  • 8-1.2mm steel chassis provides rigid, durable construction

Geometric Future M5 Vent White mid-tower case

The Geometric Future M5 Vent White is a mid-tower chassis built from 1.2mm steel with a mesh front panel and tempered glass side panel. It supports Extended ATX motherboards and provides a dual-chamber layout that separates the power supply and drives from the main component area. Five 140mm ARGB PWM fans are pre-installed across the top, rear, front, bottom and motherboard back positions. The white finish suits bright or monochrome builds.

Check motherboard size radiator clearance

Verify that your motherboard fits the Extended ATX mounting pattern before ordering. Measure the chosen CPU cooler against the 180mm maximum height allowance. Confirm that any top or bottom radiator does not exceed 420mm or 360mm respectively. Ensure the power supply length stays within the 160mm limit and that the graphics card length does not surpass 430mm. The front panel uses a USB Type-C connector so check for a matching header on the motherboard.

Pre-installed fans and display platform change

The five pre-installed 140mm ARGB PWM fans deliver immediate high-airflow cooling without extra purchases. Fan mounting points support up to 13 x 120mm fans in total for expanded configurations. A built-in display platform lets you show small items or custom panels inside the tempered glass window. The dual-chamber design routes cables behind the motherboard tray for a cleaner interior appearance.

Highlights

  • Optimized mesh front panel delivers maximum airflow performance
  • Supports 420mm radiator, E-ATX boards and 430mm graphics cards
  • Built-in display platform adds personality and utility
  • Up to 13 x 120mm fans can be installed for extreme cooling
  • 8-1.2mm steel chassis provides rigid, durable construction

Specifications

BrandGeometric Future
SeriesM5 Vent
TypeATX Mid Tower
ColorWhite
Motherboard CompatibilityExtended ATX
Fan OptionsTop : 120/140mm x 3
Rear : 120 /140mm(pre-installed) x1
Right Front : 120/140(pre-installed)/160mm x1
Motherboard back : 120mm x2
Bottom : 120/140mm(pre-installed) x 3
Radiator OptionsTop : 360/420mm Rad
Rear : 120 /140mm Rad
Bottom : 360mm Rad
Front : 360mm Rad
140mm Fans5
Max GPU Length430mm
Max CPU Cooler Height180mm
Max PSU Length160mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes inside the box and which parts must I buy separately?

The M5 Vent ships with five pre-installed 140 mm ARGB PWM fans, tempered-glass side panels and the steel chassis; you still need to supply the motherboard, power supply, graphics card, CPU cooler, storage drives and any extra fans beyond the 13 total slots.

Which radiator size should I pick for the top mount — 360 mm or 420 mm?

Both fit the top bracket, but the 420 mm radiator uses the full width and gives more surface area for high-wattage CPUs, while the 360 mm leaves a little extra clearance for tall motherboard heatsinks or cable routing.

What does the 430 mm maximum GPU length mean for my build?

It means virtually any current triple-slot graphics card will fit with room to spare, so you can install a flagship model without worrying about it hitting the front radiator or the PSU shroud.
