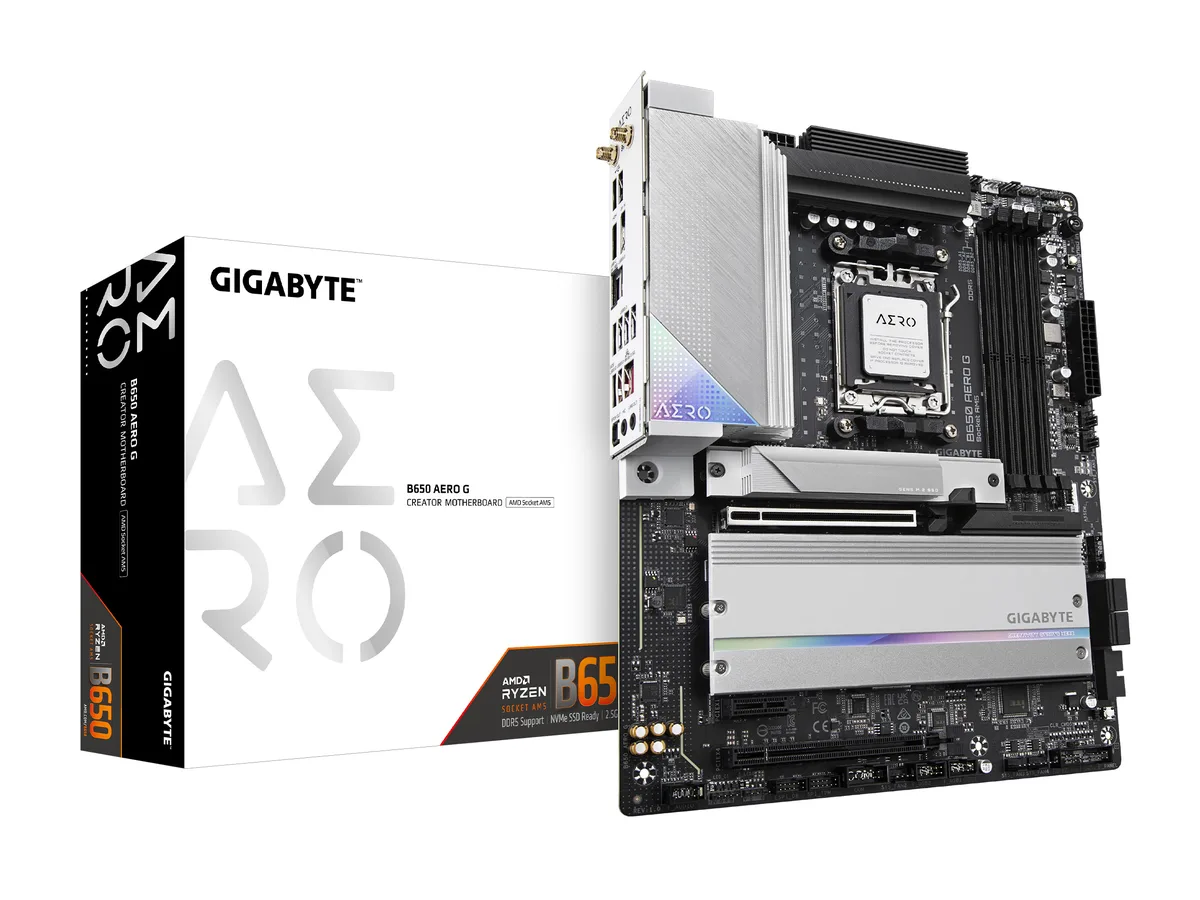

ATX motherboard in silver and white finish with four DDR5 slots and multiple M.2 heatsinks

GIGABYTE

GIGABYTE B650 AERO G AMD motherboard

SKU CH-H3Z2-557M7 MPN B650 AERO G

ATX board for AM5 Ryzen 7000, 8000 and 9000 CPUs with DDR5 up to 6600 MHz, PCIe 5.0 M.2, Wi-Fi 6E and Intel 2.5GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) /
  • Maximum Memory Supported128GB

Option B650 AERO G

Struck-through versions exist but are not stocked here.

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs
  • Four DDR5 slots reach 6600 MHz with EXPO and XMP 3.0 profiles
  • PCIe 5.0 M.2 slot and PCIe 5.0 x16 graphics slot enable next-gen bandwidth
  • Intel 2.5 GbE LAN plus Wi-Fi 6E deliver fast wired and wireless networking
  • EZ-Latch quick-release makes GPU and M.2 installation tool-free

Socket AM5 DDR5 Platform

The GIGABYTE B650 AERO G is an ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 series processors. It uses the B650 chipset and provides four DDR5 slots that support up to 128GB of memory with AMD EXPO and Intel XMP 3.0 profiles.

Builders Who Need PCIe 5.0 Storage and 2.5GbE

This board suits enthusiasts who want a PCIe 5.0 M.2 slot for the fastest NVMe drives and integrated Intel 2.5GbE LAN plus Wi-Fi 6E. Users requiring more than four SATA ports or a larger E-ATX form factor should consider other models.

One PCIe 5.0 M.2 Slot From The CPU

The CPU-linked M.2 connector delivers PCIe 5.0 x4 bandwidth for a single high-performance SSD. A second M.2 slot runs at PCIe 4.0 x4, and the primary PCIe x16 graphics slot operates at PCIe 4.0 x16.

Highlights

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs
  • Four DDR5 slots reach 6600 MHz with EXPO and XMP 3.0 profiles
  • PCIe 5.0 M.2 slot and PCIe 5.0 x16 graphics slot enable next-gen bandwidth
  • Intel 2.5 GbE LAN plus Wi-Fi 6E deliver fast wired and wireless networking
  • EZ-Latch quick-release makes GPU and M.2 installation tool-free

Specifications

BrandGIGABYTE
ModelB650 AERO G (rev.1.0)
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 4.0 x16CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
PCI Express 3.0 x161 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
* Actual support may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
SATA RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio ChipsetRealtek® ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.
Audio Channels2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Max LAN Speed2.5Gbps
Wireless LANAMD Wi-Fi 6E RZ616 (MT7922A22M)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsSupport for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
BluetoothBluetooth 5.2

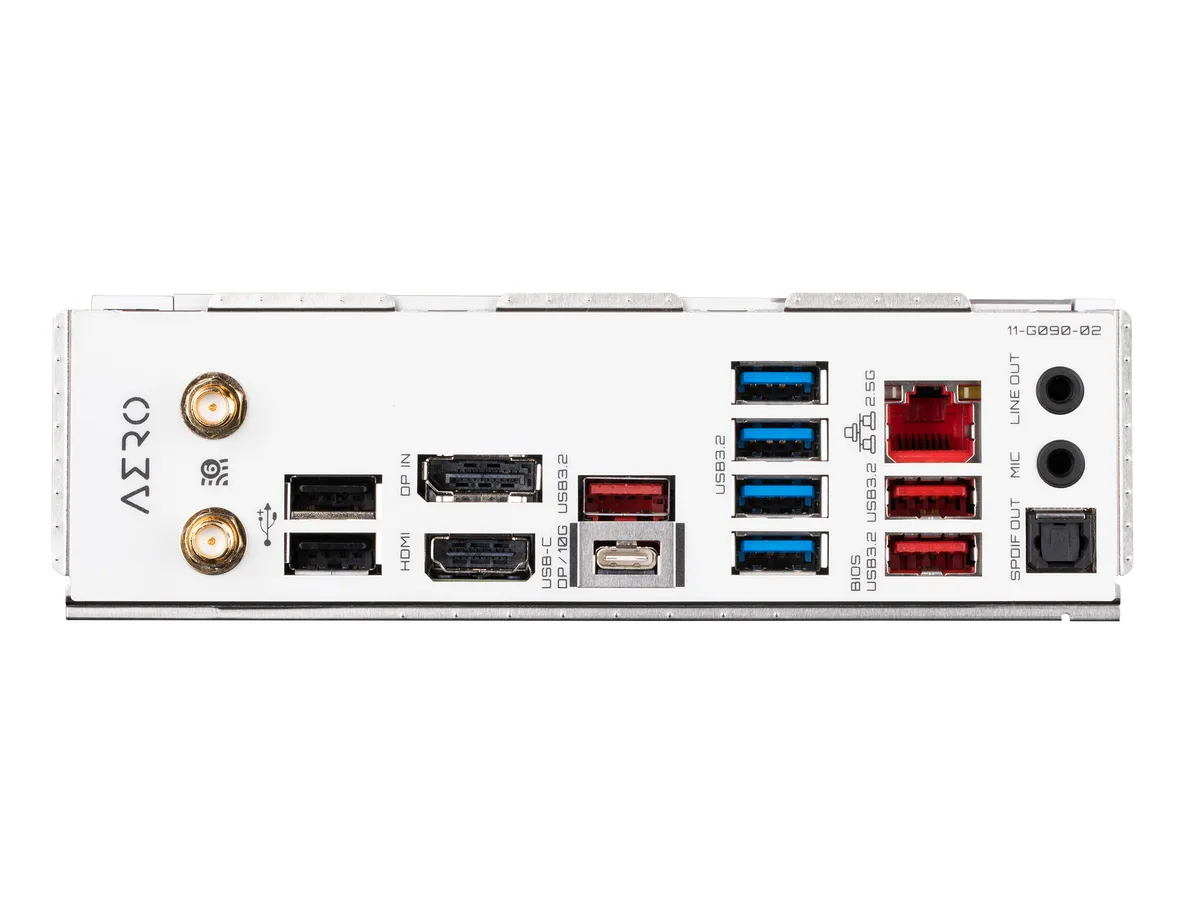

Back I/O Ports2 x SMA antenna connectors (2T2R)
2 x USB 2.0/1.1 ports
1 x DisplayPort In port
1 x HDMI 2.0 port
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x audio jacks
1 x optical S/PDIF Out connector
Other Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x THB_U4 add-in card conne
Form FactorATX
LED LightingRGB
Dimensions (W x L)30.5cm x 24.4cm
Windows 11Support for Windows 11 64-bit
Support for Windows 10 64-bit
FeaturesAMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors
VisionLINK: One USB-C® Port for Video, Data Transfer and Charging
Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Next Generation Storage:1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks: Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity: DP IN, HDMI, Front USB-C® 20Gbps Support and Up
Shipping weight2.54 kg
Package size335 × 271 × 80 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will a Ryzen 9000 series processor fit this board?

The AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs without a BIOS update.

Can I run four DDR5 sticks at 6000 MHz?

Four 288-pin slots accept up to 128 GB; 6000 MHz is a listed OC profile, so enable EXPO or XMP in BIOS.

Does the primary M.2 slot use PCIe 5.0 directly from the CPU?

Yes, the M2A_CPU connector is wired to the CPU for PCIe 5.0 x4 NVMe drives up to 2280 length.
