Green rectangular mATX motherboard with four DDR5 slots and silver PCIe slot

GIGABYTE

GIGABYTE B650M C V3-Y1 AMD motherboard

SKU CH-NJ48-N3W03 MPN B650M C V3-Y1

Micro-ATX AM5 board with four DDR5 slots up to 192 GB, one PCIe 4.0 x16 slot, three M.2 connectors, 1 GbE LAN and USB 3.2 Gen 1 Type-C

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported192GB

Option B650M C V3-Y1

Struck-through versions exist but are not stocked here.

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs
  • 5+2+2 phase digital VRM delivers stable power for high loads
  • Four DDR5 slots take up to 192 GB with EXPO and XMP 3.0
  • Three M.2 connectors include one PCIe 4.0 x4 and two PCIe 3.0 x2
  • PCIe 4.0 x16 slot features EZ-Latch quick release for easy GPU swaps

AM5 Socket for Ryzen 7000, 8000, 9000 Series

The GIGABYTE B650M C V3-Y1 is a micro-ATX motherboard built around the AMD B650 chipset and the AM5 LGA 1718 socket. It accepts Ryzen 7000, Ryzen 8000 and Ryzen 9000 series processors. Four DDR5 DIMM slots support up to 192 GB of memory with dual-channel architecture. The board targets builders who want a compact platform for modern AMD CPUs.

Q-Flash Plus and EZ-Latch Simplify Build and

Q-Flash Plus lets you update the BIOS without installing a CPU, memory or graphics card, using a dedicated USB port on the rear I/O. The PCIe x16 slot features an EZ-Latch quick-release mechanism so a graphics card can be removed with one hand. Three M.2 connectors — one PCIe 4.0 x4 from the CPU, one PCIe 3.0 x2 from the CPU and one from the chipset — plus four SATA 6 Gb/s ports give flexible storage options.

5+2+2 Phase Digital VRM and 1 GbE LAN

A 5+2+2 phase digital VRM solution delivers power to the CPU socket. Realtek ALC897 provides 7.1-channel audio output. The rear panel includes a 1 Gbps Ethernet port, USB 3.2 Gen 1 Type-C, DisplayPort and HDMI for integrated graphics. Wi-Fi 6 802.11ax is also supported. The board uses standard micro-ATX mounting holes for chassis compatibility.

Highlights

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs
  • 5+2+2 phase digital VRM delivers stable power for high loads
  • Four DDR5 slots take up to 192 GB with EXPO and XMP 3.0
  • Three M.2 connectors include one PCIe 4.0 x4 and two PCIe 3.0 x2
  • PCIe 4.0 x16 slot features EZ-Latch quick release for easy GPU swaps

Specifications

BrandGIGABYTE
ModelB650M C V3 (rev. 1.0)
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Memory FeatureSupport for DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
PCI Express 4.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16Chipset:
- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580/25110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x2 SSD support) (M2P_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2260 PCIe 3.0 x1 SSD support) (M2X_SB)
SATA RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ax

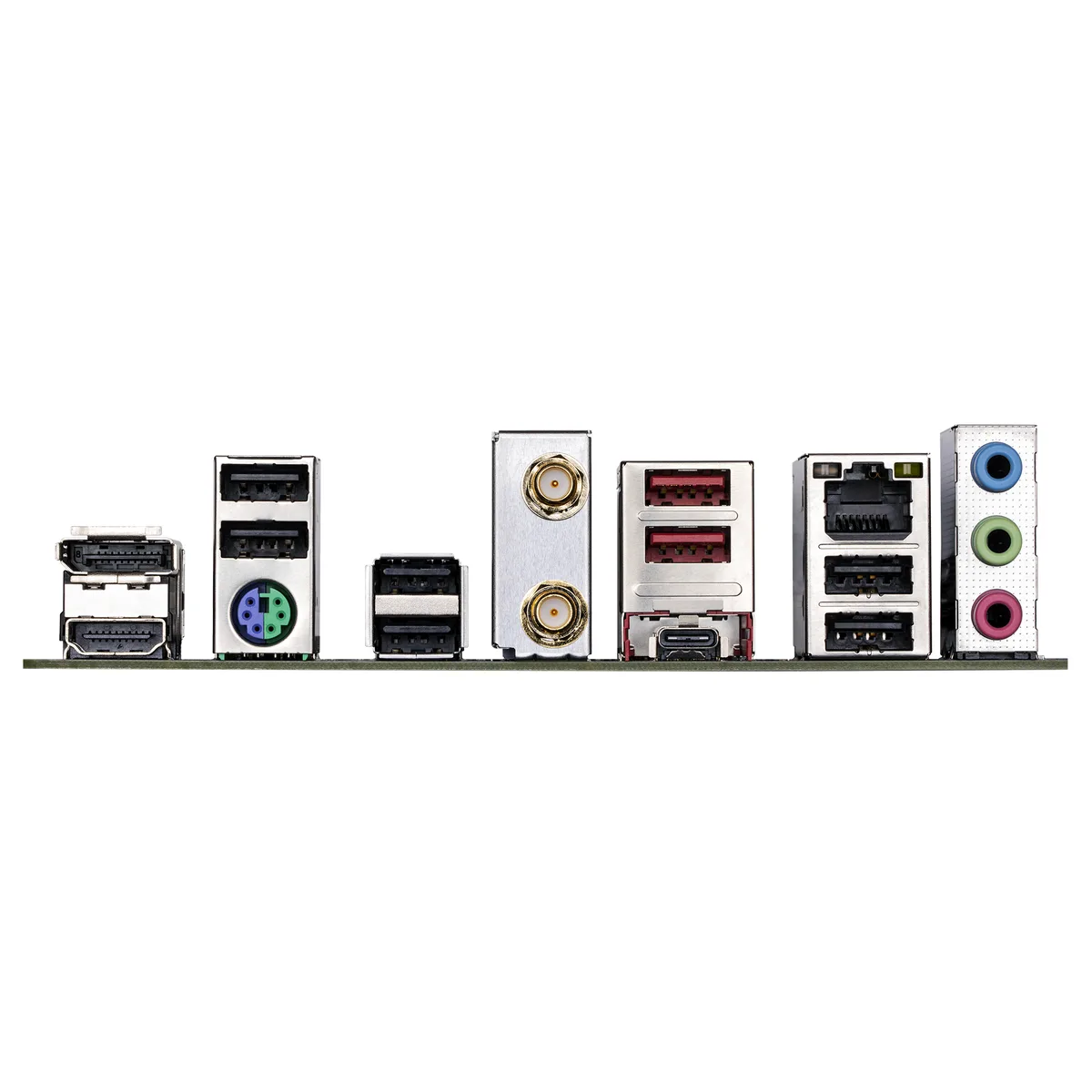

Back I/O Ports1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Q-Flash Plus button
1 x serial port header
1 x Clear CMOS jumper
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Support for Windows 11 64-bit
Support for Windows 10 64-bit
Shipping weight1.36 kg
Package size269 × 267 × 66 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often will the 5+2+2 phases digital VRM need inspection or replacement under normal use?

The VRM is a solid-state power delivery circuit with no moving parts and no scheduled service interval; it lasts for the board's usable life unless physical damage occurs.

What is the first bandwidth limit reached when all three M.2 slots run sustained PCIe 4.0 x4 transfers?

The chipset provides only PCIe 3.0 x1 lanes to two of the M.2 connectors, so those slots saturate at PCIe 3.0 x2 speeds before the CPU-attached PCIe 4.0 x4 slot reaches its ceiling.

How loud does the chipset fan get and how much extra heat does the 1 GbE LAN add during all-day operation?

The board uses a fanless chipset heatsink and the 1 GbE controller draws minimal power, so acoustic output stays at case-airflow level and added heat is negligible.
