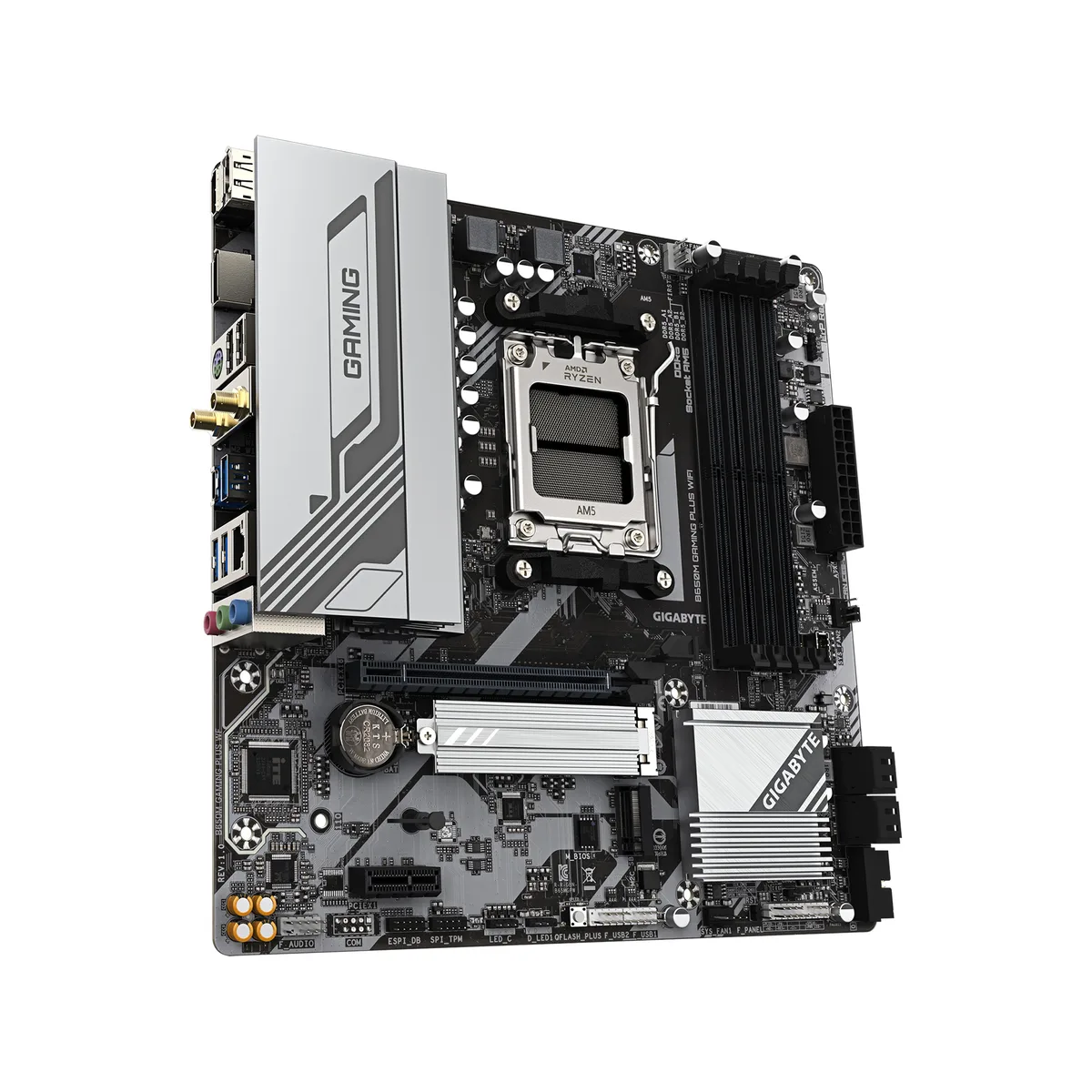

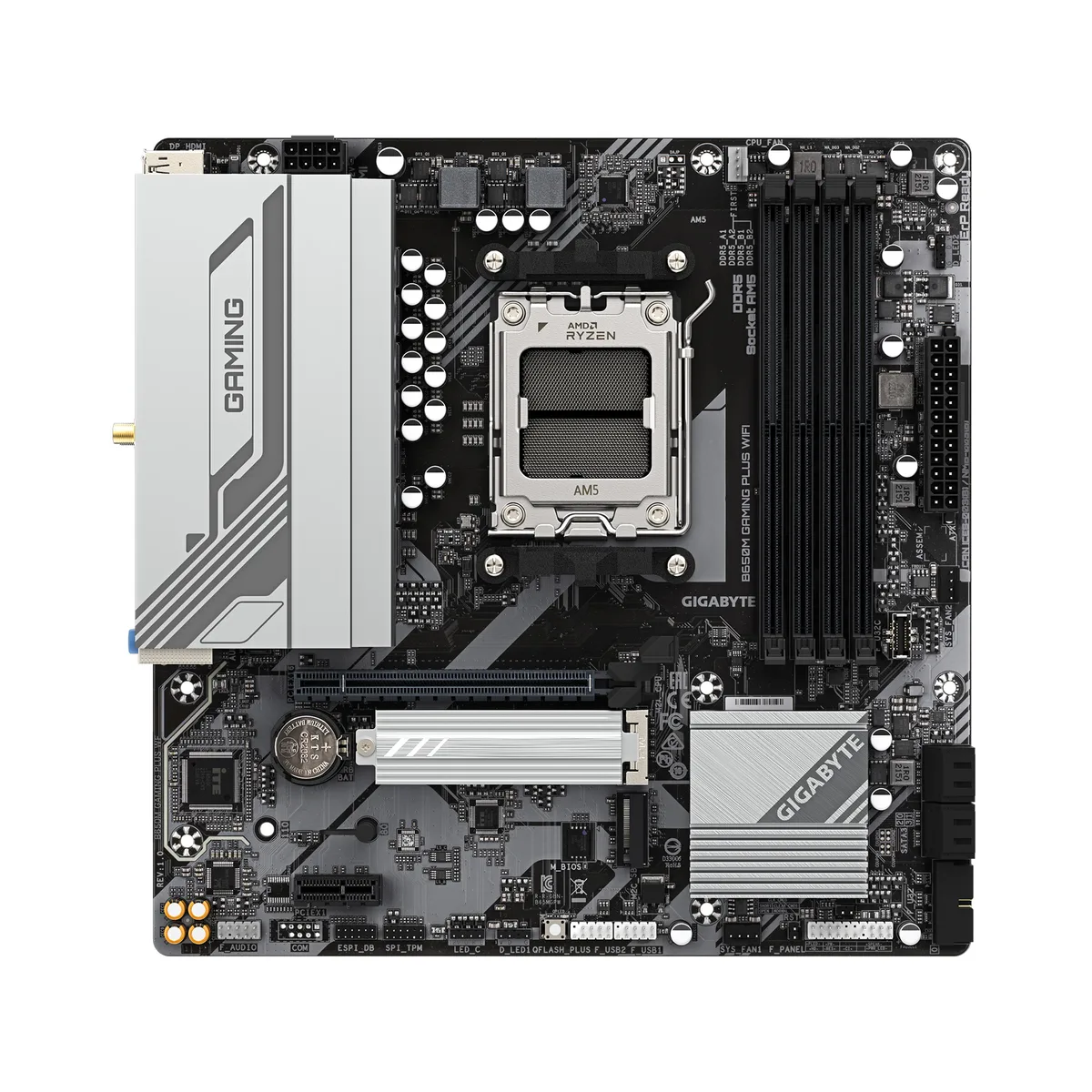

Compact micro-ATX board, dark PCB, silver heatsinks, four DDR5 slots, single PCIe x16, M.2 shield, rear I/O with Wi-Fi antennas

GIGABYTE

GIGABYTE B650M GAMING PLUS WIFI AMD motherboard

SKU CH-4YAR-FAK1A MPN B650M GAMING PLUS WIFI

Micro-ATX board for AM5 Ryzen 7000, 8000 and 9000 CPUs with four DDR5 slots up to 192 GB, PCIe 4.0 M.2, 2.5 GbE LAN and Wi-Fi 6E

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(
  • Maximum Memory Supported192GB

Option B650M GAMING PLUS WIFI

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series on AM5 socket
  • 5+2+2 phase digital VRM delivers stable power for overclocking
  • Four DDR5 slots accept up to 192 GB with EXPO and XMP profiles
  • PCIe 4.0 x4 M.2 and USB 3.2 Gen 1 Type-C for fast storage and peripherals
  • Wi-Fi 6E and 2.5 GbE LAN provide high-speed wired and wireless networking

AM5 Platform Foundation

The GIGABYTE B650M GAMING PLUS WIFI is a micro-ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 series processors on socket AM5. It targets builders who want a compact board with current-generation I/O and wireless connectivity.

DDR5 Capacity and Speed Headroom

Four 288-pin slots support up to 192 GB of DDR5 with a 48 GB per-module ceiling. AMD EXPO profiles reach 7600 MT/s while base operation starts at 4400 MT/s, giving wide headroom for memory tuning. Dual-channel architecture handles mainstream workloads comfortably; extreme overclocks beyond the validated range will hit stability limits first.

Connectivity and Build Practicalities

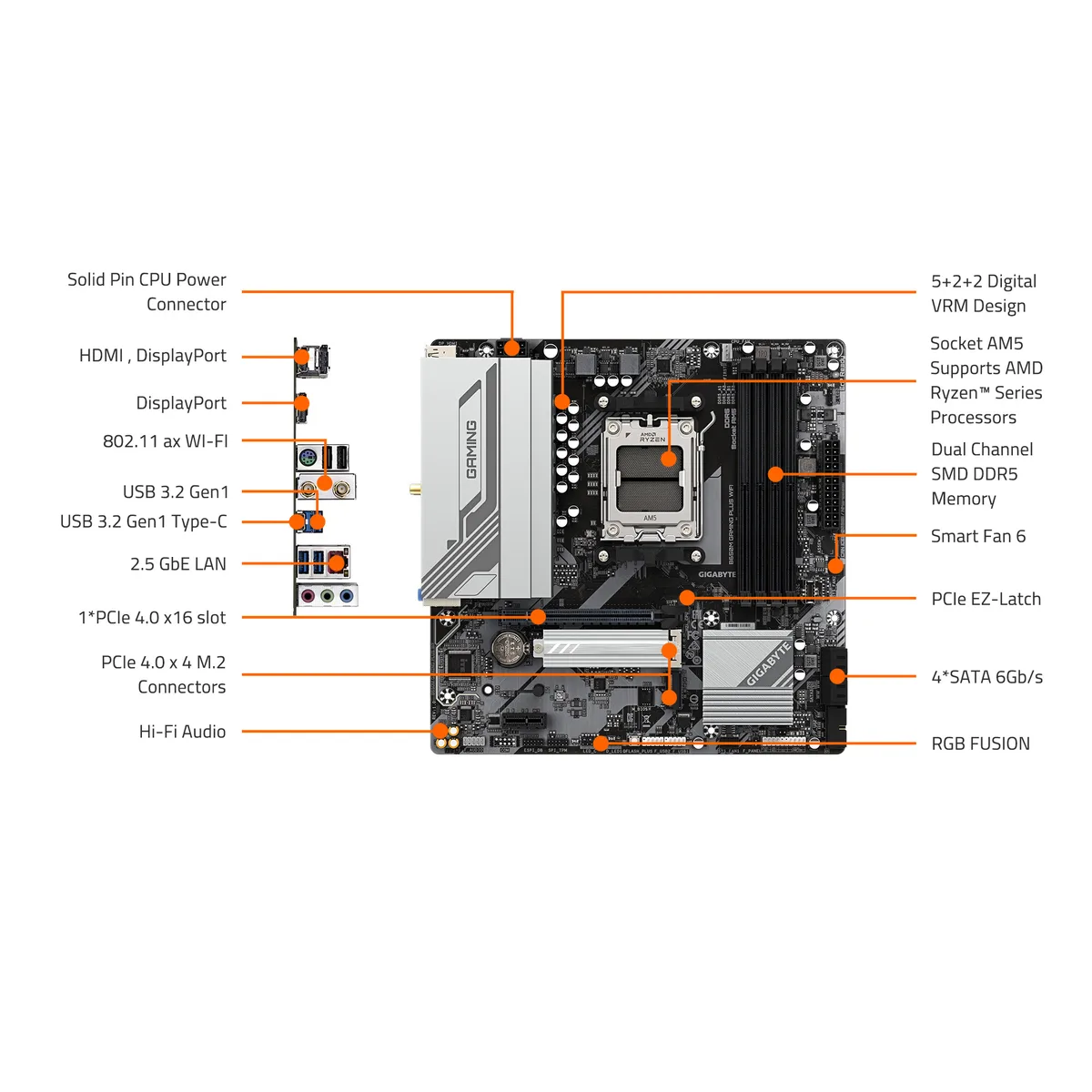

A 5+2+2 phase digital VRM delivers clean power for sustained operation. One PCIe 4.0 x16 slot and one PCIe 4.0 x4 M.2 2580 connector come from the CPU, plus four SATA 6 Gb/s ports. Rear I/O includes USB 3.2 Gen 1 Type-C, 2.5 GbE LAN and Wi-Fi 6E (802.11 ax). EZ-Latch quick release on the graphics slot and Q-Flash Plus for BIOS updates without a CPU simplify assembly and maintenance.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series on AM5 socket
  • 5+2+2 phase digital VRM delivers stable power for overclocking
  • Four DDR5 slots accept up to 192 GB with EXPO and XMP profiles
  • PCIe 4.0 x4 M.2 and USB 3.2 Gen 1 Type-C for fast storage and peripherals
  • Wi-Fi 6E and 2.5 GbE LAN provide high-speed wired and wireless networking

Specifications

BrandGIGABYTE
ModelB650M GAMING PLUS WIFI
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
Memory Feature4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
Memory Profile (XMP) memory modules
PCI Express 4.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
PCI Express x11 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
SATA RAIDRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Additional RAID ControllerRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBLUETOOTH 5.3

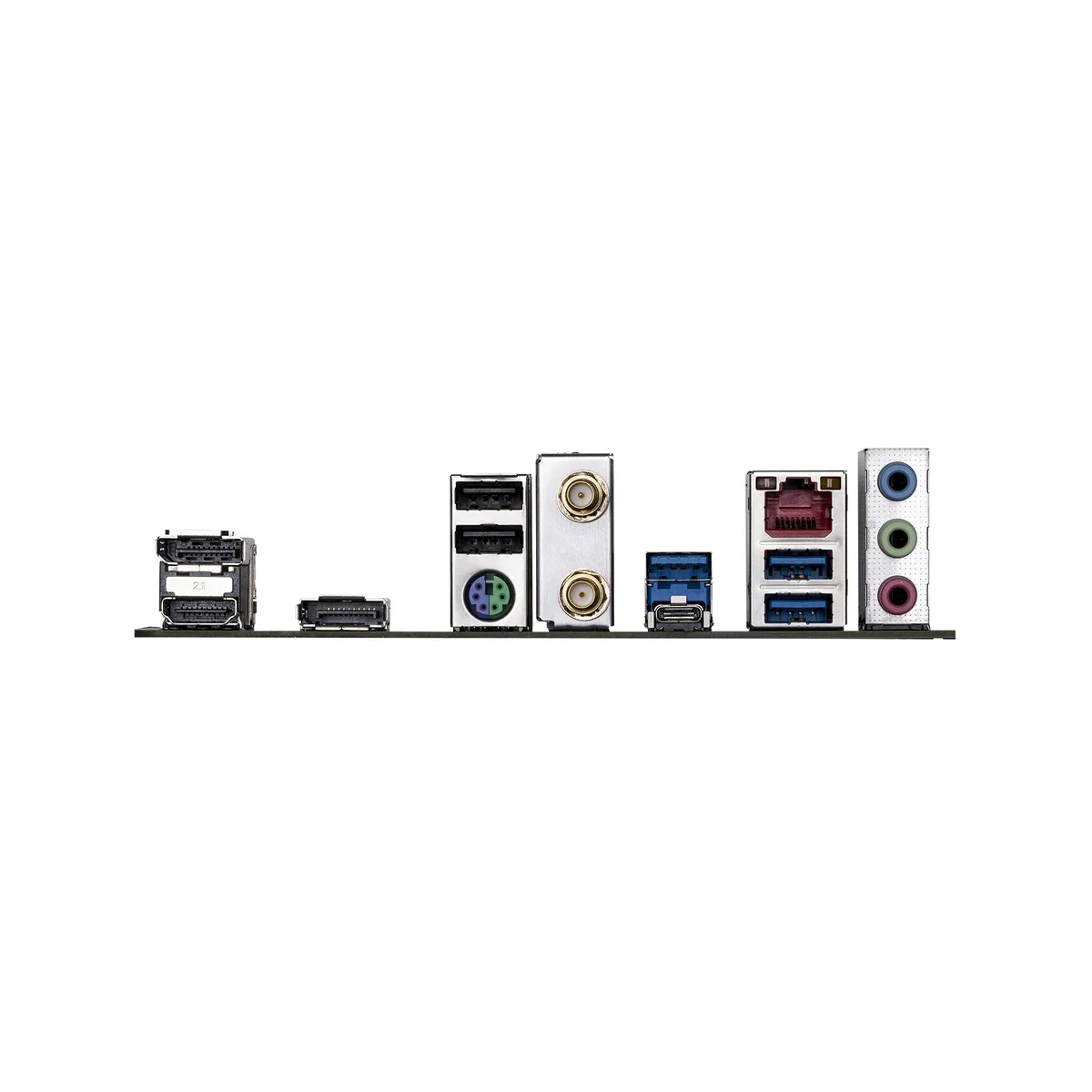

Back I/O Ports1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
2 x SMA antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Support for Windows 11 64-bit
Support for Windows 10 64-bit
FeaturesSupport for GIGABYTE Control Center
Support for Q-Flash
Support for Q-Flash Plus
Shipping weight1.43 kg
Package size276 × 268 × 70 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Can I reuse my current DDR5 modules with the B650M GAMING PLUS WIFI?

The board has four 288-pin DDR5 slots supporting speeds from 4800 up to 7600 MT/s via AMD EXPO or Intel XMP profiles, with a maximum capacity of 192 GB.

How can I confirm the Wi-Fi 6E and 2.5 GbE LAN are active after building the system?

In Windows Device Manager the wireless adapter will appear as Wi-Fi 6E (802.11ax) and the wired adapter will show a 2.5 Gbps link speed when connected to a compatible switch.

Which cables or antennas are included in the box for the B650M GAMING PLUS WIFI?

The package supplies the Wi-Fi 6E antenna, SATA cables for the four 6 Gb/s ports, and the I/O shield; M.2 mounting screws are pre-installed on the board.
