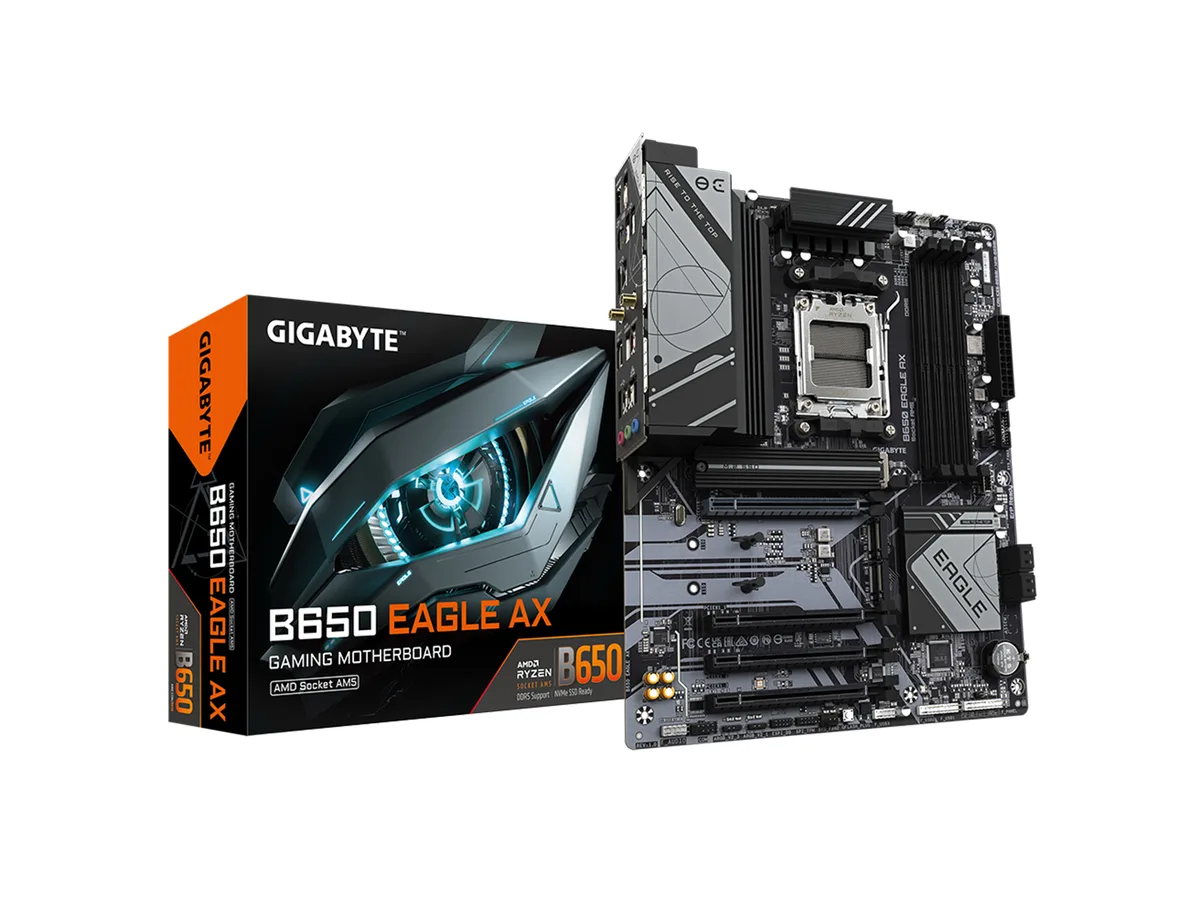

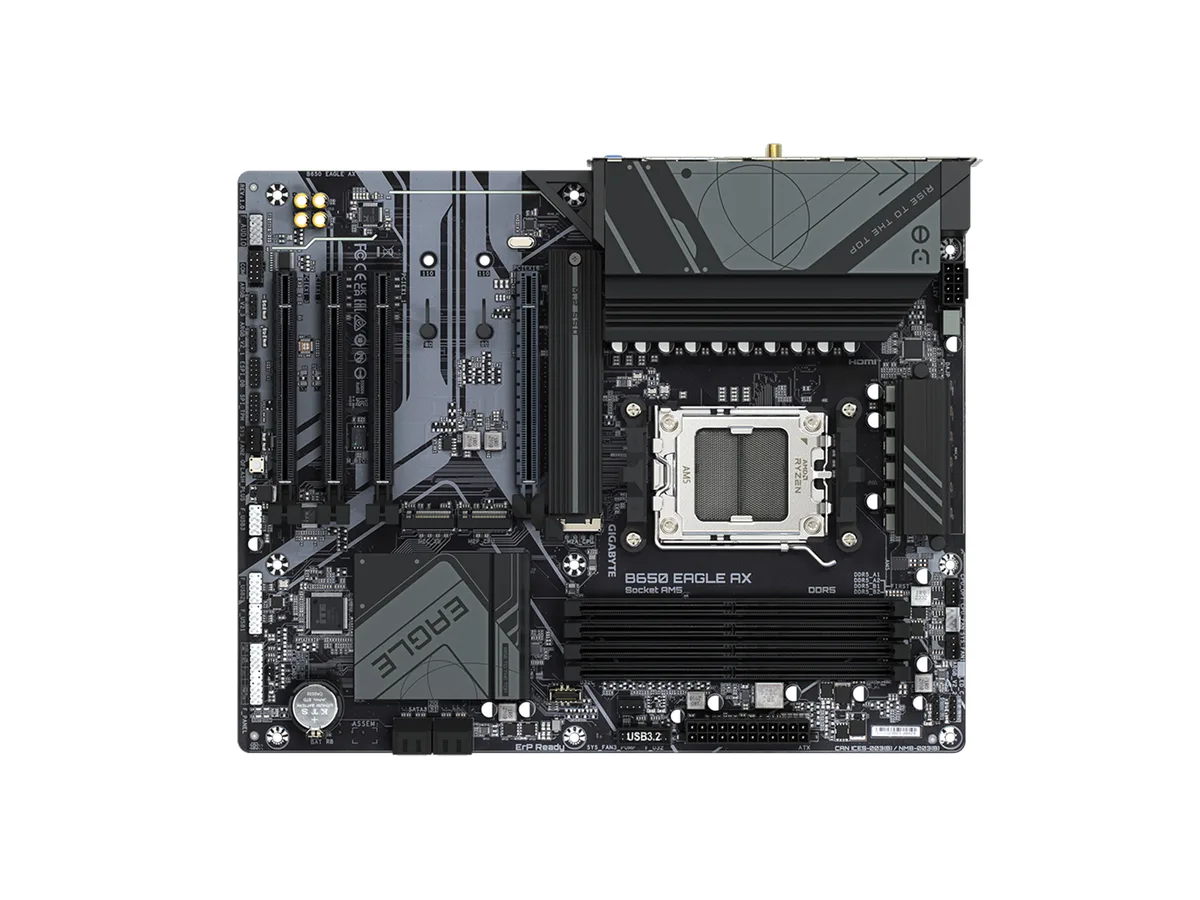

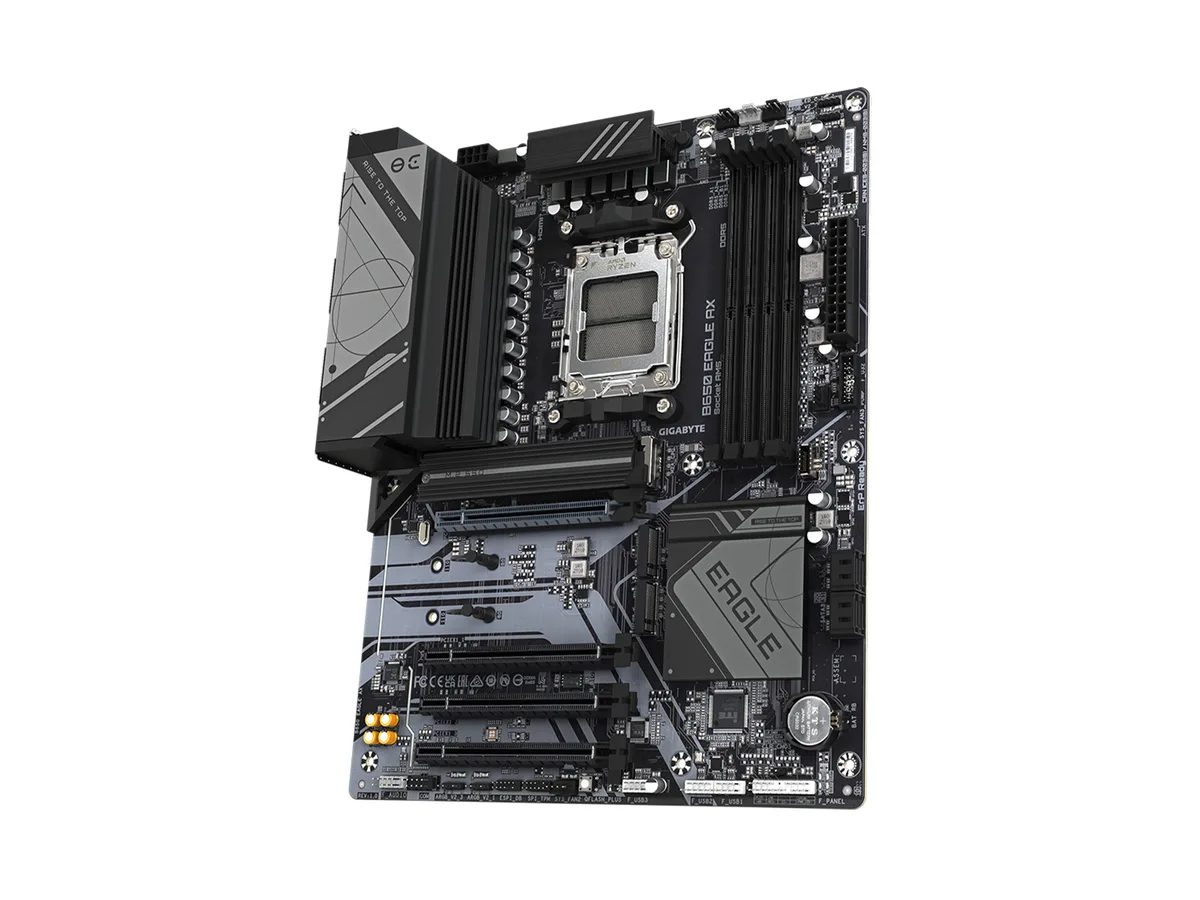

ATX motherboard in dark grey with silver heatsinks and white Eagle branding

GIGABYTE

GIGABYTE B650 EAGLE AX AMD motherboard

SKU CH-5AQX-CDRQY MPN B650 EAGLE AX

ATX board for AM5 Ryzen 7000, 8000 and 9000 CPUs with four DDR5 slots up to 192 GB, 12+2+2 phase digital VRM, one PCIe 5.0 and two PCIe 4.0 M.2 sockets, USB 3.2 Gen 2×2 Type-C, Wi-Fi 6E and 1 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported192GB

Option B650 EAGLE AX

Struck-through versions exist but are not stocked here.

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs
  • 12+2+2 phase digital VRM delivers stable power to the processor
  • Four DDR5 slots up to 192 GB with EXPO and XMP support
  • One PCIe 5.0 and two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 6E and 1 GbE LAN provide quick network connectivity

AM5 Platform for Ryzen 7000 8000 9000

This ATX motherboard uses the AMD B650 chipset and the AM5 socket to support Ryzen 7000 8000 and 9000 series processors. Four DDR5 slots accept up to 192GB of memory running at 5200 with EXPO and XMP profiles. A 12+2+2 phase digital VRM delivers stable power for multi-core workloads.

Builders Who Need PCIe 5.0 Storage and Wi-Fi 6E

The board suits users who want a single PCIe 5.0 M.2 slot plus two PCIe 4.0 M.2 slots for fast NVMe drives. Integrated AMD Wi-Fi 6E and 1GbE LAN cover modern wireless and wired needs. Builders requiring more than one full-length PCIe 5.0 x16 slot or 10GbE should consider other chipsets.

EZ-Latch PCIe and Q-Flash Plus Simplify Assembly

A quick-release latch on the primary PCIe x16 slot makes graphics card swaps tool-free. M.2 heatsinks clip on without screws. Q-Flash Plus lets you update the BIOS using only a USB drive and standby power — no CPU memory or GPU required. Smart Fan 6 adds hybrid headers with automatic stop for quieter operation.

Highlights

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs
  • 12+2+2 phase digital VRM delivers stable power to the processor
  • Four DDR5 slots up to 192 GB with EXPO and XMP support
  • One PCIe 5.0 and two PCIe 4.0 M.2 slots for fast storage
  • Wi-Fi 6E and 1 GbE LAN provide quick network connectivity

Specifications

BrandGIGABYTE
ModelB650 EAGLE AX
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Memory FeatureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
Memory Profile (XMP) memory modules
PCI Express 4.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x163 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used.
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors su
SATA RAIDRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Additional RAID ControllerRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Audio Channels7.1 Channels
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ax

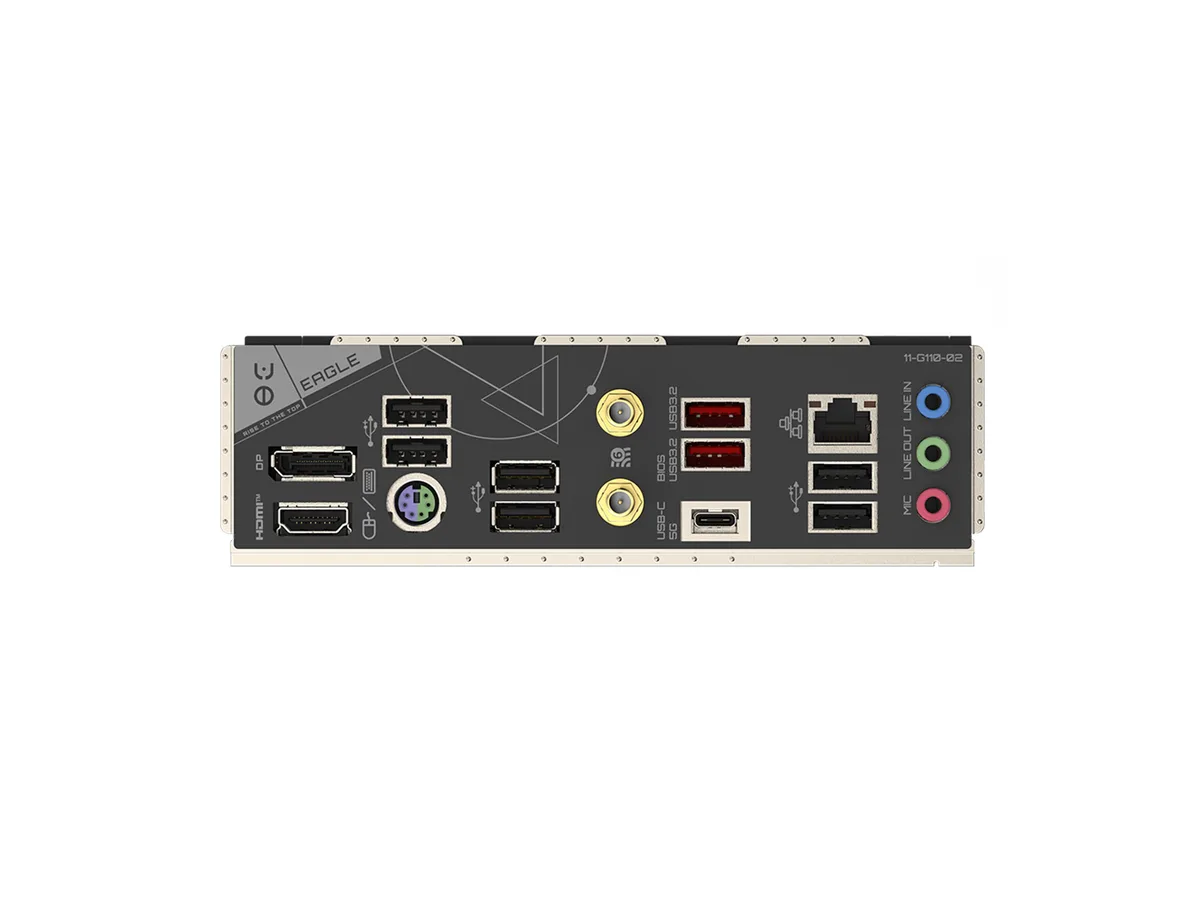

Back I/O Ports1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x serial port header j
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11Support for Windows 11 64-bit
Support for Windows 10 64-bit
Shipping weight1.94 kg
Package size332 × 267 × 79 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need to buy DDR5 memory modules for this motherboard?

Yes, the board has four 288-pin DDR5 slots supporting up to 192 GB in dual-channel mode.

Will my existing PCIe 4.0 graphics card run at full speed in the primary slot?

The PCIEX16 slot is wired for PCIe 4.0 x16 with Ryzen 7000 series CPUs and PCIe 4.0 x8 with Ryzen 8000 series Phoenix 1 CPUs.

How can I confirm the M.2 SSD is running at PCIe 5.0 speeds after installation?

Check the BIOS storage information or use a system utility to verify the M2A_CPU slot reports a PCIe 5.0 x4 link when a Ryzen 7000 series processor is installed.
