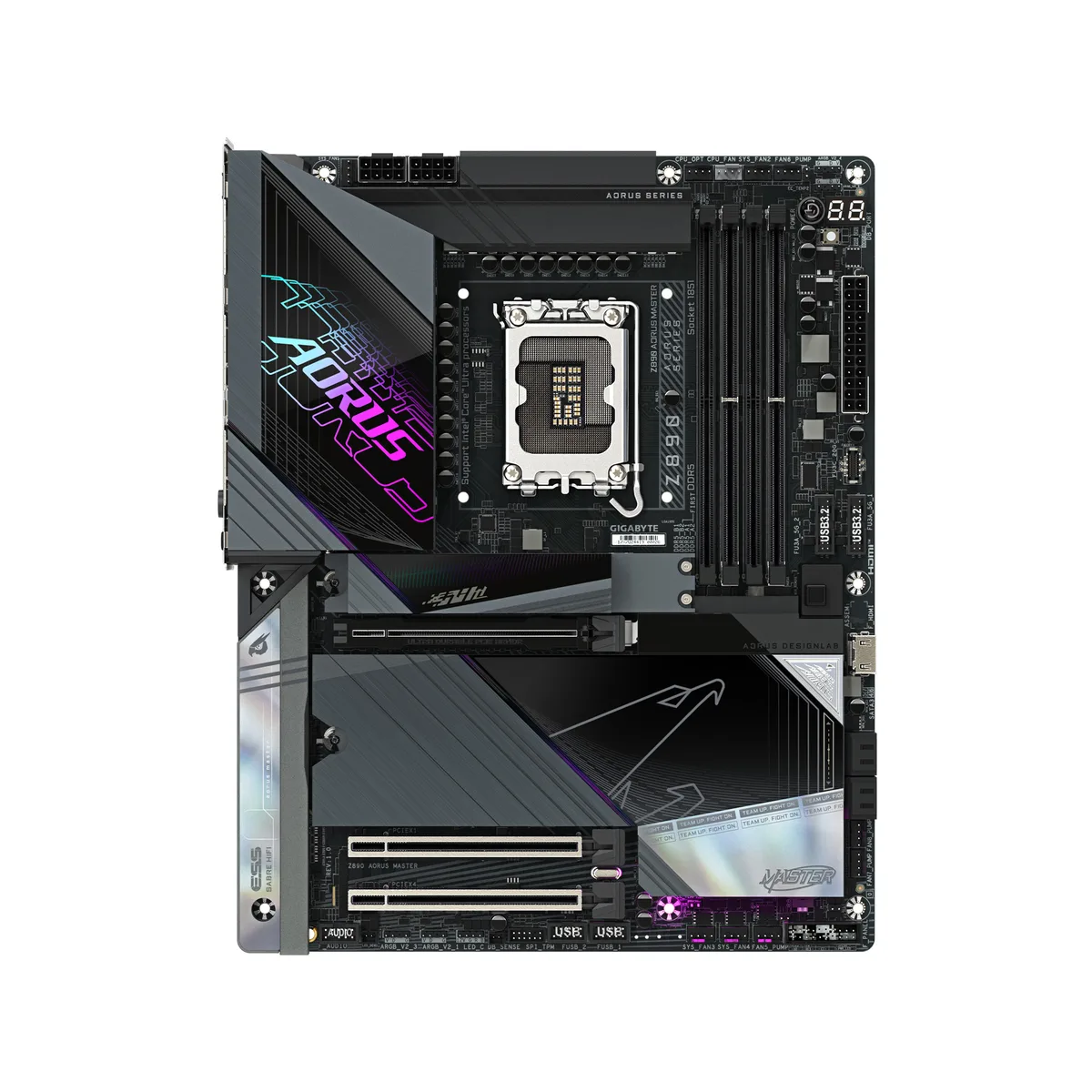

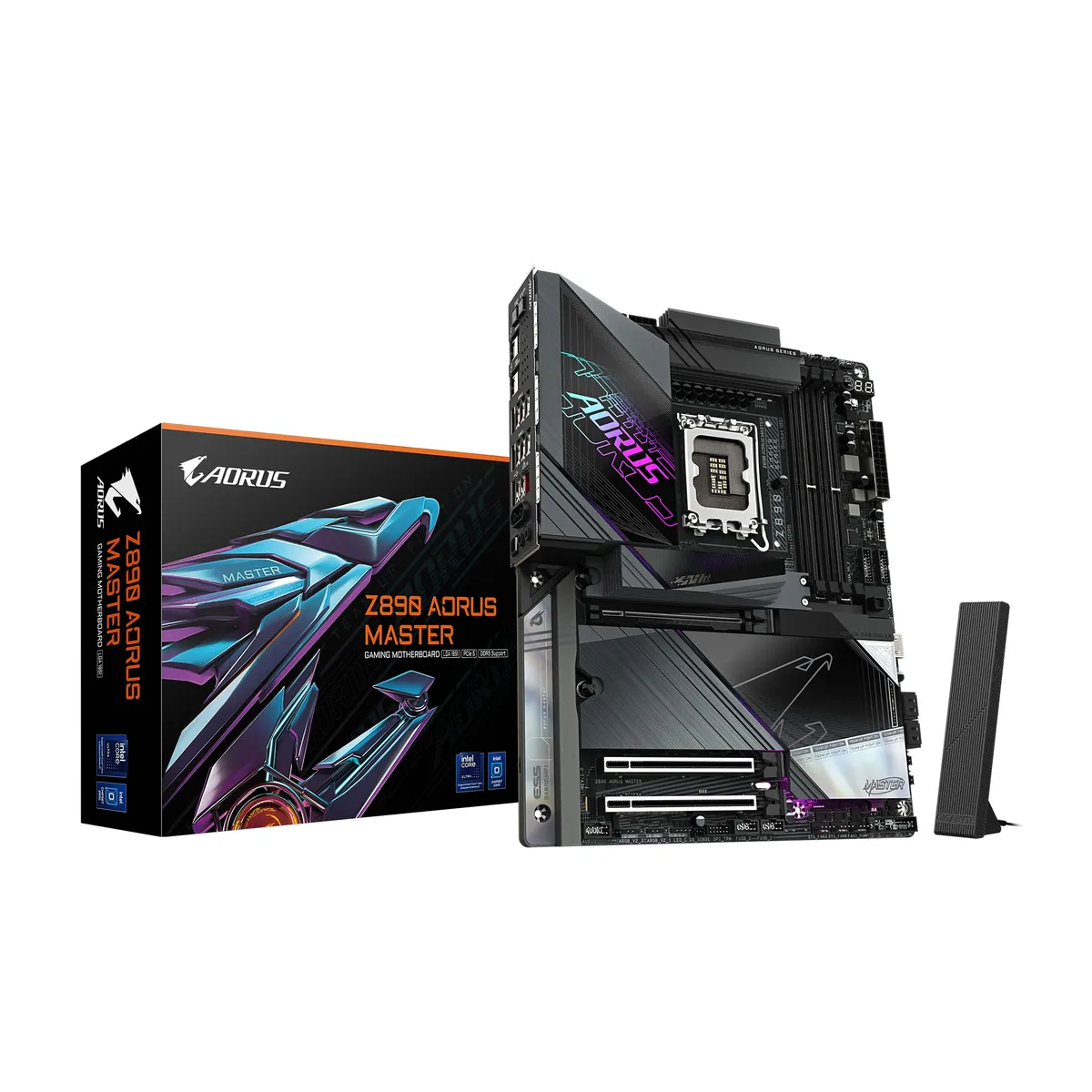

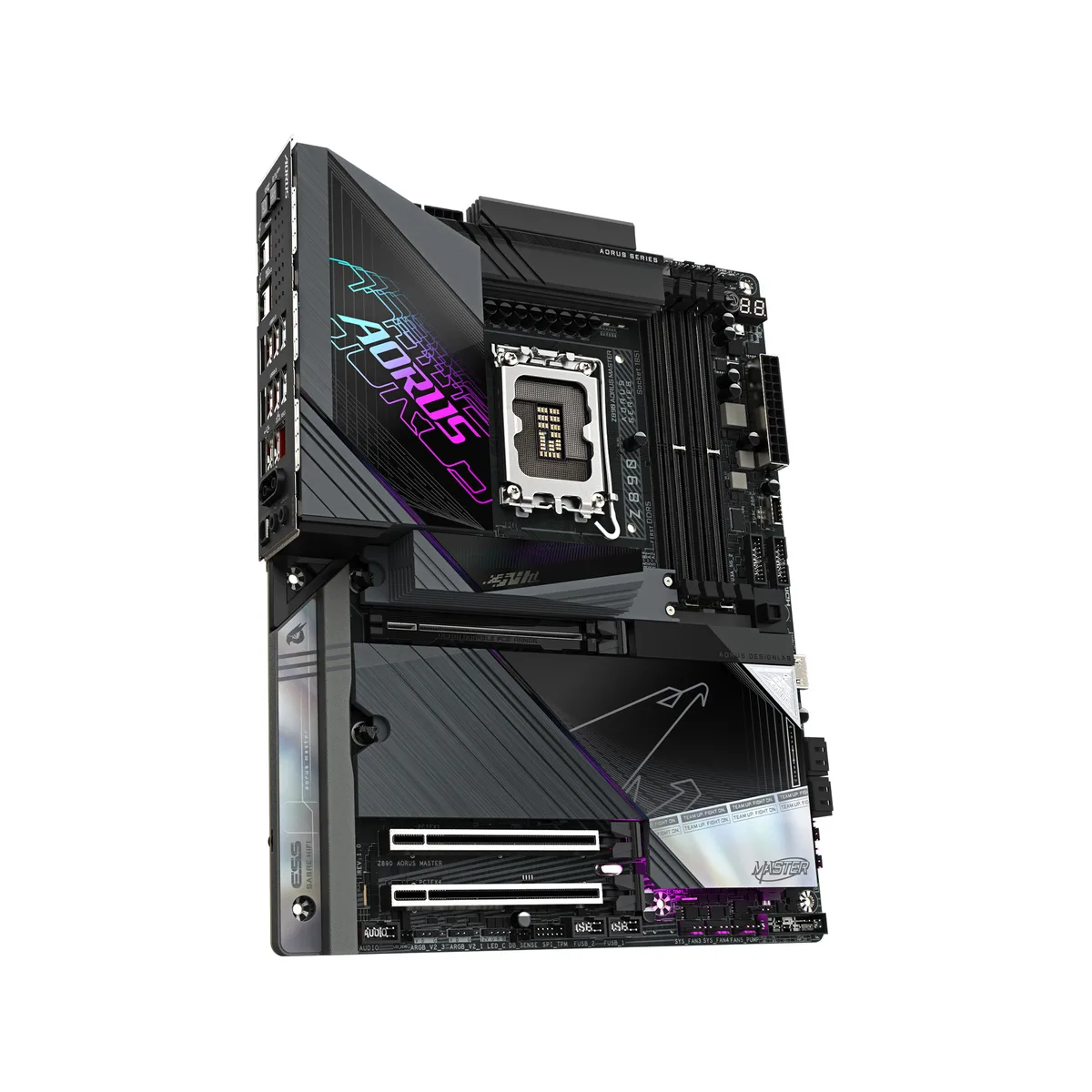

Black ATX motherboard with silver VRM armor and multiple M.2 heatsinks

GIGABYTE

GIGABYTE Z890 AORUS MASTER Intel motherboard

SKU CH-FJRH-WP00R MPN Z890 AORUS MASTER

ATX motherboard for Intel Core Ultra Series 2 with DDR5 to 9500 MT/s, PCIe 5.0, five M.2 slots, dual Thunderbolt 4, Wi-Fi 7 and 10 GbE LAN

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 /
  • Maximum Memory Supported256GB

Option Z890 AORUS MASTER

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • DDR5 memory up to 9500 MT/s overclocked with XMP 3.0 on four slots
  • 18+1+2 phase power design with 110A smart power stages for stable delivery
  • Five M.2 slots plus PCIe 5.0 x16 and 4.0 x16 for high-speed storage and graphics
  • Wi-Fi 7, 10GbE LAN and dual Thunderbolt 4 ports for fast wired and wireless connectivity

Socket LGA 1851 Platform

The GIGABYTE Z890 AORUS MASTER is an ATX motherboard built for Intel Core Ultra Processors (Series 2). It targets enthusiasts and professionals who need high memory capacity and extensive high-speed storage options in a full-size build. The board delivers a 18+1+2 phase power design with 110A smart power stages to support demanding multi-core workloads.

Five M.2 Slots and Dual Thunderbolt 4

Five M.2 connectors and four SATA 6Gb/s ports provide dense storage expansion without add-in cards. One PCI Express 5.0 x16 slot, one PCI Express 4.0 x16 slot and one PCI Express 3.0 x16 slot handle graphics and accelerator cards. Dual Thunderbolt 4 ports and a front-panel USB-C header free up rear I/O for peripherals. Marvell AQtion AQC113C 10GbE LAN and WIFI7 deliver high-throughput networking. EZ-Latch mechanisms on M.2 and PCIe slots simplify installation.

VRM Thermal Armor and M.2 Thermal Guard

VRM Thermal Armor covers the 18+1+2 power delivery to maintain stable voltages during sustained heavy loads. Dedicated M.2 Thermal Guards keep each drive within operating limits during prolonged read or write sequences. The 5.1 channel audio subsystem and EZ-Debug Zone assist long-session stability and troubleshooting. Intel XMP 3.0 supports DDR5 memory speeds up to 9500 MT/s (O.C.) across four 288-pin slots with a 256GB maximum capacity.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • DDR5 memory up to 9500 MT/s overclocked with XMP 3.0 on four slots
  • 18+1+2 phase power design with 110A smart power stages for stable delivery
  • Five M.2 slots plus PCIe 5.0 x16 and 4.0 x16 for high-speed storage and graphics
  • Wi-Fi 7, 10GbE LAN and dual Thunderbolt 4 ports for fast wired and wireless connectivity

Specifications

BrandGIGABYTE
SeriesAORUS
ModelZ890 AORUS MASTER
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 8933 / DDR5 9066 / DDR5 9200 / DDR5 9466 / DDR5 9500
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.25 x M.2
SATA RAID0/1/0+1/5/10
Audio Channels5.1 Channels
LAN ChipsetMarvell® AQtion AQC113C 10GbE LAN chip
Max LAN Speed10Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes

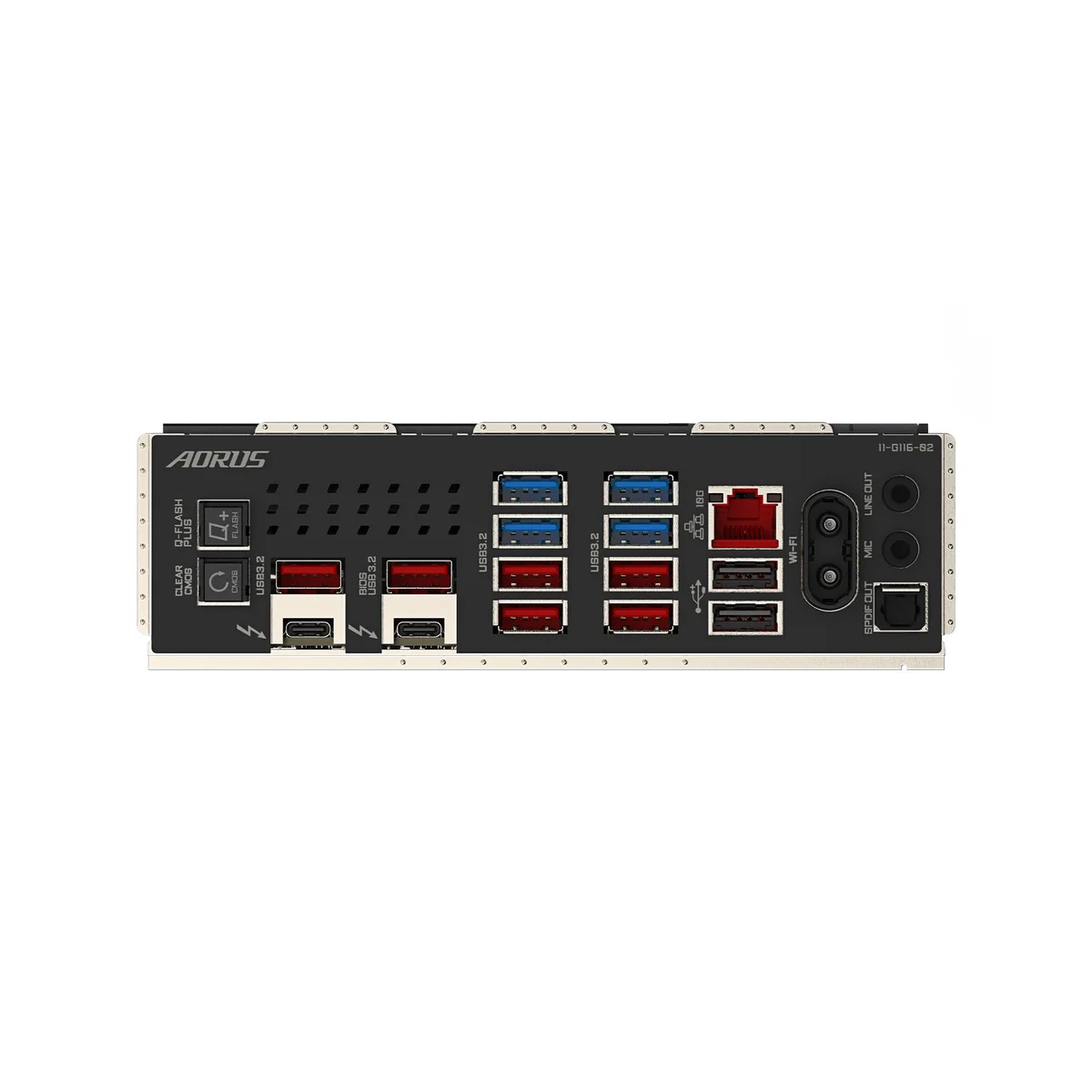

Back I/O Ports1 x Clear CMOS Button / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x Q-Flash Plus Button / 2 x Audio Jacks / 2 x Thunderbolt 4 / 2 x USB 2.0/1.1 / 4 x USB 3.2 Gen 1 / 6 x USB 3.2 Gen 2
Windows 11Supported
Form FactorATX
Shipping weight2.56 kg
Package size337 × 269 × 83 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power can the 18+1+2 phase VRM with 110A Smart Power Stages deliver before thermal limits appear?

The 18+1+2 phase design uses 110A Smart Power Stages backed by VRM Thermal Armor, giving sustained headroom for Intel Core Ultra Series 2 CPUs under full load.

What are the noise and heat levels when the VRM Thermal Armor and M.2 Thermal Guards run all day?

Large-surface VRM Thermal Armor and dedicated M.2 Thermal Guards dissipate heat passively, keeping fan curves low and acoustic output minimal during extended sessions.

Which DDR5 memory kit must I already own to reach the rated 9500 MT/s overclock?

A four-module DDR5 kit rated for 9500(O.C.) MT/s with Intel XMP 3.0 profiles is required; the board supports up to 256 GB across four 288-pin slots.
