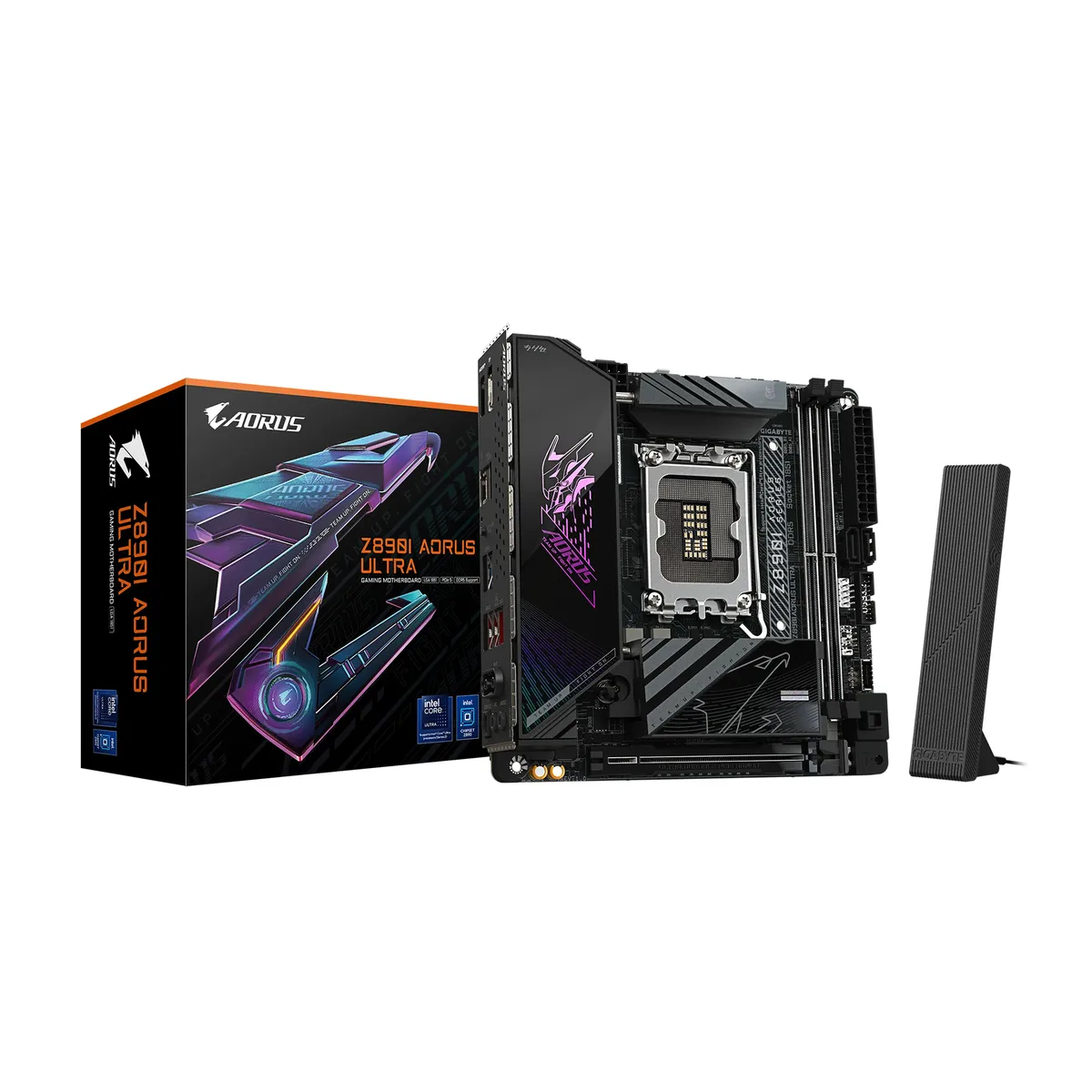

Compact Mini-ITX motherboard with dark VRM heatsinks and silver M.2 covers, rear I/O shield attached

GIGABYTE

GIGABYTE Z890I AORUS ULTRA Intel motherboard

SKU CH-17VB-E3GSX MPN Z890I AORUS ULTRA

Mini-ITX board for Intel Core Ultra Series 2 with DDR5 to 8800 MT/s, PCIe 5.0 x16, two M.2 slots, Thunderbolt 4, WIFI 7 and 2.5GbE LAN

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardSupport for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C
  • Maximum Memory Supported128GB

Option Z890I AORUS ULTRA

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • DDR5 memory up to 8800 MT/s overclocked across two DIMM slots
  • PCIe 5.0 x16 slot plus two M.2 sockets for fast storage
  • Thunderbolt 4 and WIFI 7 with 2.5 GbE LAN on rear I/O
  • EZ-Latch M.2 and PCIe mechanisms simplify component installation

Z890 Mini-ITX for Core Ultra Series 2

This LGA 1851 motherboard fits Intel Core Ultra Processors (Series 2) into a Mini-ITX footprint. It provides two DDR5 DIMM slots supporting up to 128GB in dual-channel mode. The board targets compact workstations and high-performance small-form-factor builds that need full Z890 feature density.

105A power stages with VRM armor

An 8+1+2 phase design uses 105A smart power stages to feed the CPU socket. VRM Thermal Armor covers the power delivery array to dissipate heat during extended multi-core workloads. M.2 Thermal Guard shields both M.2 slots, helping storage maintain throughput during sustained read and write sessions.

PCIe 5.0 x16 and Thunderbolt 4 limits

The single PCI Express 5.0 x16 slot delivers 16 lanes directly from the processor for graphics or accelerator cards. Thunderbolt 4 on the rear I/O provides 40Gbps signalling for external storage, displays or docks. Both interfaces share the CPU lane budget, so populating the x16 slot with a x16 device leaves no PCIe 5.0 lanes for additional high-speed add-in cards.

Highlights

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • DDR5 memory up to 8800 MT/s overclocked across two DIMM slots
  • PCIe 5.0 x16 slot plus two M.2 sockets for fast storage
  • Thunderbolt 4 and WIFI 7 with 2.5 GbE LAN on rear I/O
  • EZ-Latch M.2 and PCIe mechanisms simplify component installation

Specifications

SeriesAORUS
ModelZ890I AORUS ULTRA
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots2x288pin (DDR5)
Memory StandardSupport for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
Serial ATA (SATA)2 x SATA 6Gb/s
M.22 x M.2
SATA RAID0/1/0+1/5/10
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWIFI 7

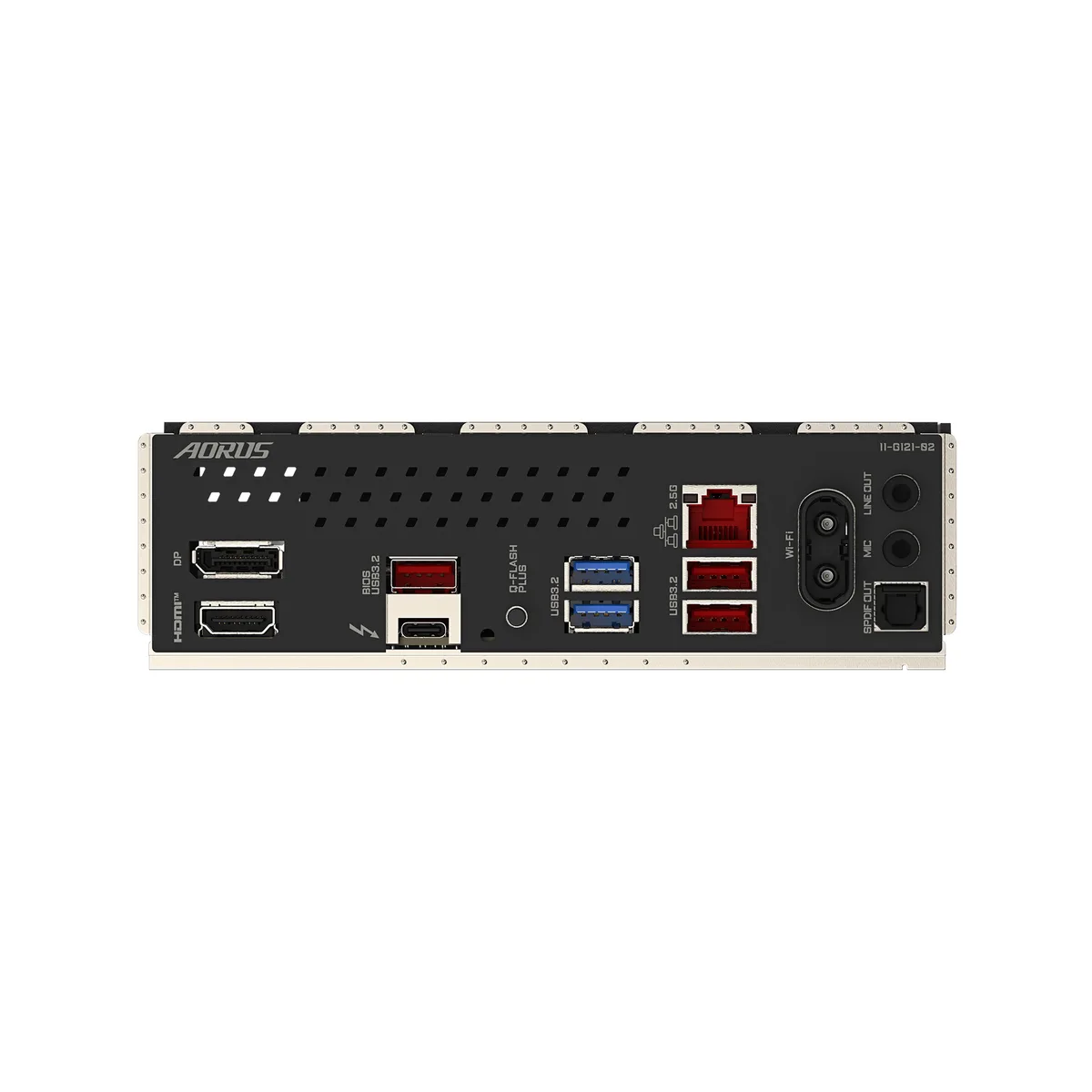

Back I/O Ports1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x Q-Flash Plus Button / 1 x Thunderbolt 4 / 2 x Audio Jacks / 2 x USB 3.2 Gen 1 / 3 x USB 3.2 Gen 2 Type-A
Windows 11Supported
Form FactorMini ITX
Shipping weight1.36 kg
Package size241 × 229 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this board fit in a Mini-ITX case and still clear a large CPU cooler?

The form factor is Mini-ITX, so it fits any case that accepts that size; the VRM Thermal Armor adds height around the socket, so check your cooler’s clearance specification against the board layout before buying.

Which memory kits are guaranteed to run at their rated speed without manual tuning?

The board supports DDR5 speeds from 5600 up to 8800 MT/s when overclocked; any kit with an XMP profile within that range will configure automatically once XMP is enabled in the firmware.

What do I need to add for a complete wireless and wired network setup?

WIFI 7 and a 2.5 Gbps LAN port are already integrated, so no extra network cards are required; just attach antennas for wireless and plug an Ethernet cable for wired.
