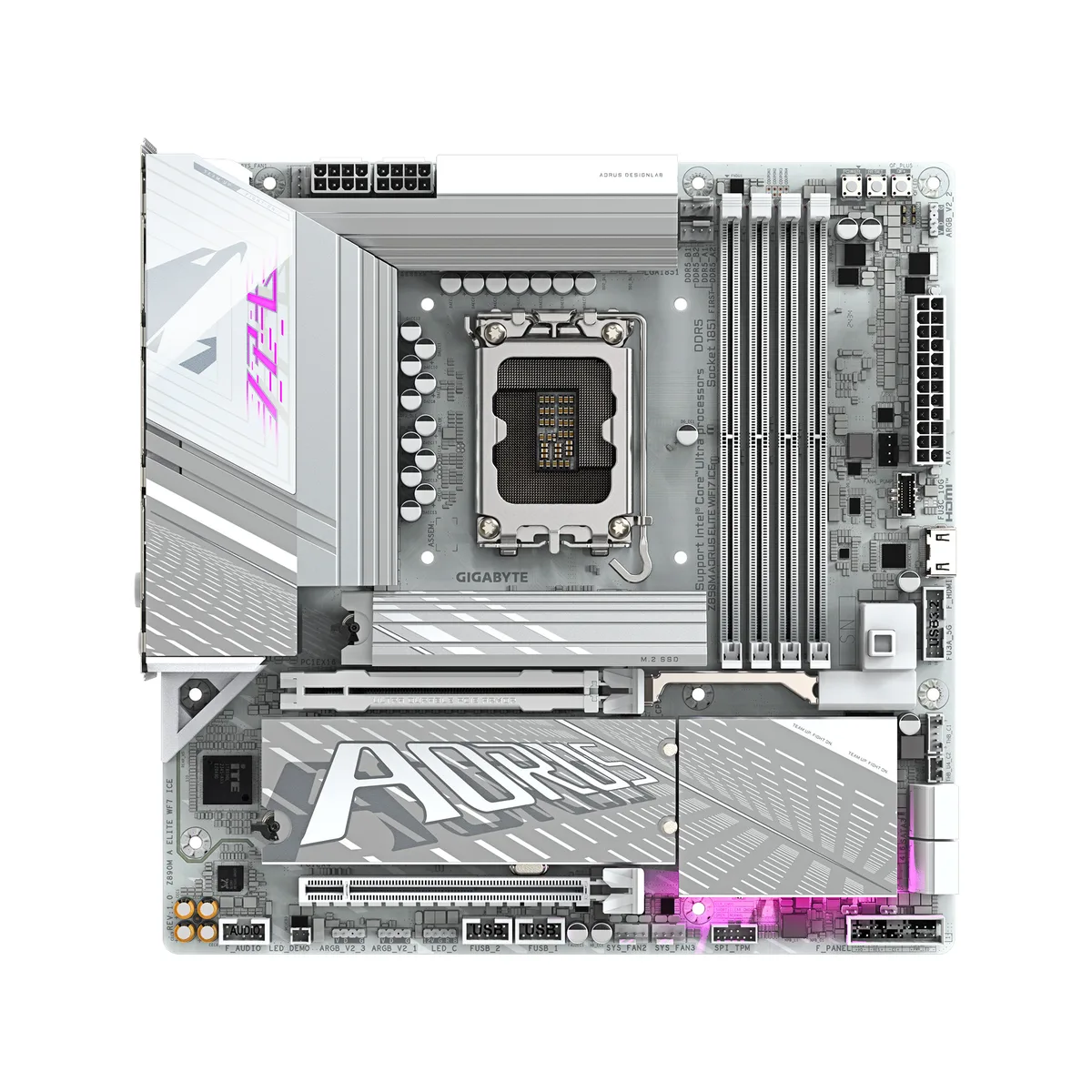

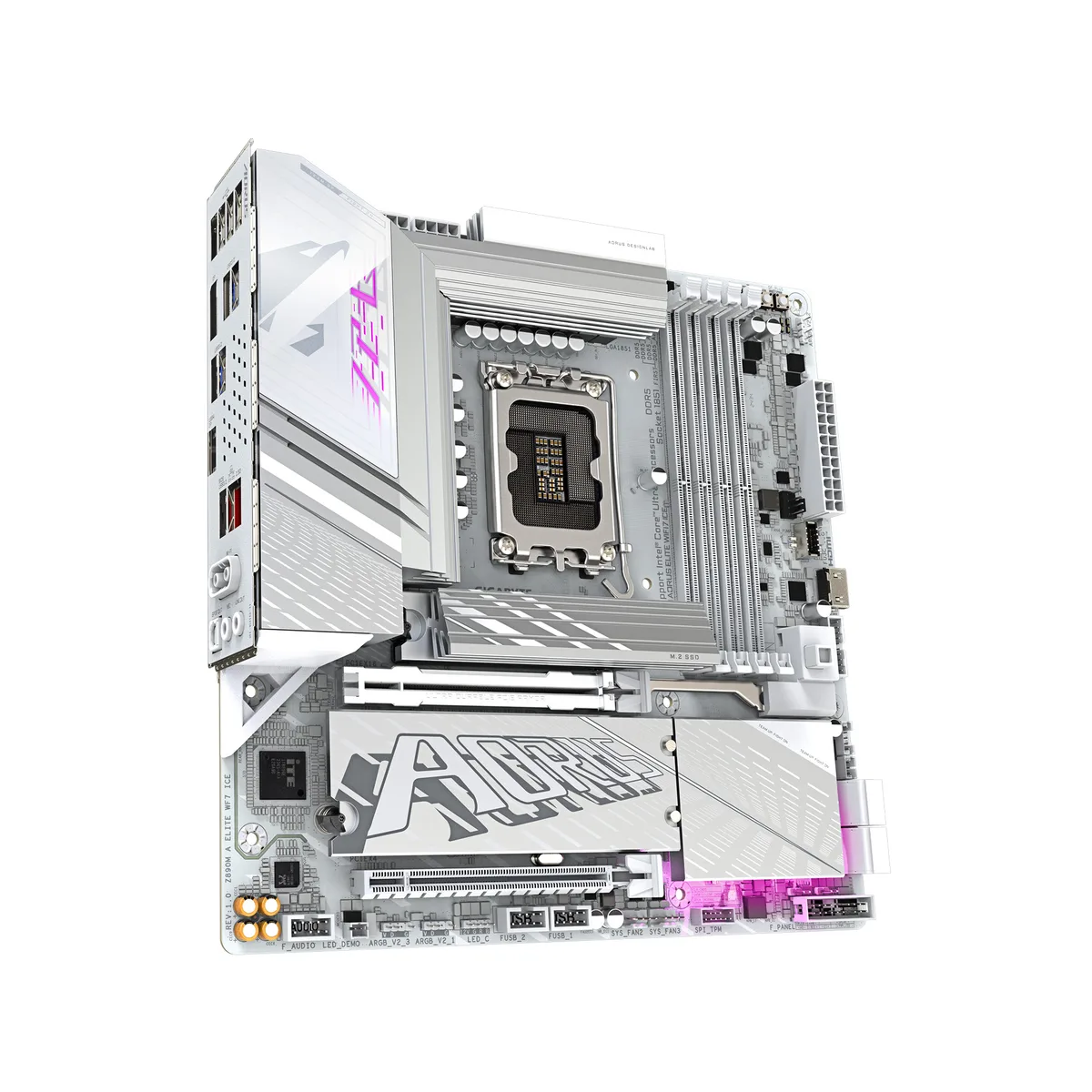

White ATX motherboard with silver VRM heatsinks and three M.2 shields

GIGABYTE

GIGABYTE Z890M AORUS ELITE WIFI7 ICE Intel motherboard

SKU CH-8ZY3-6W9TQ MPN Z890M AORUS ELITE WIFI7 ICE

Supports Intel Core Ultra Series 2 processors with DDR5 memory up to 9200 MT/s, PCIe 5.0 graphics, three M.2 slots, Thunderbolt 4, WIFI 7 and 2.5GbE LAN

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 /
  • Maximum Memory Supported256GB

Option Z890M AORUS ELITE WF7 ICE

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • DDR5 memory up to 9200 MT/s with XMP 3.0 on four slots
  • 12+1+2 phase 60A power design with VRM thermal armor
  • PCIe 5.0 x16, three M.2 slots and Thunderbolt 4 connectivity
  • WIFI 7 and 2.5GbE LAN with DIY-friendly EZ-Latch features

Socket LGA 1851 for Core Ultra Series 2

This motherboard targets builders who want a mid-size ATX platform for Intel Core Ultra Series 2 processors. The Z890 chipset unlocks overclocking headroom for both the CPU and memory. It suits enthusiasts and content creators who need strong single-thread performance plus expandability.

DDR5 up to 256 GB with XMP 3.0

Four 288-pin slots accept DDR5 modules from 5600 up to 9200 MT/s when overclocked. Dual-channel architecture delivers high bandwidth for memory-intensive workloads. The 256 GB ceiling covers most professional applications, though extreme virtualisation or rendering farms may require more capacity.

PCIe 5.0 graphics and three M.2 slots

A single PCIe 5.0 x16 slot provides maximum throughput for current and next-generation GPUs. An additional PCIe 4.0 x16 slot supports secondary cards or high-speed add-in storage. Three M.2 connectors share the chipset and CPU lanes, so populating all three can reduce the second x16 slot to x4 speeds.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • DDR5 memory up to 9200 MT/s with XMP 3.0 on four slots
  • 12+1+2 phase 60A power design with VRM thermal armor
  • PCIe 5.0 x16, three M.2 slots and Thunderbolt 4 connectivity
  • WIFI 7 and 2.5GbE LAN with DIY-friendly EZ-Latch features

Specifications

SeriesAORUS
ModelZ890M AORUS ELITE WF7 ICE
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9066 / DDR5 9200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.23 x M.2
SATA RAID0/1/0+1/5/10
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWIFI 7

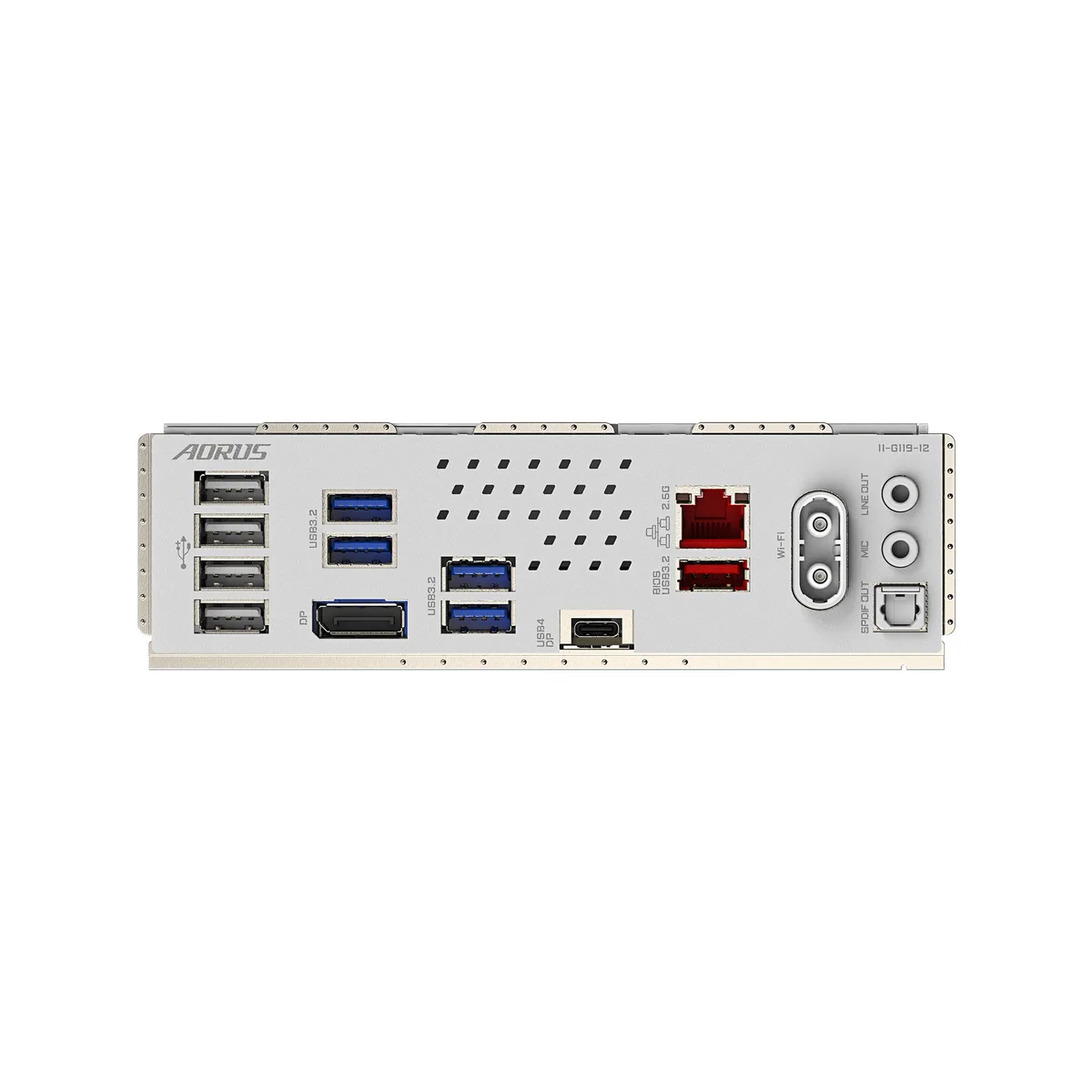

Back I/O Ports1 x DisplayPort / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 2 Type-A / 1 x USB4 / 2 x Audio Jacks / 4 x USB 2.0/1.1 / 4 x USB 3.2 Gen 1
Windows 11Supported
Form FactorMicro ATX
Shipping weight1.81 kg
Package size279 × 254 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing DDR5 6000 memory kits run at their rated speed on the Z890M AORUS ELITE WIFI7 ICE?

Yes, the board supports DDR5 6000 natively and can run kits at that speed with Intel XMP 3.0 profiles enabled in the BIOS.

How can I confirm the board posts correctly after installing a Core Ultra Series 2 processor?

The EZ-Debug Zone on the board uses LED indicators for CPU, memory, graphics and boot devices to show the POST status at a glance.

What cables or accessories are included in the box for the Z890M AORUS ELITE WIFI7 ICE?

The package includes SATA cables, M.2 mounting screws, a Wi-Fi 7 antenna and the I/O shield; no Thunderbolt or USB-C cables are supplied.
