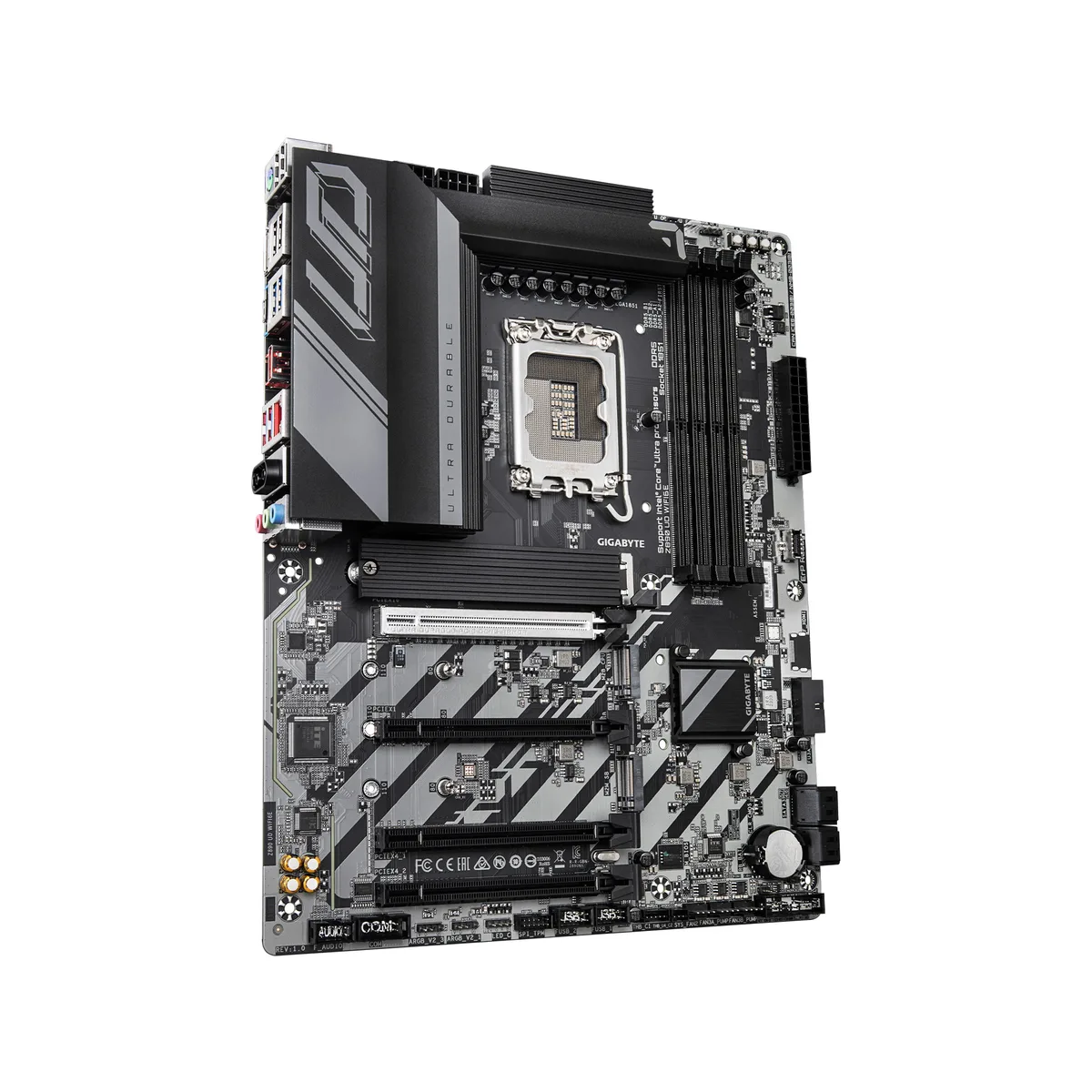

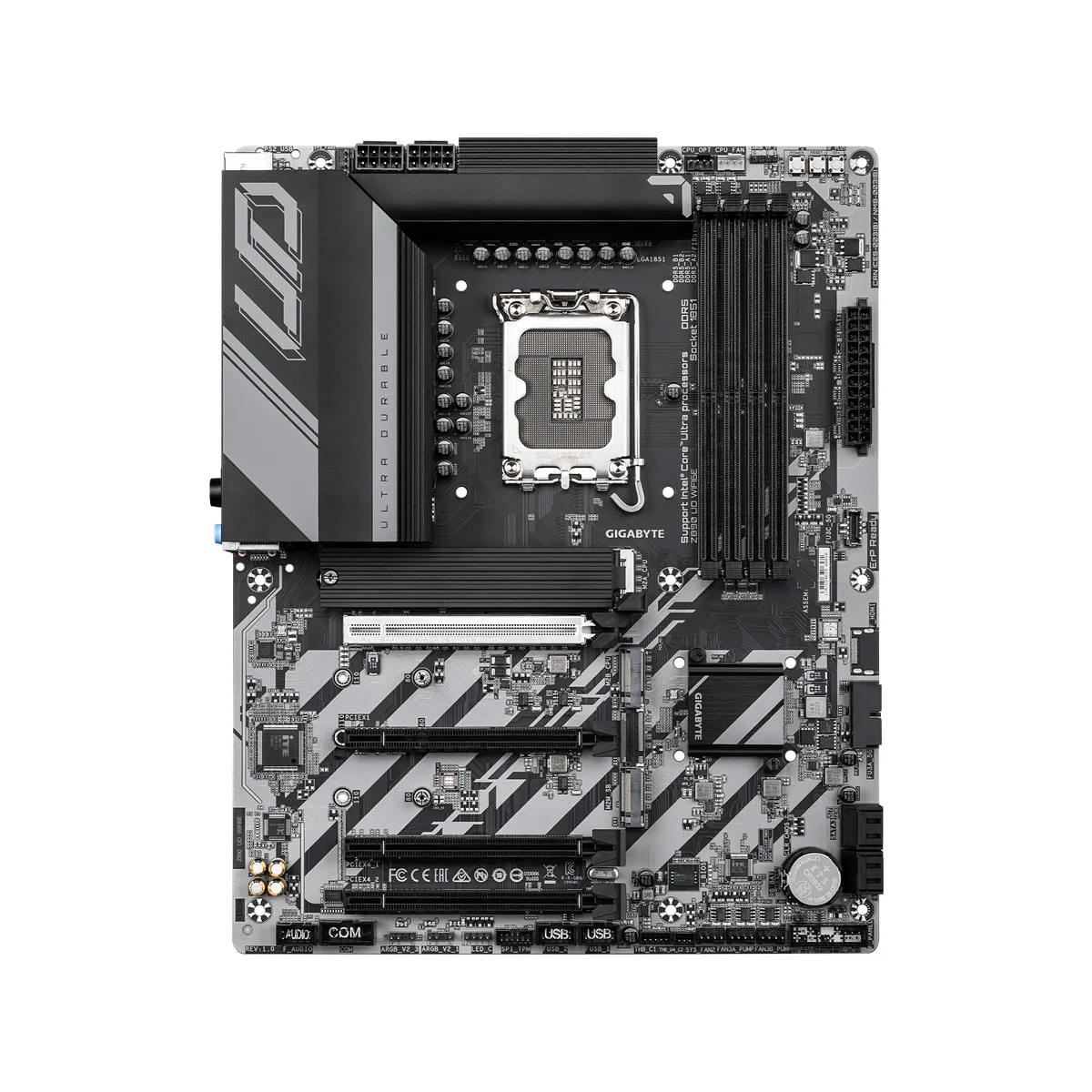

ATX motherboard with silver heatsinks and black PCB

GIGABYTE

GIGABYTE Z890 UD WIFI6E Intel motherboard

SKU CH-J5HP-3XQM0 MPN Z890 UD WIFI6E

LGA 1851 ATX board for Intel Core Ultra Series 2 with DDR5 up to 9200 MT/s, PCIe 5.0 x16, four M.2 slots, Wi-Fi 6E AX211 and 2.5 GbE LAN

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 /
  • Maximum Memory Supported256GB

Option Z890 UD WIFI6E

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • DDR5 memory up to 9200 MT/s overclocked across four slots with XMP 3.0
  • PCIe 5.0 x16 slot plus three M.2 connectors for fast storage
  • Wi-Fi 6E and 2.5 GbE LAN deliver high-speed wireless and wired networking
  • EZ-Latch PCIe and WIFI EZ-Plug simplify component installation and removal

LGA 1851 ATX platform

The GIGABYTE Z890 UD WIFI6E is an ATX motherboard built for Intel Core Ultra Processors (Series 2) using the LGA 1851 socket and Z890 chipset. It targets builders who need a mainstream foundation for high-speed DDR5 memory and modern connectivity. Four 288-pin slots support dual-channel kits up to 256 GB with Intel XMP 3.0 profiles. A 12+1+2 phase power design uses 60 A DrMOS to deliver stable current to the CPU.

VRM Thermal Armor and M.2 Guard

A VRM Thermal Armor covers the power delivery area while an M.2 Thermal Guard addresses the primary storage slot, keeping component temperatures in check during everyday workloads. The board draws power through standard ATX and CPU connectors without requiring exotic cooling. In typical desktop use the VRM and M.2 heatsinks run quietly, and the 2.5 GbE LAN plus Intel Wi-Fi 6E AX211 provide wired and wireless networking without adding audible fan noise.

Sustained load on 12+1+2 DrMOS

Under prolonged heavy compute the 12+1+2 phase VRM with 60 A DrMOS maintains consistent voltage regulation while the Thermal Armor dissipates heat across its surface area. The M.2 Thermal Guard prevents throttle on the primary drive during extended write sequences. Rear I/O includes USB4, DisplayPort, four USB 3.2 Gen 1 ports, four USB 2.0 ports, PS/2 combo, 2.5 GbE LAN and 7.1 channel audio, so peripherals remain connected without bandwidth contention during long sessions.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • DDR5 memory up to 9200 MT/s overclocked across four slots with XMP 3.0
  • PCIe 5.0 x16 slot plus three M.2 connectors for fast storage
  • Wi-Fi 6E and 2.5 GbE LAN deliver high-speed wireless and wired networking
  • EZ-Latch PCIe and WIFI EZ-Plug simplify component installation and removal

Specifications

BrandGIGABYTE
ModelZ890 UD WIFI6E
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9066 / DDR5 9200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupport for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.24 x M.2
SATA RAID0/1/0+1/5/10
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

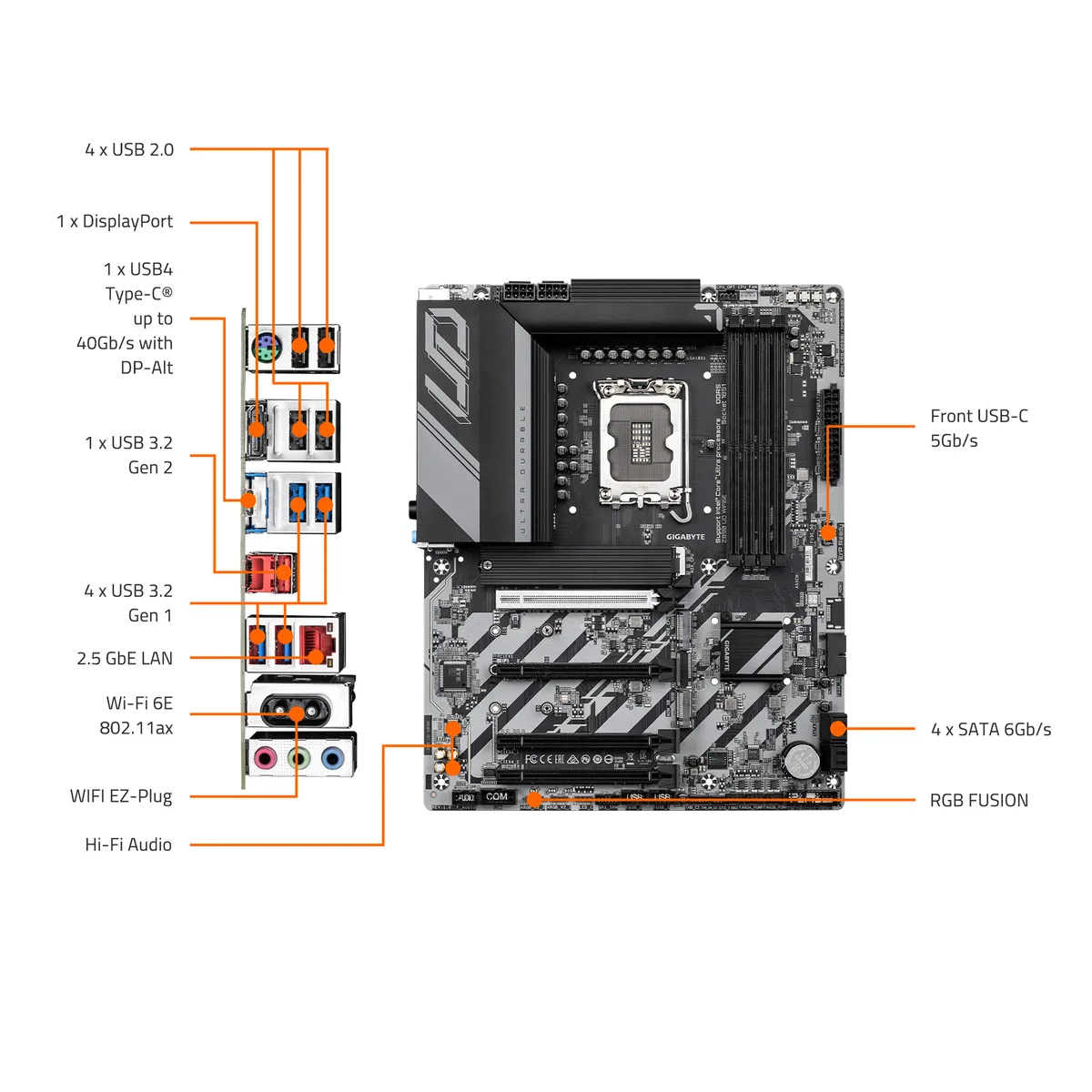

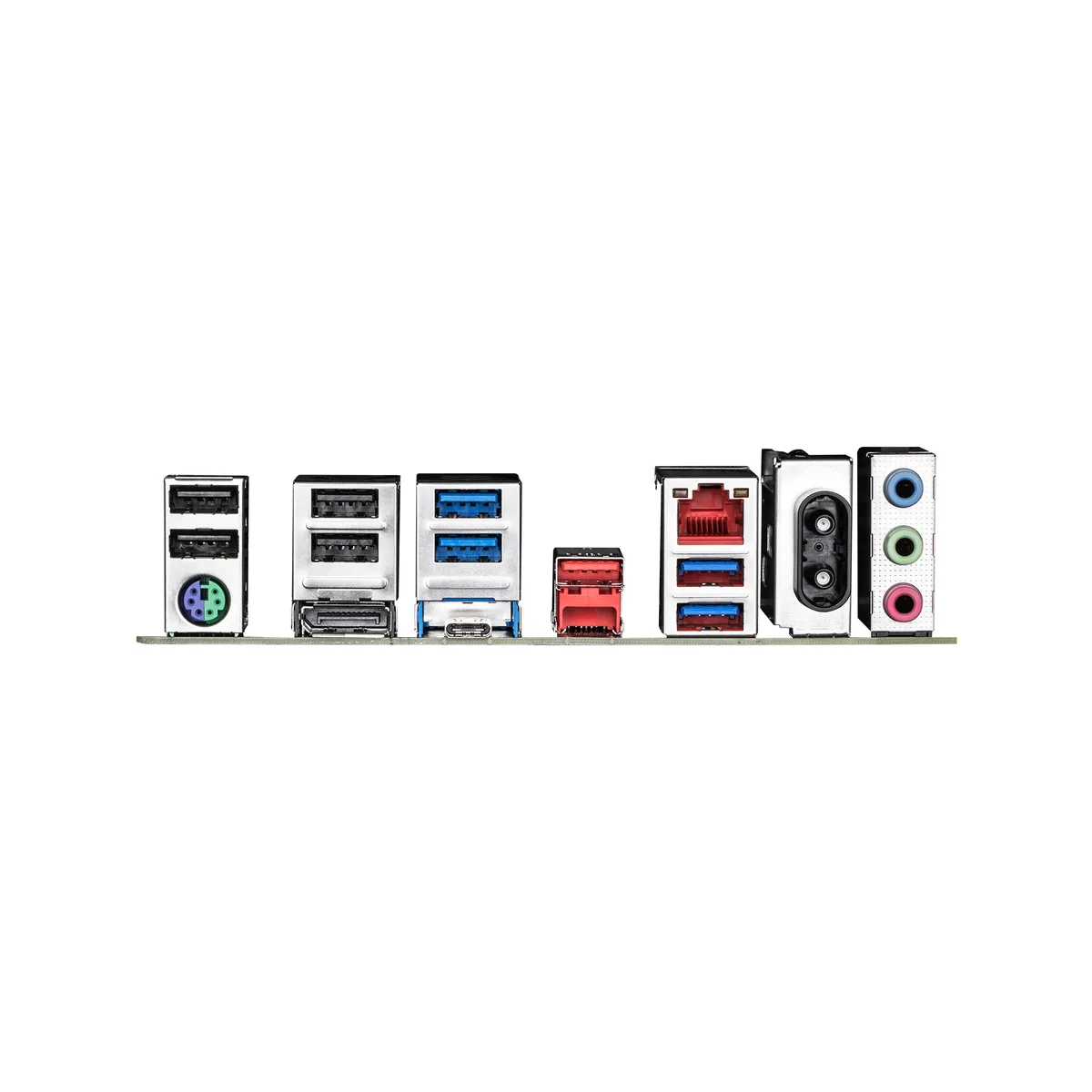

Back I/O Ports1 x DisplayPort / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB4 / 3 x Audio Jacks / 4 x USB 2.0/1.1 / 4 x USB 3.2 Gen 1
Windows 11Supported
Form FactorATX
Shipping weight1.79 kg
Package size335 × 274 × 81 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing DDR5-6000 memory kit run at its rated speed on this board?

Yes, DDR5-6000 is a supported JEDEC speed and will run at that frequency without overclocking.

Does the board provide a front-panel USB-C header for my case?

Yes, a front-panel USB Type-C header is included for cases with a USB-C port.

Can I use a discrete graphics card and still keep all three M.2 slots populated?

The primary PCIe 5.0 x16 slot runs independently of the M.2 slots, so all three can be used simultaneously.
