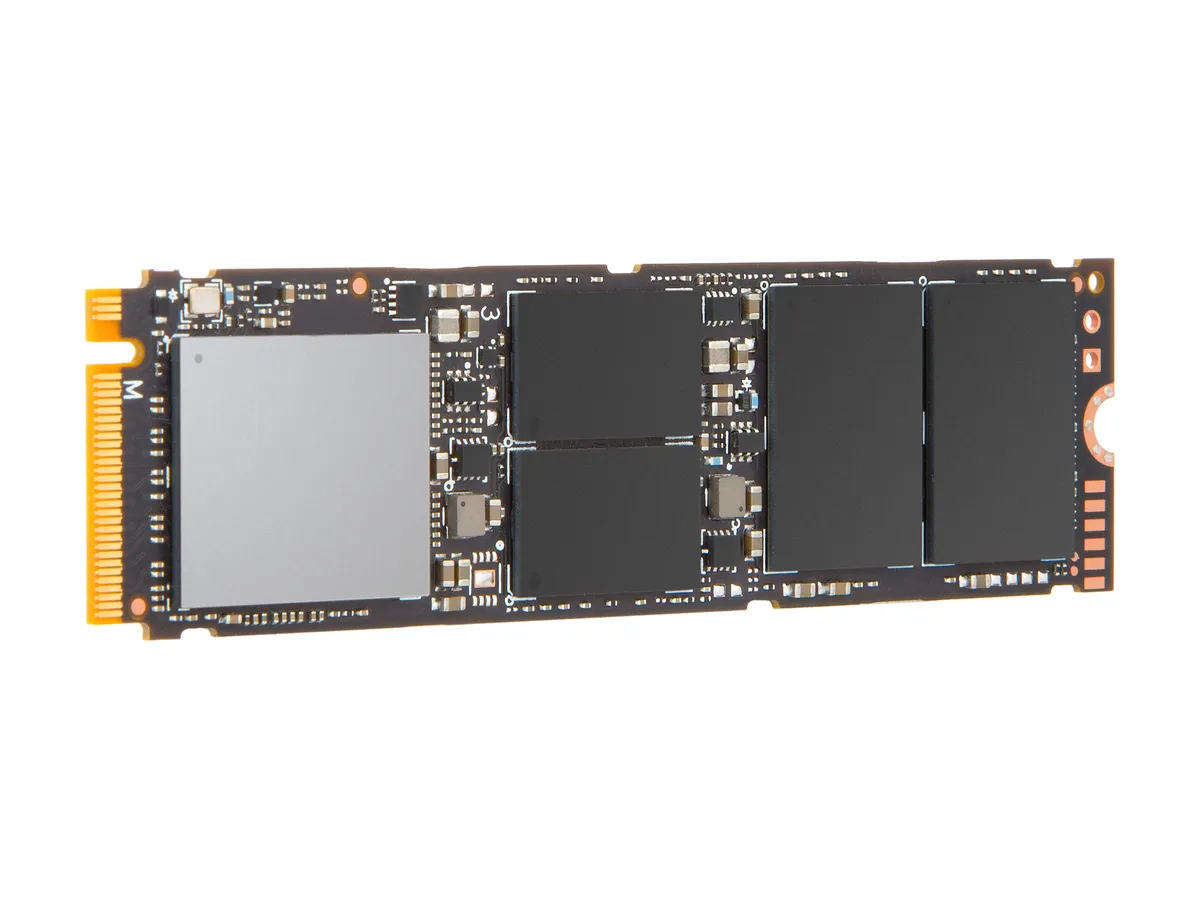

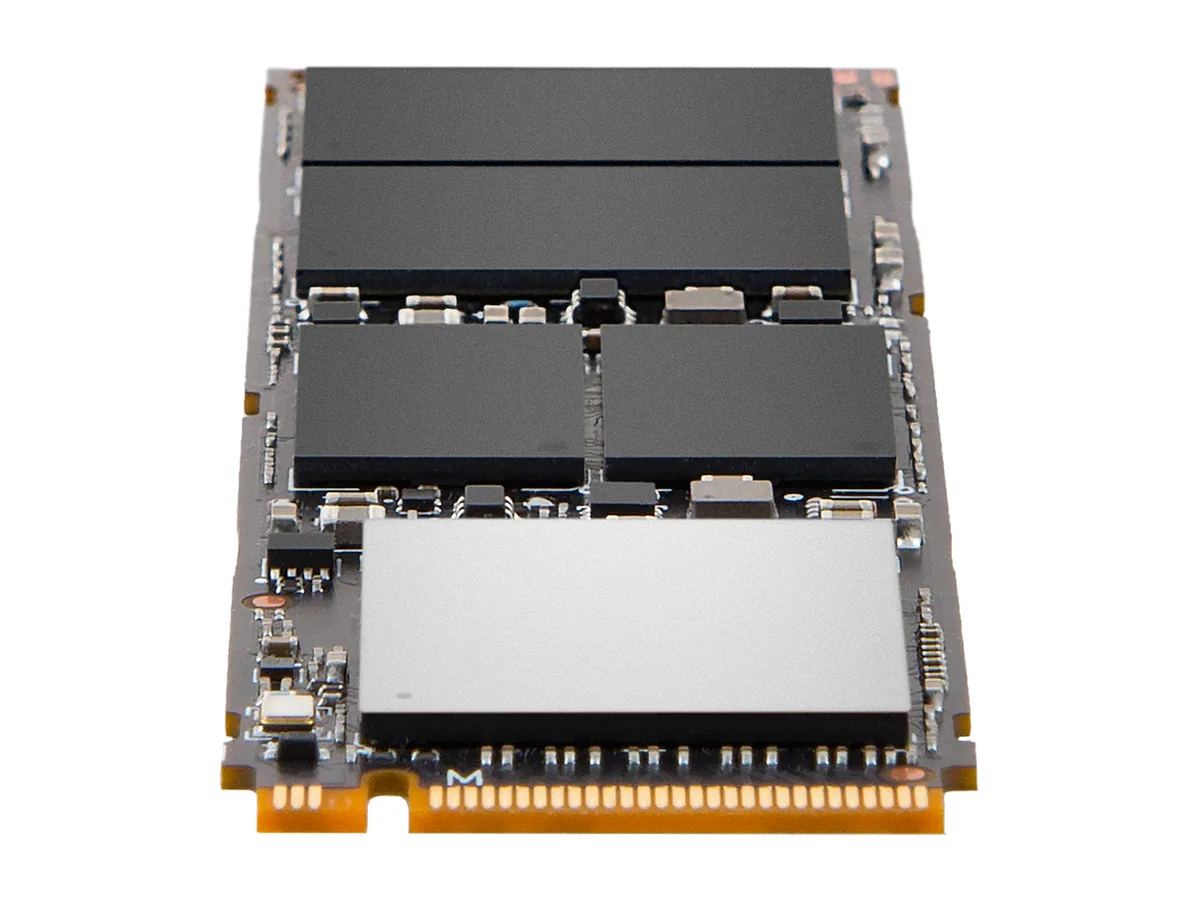

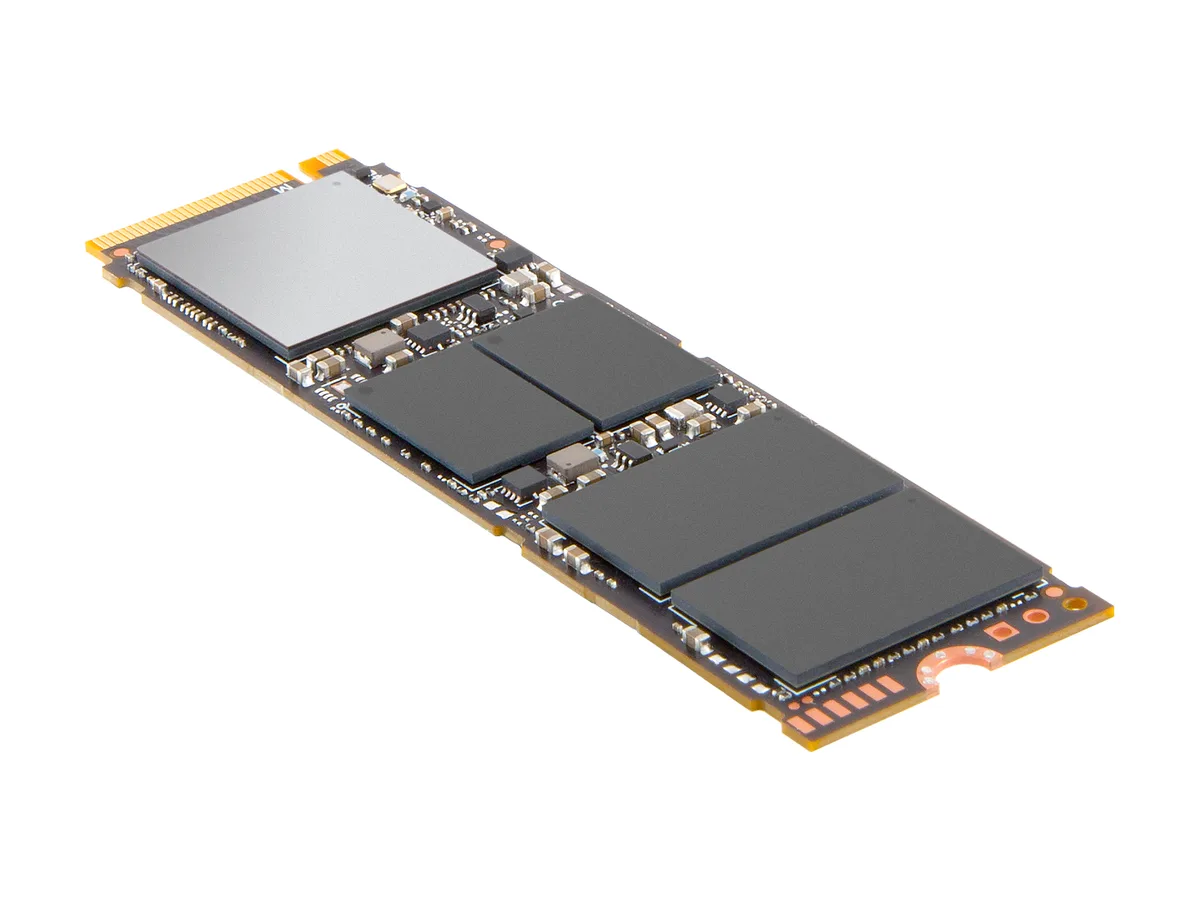

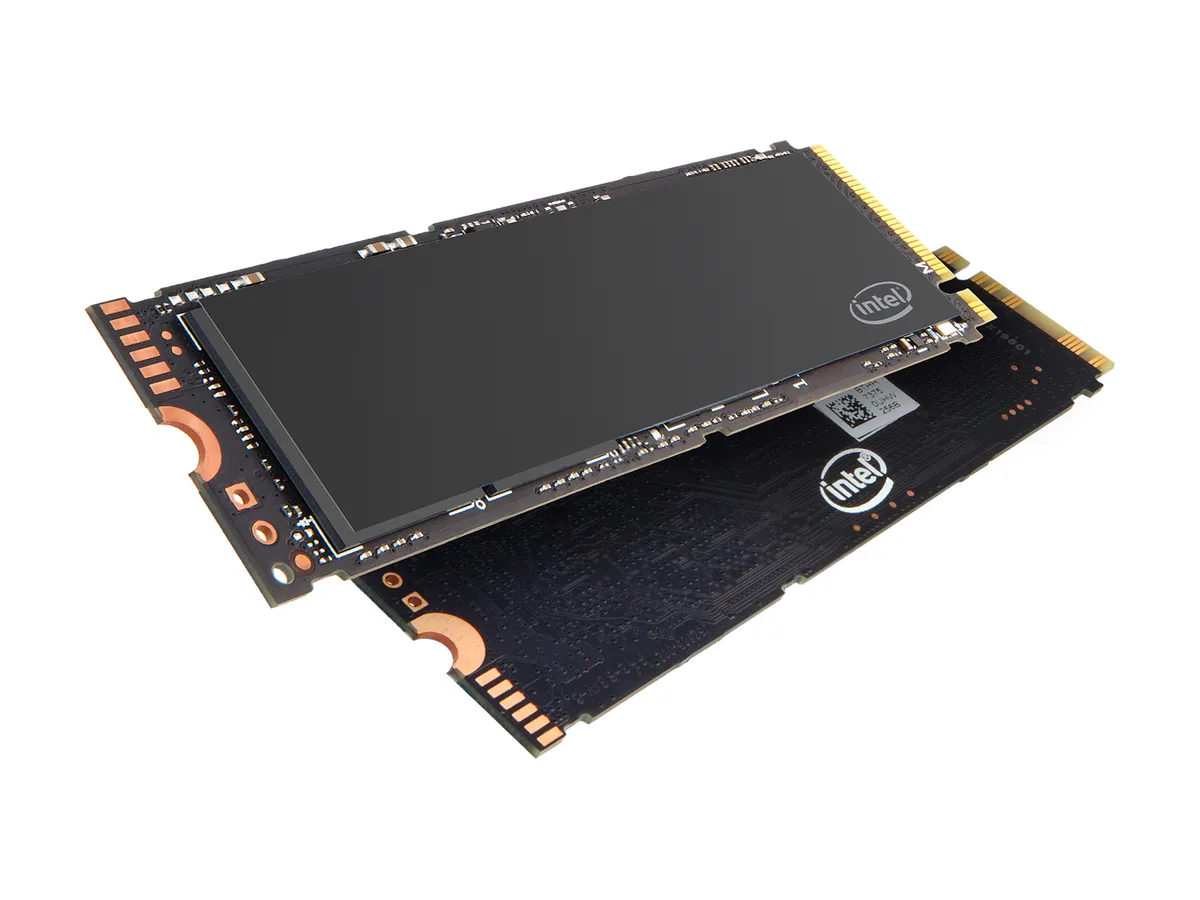

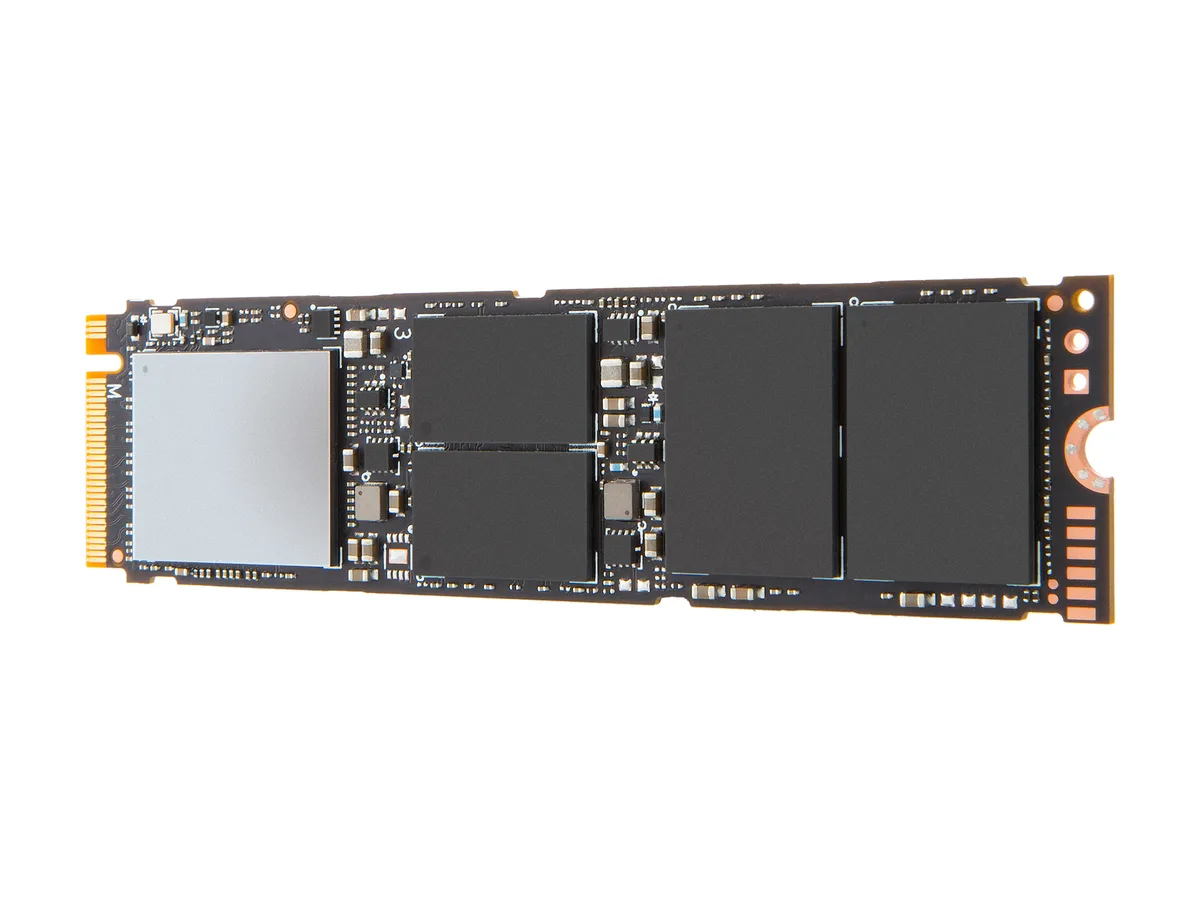

Green printed circuit board M.2 2280 SSD with black controller and silver label

Intel

Intel 760p Series M.2 2280 256GB PCIe 3.0 x4 internal SSD SSDPEKKW256G8XT

SKU CH-G8MQ-K5H0F MPN SSDPEKKW256G8XT

A 256GB M.2 2280 NVMe drive with PCIe 3.0 x4 speeds up to 3210 MB/s read and 1315 MB/s write for responsive system performance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity256GB
  • Memory Components3D2 TLC
  • InterfacePCI-Express 3.0 x4

Options 256GB

  • PCIe 3.0 x4 interface delivers sequential reads up to 3210 MBps
  • NVMe protocol enables random reads up to 205000 IOPS for responsive multitasking
  • 3D2 TLC NAND provides 144 TBW endurance rating for lasting reliability
  • M.2 2280 form factor fits slim laptops and desktops without cables
  • Low 25 mW idle power consumption extends battery life in mobile devices

760p Series NVMe 256GB

The Intel 760p Series is an M.2 2280 internal SSD built for consumer PCs. It connects through a PCIe 3.0 x4 interface and uses 3D2 TLC NAND to deliver 256GB of storage capacity.

Build quality and daily use

Rated at 1.6 million hours MTBF and 144 TBW endurance, the drive tolerates 1000G shock and up to 3.13 GRMS vibration. Active power draw is 50 mW and idle power is 25 mW, keeping thermals low in slim laptops.

When to upgrade

Sequential reads reach 3210 MBps and writes 1315 MBps, with random performance of 205,000 and 265,000 IOPS. The jump from an older PCIe 3.0 drive is worth it when sustained throughput and higher TBW matter for heavy workloads.

Highlights

  • PCIe 3.0 x4 interface delivers sequential reads up to 3210 MBps
  • NVMe protocol enables random reads up to 205000 IOPS for responsive multitasking
  • 3D2 TLC NAND provides 144 TBW endurance rating for lasting reliability
  • M.2 2280 form factor fits slim laptops and desktops without cables
  • Low 25 mW idle power consumption extends battery life in mobile devices

Specifications

BrandIntel
Series760p Series
ModelSSDPEKKW256G8XT
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity256GB
Memory Components3D2 TLC
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 3210 MBps
Max Sequential WriteUp to 1315 MBps
4KB Random ReadUp to 205,000 IOPS
4KB Random WriteUp to 265,000 IOPS
MTBF1,600,000 hours
FeaturesEndurance Rating (Lifetime Writes): 144 TBW
Power Consumption (Idle)25 mW
Power Consumption (Active)50 mW
Operating Temperature0°C ~ +70°C
Max Shock Resistance1000G
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz)
Non-operating: 3.13 GRMS (5-800 Hz)
Height2.38mm
Width22.00mm
Depth80.00mm
Weight< 10.00g
Shipping weight0.05 kg
Package size114 × 94 × 20 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What throughput does the PCIe 3.0 x4 interface cap at for this drive?

The PCIe 3.0 x4 interface on the Intel 760p Series SSDPEKKW256G8XT supports sequential reads up to 3210 MBps and sequential writes up to 1315 MBps.

What physical slot and dimensions does the M.2 2280 form factor require?

The drive fits an M.2 2280 slot, which is 22 mm wide and 80 mm long, with a single-sided M-key connector for PCIe NVMe operation.

How is the SSD installed and which step is commonly missed?

Insert the drive at an angle into the M.2 slot, press it flat, and secure it with the motherboard screw; the step often missed is enabling NVMe boot support in the BIOS before cloning or installing the OS.
