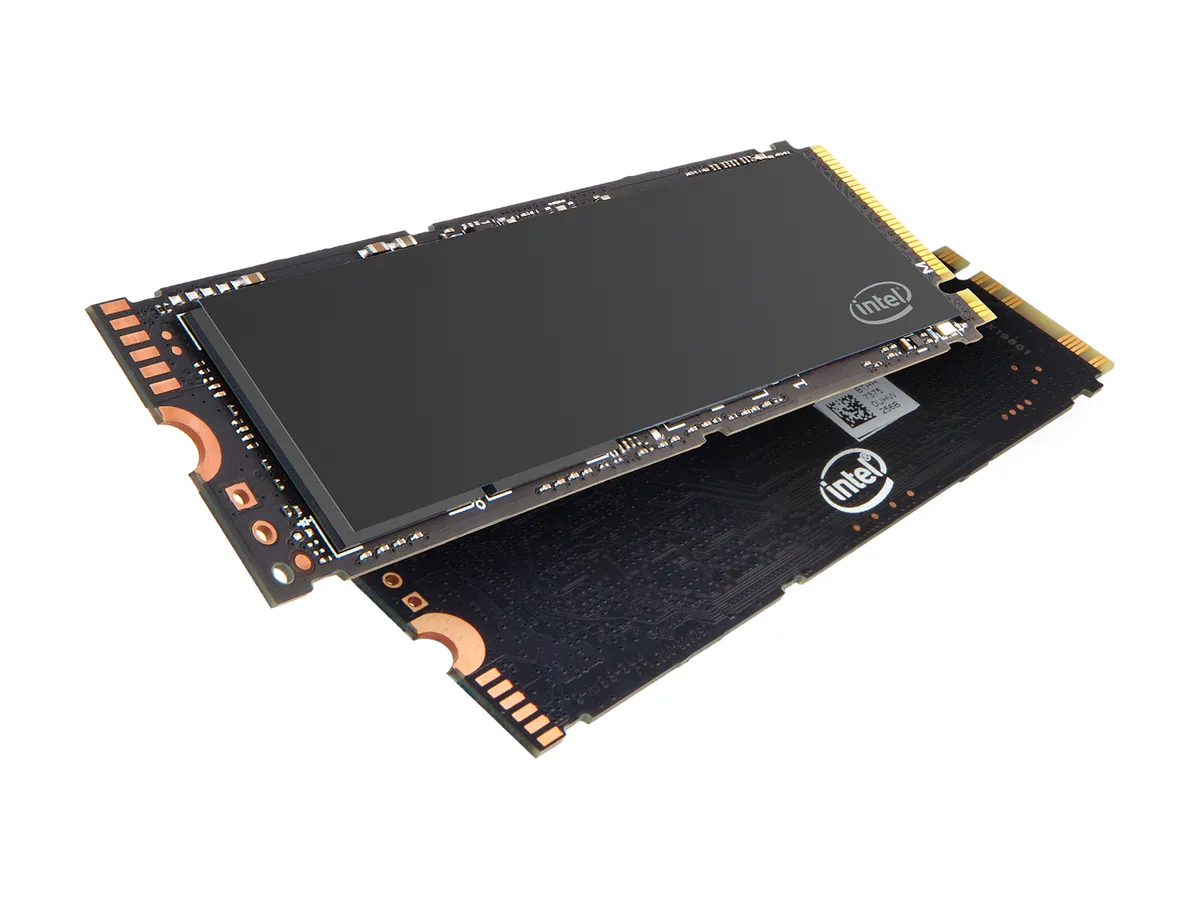

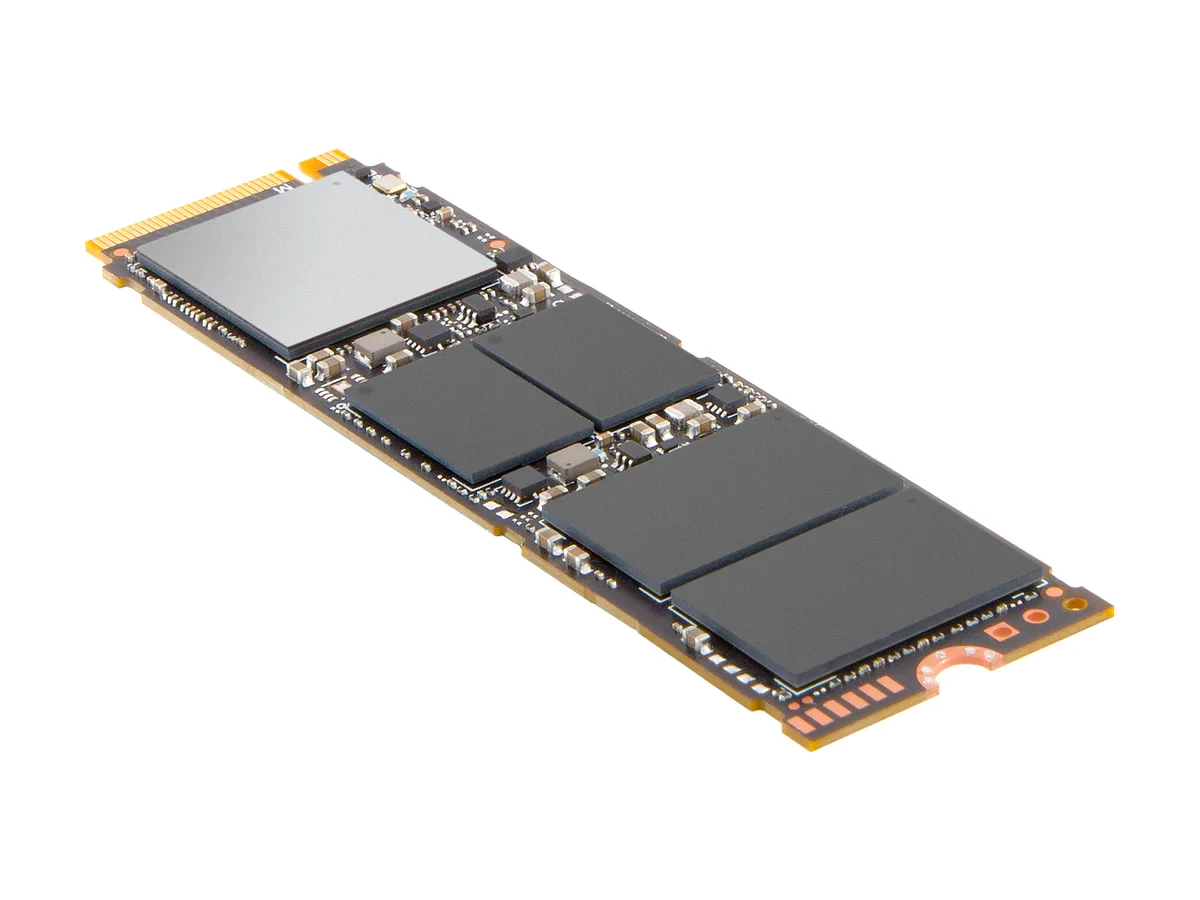

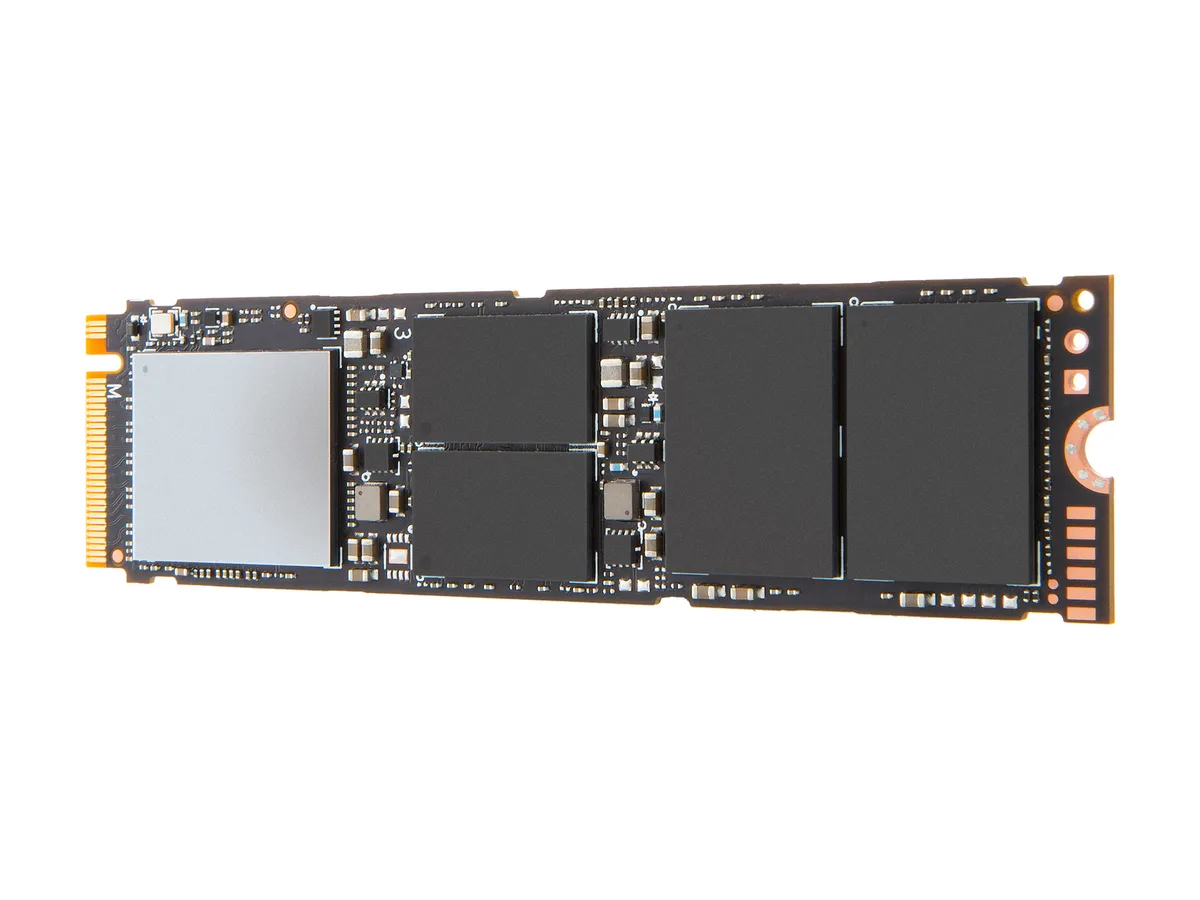

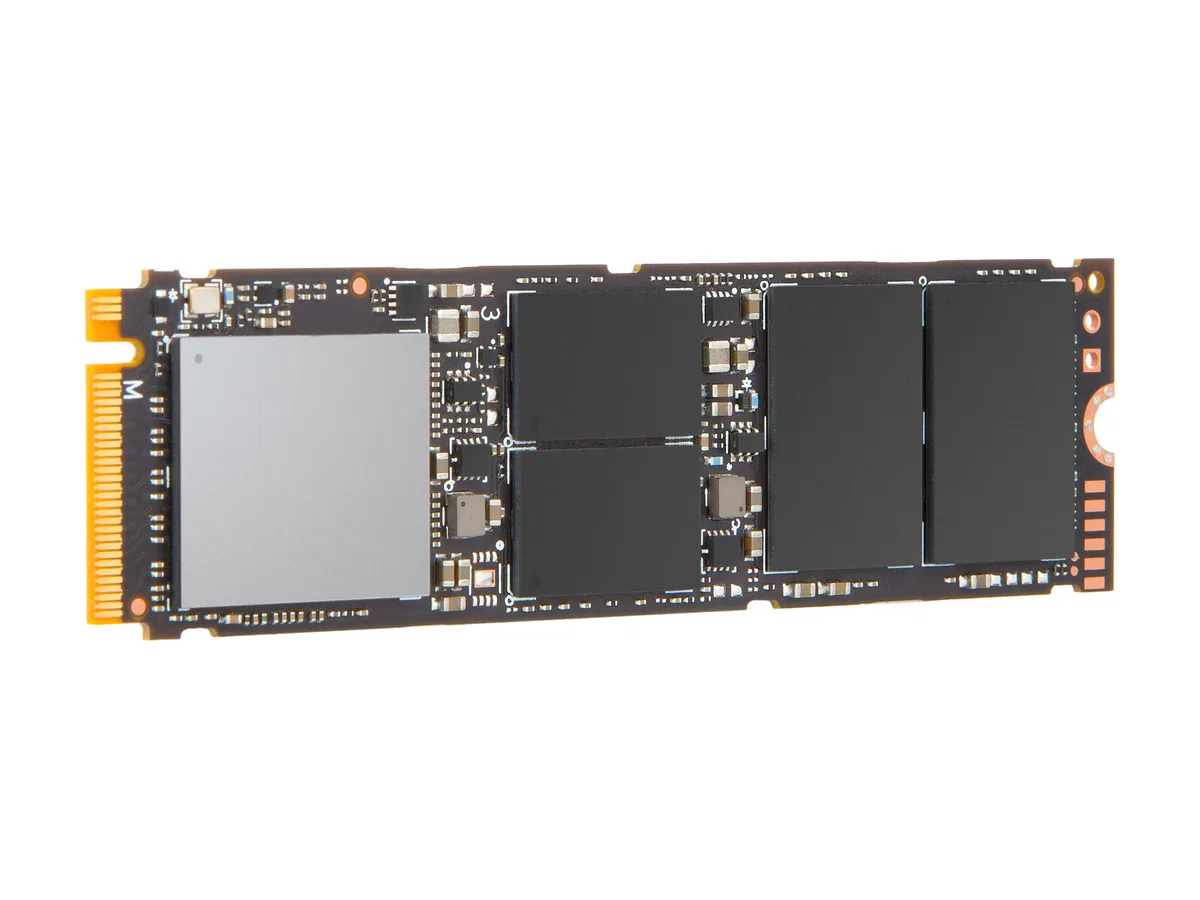

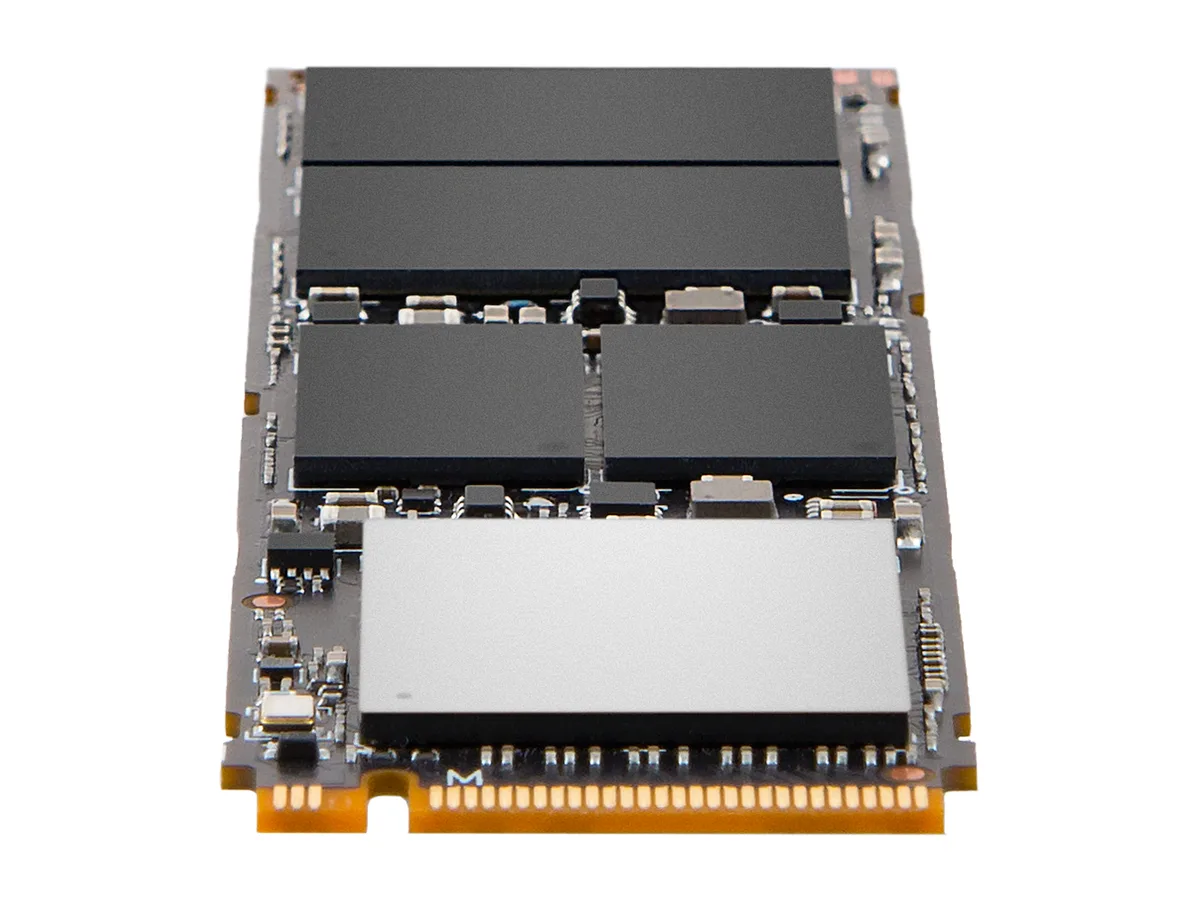

Thin green circuit board with black chips, M.2 2280 form factor

Intel

Intel 760p Series M.2 2280 128GB PCI-Express 3.0 x4 Internal SSD SSDPEKKW128G8XT

SKU CH-V80C-WVWBW MPN SSDPEKKW128G8XT

M.2 2280 128 GB PCI-Express 3.0 x4 NVMe SSD with up to 1640 MBps read and 650 MBps write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity128GB
  • Memory Components3D2 TLC
  • InterfacePCI-Express 3.0 x4

Options 128GB

  • Compact M.2 2280 form factor fits slim laptops and desktops
  • PCIe 3.0 x4 NVMe interface delivers up to 1640 MB/s sequential read speed
  • 105,000 random read IOPS accelerates multi-tasking responsiveness
  • 72 TBW endurance rating supports heavy daily workloads
  • Low 25 mW idle power extends battery life in mobile devices

128GB PCIe 3.0 x4 M.2 SSD

The Intel 760p Series SSDPEKKW128G8XT is a 128GB M.2 2280 drive that connects over PCI-Express 3.0 x4. It uses 3D2 TLC NAND and an NVMe interface to serve everyday consumer workloads. The compact form factor fits desktops and thin laptops alike.

Capacity headroom and limits

At 128GB the drive holds an operating system, core applications and a modest game or media library. Sequential reads reach 1640 MBps and writes 650 MBps, while random performance peaks at 105,000 read and 160,000 write IOPS. The 72 TBW endurance rating and 1.6 million hour MTBF set the practical write lifetime.

Upgrade context and value

This model replaces the Intel 600p series, delivering twice the capacity and twice the PCIe bandwidth of that earlier line. Idle power drops to 25 mW and active power to 50 mW, a 50% reduction versus the previous generation. AES 256-bit encryption is included for data security.

Highlights

  • Compact M.2 2280 form factor fits slim laptops and desktops
  • PCIe 3.0 x4 NVMe interface delivers up to 1640 MB/s sequential read speed
  • 105,000 random read IOPS accelerates multi-tasking responsiveness
  • 72 TBW endurance rating supports heavy daily workloads
  • Low 25 mW idle power extends battery life in mobile devices

Specifications

BrandIntel
Series760p Series
ModelSSDPEKKW128G8XT
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity128GB
Memory Components3D2 TLC
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 1640 MBps
Max Sequential WriteUp to 650 MBps
4KB Random ReadUp to 105,000 IOPS
4KB Random WriteUp to 160,000 IOPS
MTBF1,600,000 hours
FeaturesEndurance Rating (Lifetime Writes): 72 TBW
Power Consumption (Idle)25 mW
Power Consumption (Active)50 mW
Operating Temperature0°C ~ +70°C
Max Shock Resistance1000G
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz)
Non-operating: 3.13 GRMS (5-800 Hz)
Height2.38mm
Width22.00mm
Depth80.00mm
Weight< 10.00g
Shipping weight0.05 kg
Package size119 × 89 × 20 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this M.2 2280 PCI-Express 3.0 x4 drive work in a motherboard that only has a PCIe 2.0 M.2 slot?

It will function because PCI-Express 3.0 x4 is backward compatible with PCIe 2.0 slots, though sequential speeds will be limited to the 2.0 bandwidth ceiling.

How can I verify the drive is delivering its rated 1640 MBps read and 650 MBps write performance after installation?

Run a benchmark tool such as CrystalDiskMark using the NVMe protocol; results approaching 1640 MBps read and 650 MBps write confirm the drive is operating at its specified PCI-Express 3.0 x4 potential.

Does the 128GB SSDPEKKW128G8XT package include a heatsink or mounting screw, or must I supply them?

The drive is sold as a bare M.2 2280 module; a motherboard standoff screw is typically provided with the board, and a heatsink is optional depending on your chassis airflow.
