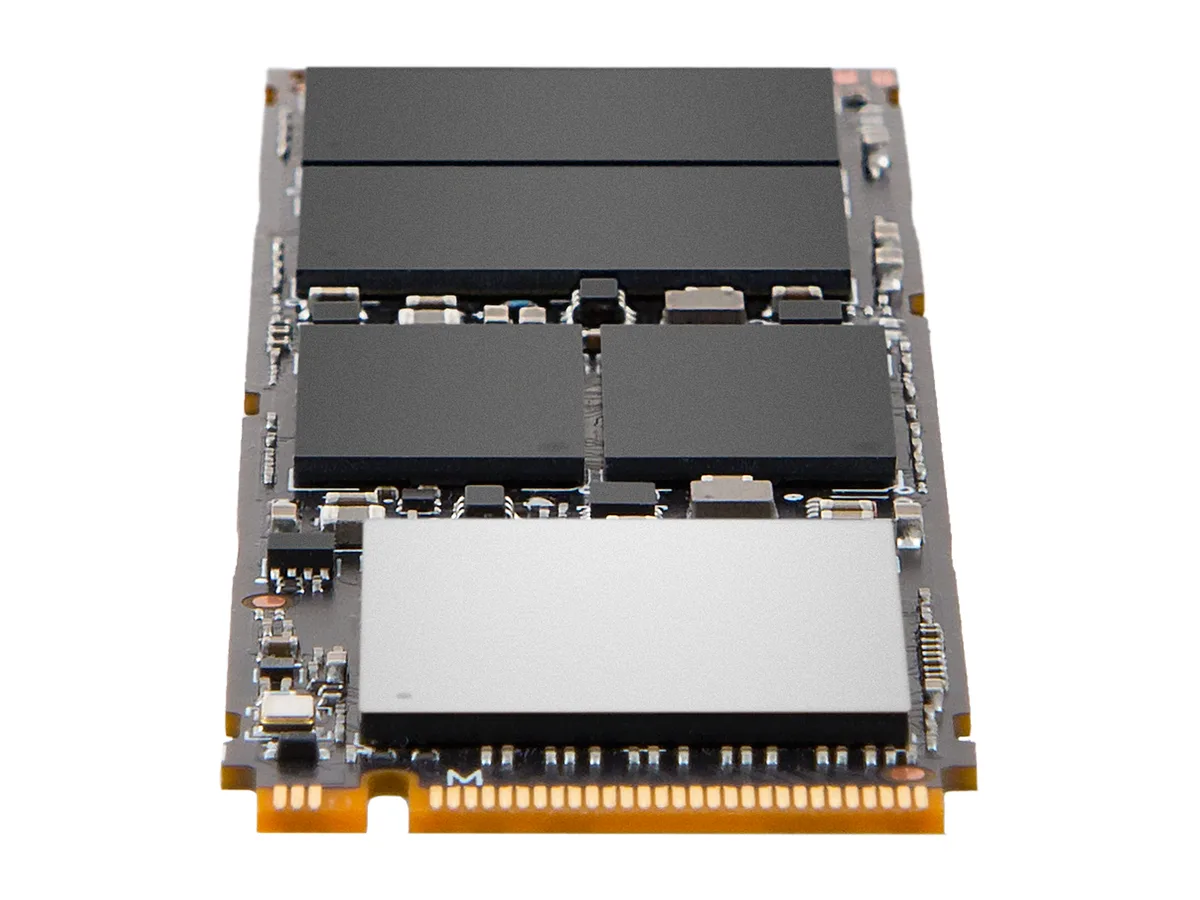

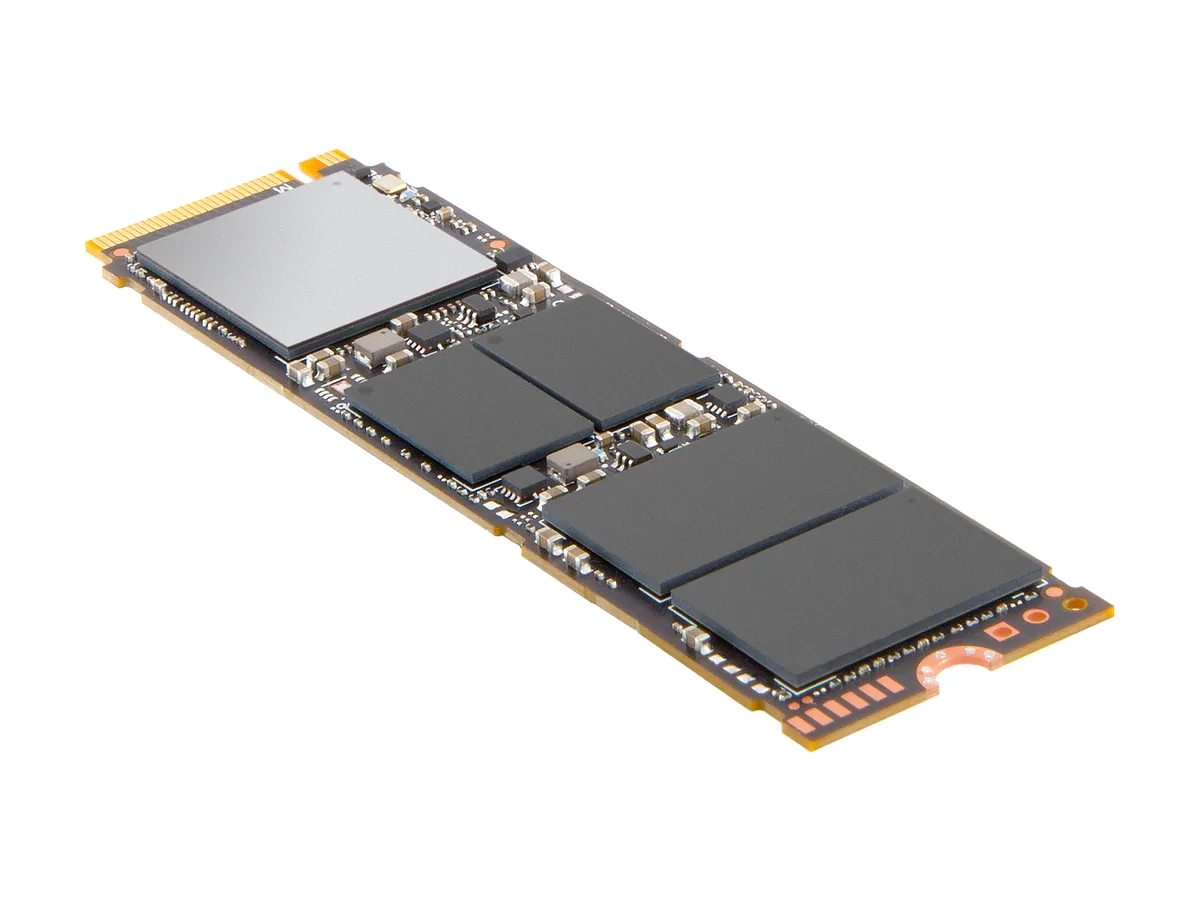

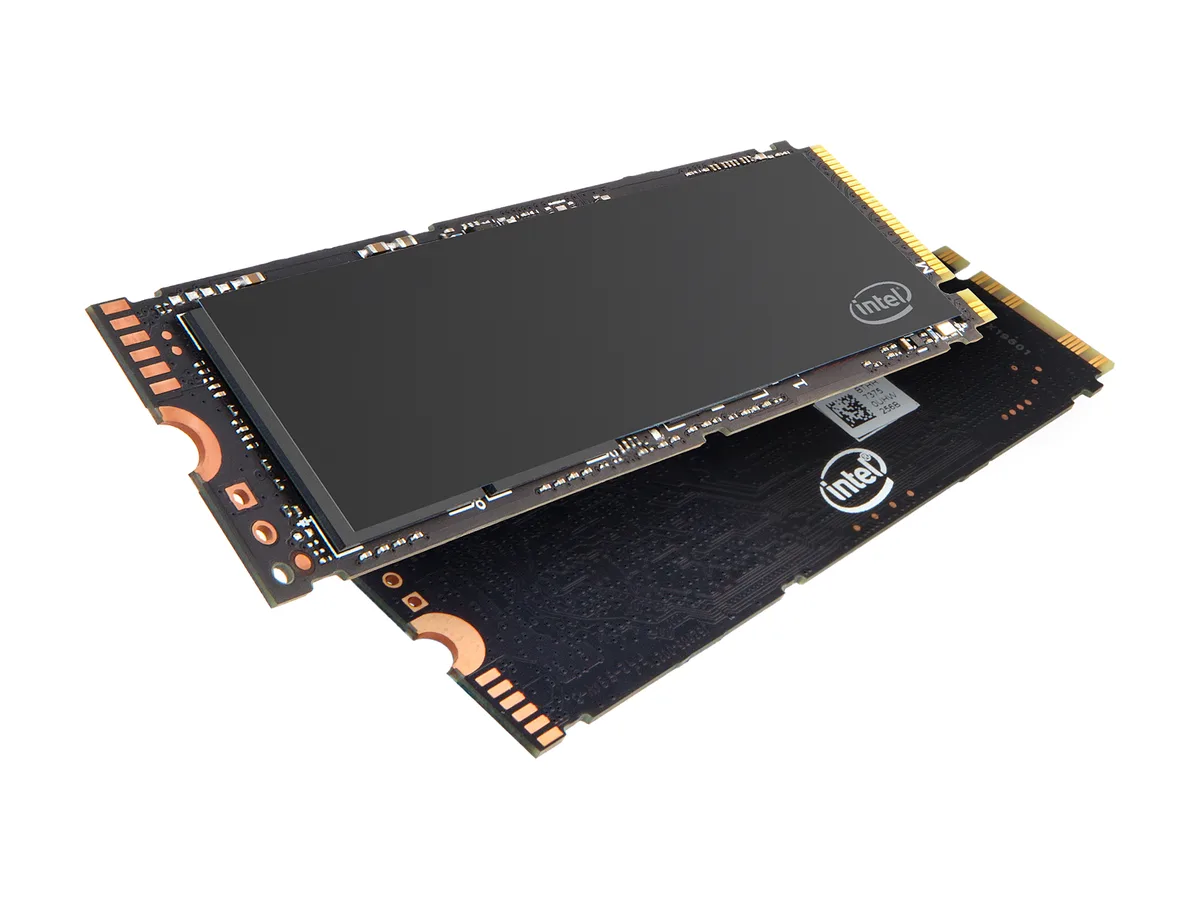

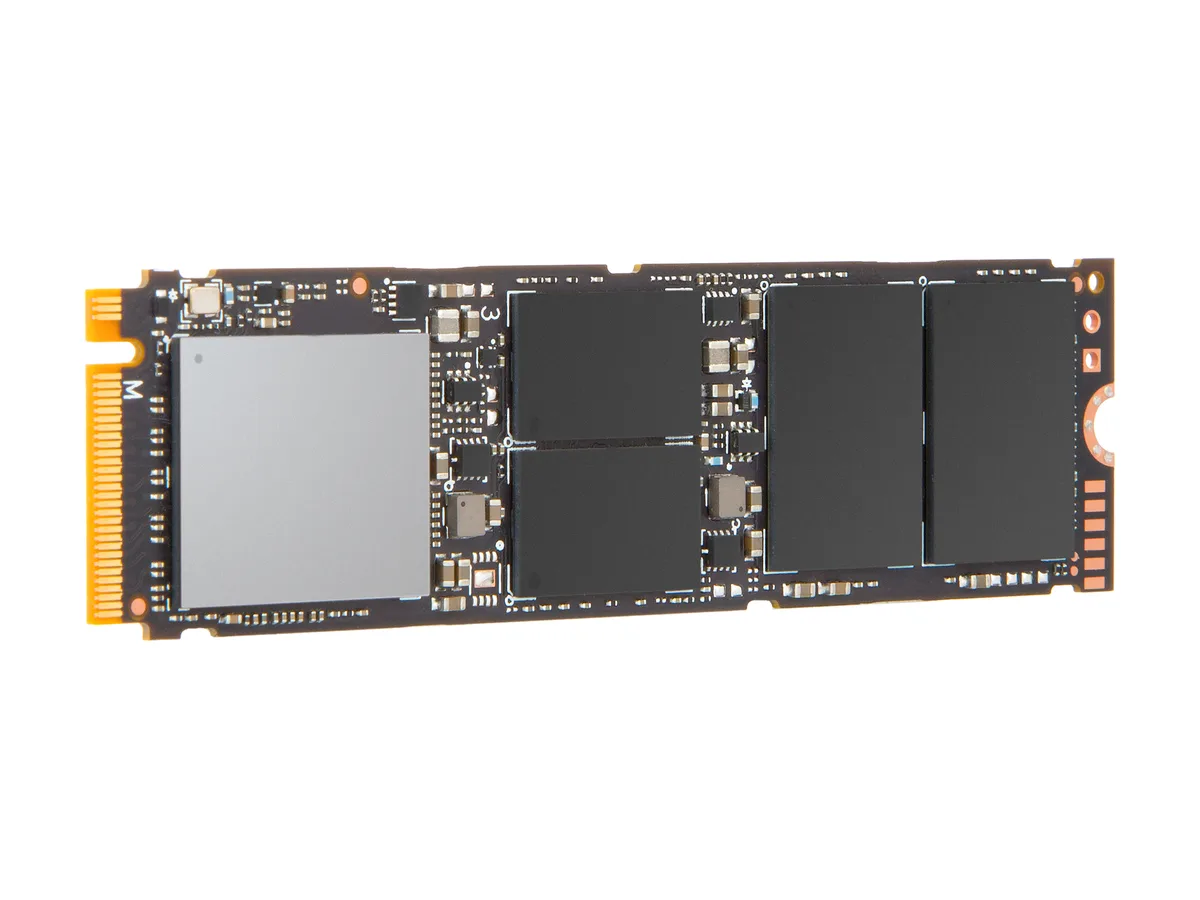

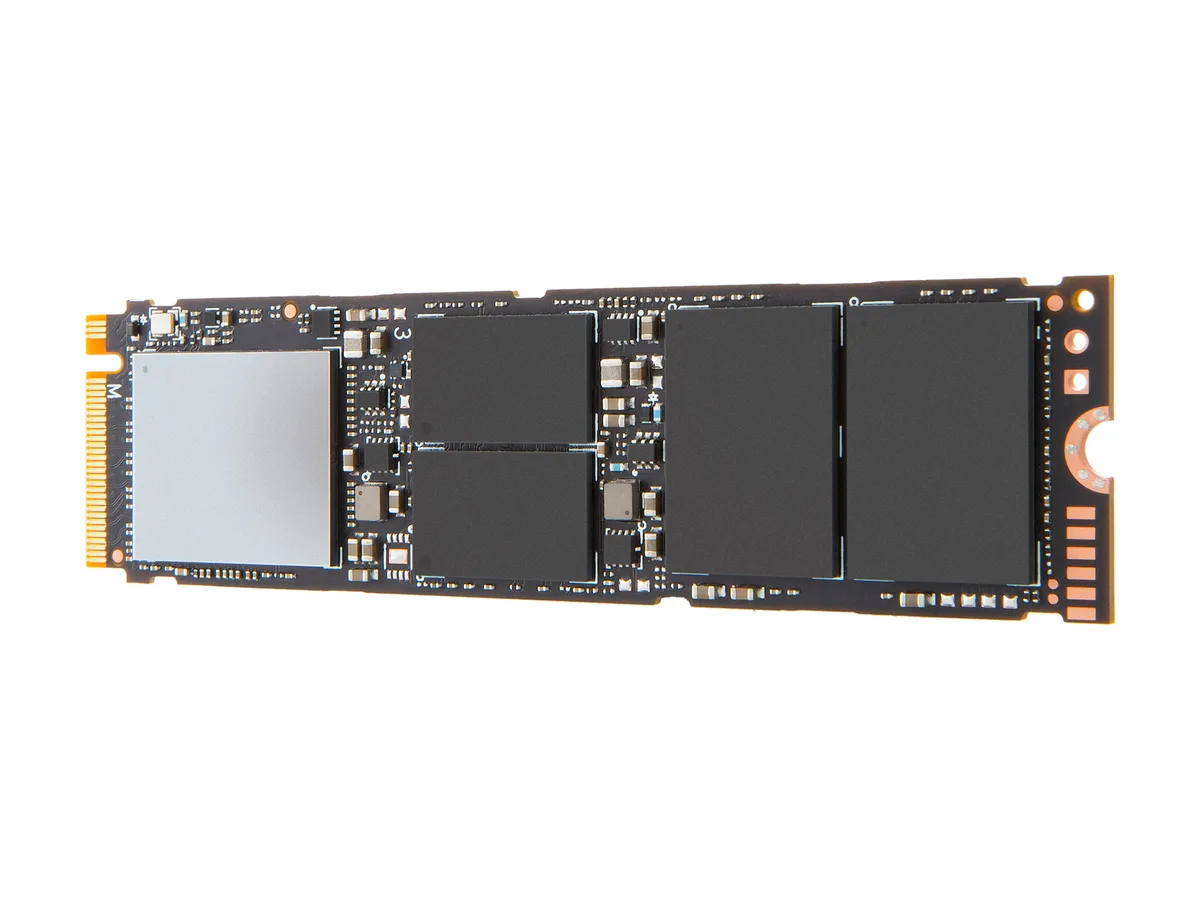

Green rectangular circuit board with gold edge connector and black controller chip, M.2 2280 form factor

Intel

Intel 760p Series M.2 2280 512GB PCIe 3.0 x4 Internal SSD SSDPEKKW512G8XT

SKU CH-MHWD-CVMT0 MPN SSDPEKKW512G8XT

M.2 2280 NVMe drive with 512 GB capacity and PCIe 3.0 x4 speeds up to 3230 MB/s read and 1625 MB/s write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity512GB
  • Memory Components3D2 TLC
  • InterfacePCI-Express 3.0 x4

Options 512GB

  • Up to 3230 MB/s sequential read accelerates boot and load times
  • Up to 1625 MB/s sequential write speeds up file saves and installs
  • 340K random read IOPS keeps multitasking responsive
  • 275K random write IOPS handles heavy write workloads
  • 288 TBW endurance rating and 1600000 hour MTBF ensure long-term reliability

M.2 2280 512GB PCIe 3.0 x4 NVMe SSD

The Intel 760p Series SSDPEKKW512G8XT is an internal solid-state drive built for consumer systems. It uses a PCI-Express 3.0 x4 interface and 3D2 TLC NAND in an M.2 2280 form factor. The drive is designed for power users who want faster platform responsiveness and strong multitasking throughput.

Sustained load behaviour and endurance

Sequential reads reach up to 3230 MBps and sequential writes up to 1625 MBps. Random 4KB performance delivers up to 340,000 read IOPS and 275,000 write IOPS. The endurance rating is 288 TBW with an MTBF of 1,600,000 hours. Active power draw is 50 mW and idle power is 25 mW, while the operating temperature range spans 0°C to 70°C.

Upgrade path from the 600p series

This model replaces the Intel SSD 600p series, providing twice the PCIe performance and twice the capacity at the 512GB point. AES 256-bit full-disk encryption is included for data security. The jump is worth it when a system needs higher sequential and random throughput plus lower power consumption in the same M.2 2280 slot.

Highlights

  • Up to 3230 MB/s sequential read accelerates boot and load times
  • Up to 1625 MB/s sequential write speeds up file saves and installs
  • 340K random read IOPS keeps multitasking responsive
  • 275K random write IOPS handles heavy write workloads
  • 288 TBW endurance rating and 1600000 hour MTBF ensure long-term reliability

Specifications

BrandIntel
Series760p Series
ModelSSDPEKKW512G8XT
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity512GB
Memory Components3D2 TLC
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 3230 MBps
Max Sequential WriteUp to 1625 MBps
4KB Random ReadUp to 340,000 IOPS
4KB Random WriteUp to 275,000 IOPS
MTBF1,600,000 hours
FeaturesEndurance Rating (Lifetime Writes): 288 TBW
Power Consumption (Idle)25 mW
Power Consumption (Active)50 mW
Operating Temperature0°C ~ +70°C
Max Shock Resistance1000G
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz)
Non-operating: 3.13 GRMS (5-800 Hz)
Height2.38mm
Width22.00mm
Depth80.00mm
Weight< 10.00g
Shipping weight0.07 kg
Package size114 × 94 × 20 mm
