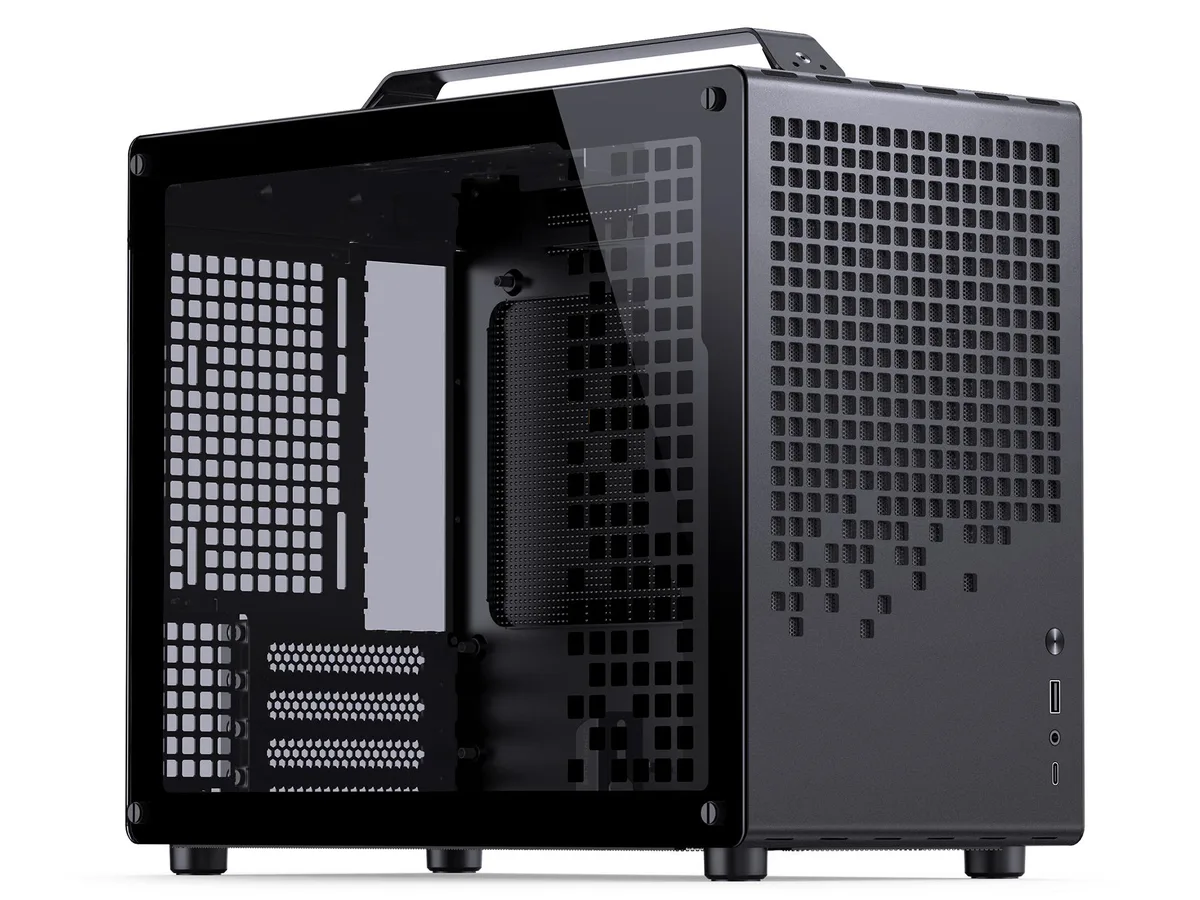

Compact black micro-ATX case with tempered glass side panel and detachable carrying handle

JONSPLUS

JONSPLUS Z20 BLACK Micro-ATX Case with Detachable Handle

SKU CH-RN0D-PFCT9

A compact Micro-ATX chassis with a detachable handle, tempered-glass side panel, and room for a 240 mm radiator, 363 mm GPU, and 160 mm CPU cooler

  • TypeMicro ATX / Mini-ITX
  • ColorBlack
  • Case MaterialSPCC steel plate, tempered glass
  • Motherboard CompatibilityMicro ATX / ITX / Mini ITX
  • Dust FiltersYes
  • Internal 3.5" Drive Bays1

Options Z20 Black

  • Detachable handle enables easy transport of the compact 20L chassis
  • 240mm top radiator support with 60mm clearance handles high-performance liquid cooling
  • 363mm GPU length and 160mm CPU cooler height fit powerful components
  • Magnetic dust filters on all panels keep internals clean with minimal effort
  • SPCC steel and tempered glass construction with 2mm thick panels provides rigid durability

Compact Micro-ATX Chassis with Carry Handle

The JONSPLUS Z20 BLACK is a 20-litre Micro-ATX and Mini-ITX case built from 2 mm SPCC steel and tempered glass. A detachable carrying handle makes it easy to move between desktop setups or LAN events. Magnetic dust filters cover the major intake areas to keep internals clean.

Check Motherboard Form Factor and PSU Length

Verify your board is Micro-ATX or Mini-ITX before ordering. The power supply cavity accepts units up to 180 mm long, so measure your PSU against that limit. Graphics cards up to 363 mm fit once the removable PCIe bracket is taken out, and CPU coolers must stay within 160 mm overall height.

Top-Mount 240 mm Radiator Support

A 240 mm all-in-one radiator can be installed in the roof with up to 60 mm thickness. The top, bottom and rear positions accept 120 mm or 140 mm fans, while the rear also takes a 92 mm unit. Square ventilation openings across the panels balance airflow with the steel-and-glass construction.

Highlights

  • Detachable handle enables easy transport of the compact 20L chassis
  • 240mm top radiator support with 60mm clearance handles high-performance liquid cooling
  • 363mm GPU length and 160mm CPU cooler height fit powerful components
  • Magnetic dust filters on all panels keep internals clean with minimal effort
  • SPCC steel and tempered glass construction with 2mm thick panels provides rigid durability

Specifications

BrandJONSPLUS
ModelZ20 BLACK
Part NumberZ20 BLACK
TypeMicro ATX / Mini-ITX
ColorBlack
Case MaterialSPCC steel plate, tempered glass
Motherboard CompatibilityMicro ATX / ITX / Mini ITX
Dust FiltersYes
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays3
Expansion Slots4
Front PortsUSB 3.2 Gen 1 Type-A:1
USB 3.2 Gen 2 Type-C:1
HP & Micr Audio Port x1
Fan OptionsTop:2 x 120mm / 2 x 140mm
Rear:1 x 120mm / 1 x 92mm
Bottom:2 x 120mm / 2 x 140mm
Radiator OptionsCPU water cooling radiator: top, 240mm
Max GPU Length363 mm
Max CPU Cooler Height160 mm
Max PSU Length180 mm
Dimensions382x 198 x 335mm/15.04”x7.80”x13.19”
Weight5KGS/ 11.02LB
FeaturesJONSPLUS Z20 Mini Micro-ATX Computerwith Detachable Carrying handle-
Built with only about 20L of volume, be easily placed in various desktop environments.
Case Material: SPCC steel plate, tempered glass
Thick to 2mm integrated bent steel panels (panel + top panel)
Complemented by a large area of delicate square openings:Combines heat dissipation and craftsmanship
Innovative Design: Removable PCI-E Fixing Piece to Optimize the Installation Experience for Longer GPU
Comprehensive Coverage Magnetic Dust Filter
High-performance Hardware Compatible:
Radiator CMPT
? Water Cooling: Compati
Package ContentCarrying Handle Combo Kit - Graphics Card Support Bracket Combo Kit ? 3.5-inch HDD Mounting Bracket - Dual 2.5-inch SSD Mounting Brackets, Chassis Rear Dust Filter ? SFX TO ATX Power Conversion Bracket - Screw Boxes/User's Guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the Z20 BLACK include any fans or do I need to buy them separately?

The case ships without pre-installed fans; you will need to purchase up to two 120 mm or 140 mm fans for the top, one 120 mm or 92 mm fan for the rear, and two 120 mm or 140 mm fans for the bottom.

Should I choose the 240 mm top radiator support or the 160 mm air-cooler limit for my build?

Pick a 240 mm all-in-one liquid cooler if you want liquid cooling; otherwise any CPU air cooler up to 164 mm on Intel or 163 mm on AMD will fit.

Will a 363 mm graphics card actually fit once cables and a front radiator are installed?

The 363 mm maximum GPU length is measured with the innovative removable PCI-E fixing piece in place, so a full-length card fits without repositioning drive cages.
