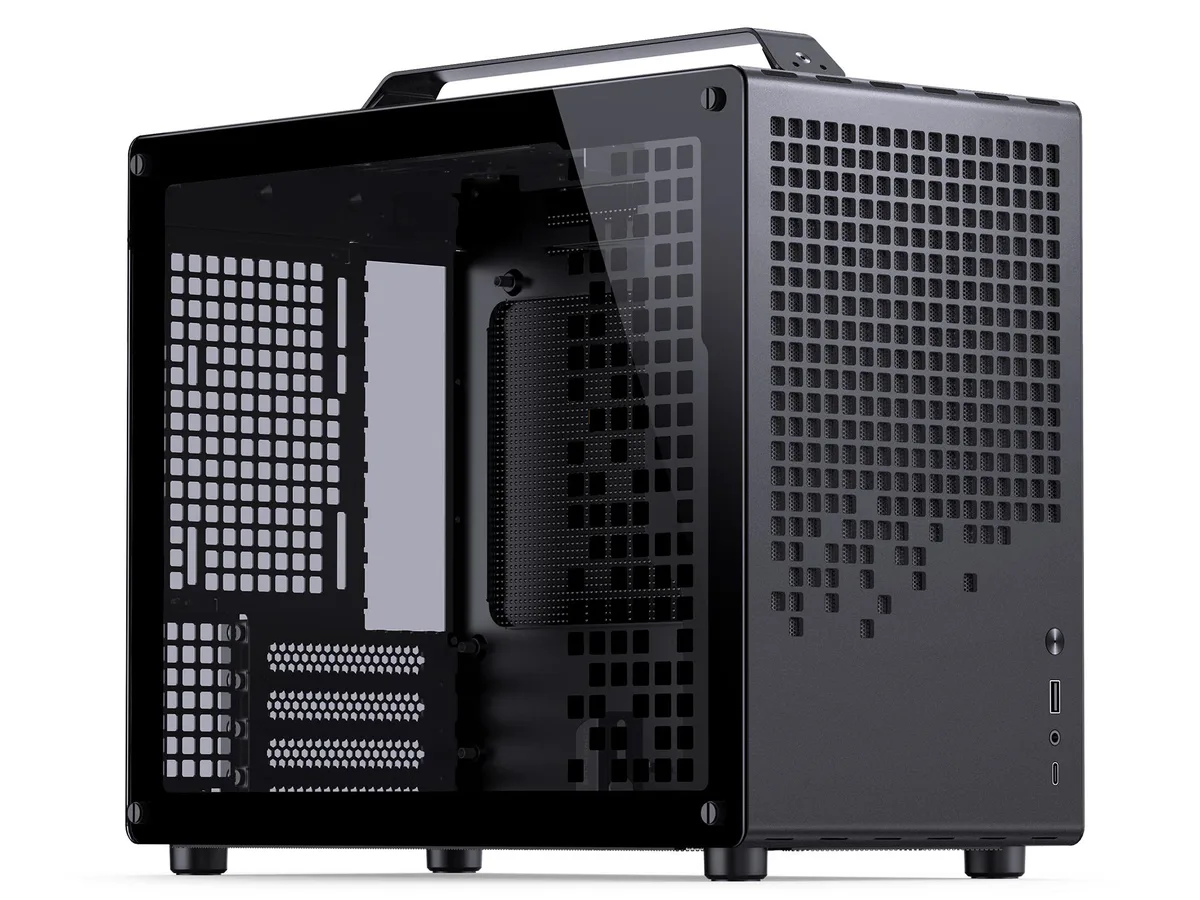

Black Micro-ATX case with mesh side panels, tempered glass window and detachable carrying handle

JONSPLUS

JONSPLUS Z20 Mesh BLACK Micro-ATX PC case with detachable carrying handle

SKU CH-P9K6-B77AR

A compact Micro-ATX chassis with a detachable carrying handle, mesh side panels, top 240 mm radiator support, 363 mm GPU clearance and 160 mm CPU cooler height

  • TypeMicro ATX / Mini-ITX
  • ColorBlack
  • Case MaterialSPCC steel plate, tempered glass
  • Motherboard CompatibilityMicro ATX / ITX / Mini ITX
  • Dust FiltersYes
  • Internal 3.5" Drive Bays1

Options Z20 Mesh Black

  • Detachable handle makes it easy to move the 20 L chassis
  • Mesh side panels and magnetic dust filters keep airflow high and dust low
  • Top mount supports a 240 mm radiator up to 60 mm thick
  • Fits graphics cards up to 363 mm and CPU coolers up to 160 mm
  • Front I/O includes USB 3.2 Gen 1 Type-A, USB 3.2 Gen 2 Type-C and a headphone/mic jack

Compact Micro-ATX chassis for portable builds

The JONSPLUS Z20 BLACK is a Micro-ATX and Mini-ITX case with roughly 20 litres of internal volume and a detachable carrying handle. It suits builders who want a small-footprint system that can be moved between desks or LAN events without disassembly. The steel-and-tempered-glass construction keeps the weight at 5 kilograms while providing a rigid frame for high-performance components.

Sustained airflow through magnetic mesh panels

Large square mesh openings on the side and top panels feed cool air directly to the CPU and GPU during extended workloads. Magnetic dust filters cover the intakes, maintaining clean internals without restricting flow when the system runs for hours. The top panel supports a 240 mm radiator up to 60 mm thick, and the bottom mounts accept two 120 mm or two 140 mm fans to exhaust heat from long rendering or compute sessions.

Thermals and acoustics in daily use

A rear 120 mm or 92 mm fan and optional bottom fans create a direct path for hot air to leave the chassis, keeping component temperatures stable under typical gaming or productivity loads. The mesh design reduces the need for high fan speeds, so noise remains low during normal operation. Maximum cooler height is 164 mm for Intel sockets and 163 mm for AMD sockets, while the power supply compartment fits units up to 180 mm long.

Highlights

  • Detachable handle makes it easy to move the 20 L chassis
  • Mesh side panels and magnetic dust filters keep airflow high and dust low
  • Top mount supports a 240 mm radiator up to 60 mm thick
  • Fits graphics cards up to 363 mm and CPU coolers up to 160 mm
  • Front I/O includes USB 3.2 Gen 1 Type-A, USB 3.2 Gen 2 Type-C and a headphone/mic jack

Specifications

BrandJONSPLUS
ModelZ20 BLACK
Part NumberZ20 BLACK
TypeMicro ATX / Mini-ITX
ColorBlack
Case MaterialSPCC steel plate, tempered glass
Motherboard CompatibilityMicro ATX / ITX / Mini ITX
Dust FiltersYes
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays3
Expansion Slots4
Front PortsUSB 3.2 Gen 1 Type-A:1
USB 3.2 Gen 2 Type-C:1
HP & Micr Audio Port x1
Fan OptionsTop:2 x 120mm / 2 x 140mm
Rear:1 x 120mm / 1 x 92mm
Bottom:2 x 120mm / 2 x 140mm
Radiator OptionsCPU water cooling radiator: top, 240mm
Max GPU Length363 mm
Max CPU Cooler Height160 mm
Max PSU Length180 mm
Dimensions382x 198 x 335mm/15.04”x7.80”x13.19”
Weight5KGS/ 11.02LB
FeaturesJONSPLUS Z20 Mini Micro-ATX Computerwith Detachable Carrying handle-
Built with only about 20L of volume, be easily placed in various desktop environments.
Case Material: SPCC steel plate, tempered glass
Thick to 2mm integrated bent steel panels (panel + top panel)
Complemented by a large area of delicate square openings:Combines heat dissipation and craftsmanship
Innovative Design: Removable PCI-E Fixing Piece to Optimize the Installation Experience for Longer GPU
Comprehensive Coverage Magnetic Dust Filter
High-performance Hardware Compatible:
Radiator CMPT
? Water Cooling: Compati
Package ContentCarrying Handle Combo Kit - Graphics Card Support Bracket Combo Kit ? 3.5-inch HDD Mounting Bracket - Dual 2.5-inch SSD Mounting Brackets, Chassis Rear Dust Filter ? SFX TO ATX Power Conversion Bracket - Screw Boxes/User's Guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How noisy and hot does the Z20 Mesh get when the top 240 mm radiator and bottom 140 mm fans run all day?

Mesh side panels and a magnetic dust filter on the 2 mm steel top panel give plenty of airflow, so a 240 mm AIO up to 60 mm thick and two 140 mm bottom fans can exhaust heat without loud fan speeds.

Which parts must I already own before the Z20 Mesh is usable?

You need a Micro-ATX or Mini-ITX motherboard, an SFX or ATX power supply no longer than 180 mm, and at least one 120 mm or 140 mm fan for the rear mount.

Will my current 363 mm graphics card and 160 mm CPU cooler fit alongside the 240 mm top radiator?

The case allows 363 mm GPU length and 160 mm cooler height (164 mm on Intel, 163 mm on AMD) with a 240 mm radiator mounted on top, so both components fit together.
