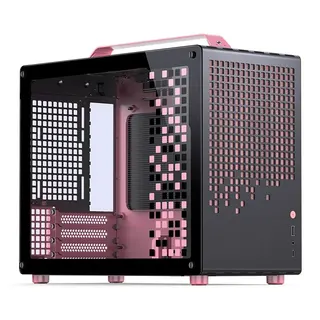

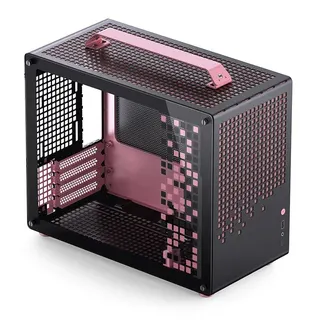

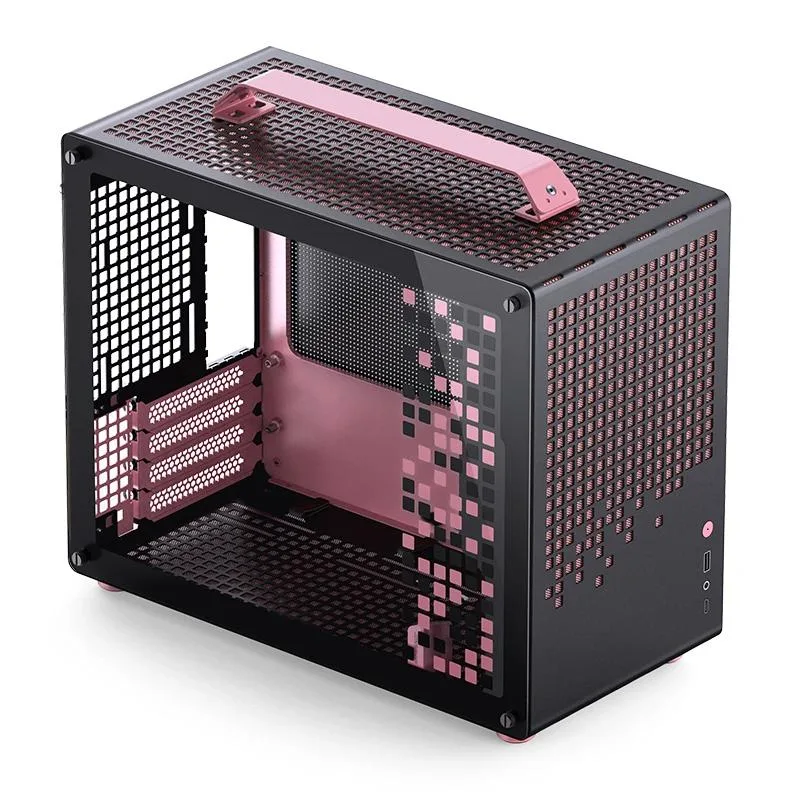

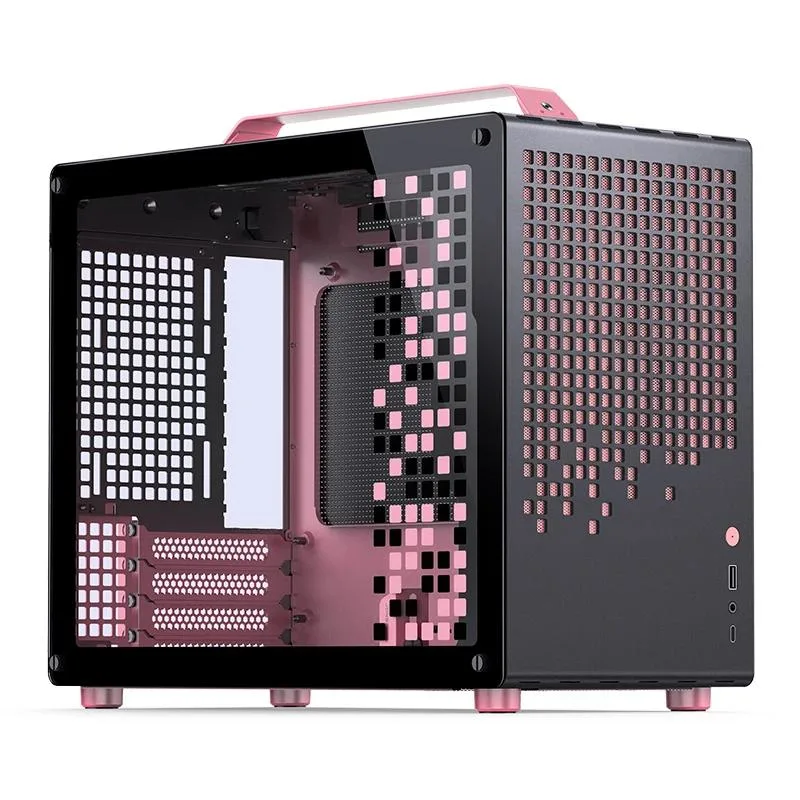

Pink and black Micro-ATX case with tempered glass side panel and detachable carrying handle

JONSPLUS

JONSPLUS Z20 PINK/BLACK Micro-ATX PC case

SKU CH-80YX-TD04J

A compact Micro-ATX case with a detachable handle that fits a 363 mm GPU, 240 mm top radiator and 164 mm CPU cooler

  • TypeMicro ATX / Mini-ITX
  • ColorBlack / Pink
  • Case MaterialSPCC / Tempered Glass
  • With Power SupplyNo
  • Motherboard CompatibilityMicro ATX / ITX / Mini ITX
  • Side Panelwith Side Window

Options Z20 Pink/Black

  • Compact 20 L footprint fits small desks easily
  • Detachable carrying handle lets you move the build safely
  • 240 mm top radiator support handles high heat loads
  • GPU clearance up to 363 mm accepts long graphics cards
  • Magnetic dust filters on all intakes keep internals clean

Compact 20L Micro-ATX Chassis

The JONSPLUS Z20 is a 20L Micro-ATX and Mini-ITX case finished in pink and black SPCC steel with a tempered-glass side panel. Its small footprint suits builders who want a portable desktop system that still accepts full-length graphics cards. The detachable carrying handle reinforces the focus on easy relocation.

Magnetic Filters and Removable PCI-E Bracket

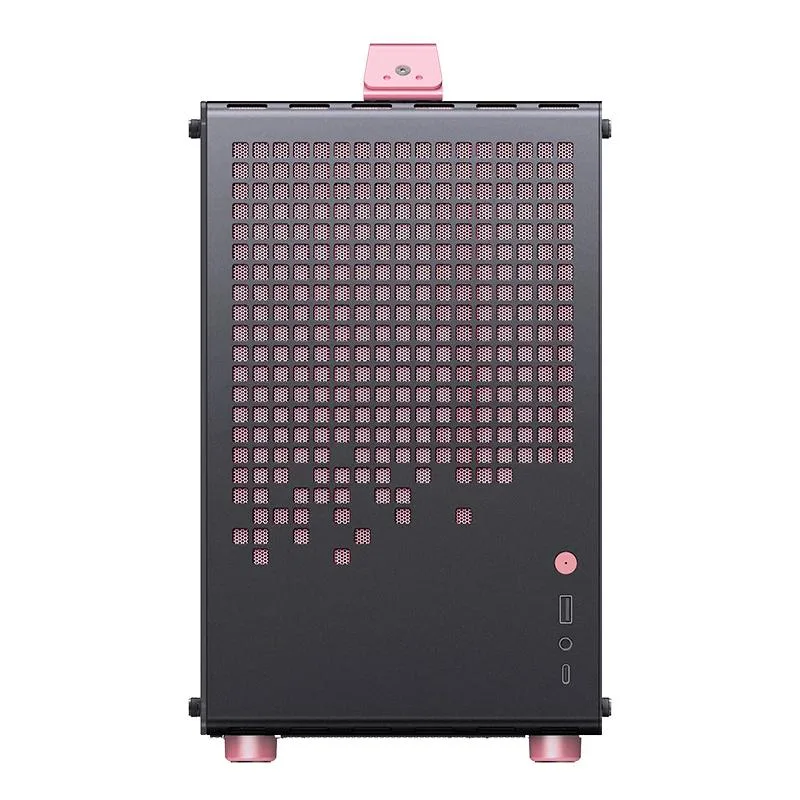

Comprehensive magnetic dust filters cover the major intake areas, simplifying cleaning without tools. A removable PCI-E fixing piece lets installers slide in graphics cards up to the maximum supported length with less friction, then re-secure the bracket for transport stability. Front I/O provides USB 3.2 Gen 1 Type-A, USB 3.2 Gen 2 Type-C and separate audio jacks.

363mm GPU and 240mm Radiator Headroom

The interior fits graphics cards up to 363mm and CPU air coolers up to 164mm on Intel or 163mm on AMD platforms. A 240mm radiator up to 60mm thick mounts in the roof, while the power-supply bay accepts ATX, SFX-L or SFX units in multiple positions. Storage options include one 3.5-inch bay and three 2.5-inch slots, or three 2.5-inch drives total. Builders needing more than four expansion slots or additional 3.5-inch bays will find the layout restrictive.

Highlights

  • Compact 20 L footprint fits small desks easily
  • Detachable carrying handle lets you move the build safely
  • 240 mm top radiator support handles high heat loads
  • GPU clearance up to 363 mm accepts long graphics cards
  • Magnetic dust filters on all intakes keep internals clean

Specifications

BrandJONSPLUS
SeriesZ20 SERIES
ModelZ20 PINK/BLACK
Part NumberZ20 PINK/BLACK
TypeMicro ATX / Mini-ITX
ColorBlack / Pink
Case MaterialSPCC / Tempered Glass
With Power SupplyNo
Motherboard CompatibilityMicro ATX / ITX / Mini ITX
Side Panelwith Side Window
Dust FiltersYes
External 3.5" Drive Bays1
Internal 2.5" Drive Bays3
Expansion Slots4
Front PortsUSB3.2 Gen1 Type-A*1/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1
Fan OptionsTop:120mm*2/140mm*2;Rear:120mm*1/92mm*1; Bottom:120mm*2/140mm*2
Radiator InstalledTop,up to 240mm
Radiator OptionsTop - Up to 240mm
Max GPU Length363 mm
Max CPU Cooler Height164mm MAX (Intel CPU) or 163mm MAX (AMD CPU)
Max PSU Length180 mm
Dimensions370mm * 186mm* 295mm
Weight5KG

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often will the magnetic dust filters on the JONSPLUS Z20 need cleaning under normal desk use?

The comprehensive magnetic dust filters cover all major intakes; simply pull them off and rinse or vacuum every few months to keep airflow clear.

What is the first thermal limit reached when running a 240 mm AIO and a 363 mm GPU at full load for hours?

The top-mounted 240 mm radiator with 60 mm thickness support and square ventilation openings are designed to exhaust heat before CPU or GPU temperatures hit throttle points.

How loud do the top 140 mm fans and rear 92 mm fan get when the system runs all day?

With space for two 140 mm top fans, one 92 mm rear fan and bottom intake fans, you can run lower RPM curves for quiet 24-hour operation.
