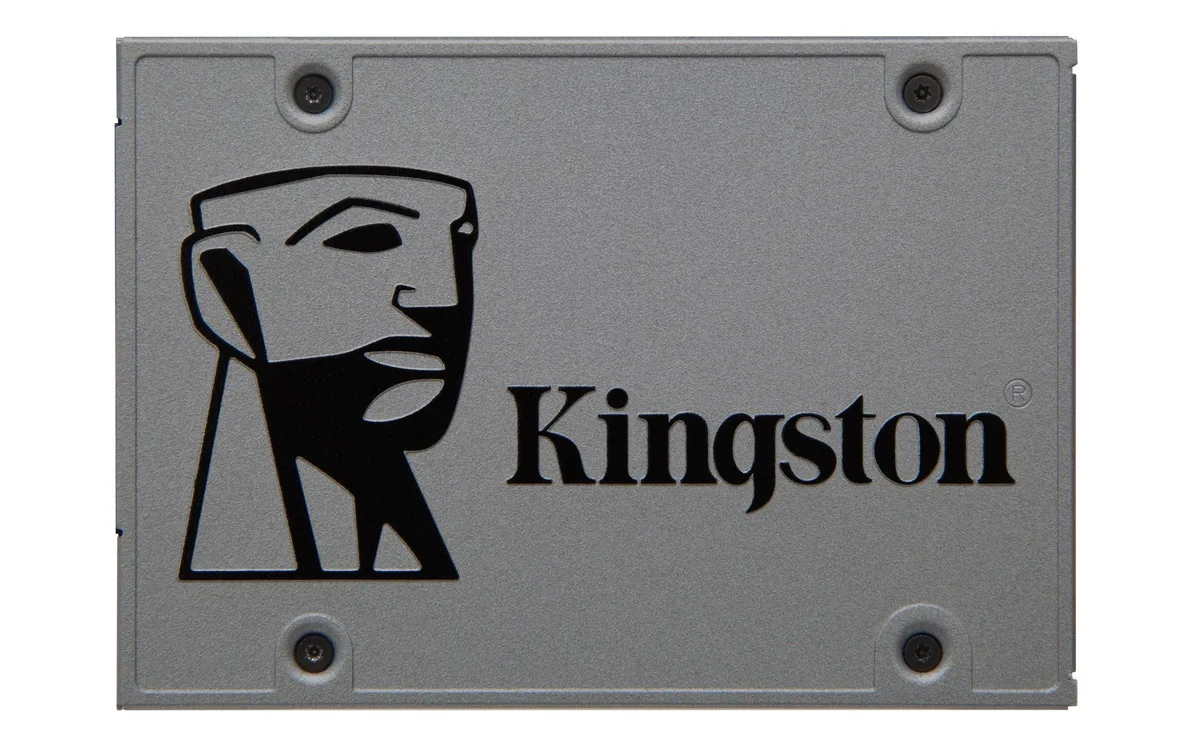

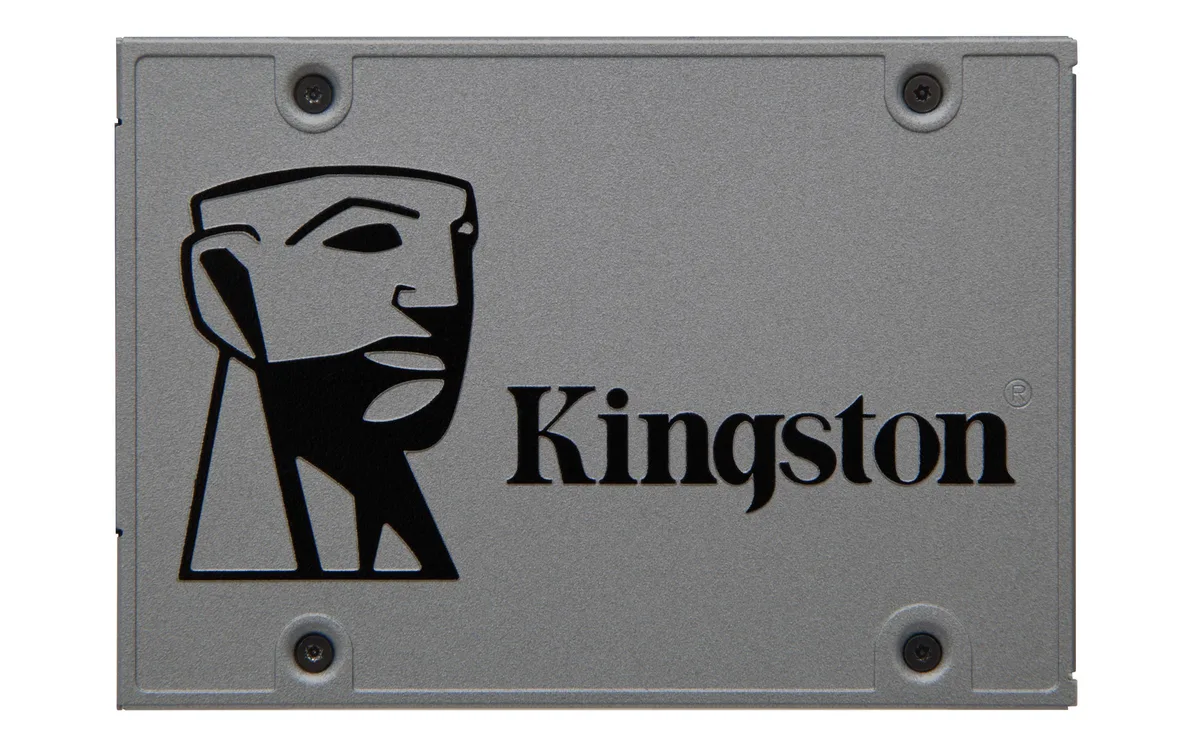

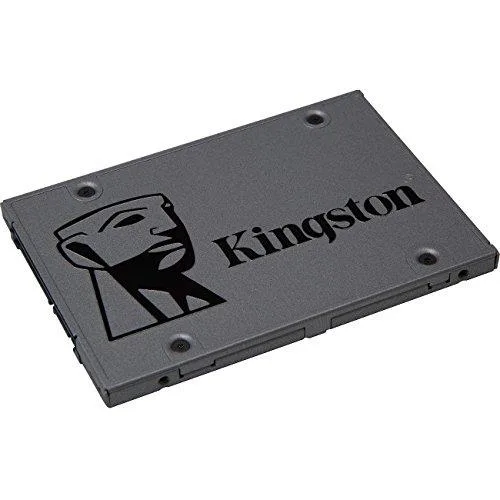

Rectangular 2.5 inch SATA SSD in a black metal casing

Kingston Technology Corp.

Kingston Technology Corp. SUV500/240G 2.5" 240GB SATA internal SSD

SKU CH-J3CB-0YHK5 MPN SUV500/240G

A 2.5 inch SATA internal SSD with 240GB capacity using 3D TLC NAND and a Marvell 88SS1074 controller, delivering up to 520 MBps read and 500 MBps write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity240GB
  • Memory Components3D TLC
  • InterfaceSATA III

Options 240GB

  • Faster boot and load times with up to 520 MBps read speed
  • Hardware-based 256-bit AES encryption protects stored data
  • 3D NAND flash and no moving parts boost reliability
  • Low 0.195 W idle power extends laptop battery life
  • 1,000,000-hour MTBF rating supports long-term use

Drive identity

The Kingston UV500 SUV500/240G is a 2.5-inch SATA internal solid-state drive with 240GB of 3D TLC NAND. It targets users who want faster boot, loading and transfer times than a mechanical hard drive can deliver.

Compatibility check

Verify that your system has a free 2.5-inch drive bay and a SATA III port with an available data and power cable. The drive operates from 0°C to 70°C and stores safely from -40°C to 85°C.

Build integration

A Marvell 88SS1074 controller manages read speeds up to 520 MBps and write speeds up to 500 MBps. The drive draws 0.195W idle, 0.5W average active, 1.17W max read and 2.32W max write. Hardware-based 256-bit AES encryption and TCG Opal 2.0 support secure data without software overhead.

Highlights

  • Faster boot and load times with up to 520 MBps read speed
  • Hardware-based 256-bit AES encryption protects stored data
  • 3D NAND flash and no moving parts boost reliability
  • Low 0.195 W idle power extends laptop battery life
  • 1,000,000-hour MTBF rating supports long-term use

Specifications

BrandKingston
SeriesUV500
ModelSUV500/240G
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity240GB
Memory Components3D TLC
InterfaceSATA III
ControllerMarvell 88SS1074
Max Sequential ReadUp to 520 MBps
Max Sequential WriteUp to 500 MBps
4KB Random ReadUp to 79,000 IOPS
4KB Random WriteUp to 25,000 IOPS
MTBF1,000,000 hours
FeaturesKingston's UV500 SSD dramatically improves your system's responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell 88SS1074 controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions. The UV500's available in multiple capacities from 120GB - 1.92TB giving you options to meet your system's needs.
10X faster than a 7200 RPM hard drive
AES 256-bit Hardwar
Power Consumption (Idle)0.195W Idle
Power Consumption (Active)0.5W Avg
1.17W (MAX) Read
2.32W (MAX) Write
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration ResistanceOperating: 2.17G Peak (7-800 Hz)
Non-operating: 20G Peak (10-2000 Hz)
Height7.00mm
Width69.85mm
Depth100.10mm
Weight41.00g
Shipping weight0.07 kg
Package size184 × 130 × 6 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is included with the SUV500/240G and what must be bought separately?

The drive itself is supplied; a 2.5″ to 3.5″ mounting bracket and a SATA data cable are not included and must be purchased separately if your chassis or motherboard needs them.

Which UV500 capacity should I choose between 120GB, 240GB and 960GB?

240GB suits an operating system plus core applications; 120GB is tighter for updates, while 960GB adds room for large media libraries and game installs.

What do the 520 MB/s read and 500 MB/s write figures mean once the drive is installed in a SATA III system?

They represent the maximum sequential throughput the Marvell 88SS1074 controller can deliver over the SATA III link; real-world speeds depend on the host controller, file sizes and system workload.
