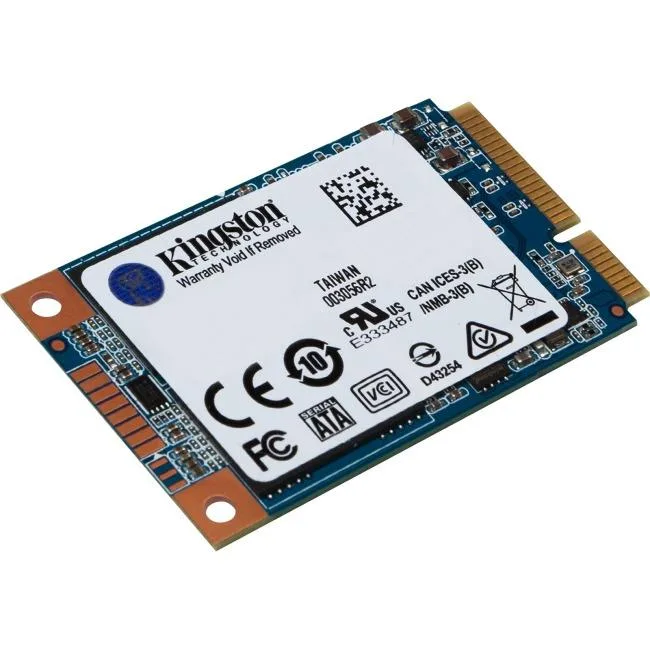

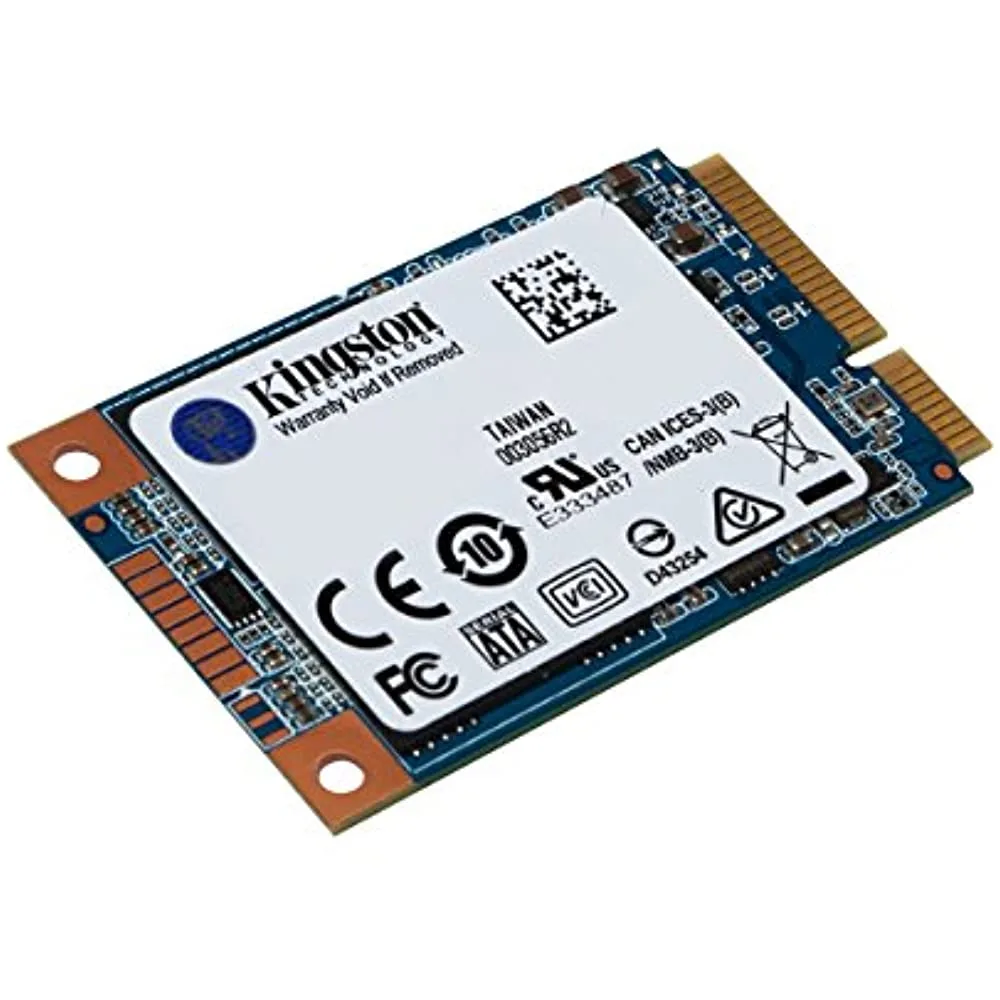

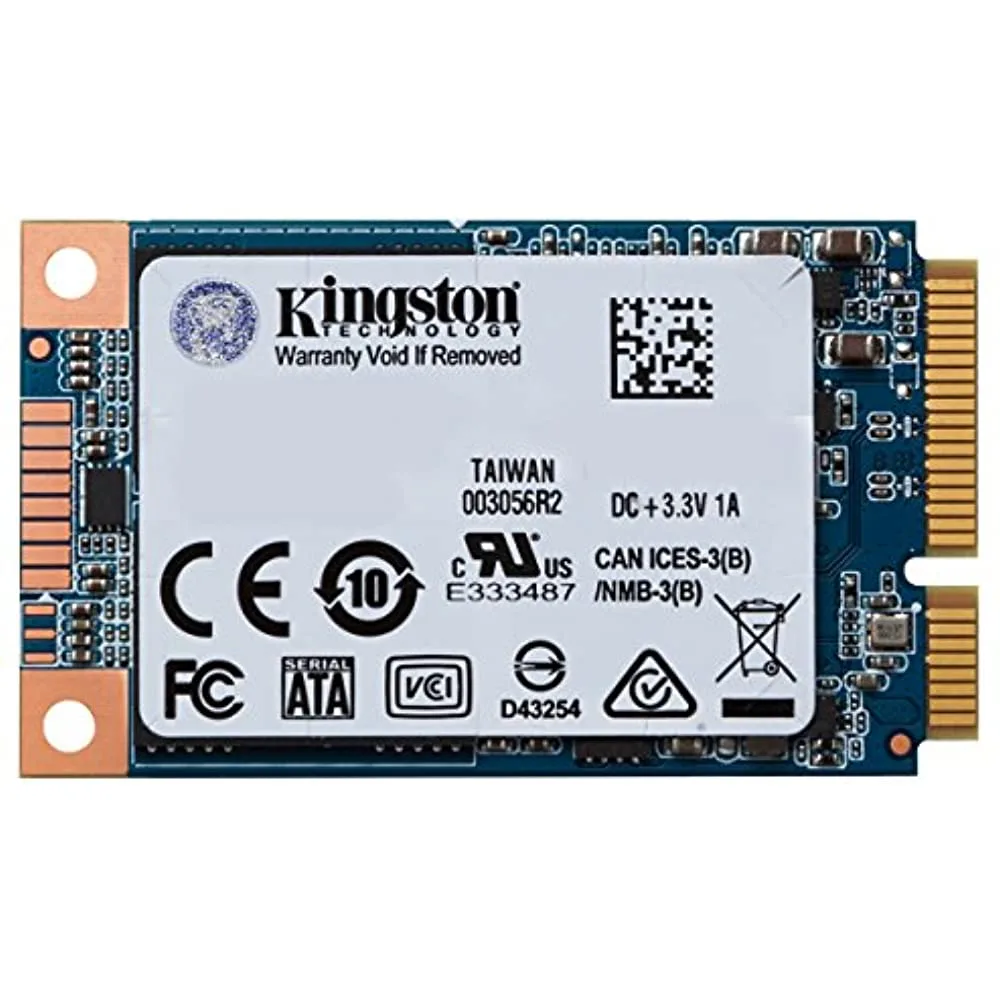

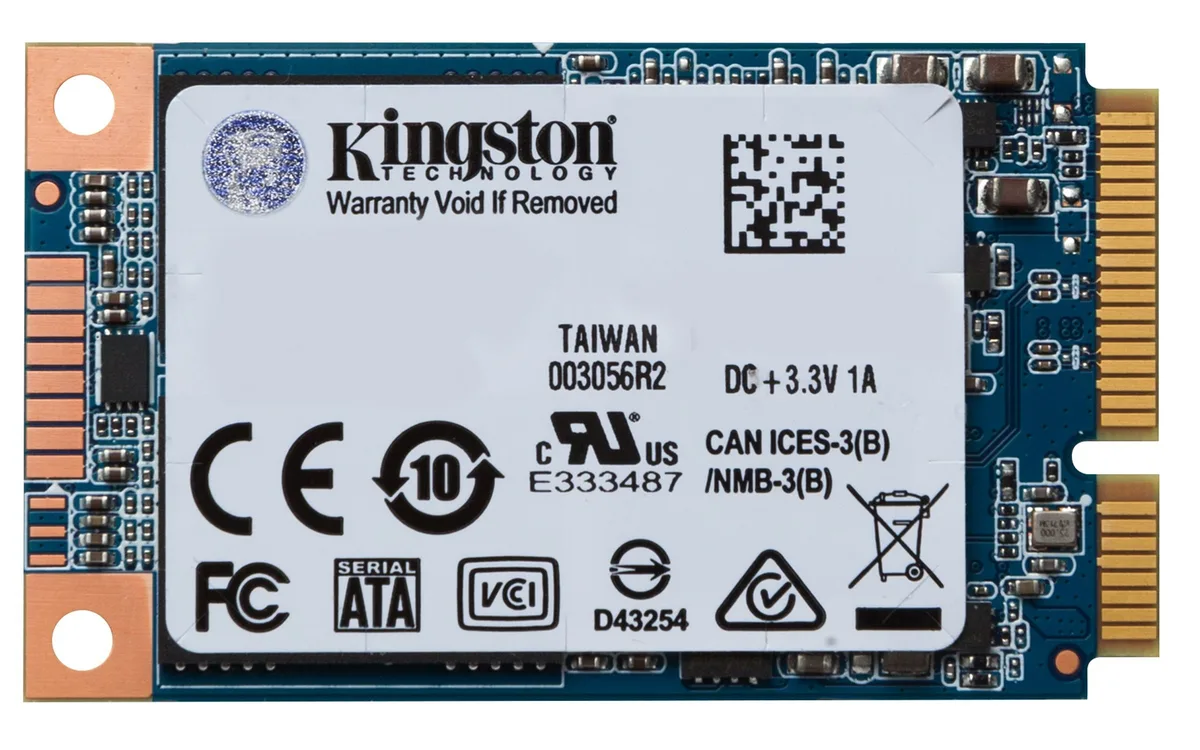

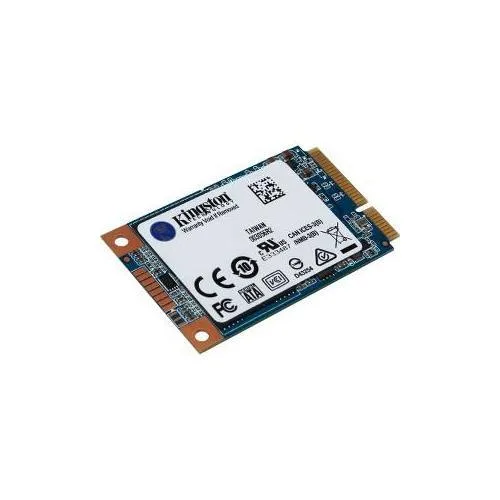

Green rectangular mSATA circuit board with gold edge connector and black controller chip

Kingston Technology Corp.

Kingston Technology Corp. SUV500MS/240G UV500 mSATA 240GB internal SSD

SKU CH-RD1W-PNK97 MPN SUV500MS/240G

mSATA drive delivering 240 GB of 3D TLC storage with 520 MBps reads and 500 MBps writes

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity240GB
  • Memory Components3D TLC
  • InterfaceSATA III

Options 240GB mSATA

  • Faster boot and load times than mechanical hard drives
  • Sequential read speeds up to 520 MBps and write up to 500 MBps
  • Random read performance up to 79,000 IOPS for responsive multitasking
  • Hardware-based 256-bit AES encryption with TCG Opal 2.0 support protects data
  • mSATA form factor fits compatible laptops and small-form-factor systems

mSATA 240GB internal SSD

The Kingston UV500 is a 240GB internal solid state drive in the mSATA form factor. It connects through a SATA III interface and uses 3D TLC NAND with a Marvell Dean controller to deliver faster boot and load times than a mechanical hard drive.

Suits older laptops and small-form-factor desktops

This drive fits systems that have an mSATA slot and need a SATA-based upgrade. Builds that only accept 2.5-inch SATA drives or M.2 PCIe modules cannot use this form factor and should select a different model.

Hardware AES-256 encryption and TCG Opal 2.0

The UV500 includes 256-bit AES hardware-based encryption with TCG Opal 2.0 support. If your workflow requires drive-level encryption managed through Opal-compatible software, this specification makes the drive suitable; if encryption is not needed, the feature simply remains available.

Highlights

  • Faster boot and load times than mechanical hard drives
  • Sequential read speeds up to 520 MBps and write up to 500 MBps
  • Random read performance up to 79,000 IOPS for responsive multitasking
  • Hardware-based 256-bit AES encryption with TCG Opal 2.0 support protects data
  • mSATA form factor fits compatible laptops and small-form-factor systems

Specifications

BrandKingston
SeriesUV500
ModelSUV500MS/240G
Part NumberSUV500MS/240G
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity240GB
Memory Components3D TLC
InterfaceSATA III
ControllerMarvell Dean
Max Sequential ReadUp to 520 MBps
Max Sequential WriteUp to 500 MBps
4KB Random ReadUp to 79,000 IOPS
4KB Random WriteUp to 25,000 IOPS
MTBF1,000,000 hours
FeaturesKingston's UV500 SSD dramatically improves your system's responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell Dean controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions. The UV500's available in multiple capacities from 120GB - 960GB giving you options to meet your system's needs.
10X faster than a 7200 RPM hard drive
AES 256-bit Hardware Enc
Power Consumption (Idle)0.195W
Power Consumption (Active)1.17W (MAX) Read / 2.32W (MAX) Write
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration ResistanceOperating: 2.17G Peak (7 - 800 Hz)
Non-operating: 20G Peak (10 - 2000 Hz)
Height4.85mm
Width29.85mm
Depth50.80mm
Weight6.70g
Shipping weight0.02 kg
Package size93 × 43 × 6 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my laptop need an mSATA slot to install this 240GB UV500 drive?

Yes, the drive uses the mSATA form factor and a SATA III interface, so the host system must provide a compatible mSATA socket.

Will this SATA III SSD work in a machine that only has SATA II ports?

The drive is backward compatible with SATA II ports, though maximum sequential speeds will be limited to the older link rate.

How can I confirm the UV500 is delivering its rated 520 MBps read and 500 MBps write performance after installation?

Run a benchmark tool such as CrystalDiskMark or AS SSD and compare the sequential results to the 520 MBps read and 500 MBps write specifications.
