Rectangular 2.5 inch internal SSD with black metal casing and label showing Kingston UV500 480GB

Kingston Technology Corp.

Kingston Technology Corp. SUV500/480G internal SSD

SKU CH-BX8W-DKG9R MPN SUV500/480G

2.5-inch 480 GB internal SSD with SATA III, 256-bit AES hardware encryption and up to 520 MB/s read speed

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity480GB
  • Memory Components3D TLC
  • InterfaceSATA III

Options 480GB

  • Hardware-based 256-bit AES encryption protects stored data
  • TCG Opal 2.0 support enables drive-level security management
  • Sequential reads up to 520 MB/s accelerate boot and load times
  • 79,000 random read IOPS delivers snappy application response
  • 1,000,000-hour MTBF rating indicates long-term reliability

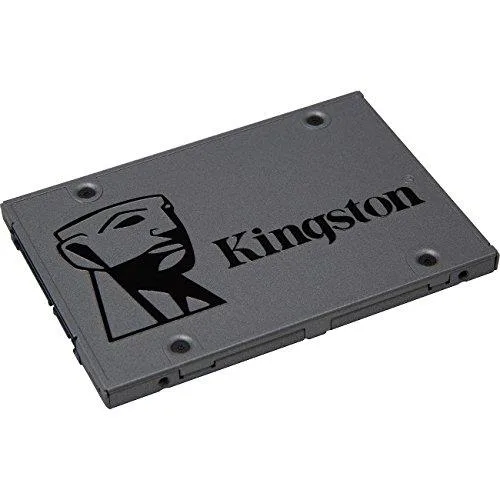

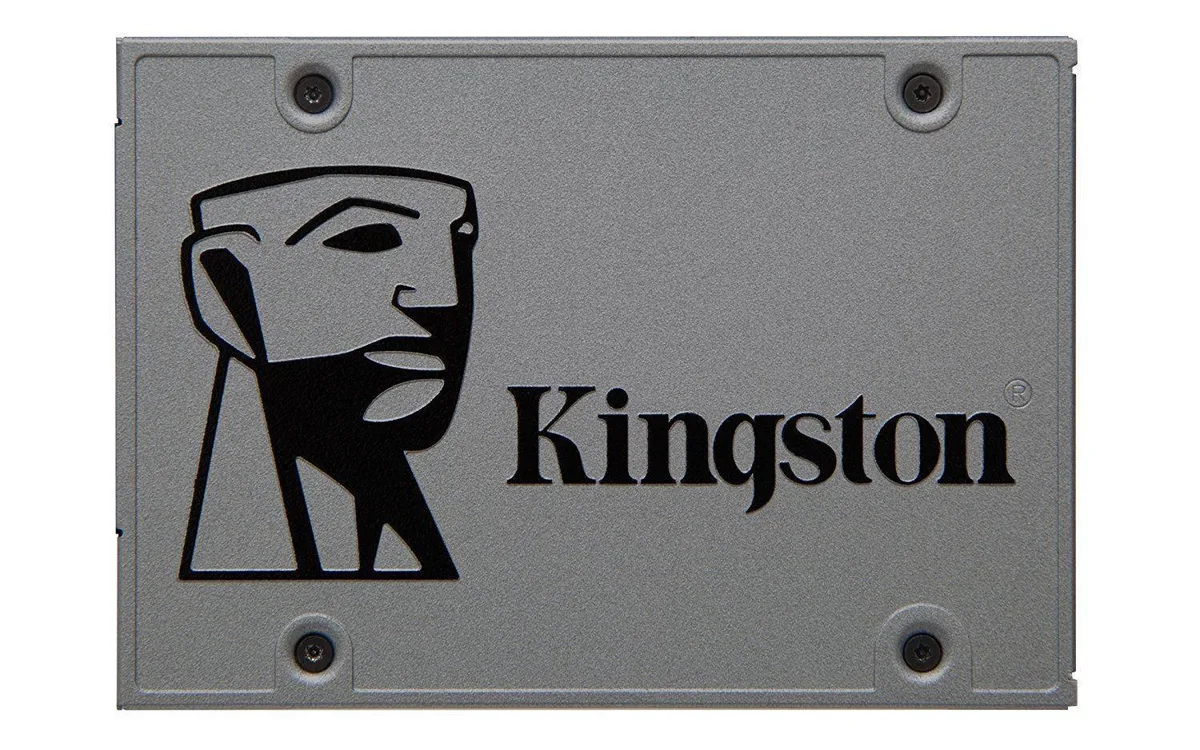

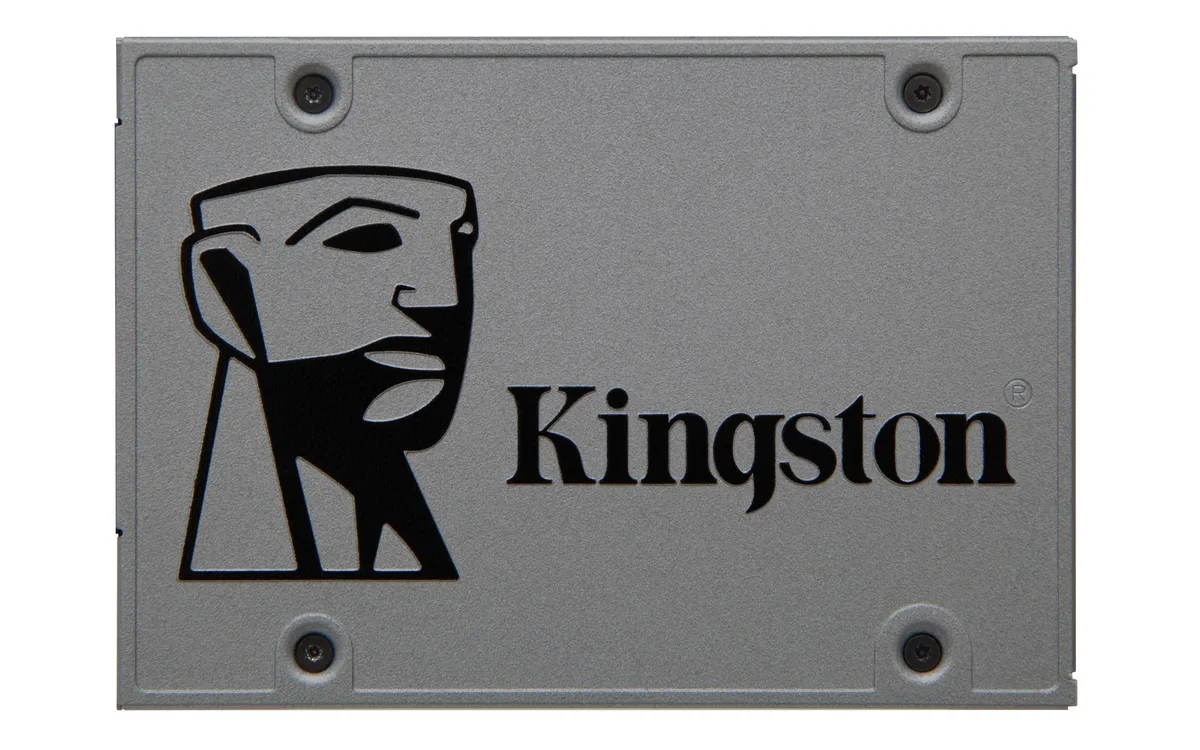

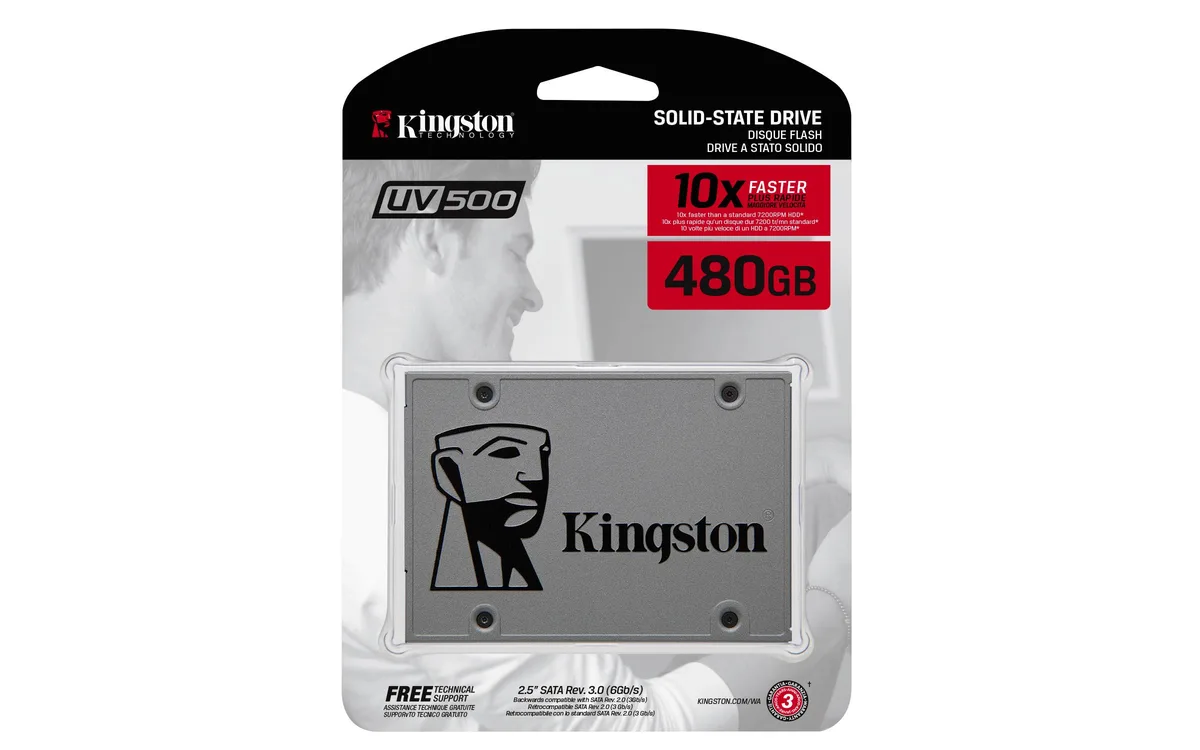

Kingston UV500 480 GB SATA SSD

The Kingston UV500 is a 2.5-inch internal solid-state drive built for consumer desktops and notebooks that still rely on the SATA interface. It replaces a mechanical hard drive to deliver faster boot, application load and file transfer performance.

Hardware-based 256-bit AES encryption

A Marvell 88SS1074 controller manages 3D TLC NAND and provides full-drive 256-bit AES hardware encryption compliant with TCG Opal 2.0. The drive reaches sequential reads up to 520 MBps and writes up to 500 MBps with 79,000 random read IOPS and 35,000 random write IOPS.

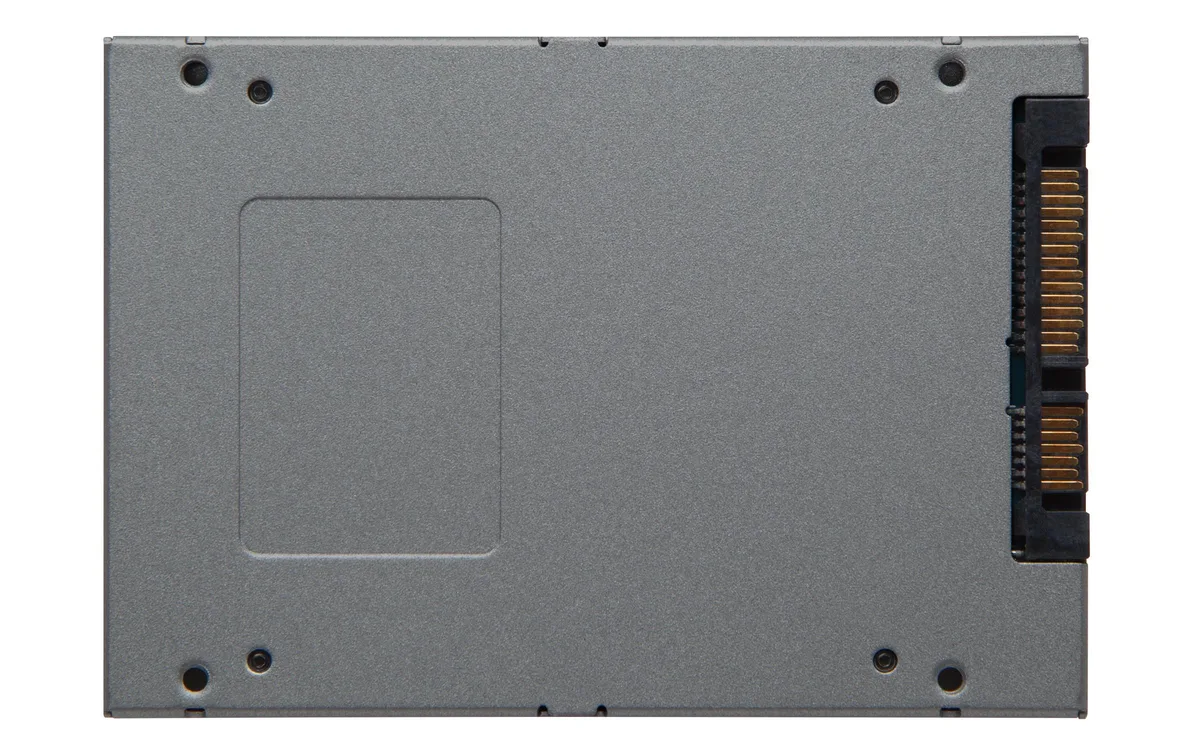

Standard 2.5-inch SATA fit

The drive slots into any 2.5-inch bay with a standard SATA data and power connection, requiring no extra cables or brackets. Low idle power of 0.195 W and an operating range of 0 °C to 70 °C keep thermal demands modest for compact chassis.

Highlights

  • Hardware-based 256-bit AES encryption protects stored data
  • TCG Opal 2.0 support enables drive-level security management
  • Sequential reads up to 520 MB/s accelerate boot and load times
  • 79,000 random read IOPS delivers snappy application response
  • 1,000,000-hour MTBF rating indicates long-term reliability

Specifications

BrandKingston
SeriesUV500
ModelSUV500/480G
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity480GB
Memory Components3D TLC
InterfaceSATA III
ControllerMarvell 88SS1074
Max Sequential ReadUp to 520 MBps
Max Sequential WriteUp to 500 MBps
4KB Random ReadUp to 79,000 IOPS
4KB Random WriteUp to 35,000 IOPS
MTBF1,000,000 hours
FeaturesKingston's UV500 SSD dramatically improves your system's responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell 88SS1074 controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions. The UV500's available in multiple capacities from 120GB - 1.92TB giving you options to meet your system's needs.
Next-Gen 64-layer, 3D TLC NAND
AES 256-bit Hardware Encry
Power Consumption (Idle)0.195W Idle
Power Consumption (Active)0.5W Avg
1.17W (MAX) Read
2.32W (MAX) Write
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration ResistanceOperating: 2.17G Peak (7-800 Hz)
Non-operating: 20G Peak (10-2000 Hz)
Height7.00mm
Width69.85mm
Depth100.10mm
Weight41.00g
Shipping weight0.06 kg
Package size182 × 126 × 9 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 520 MBps sequential read speed affect everyday use?

The 520 MBps read speed lets the operating system and applications load much faster than a mechanical hard drive, cutting boot time and making file transfers snappy.

What does the SATA III interface limit in practice?

SATA III caps the drive at 6 Gbps, so the 520 MBps read and 500 MBps write figures are the practical ceiling you will see in any system.

Will the 2.5 inch form factor fit my laptop or desktop bay?

The drive uses the standard 2.5 inch form factor, so it fits any 2.5 inch SATA bay or caddy in laptops and desktops.
