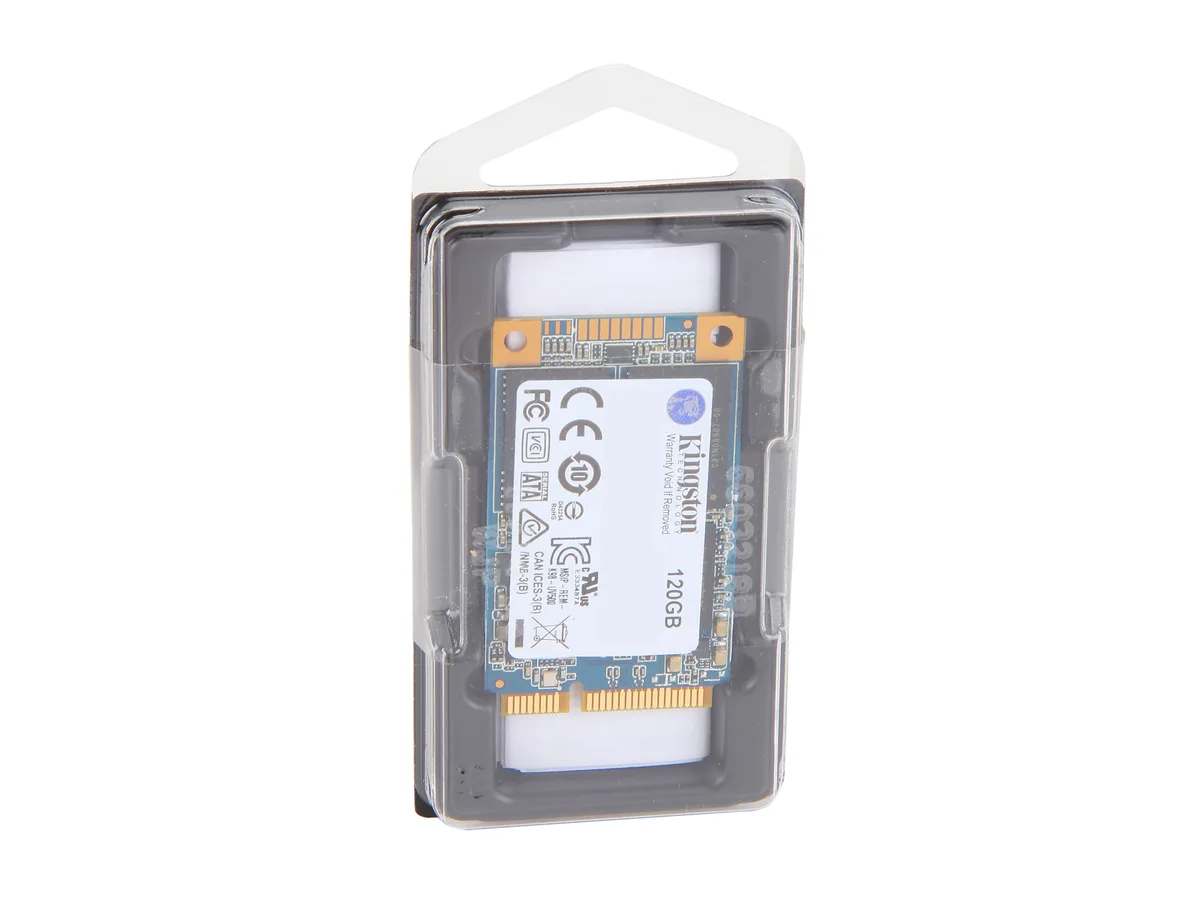

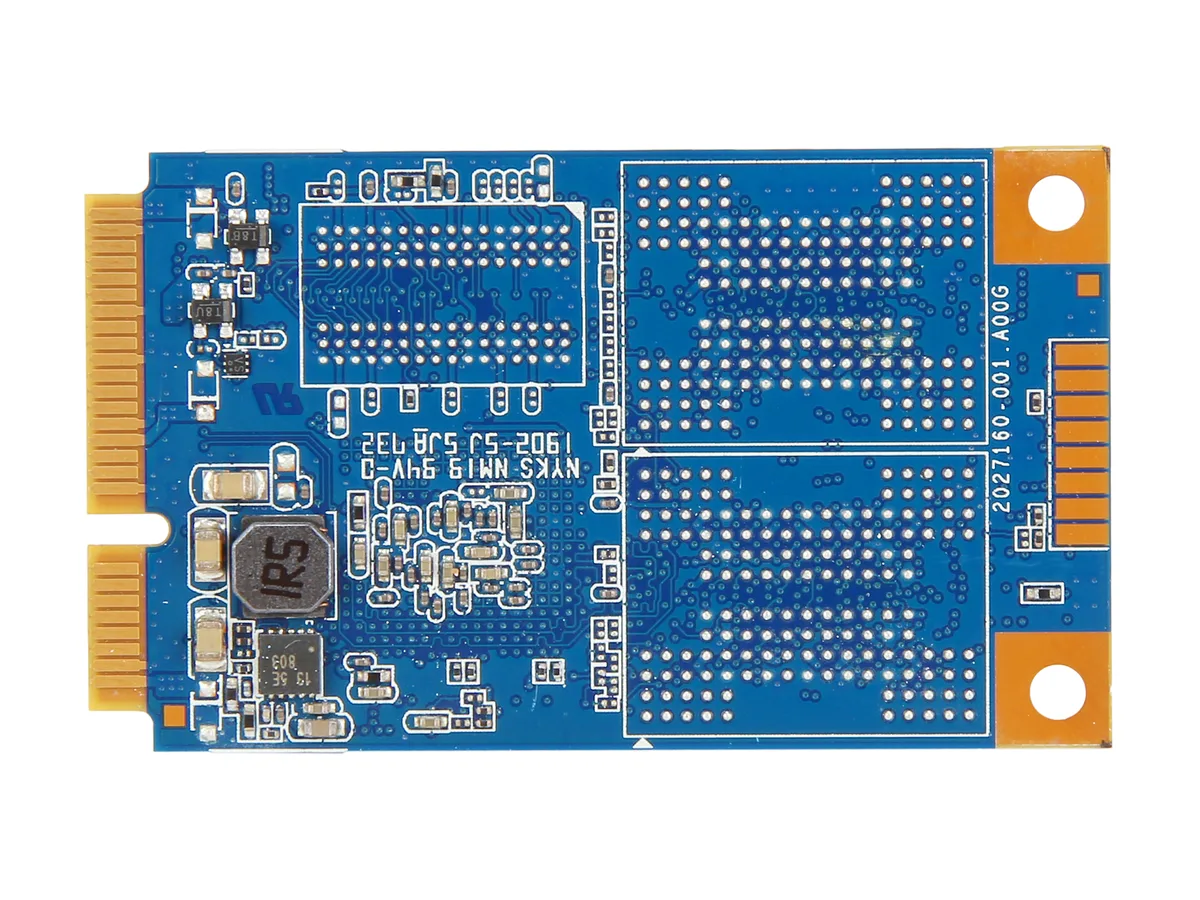

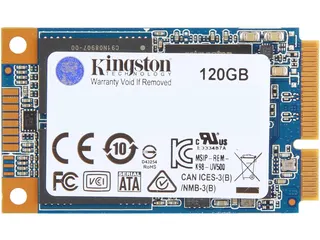

Small rectangular mSATA SSD with black circuit board and gold edge connector

Kingston Technology Corp.

Kingston Technology Corp. SUV500MS/120G UV500 mSATA 120GB internal SSD

SKU CH-2JV0-K45XB MPN SUV500MS/120G

mSATA internal SSD with 120GB capacity, SATA III interface, up to 520 MBps read and 320 MBps write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity120GB
  • Memory Components3D TLC
  • InterfaceSATA III

Options 120GB mSATA

  • Faster boot and load times than a mechanical hard drive
  • Sequential read speeds up to 520 MBps and write up to 320 MBps
  • 3D TLC NAND with Marvell Dean controller for reliable performance
  • Hardware-based 256-bit AES encryption with TCG Opal 2.0 support
  • Low idle power draw of 0.195W for cooler operation

mSATA form factor and 120 GB capacity

This internal SSD uses the mSATA form factor and provides 120 GB of storage. It is built for consumer desktops and laptops that have an mSATA slot. The drive employs 3D TLC NAND and a Marvell Dean controller to deliver solid-state speed for everyday workloads.

Upgrade from a mechanical hard drive

Replacing a 7200 RPM hard drive with this SSD can yield up to 10X faster performance. Sequential reads reach 520 MBps and writes reach 320 MBps, while random reads hit 79,000 IOPS and random writes 18,000 IOPS. The jump is worth it when boot, application load and file transfer times are holding back productivity.

Check for an mSATA slot and SATA III support

Before ordering, confirm that your system has a free mSATA slot and supports the SATA III interface. The drive operates between 0 °C and 70 °C, draws up to 2.32 W during write activity and includes 256-bit AES hardware encryption with TCG Opal 2.0 support. MTBF is rated at 1,000,000 hours.

Highlights

  • Faster boot and load times than a mechanical hard drive
  • Sequential read speeds up to 520 MBps and write up to 320 MBps
  • 3D TLC NAND with Marvell Dean controller for reliable performance
  • Hardware-based 256-bit AES encryption with TCG Opal 2.0 support
  • Low idle power draw of 0.195W for cooler operation

Specifications

BrandKingston
SeriesUV500
ModelSUV500MS/120G
Part NumberSUV500MS/120G
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity120GB
Memory Components3D TLC
InterfaceSATA III
ControllerMarvell Dean
Max Sequential ReadUp to 520 MBps
Max Sequential WriteUp to 320 MBps
4KB Random ReadUp to 79,000 IOPS
4KB Random WriteUp to 18,000 IOPS
MTBF1,000,000 hours
FeaturesKingston's UV500 SSD dramatically improves your system's responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell Dean controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions. The UV500's available in multiple capacities from 120GB - 960GB giving you options to meet your system's needs.
10X faster than a 7200 RPM hard drive
AES 256-bit Hardware Enc
Power Consumption (Idle)0.195W
Power Consumption (Active)1.17W (MAX) Read / 2.32W (MAX) Write
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration ResistanceOperating: 2.17G Peak (7 - 800 Hz)
Non-operating: 20G Peak (10 - 2000 Hz)
Height4.85mm
Width29.85mm
Depth50.80mm
Weight6.20g
Shipping weight0.01 kg
Package size81 × 47 × 9 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does this mSATA drive fit a standard full-size mSATA slot?

Yes, the UV500 uses the mSATA form factor designed for standard full-size mSATA sockets found in compatible laptops and small-form-factor PCs.

What is the common installation mistake with the mSATA UV500?

Inserting the drive at an angle instead of flat, or failing to secure it with the mounting screw, can prevent the SATA edge connector from seating properly.

How long is the drive rated to last under typical use?

The manufacturer rates the UV500 at 1,000,000 hours MTBF with 3D TLC NAND and a Marvell Dean controller for sustained reliability.
