Rectangular black metal PSU with 135 mm fan grille and modular cable sockets

Montech

Montech TITAN PLA 1000 1000 W power supply, ATX 3.1, full modular, platinum

SKU CH-68SD-WPHDN MPN TITAN PLA 1000

A full-modular 1000 W ATX 3.1 unit with 80 PLUS Platinum efficiency, a 135 mm FDB fan that stops below 20 % load, and a native 12V-2x6 connector for modern GPUs

  • TypeATX12V / EPS12V
  • Maximum Power1000 W
  • Fans1 x 135 mm
  • PFCActive
  • Main Connector20+4Pin
  • Max PSU Length160 mm

Options ATX 80+ Platinum (1000W)

  • 80 PLUS Platinum certification delivers 90% efficiency at typical loads
  • ATX 3.1 and PCIe 5.1 ready with native 12V-2x6 connector
  • Full modular design uses only the cables your build needs
  • 135 mm FDB fan with Zero Fan mode stays off up to 20% load
  • Hold-up time above 21 ms keeps the system stable during power dips

Platinum Power for High-End Builds

The Montech TITAN PLA 1000 is a 1000 W ATX 3.1 power supply with full modular cabling and 80 PLUS Platinum certification. It targets builders assembling high-performance desktops that demand stable, efficient power delivery. The unit meets modern ATX12V and EPS12V specifications for current platforms.

Native 12V-2x6 and Platinum Efficiency

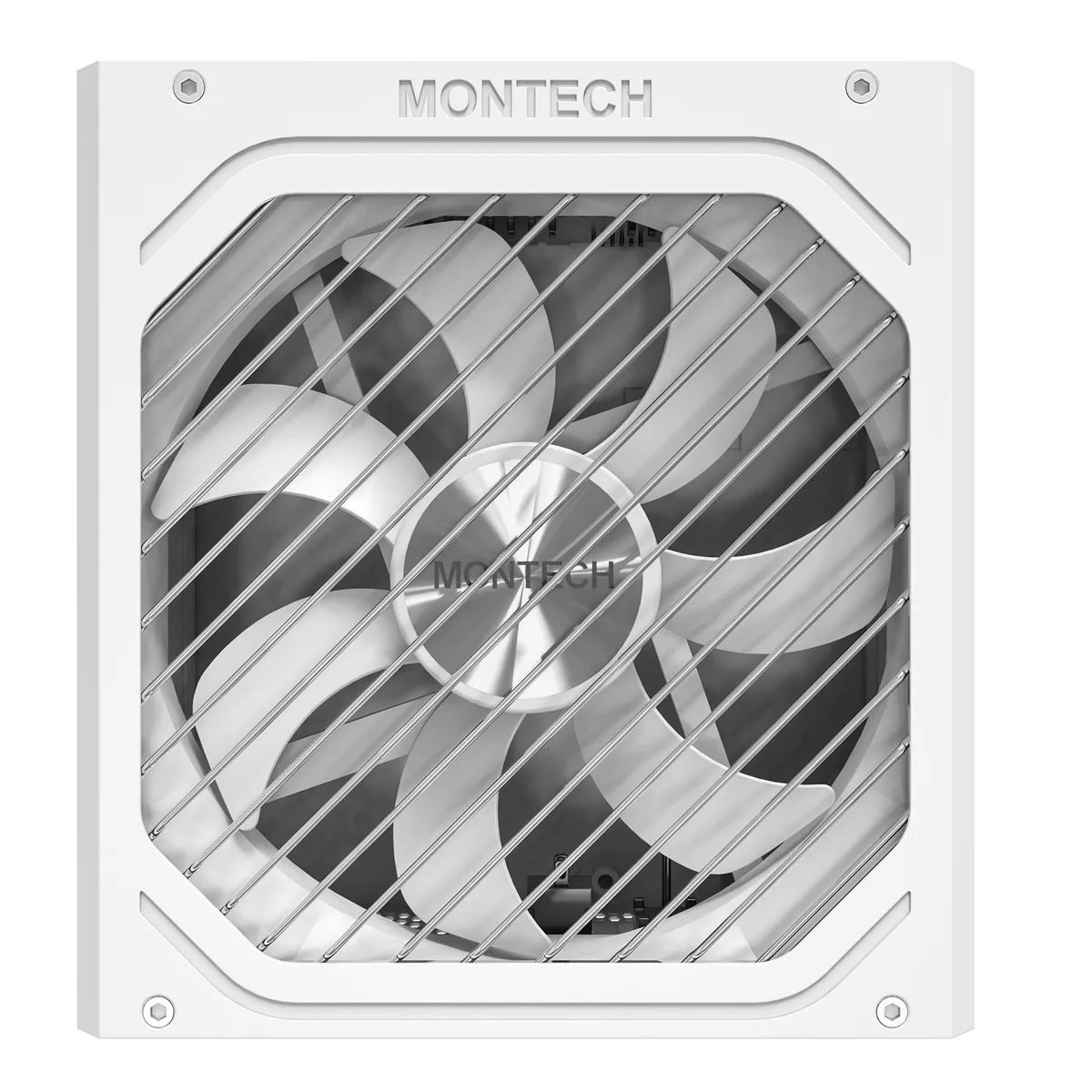

A single 12V-2x6 PCIe 5.1 connector is included for modern graphics cards alongside three PCIe 6+2 pin cables. The 135 mm FDB fan stays off below 15 to 20 percent load for silent operation. Cybenetics Platinum and Lambda A+ ratings confirm 90 percent efficiency and low noise.

Check Clearance and Connector Counts

The 160 mm depth must fit your case’s PSU chamber. Verify that one 20+4 pin, two CPU 4+4 pin, twelve SATA and four Molex connectors cover every drive and board header in your build. The unit accepts 100 to 240 V input at 50 or 60 Hz.

Highlights

  • 80 PLUS Platinum certification delivers 90% efficiency at typical loads
  • ATX 3.1 and PCIe 5.1 ready with native 12V-2x6 connector
  • Full modular design uses only the cables your build needs
  • 135 mm FDB fan with Zero Fan mode stays off up to 20% load
  • Hold-up time above 21 ms keeps the system stable during power dips

Specifications

BrandMontech
ModelTITAN PLA 1000
TypeATX12V / EPS12V
Maximum Power1000 W
Fans1 x 135 mm
PFCActive
Main Connector20+4Pin
Max PSU Length160 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified

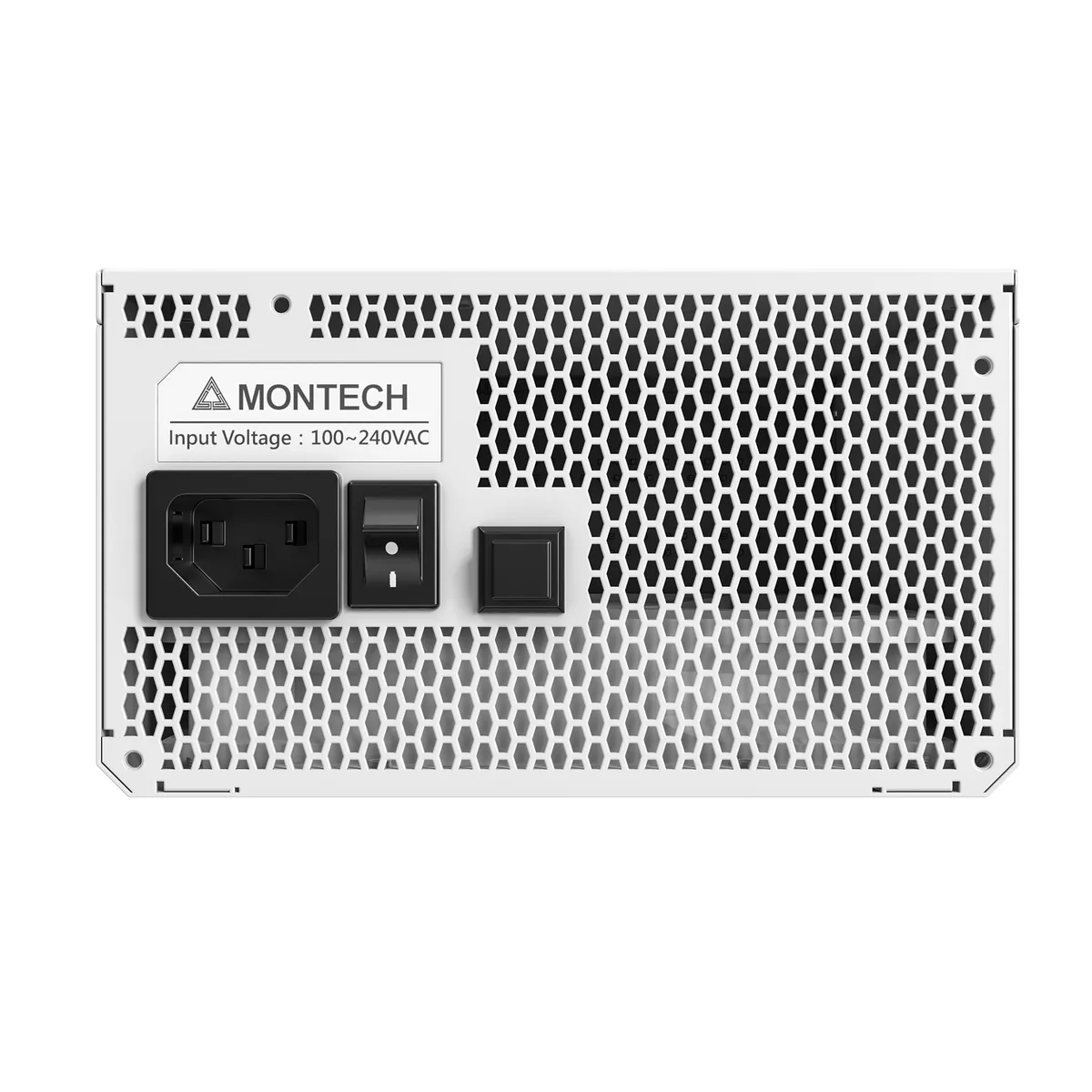

Input Voltage100 - 240 V
Input Frequency Range50/60 Hz

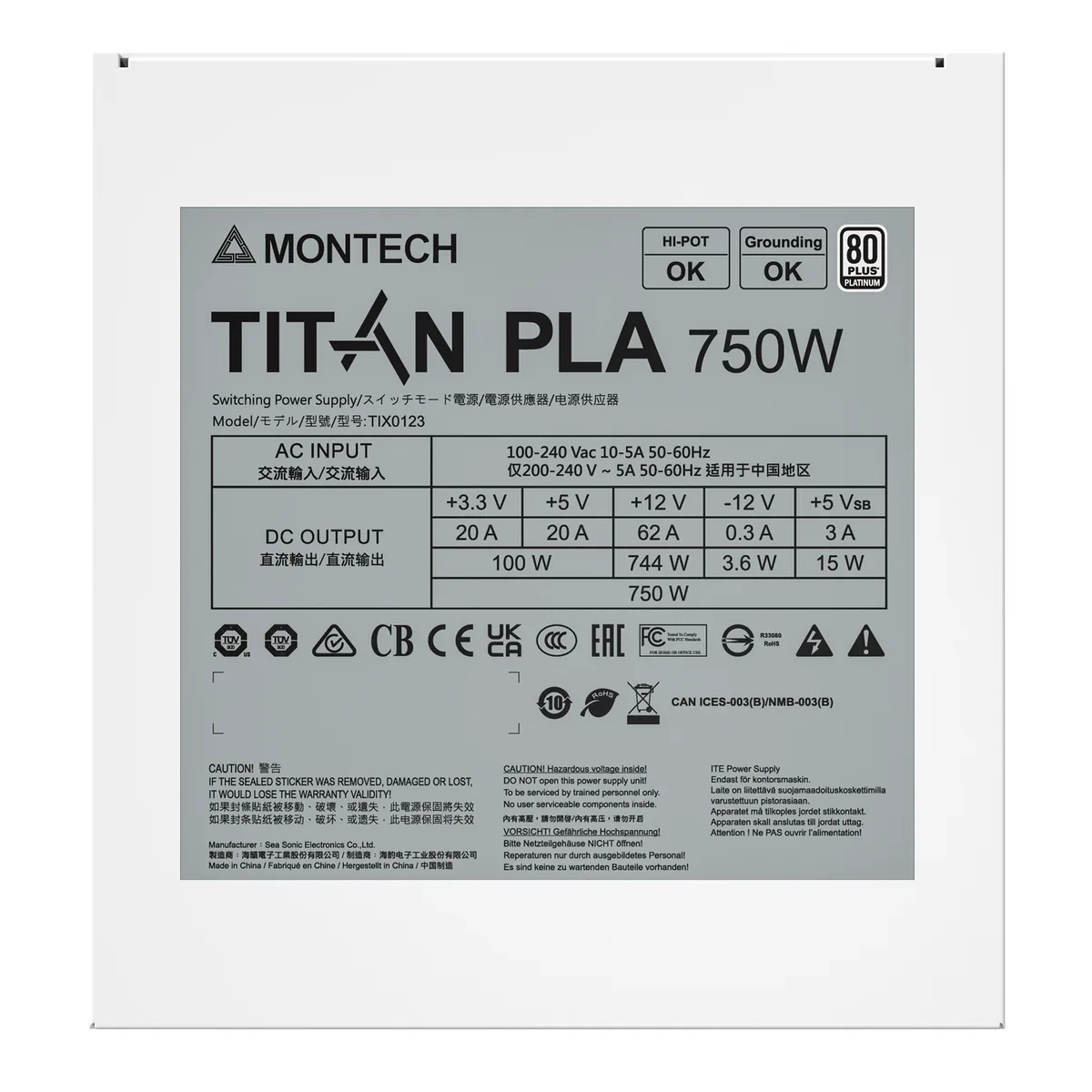

Input Current20A@+3.3V, 20A@+5V, 83A@+12V, 0.3A@-12V, 3A@+5VSB
ApprovalscTUVus / TUV / RCM / CB / CE / UKCA/ CCC / EAC FCC_ICES / BSMI / RoHS / KC_MSIP

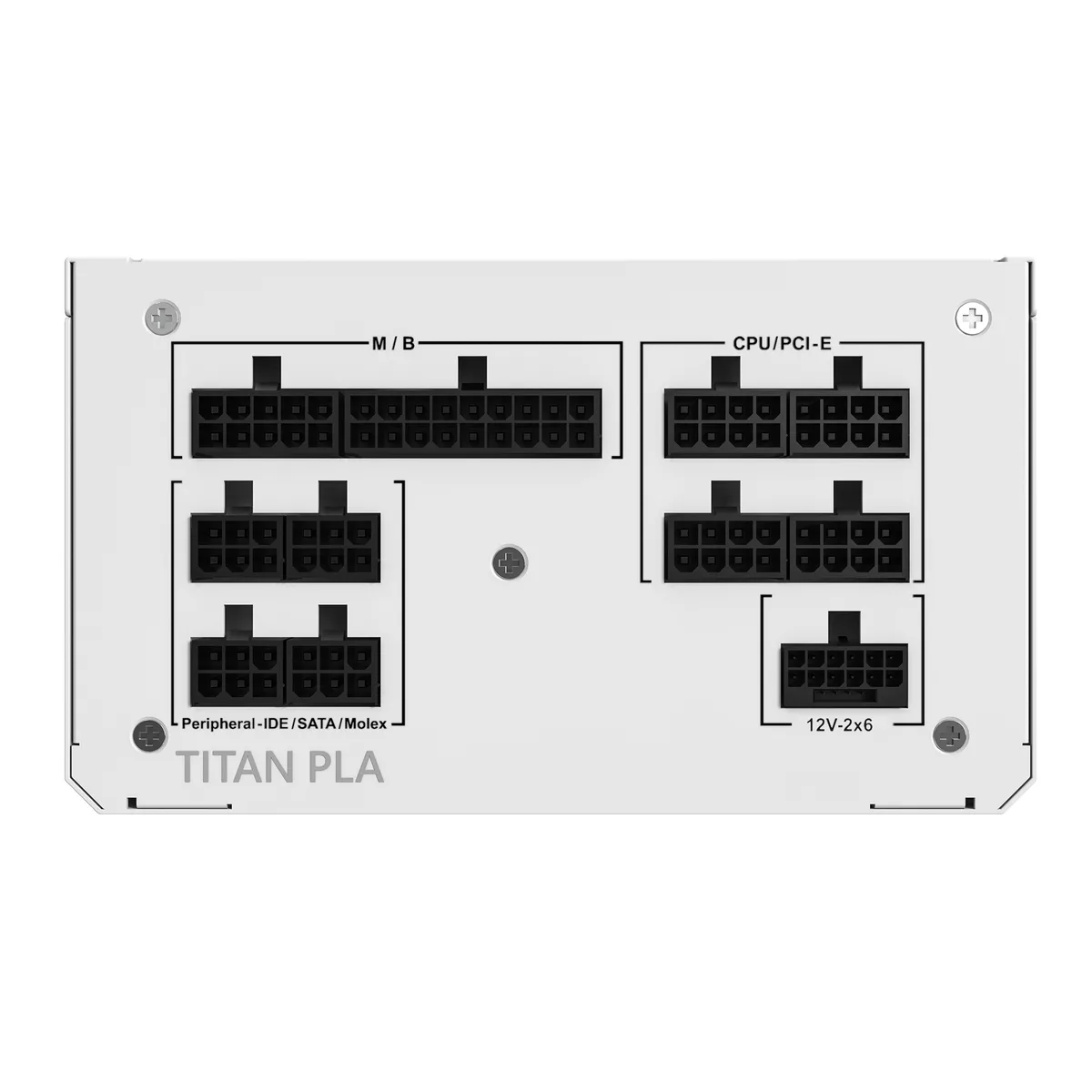

ConnectorsM/B 20+4 Pin: 1
CPU 4+4 Pin: 2
PCIe 6+2 Pin: 3
12V-2x6 PCIe 5.1: 1
SATA: 12
Molex 4 Pin: 4
Dimensions150 x 160 x 86 mm
Shipping weight3.70 kg
Package size338 × 193 × 117 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 135 mm FDB fan need replacement after long-term use?

The fluid-dynamic bearing is rated for extended lifespan and the fan stops completely at loads below 15-20 %, reducing wear during light tasks.

What limit appears first when the 1000 W unit runs at full load continuously?

The +12 V rail is capped at 83 A, so that current ceiling is reached before the overall wattage rating.

How loud and hot does the Platinum unit get during all-day operation?

Cybenetics Lambda A+ certification confirms low noise, while 90 % typical efficiency keeps waste heat low; the fan stays off until roughly 15-20 % load.
