Rectangular black PSU with 135 mm fan and modular sockets

Montech

Montech TITAN PLA 850 850 W ATX 3.1 Platinum power supply

SKU CH-HN7X-165XE MPN TITAN PLA 850

850 W fully modular ATX 3.1 unit with 80 PLUS Platinum efficiency, a 135 mm FDB fan and a 12V-2x6 connector for modern GPUs

  • TypeATX12V / EPS12V
  • Maximum Power850 W
  • Fans1 x 135 mm
  • PFCActive
  • Main Connector20+4Pin
  • Max PSU Length160 mm

Options ATX 80+ Platinum (850W)

  • Platinum efficiency saves energy with 90% rated performance
  • Fully modular design keeps builds clean using only needed cables
  • ATX 3.1 and PCIe 5.1 ready with native 12V-2x6 connector
  • 135 mm FDB fan stays off below 20% load for silent operation
  • Compact 160 mm depth fits small cases while delivering 850 W

Platinum 850 W ATX 3.1 unit

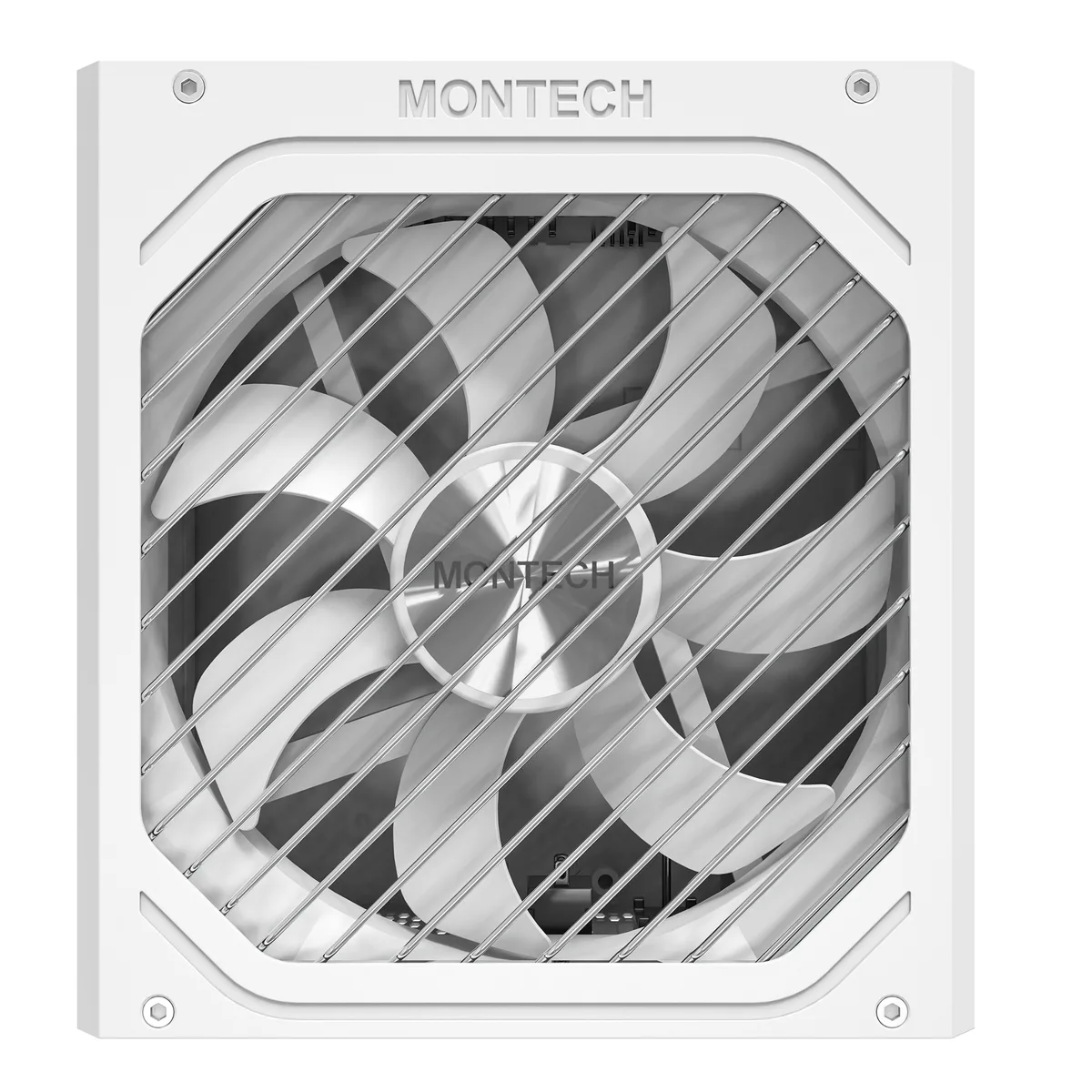

The Montech TITAN PLA 850 is a fully modular ATX 3.1 power supply rated at 850 W. It carries 80 PLUS Platinum and Cybenetics Platinum certifications for 90 % efficiency. A 135 mm FDB fan runs in zero-fan mode below 20 % load. The unit is built in collaboration with Seasonic.

ATX 3.1 and PCIe 5.1 limits

The supply meets ATX 3.1 and PCIe 5.1 specifications and includes a native 12V-2x6 connector. Peak power can reach twice the rated 850 W. GPU peak support is rated at three times the graphics card wattage. Hold-up time exceeds 21 ms. Input range is 100 to 240 V at 50 or 60 Hz.

Check cables and clearances

Verify your motherboard needs one 20+4 pin and two CPU 4+4 pin connectors. Ensure the graphics card can use the single 12V-2x6 or three PCIe 6+2 pin plugs. Confirm the 160 mm depth fits your case. Count SATA and Molex devices against twelve SATA and four Molex headers.

Highlights

  • Platinum efficiency saves energy with 90% rated performance
  • Fully modular design keeps builds clean using only needed cables
  • ATX 3.1 and PCIe 5.1 ready with native 12V-2x6 connector
  • 135 mm FDB fan stays off below 20% load for silent operation
  • Compact 160 mm depth fits small cases while delivering 850 W

Specifications

BrandMontech
ModelTITAN PLA 850
TypeATX12V / EPS12V
Maximum Power850 W
Fans1 x 135 mm
PFCActive
Main Connector20+4Pin
Max PSU Length160 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified

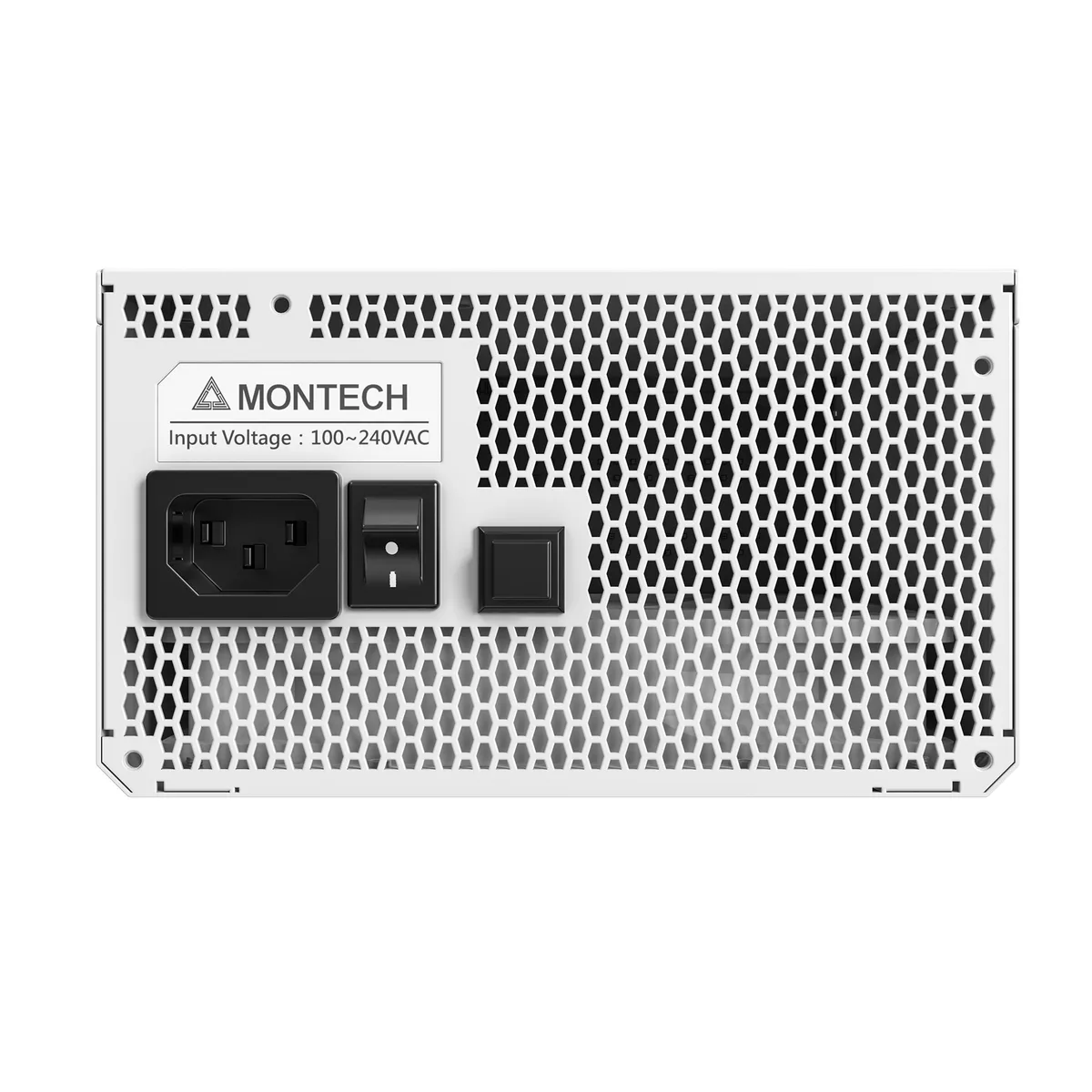

Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current20A@+3.3V, 20A@+5V, 70A@+12V, 0.3A@-12V, 3A@+5VSB
ApprovalscTUVus / TUV / RCM / CB / CE / UKCA/ CCC / EAC FCC_ICES / BSMI / RoHS / KC_MSIP

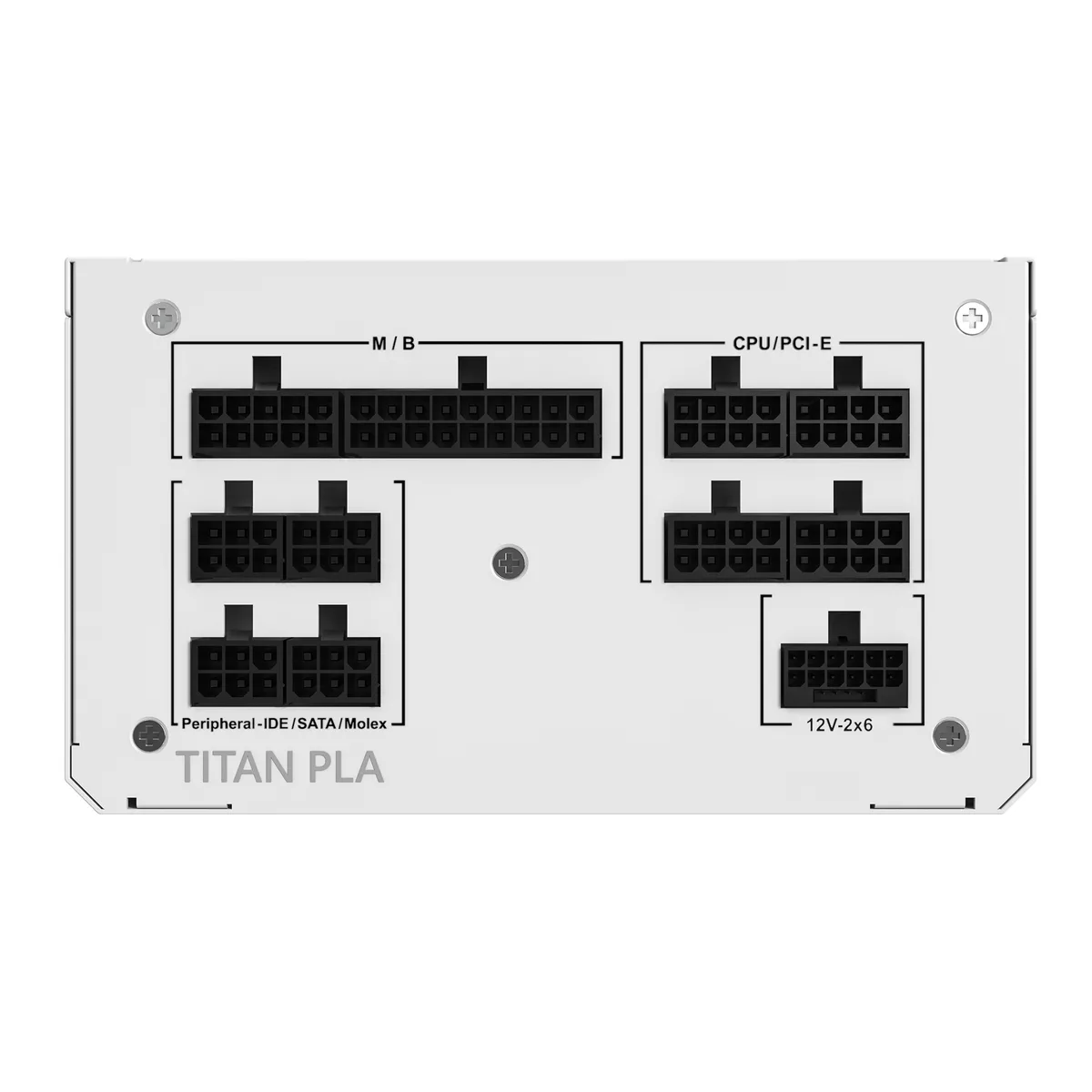

ConnectorsM/B 20+4 Pin: 1
CPU 4+4 Pin: 2
PCIe 6+2 Pin: 3
12V-2x6 PCIe 5.1: 1
SATA: 12
Molex 4 Pin: 4
Dimensions150 x 160 x 86 mm
Shipping weight3.70 kg
Package size343 × 191 × 127 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 850 W version or a different capacity?

The TITAN PLA 850 is the single capacity offered in this series; its 850 W rating matches builds that need strong 12 V output and full modular cabling.

What does the 850 W rating mean once the unit is installed?

It supplies up to 850 W continuously with 90 % typical efficiency and holds voltage above 21 ms during power loss.

Which standard does the 12V-2x6 connector follow and what does it cap?

The 12V-2x6 connector follows ATX 3.1 and PCIe 5.1, supporting peak GPU power up to three times the card's rated wattage.
