Rectangular black ATX power supply, 150 by 160 by 86 mm, full modular, 135 mm fan, 1200 W

Montech

Montech TITAN PLA 1200 1200W full modular ATX power supply

SKU CH-SYXM-070A1 MPN TITAN PLA 1200

Full-modular 1200 W ATX PSU with 80 PLUS Platinum efficiency and a 135 mm FDB fan that stops below 20 % load

  • TypeATX12V / EPS12V
  • Maximum Power1200 W
  • Fans1 x 135 mm
  • PFCActive
  • Main Connector20+4Pin
  • Max PSU Length160 mm

Options ATX 80+ Platinum (1200W)

  • Platinum efficiency cuts energy waste with 90% certified rating
  • Full modular cabling keeps builds tidy using only needed connectors
  • 1200W output powers demanding systems via 100A on the 12V rail
  • 135mm FDB fan stays off below 20% load for silent operation
  • ATX 3.1 and PCIe 5.1 ready with native 12V-2x6 connector

Platinum 1200W ATX 3.1 PSU

The Montech TITAN PLA 1200 is a fully modular 1200W ATX power supply built to ATX 3.1 and PCIe 5.1 specifications. It carries 80 PLUS Platinum and Cybenetics Platinum certifications for 90% typical efficiency. The unit includes a native 12V-2x6 connector for modern graphics cards. It targets builders assembling high-end workstations or multi-GPU systems needing substantial 12V current.

Full Modular 160mm Depth Install

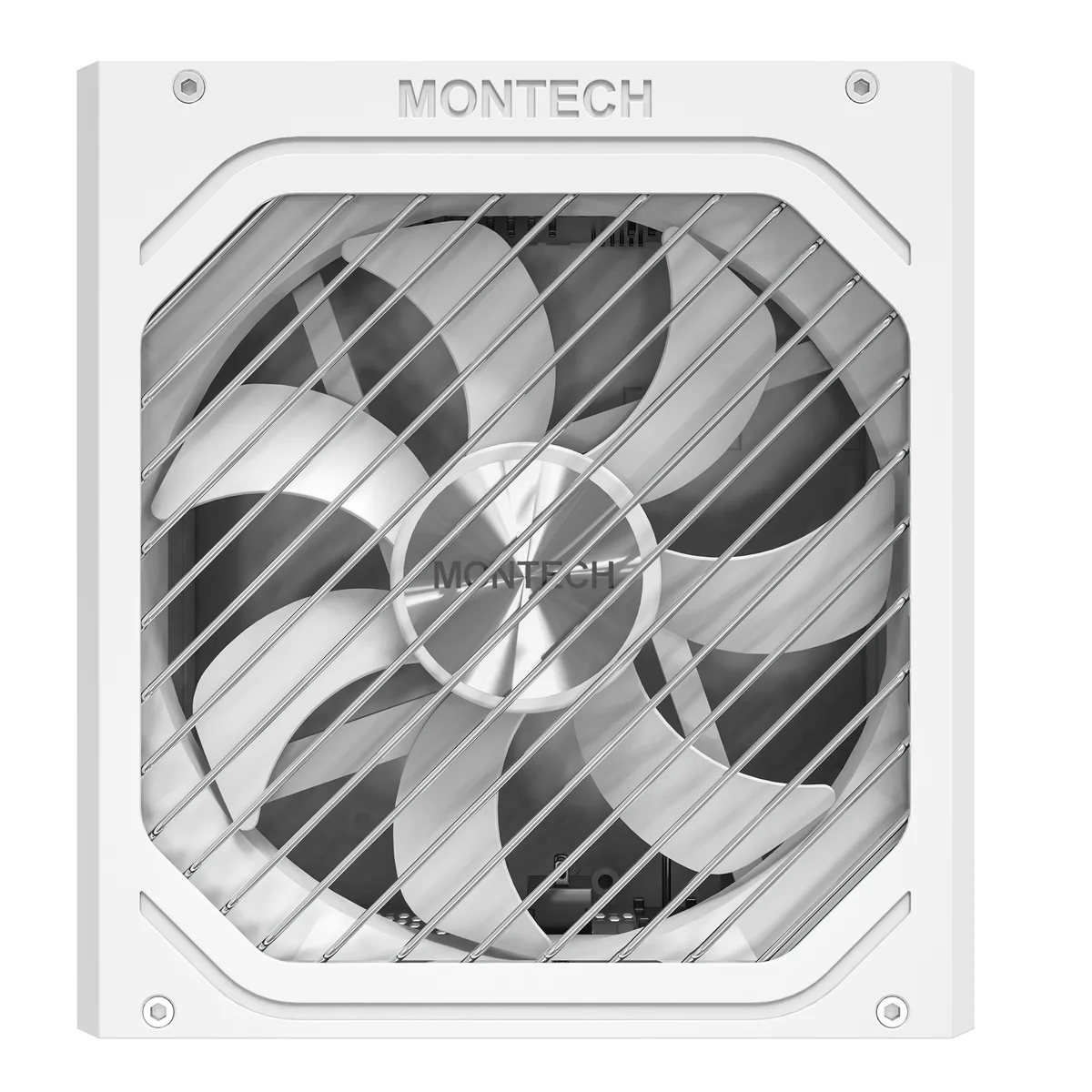

Full modular cabling lets you connect only the required leads, reducing clutter inside the chassis. The housing measures 160mm deep, so verify your case supports that length before fitting. A 135mm FDB fan with Zero Fan Mode stops below 15-20% load for silent idle operation. Ensure the rear ventilation path is not blocked by cable bundles or drive cages.

Connector Count And Input Range Check

Confirm your motherboard needs one 20+4 pin and two CPU 4+4 pin headers, both provided. The unit supplies three PCIe 6+2 pin plugs plus one 12V-2x6 lead; count your GPU power inputs against that total. Twelve SATA and four Molex connectors cover storage and accessories. Input voltage spans 100-240V at 50/60Hz for worldwide use.

Highlights

  • Platinum efficiency cuts energy waste with 90% certified rating
  • Full modular cabling keeps builds tidy using only needed connectors
  • 1200W output powers demanding systems via 100A on the 12V rail
  • 135mm FDB fan stays off below 20% load for silent operation
  • ATX 3.1 and PCIe 5.1 ready with native 12V-2x6 connector

Specifications

BrandMontech
ModelTITAN PLA 1200
TypeATX12V / EPS12V
Maximum Power1200 W
Fans1 x 135 mm
PFCActive
Main Connector20+4Pin
Max PSU Length160 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified

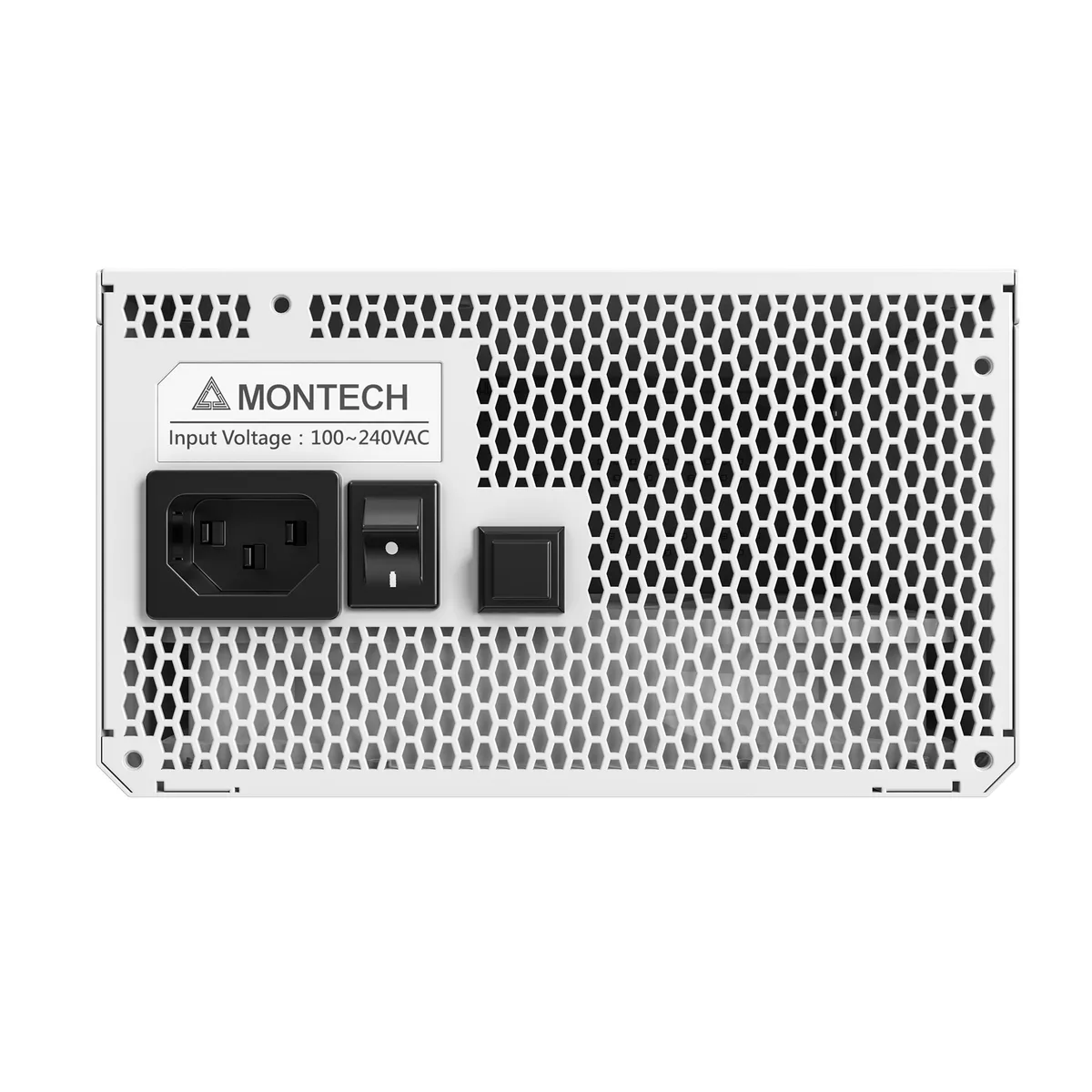

Input Voltage100 - 240 V
Input Frequency Range50/60 Hz

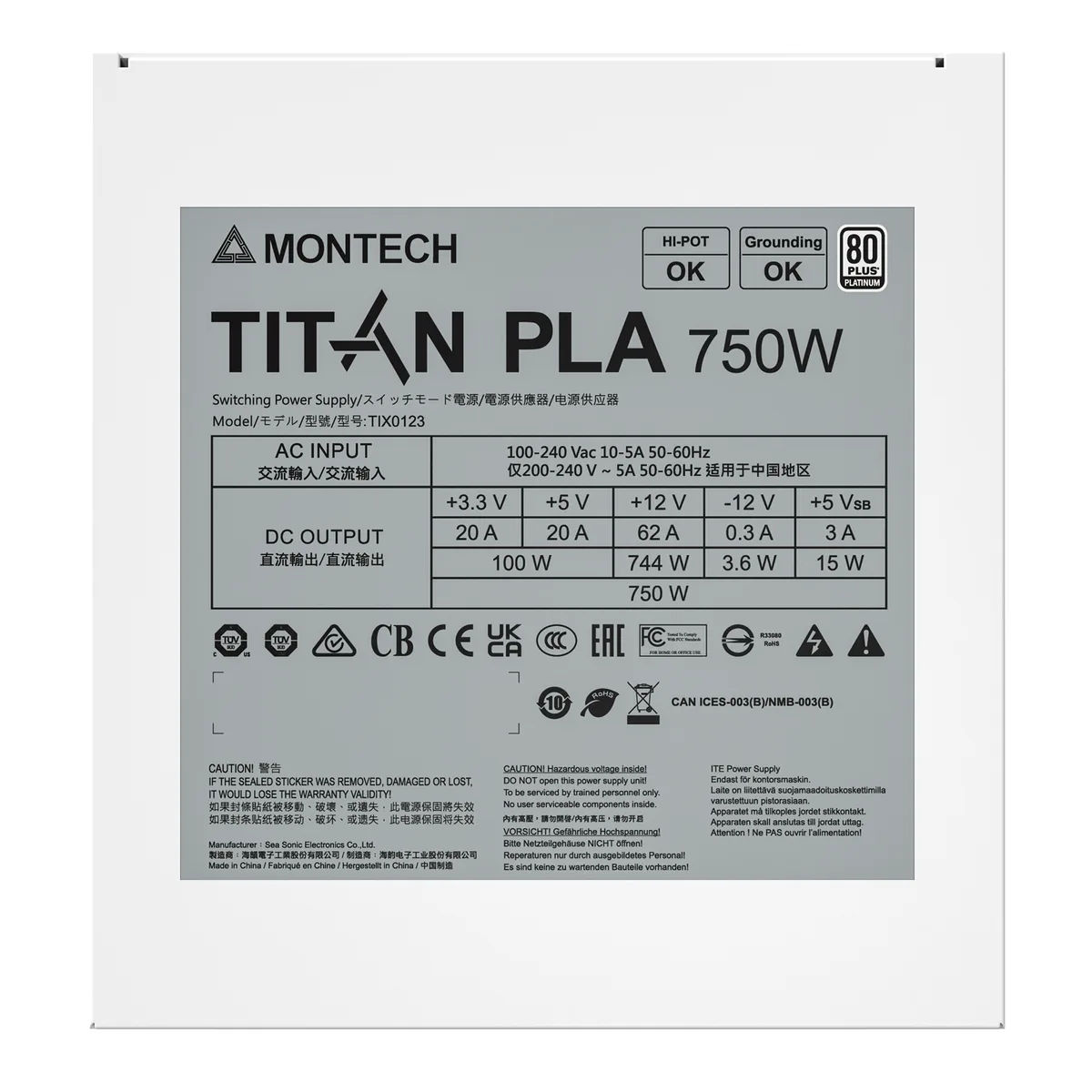

Input Current20A@+3.3V, 20A@+5V, 100A@+12V, 0.3A@-12V, 3A@+5VSB
ApprovalscTUVus / TUV / RCM / CB / CE / UKCA/ CCC / EAC FCC_ICES / BSMI / RoHS / KC_MSIP

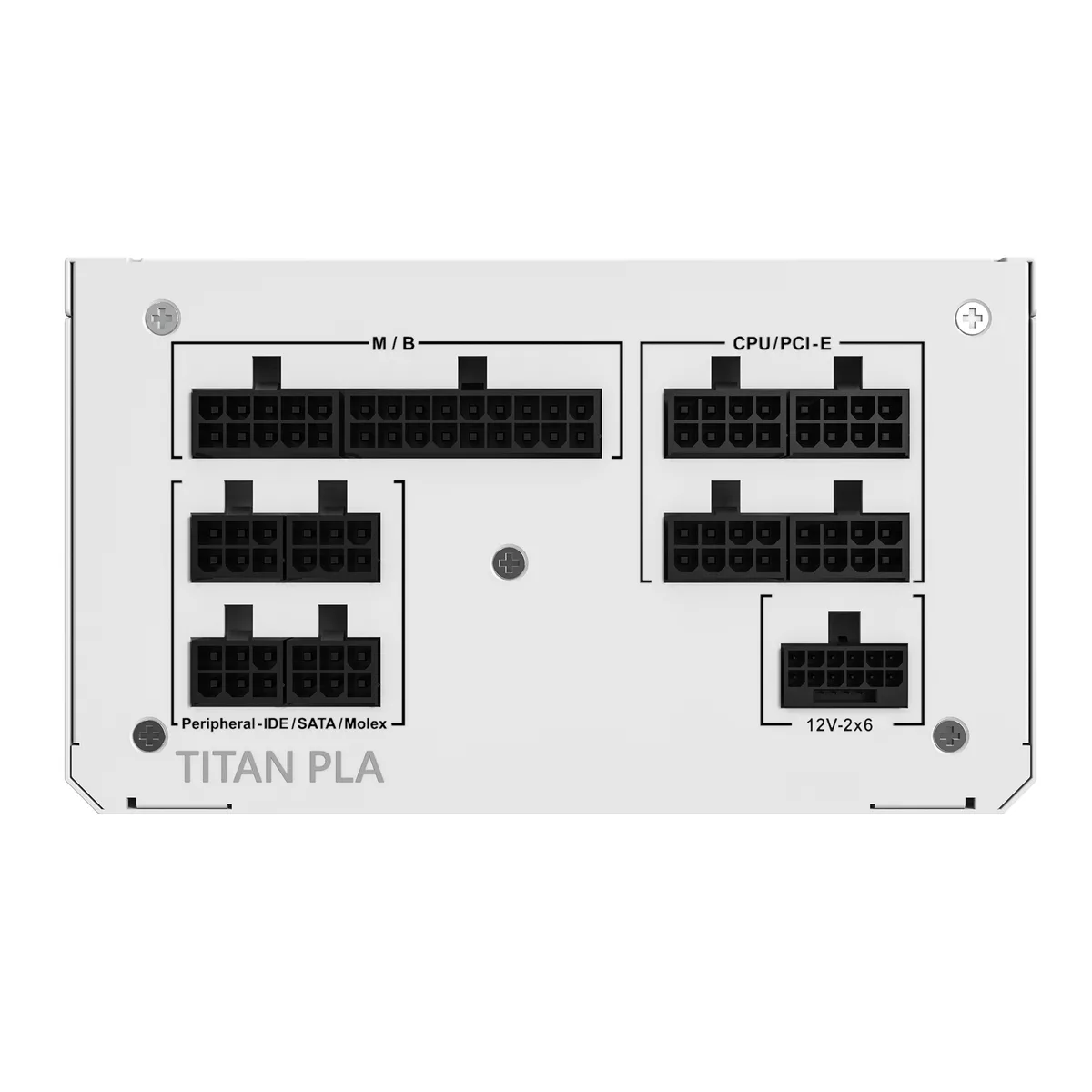

ConnectorsM/B 20+4 Pin: 1
CPU 4+4 Pin: 2
PCIe 6+2 Pin: 3
12V-2x6 PCIe 5.1: 1
SATA: 12
Molex 4 Pin: 4
Dimensions150 x 160 x 86 mm
Shipping weight3.92 kg
Package size345 × 193 × 119 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the Montech TITAN PLA 1200 is operating correctly after installation?

The 135 mm FDB fan stays off below 15 to 20 percent load due to Zero Fan Mode; once the system draws more power the fan spins up, and the 80 PLUS PLATINUM and Cybenetics Platinum certifications guarantee at least 90 percent efficiency under typical loads.

What cables and connectors come in the box with the Montech TITAN PLA 1200, and what must be purchased separately?

Included are one 20+4 pin motherboard cable, two CPU 4+4 pin cables, three PCIe 6+2 pin cables, one 12V-2x6 PCIe 5.1 cable, twelve SATA connectors and four Molex 4 pin connectors; no extra cables are required for standard builds.

Which version of the Montech TITAN PLA 1200 should I choose for a high-end GPU and future upgrades?

The single 1200 W model with ATX 3.1 and PCIe 5.1 support provides one 12V-2x6 connector rated for 3x GPU peak wattage and 2x total PSU peak wattage, covering current and next-generation graphics cards.
