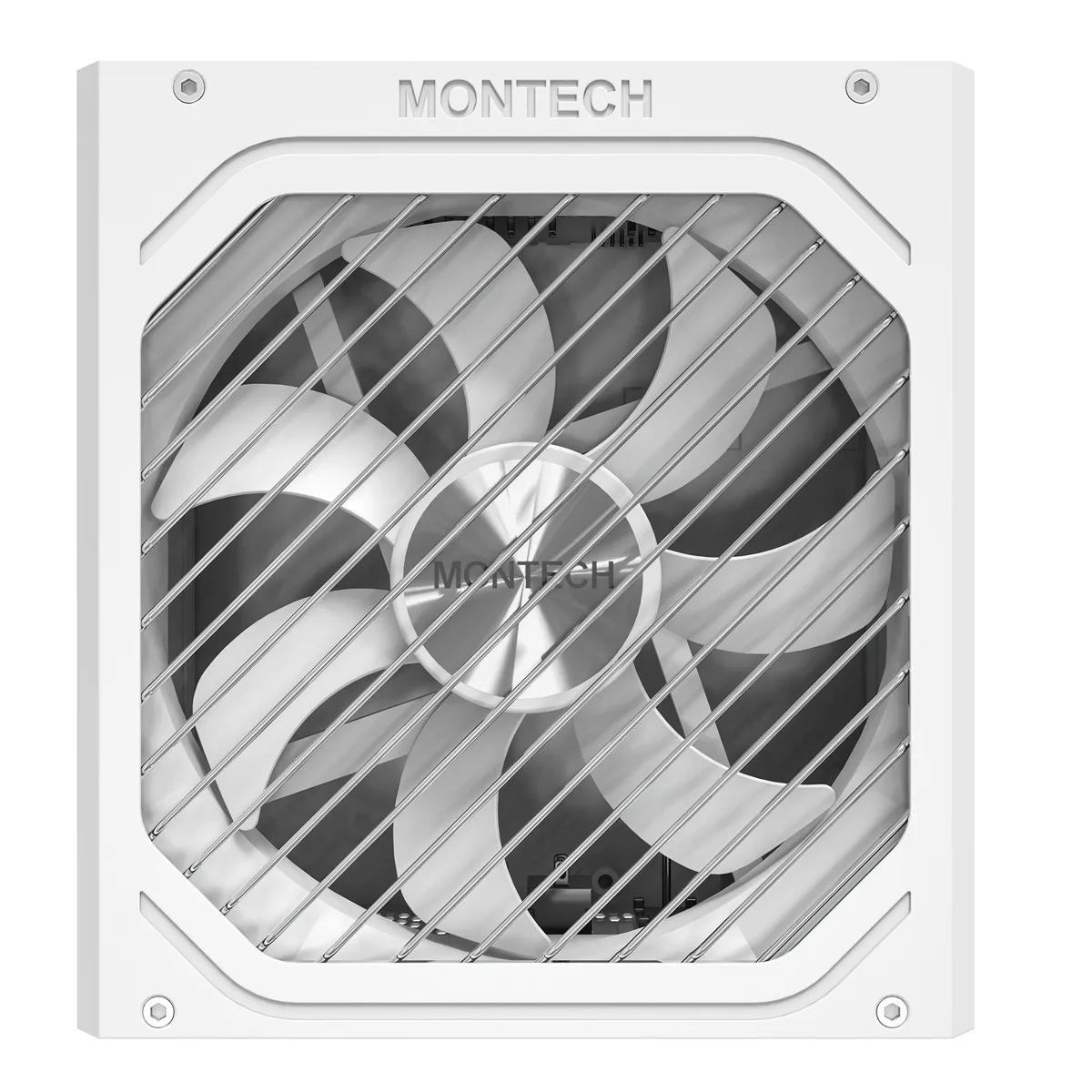

Rectangular silver PSU with 135 mm fan grille and modular cable sockets

Montech

Montech TITAN PLA 750 750 W ATX 3.1 Platinum power supply

SKU CH-X57W-1VGN6 MPN TITAN PLA 750

Full-modular 750 W ATX 3.1 unit with Platinum efficiency, a 135 mm FDB fan, and a 12V-2x6 connector for modern GPUs

  • TypeATX12V / EPS12V
  • Maximum Power750 W
  • Fans1 x 135 mm
  • PFCActive
  • Main Connector20+4Pin
  • Max PSU Length160 mm

Options ATX 80+ Platinum (750W)

  • Full modular cabling simplifies builds with only needed leads connected
  • 80 PLUS Platinum and Cybenetics Platinum ratings deliver 90% efficiency at typical loads
  • ATX 3.1 and PCIe 5.1 ready with 12V-2x6 connector for modern GPUs
  • 135 mm FDB fan with Zero Fan Mode stays off below 20% load for silent operation
  • Compact 160 mm depth fits tight cases while providing 750 W continuous power

Platinum-rated ATX 3.1 power supply

The Montech TITAN PLA 750 is a 750 W ATX 3.1 unit with 80 PLUS Platinum and Cybenetics Platinum certifications. It targets builders who want high efficiency and full modularity for a modern desktop. The 135 mm FDB fan includes a zero-fan mode below 20 % load for silent operation.

Sustained-load behaviour and peak capability

The platform delivers 62 A on the +12 V rail and is rated for 2x total wattage peak and 3x GPU wattage peak. Hold-up time exceeds 21 ms, and Cybenetics Lambda A+ confirms low noise under continuous load. Platinum efficiency reduces waste heat during long sessions.

Compatibility checks before ordering

Verify that your case accepts a 160 mm deep power supply and that the 150 x 160 x 86 mm footprint fits your layout. Confirm the motherboard needs one 20+4 pin and two CPU 4+4 pin connectors. Ensure the single 12V-2x6 PCIe 5.1 cable and two PCIe 6+2 pin cables match your graphics card. Check that ten SATA and four Molex connectors cover your drives and peripherals.

Highlights

  • Full modular cabling simplifies builds with only needed leads connected
  • 80 PLUS Platinum and Cybenetics Platinum ratings deliver 90% efficiency at typical loads
  • ATX 3.1 and PCIe 5.1 ready with 12V-2x6 connector for modern GPUs
  • 135 mm FDB fan with Zero Fan Mode stays off below 20% load for silent operation
  • Compact 160 mm depth fits tight cases while providing 750 W continuous power

Specifications

BrandMontech
ModelTITAN PLA 750
TypeATX12V / EPS12V
Maximum Power750 W
Fans1 x 135 mm
PFCActive
Main Connector20+4Pin
Max PSU Length160 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified

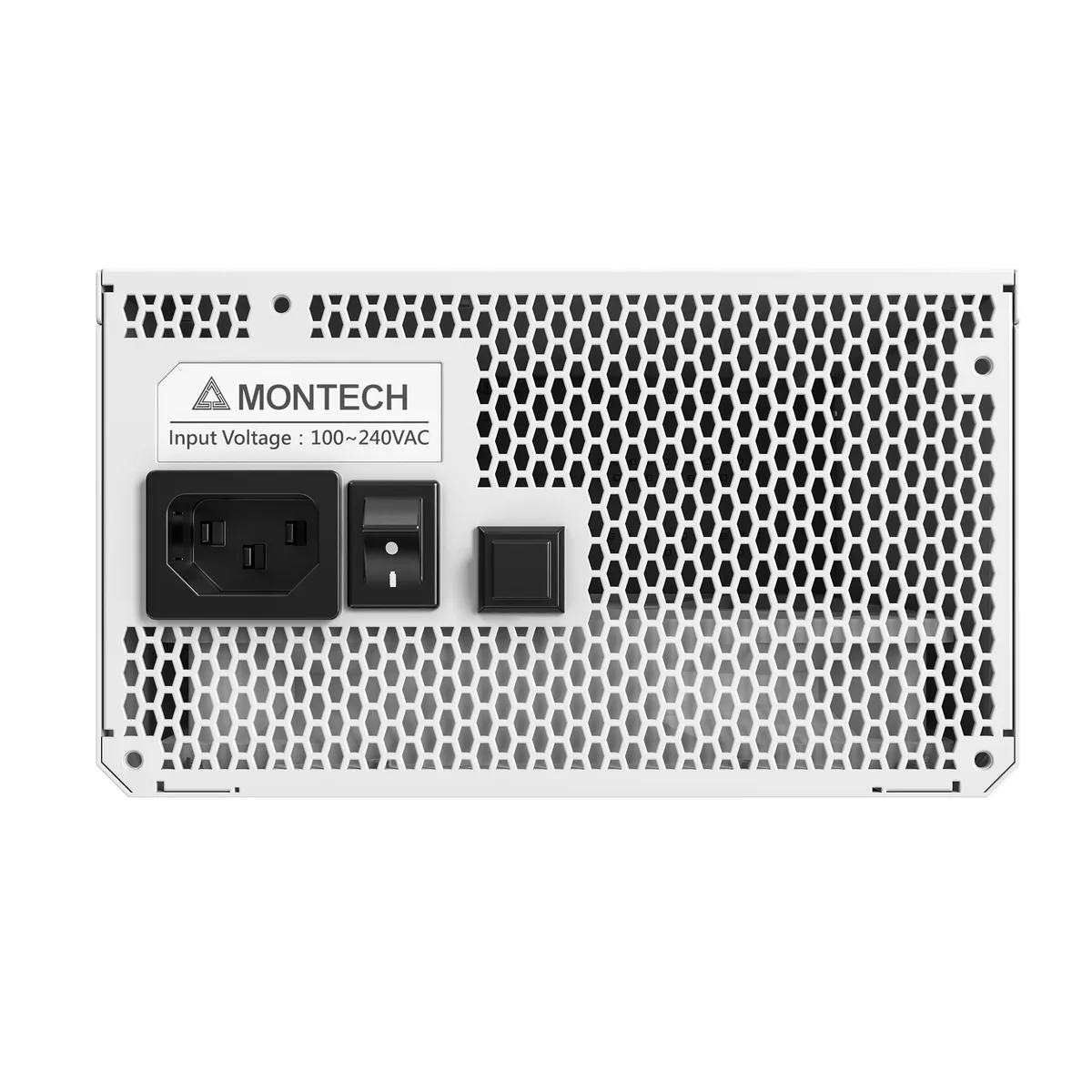

Input Voltage100 - 240 V
Input Frequency Range50/60 Hz

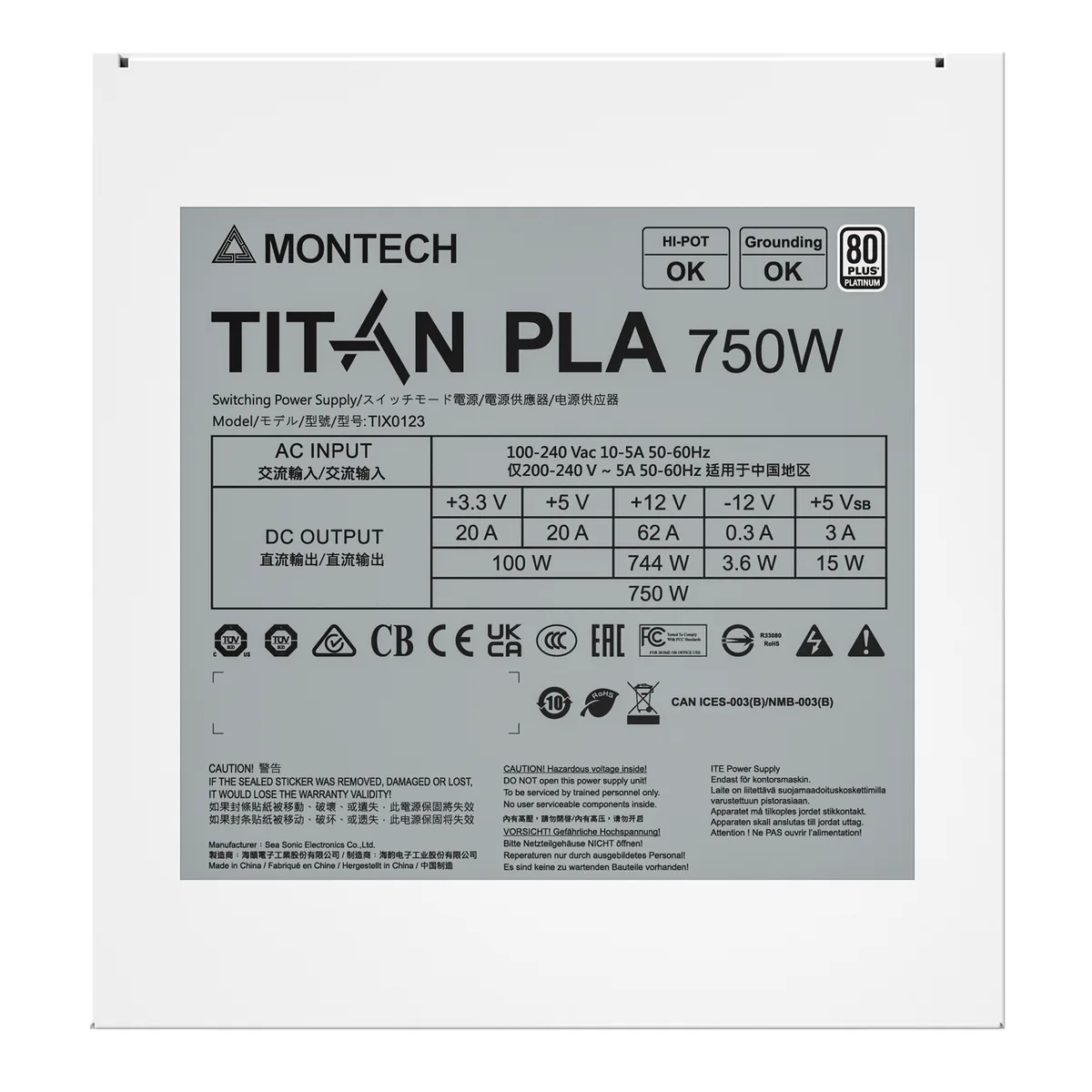

Input Current20A@+3.3V, 20A@+5V, 62A@+12V, 0.3A@-12V, 3A@+5VSB
ApprovalscTUVus / TUV / RCM / CB / CE / UKCA/ CCC / EAC FCC_ICES / BSMI / RoHS

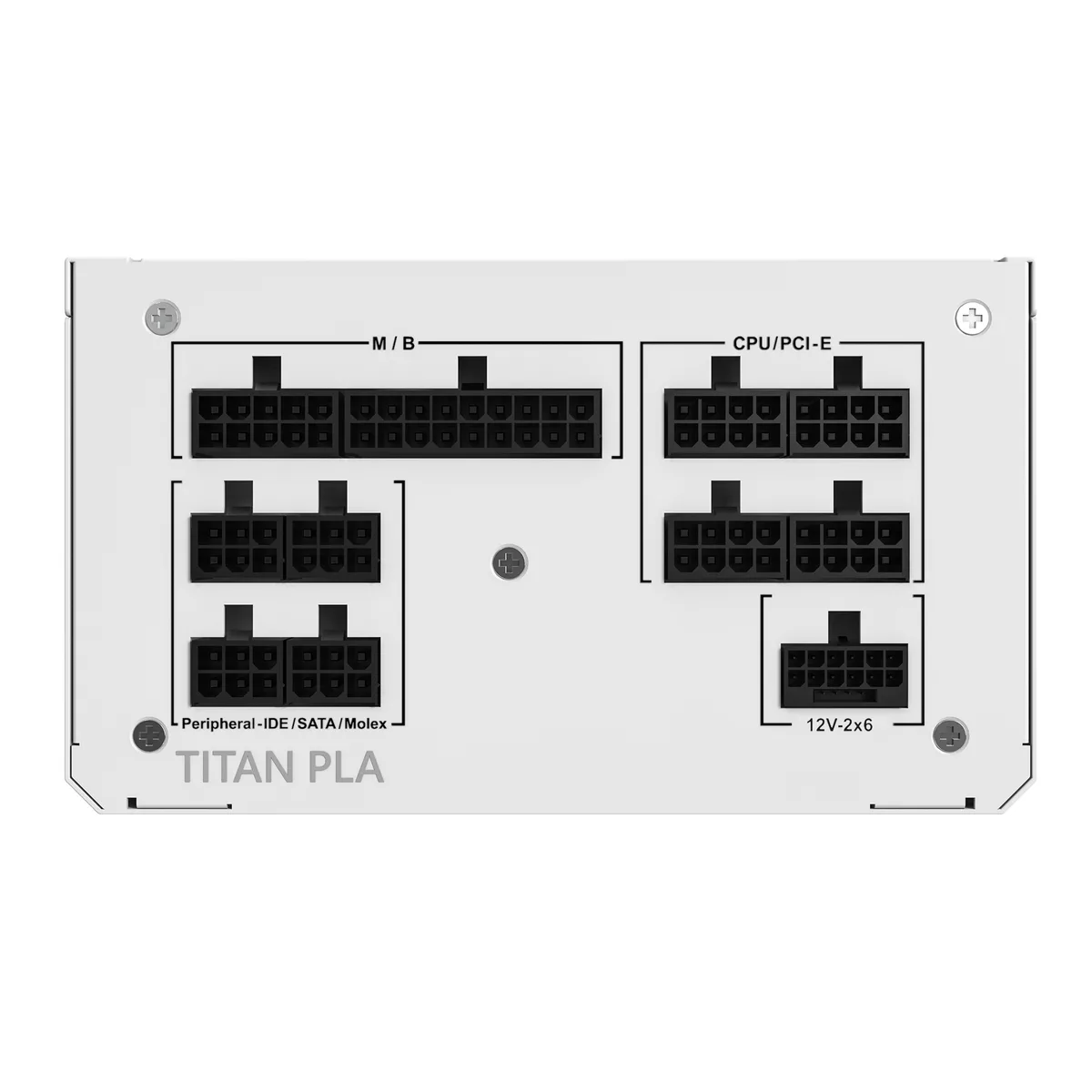

ConnectorsM/B 20+4 Pin: 1
CPU 4+4 Pin: 2
PCIe 6+2 Pin: 2
12V-2x6 PCIe 5.1: 1
SATA: 10
Molex 4 Pin: 4
Dimensions150 x 160 x 86 mm
Shipping weight3.70 kg
Package size343 × 191 × 127 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud is the 135 mm FDB fan when the system runs all day?

The fan stays off up to 20 % load thanks to Zero Fan Mode, and the unit carries a Cybenetics Lambda A+ rating for low noise.

What cables must I already have to use the 12V-2x6 PCIe 5.1 connector?

The 12V-2x6 cable is included in the fully modular set, so no extra cables are required.

Will the 160 mm depth fit alongside my older ATX case and motherboard?

At 160 mm deep it matches the standard ATX form factor and works with existing 20+4 pin and 4+4 pin CPU connectors.
