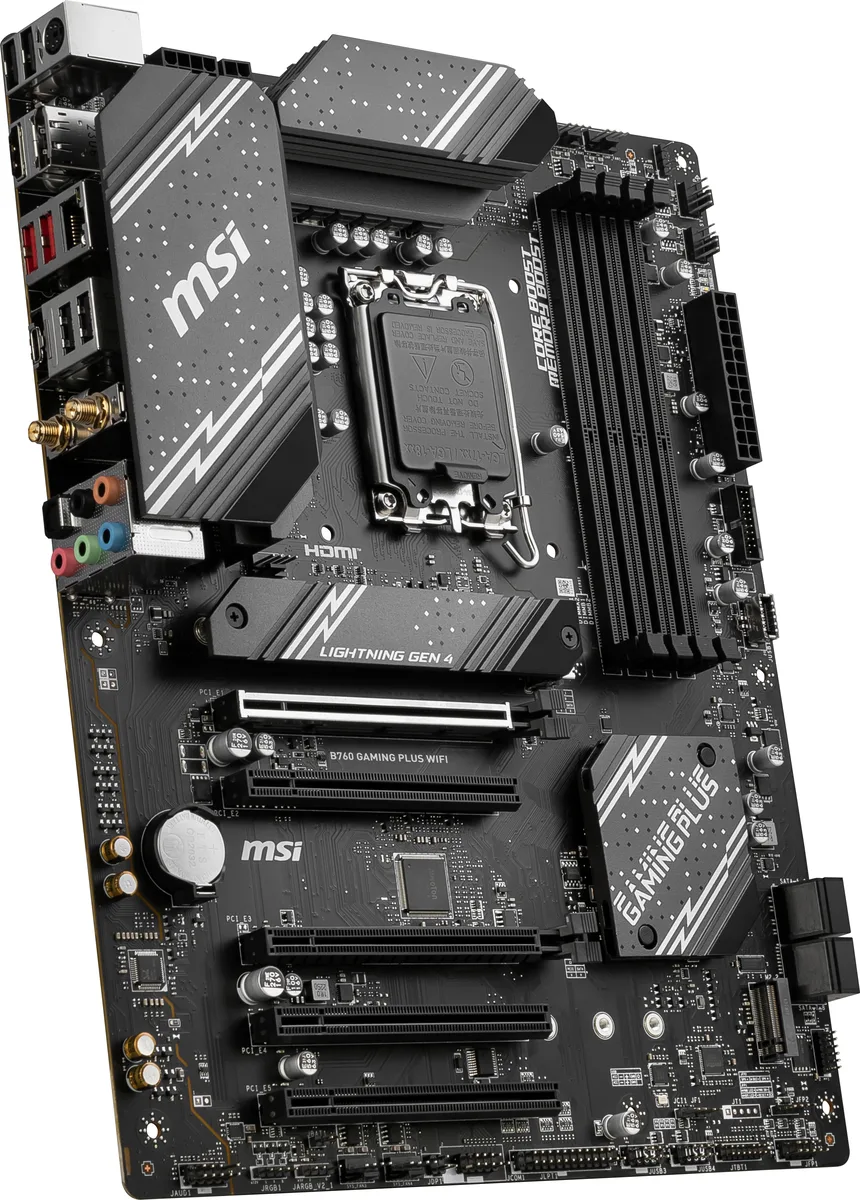

ATX motherboard, black PCB, silver heatsinks, four DDR5 slots, two PCIe x16 slots, rear I/O shield visible

MSI

MSI B760 GAMING PLUS WIFI Intel motherboard

SKU CH-006F-MA6WH MPN B760 GAMING PLUS WIFI

Supports Intel Core 12th, 13th and 14th Gen CPUs on LGA 1700 with four DDR5 slots up to 192 GB, dual PCIe 4.0 x16, two M.2, 2.5 G LAN, Wi-Fi 6E and Bluetooth 5.3

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pe
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory Standard4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6
  • Maximum Memory Supported192GB

Option B760 GAMING PLUS WIFI

Struck-through versions exist but are not stocked here.

  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • Four DDR5 slots with XMP 3.0 up to 6800+ MHz and 192 GB capacity
  • Two PCIe 4.0 x16 slots plus three PCIe 3.0 x1 slots for expansion cards
  • Dual M.2 sockets with PCIe 4.0 x4 and M.2 Shield FROZR cooling
  • 5 G LAN, Wi-Fi 6E and Bluetooth 5.3 for fast wired and wireless connectivity

Socket and chipset

This MSI B760 GAMING PLUS WIFI motherboard uses the Intel B760 chipset on an LGA 1700 socket. It supports Intel Core 12th, 13th and 14th generation processors as well as Pentium Gold and Celeron CPUs. The ATX board provides four DDR5 slots with a maximum capacity of 192 GB.

Suitable builds and limits

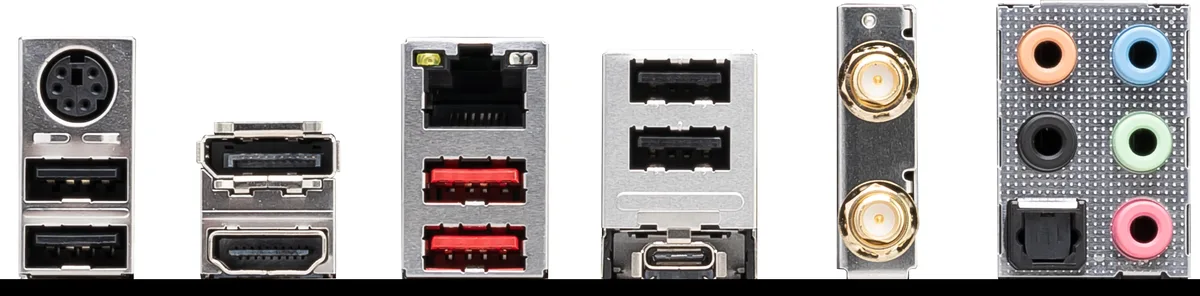

Builders wanting Wi-Fi 6E, Bluetooth 5.3 and 2.5 G LAN on a DDR5 platform will find the feature set complete. The rear I/O includes HDMI 2.1, DisplayPort 1.4, USB 3.2 Gen 2 Type-A and Type-C plus USB 2.0 ports. Users needing more than two M.2 slots or PCIe 5.0 graphics support should consider other chipsets.

Memory speed ceiling

Four DDR5 DIMM slots run dual-channel up to 6800 MHz when overclocked with Intel XMP 3.0. JEDEC speeds range from 4800 MHz to 5600 MHz depending on module rank and population. This ceiling determines whether the board matches your memory kit.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core CPUs on LGA 1700 socket
  • Four DDR5 slots with XMP 3.0 up to 6800+ MHz and 192 GB capacity
  • Two PCIe 4.0 x16 slots plus three PCIe 3.0 x1 slots for expansion cards
  • Dual M.2 sockets with PCIe 4.0 x4 and M.2 Shield FROZR cooling
  • 5 G LAN, Wi-Fi 6E and Bluetooth 5.3 for fast wired and wireless connectivity

Specifications

BrandMSI
ModelB760 GAMING PLUS WIFI
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory Standard4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x13x PCIe 3.0 x1 slot
Serial ATA (SATA)4 x SATA 6Gb/s
M.22x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio Channels8-Channel (7.1) HD Audio with Audio Boost
Max LAN SpeedRealtek®
RTL8125BG 2.5G LAN
Wireless LANntel®
Wi-Fi 6E
Bluetooth, Bluetooth 5.3
Back I/O PortsKeyboard/Mouse, Displayport 1.4, 2.5G LAN, USB2.0, Wi-fi/Bluetooth, HD Audio Connectors, USB2.0, HDMI 2.1 Port, USB 3.2 Gen 2 10Gbps (type-A), USB 3.2 Gen 2 10Gbps(Type C), Optical S/PDIF-Out.
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
Windows 11Support for Windows® 11 64-bit, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
FeaturesSupports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
2.5G LAN with Wi-Fi
Shipping weight2.27 kg
Package size346 × 269 × 71 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the MSI B760 GAMING PLUS WIFI include the DDR5 memory modules or do they need to be purchased separately?

The board ships without DDR5 modules. Four 288-pin slots support up to 192 GB of DDR5; kits must be bought separately.

Which DDR5 speed should I select for the B760 GAMING PLUS WIFI to match the board's highest validated overclock?

The highest listed overclock is DDR5 6800+ MHz with a single-rank DIMM per channel; choose a kit rated at or above 6800 MHz for that ceiling.

What does the Wi-Fi 6E 2400 Mbps figure mean for actual throughput on this motherboard?

2400 Mbps is the peak PHY rate on the 6 GHz band; real-world throughput will be lower due to overhead, distance and client capability.
