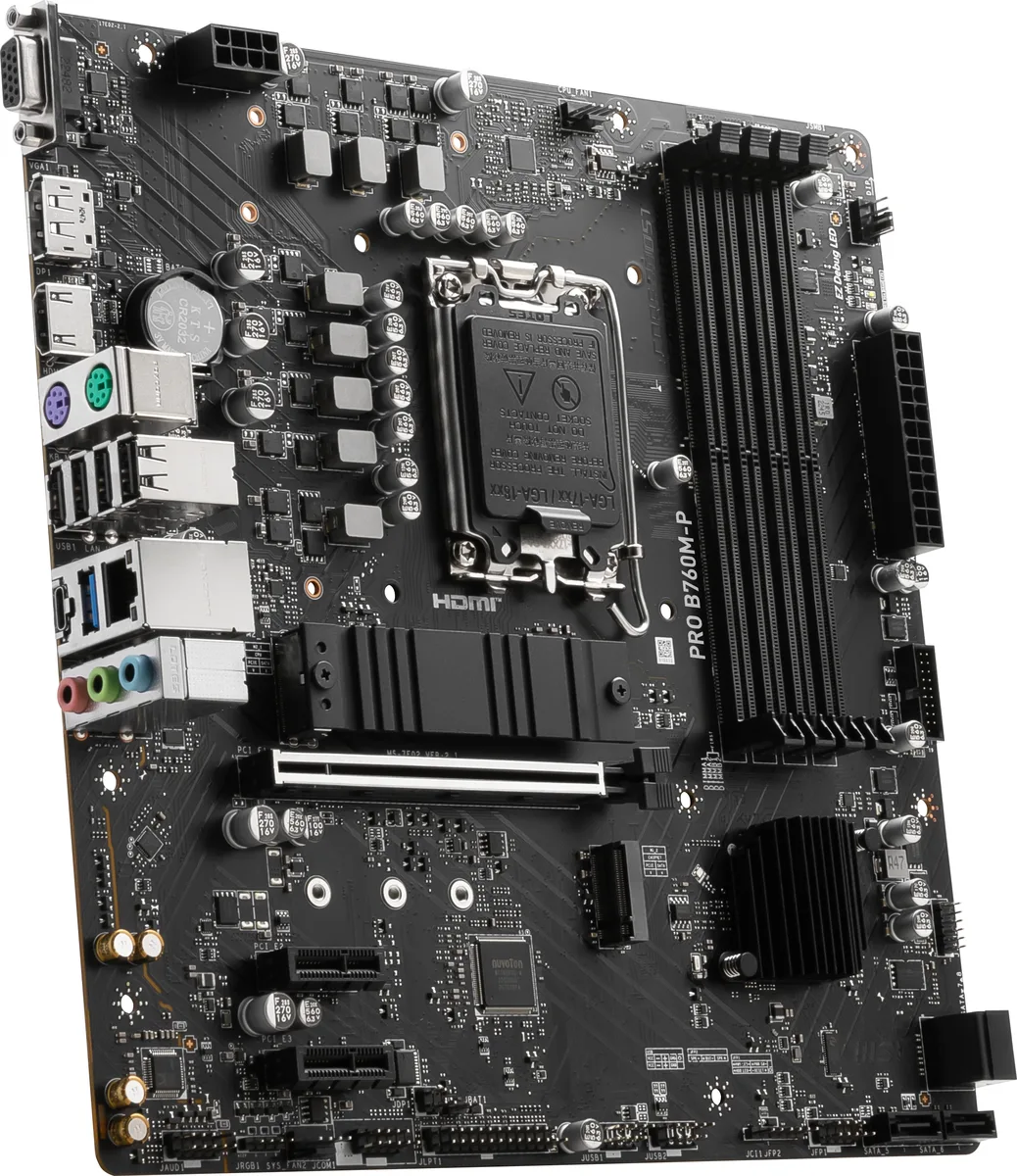

Green Micro-ATX board with silver heatsinks and black slots

MSI

MSI PRO B760M-P Intel motherboard

SKU CH-HMQC-KG8BE MPN PRO B760M-P

Micro-ATX LGA 1700 board with Intel B760 chipset supporting 12th, 13th and 14th Gen processors, four DDR5 slots up to 256 GB, PCIe 4.0 x16 and dual M.2 with heatsinks

  • CPU Socket TypeLGA 1700
  • CPU TypeCore / Pentium / Celeron (12th Gen, LGA1700) / Intel Core 12
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/
  • Maximum Memory Supported256GB

Option PRO B760M-P

Struck-through versions exist but are not stocked here.

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • Four DDR5 slots deliver up to 256 GB at 6800+ MHz overclocked speeds
  • PCIe 4.0 x16 slot with Steel Armor resists heavy graphics-card bending
  • M.2 Shield Frozr cools PCIe 4.0 x4 storage to prevent thermal throttling
  • Realtek ALC897 codec provides 7.1-channel high-definition audio output

Business Micro-ATX board

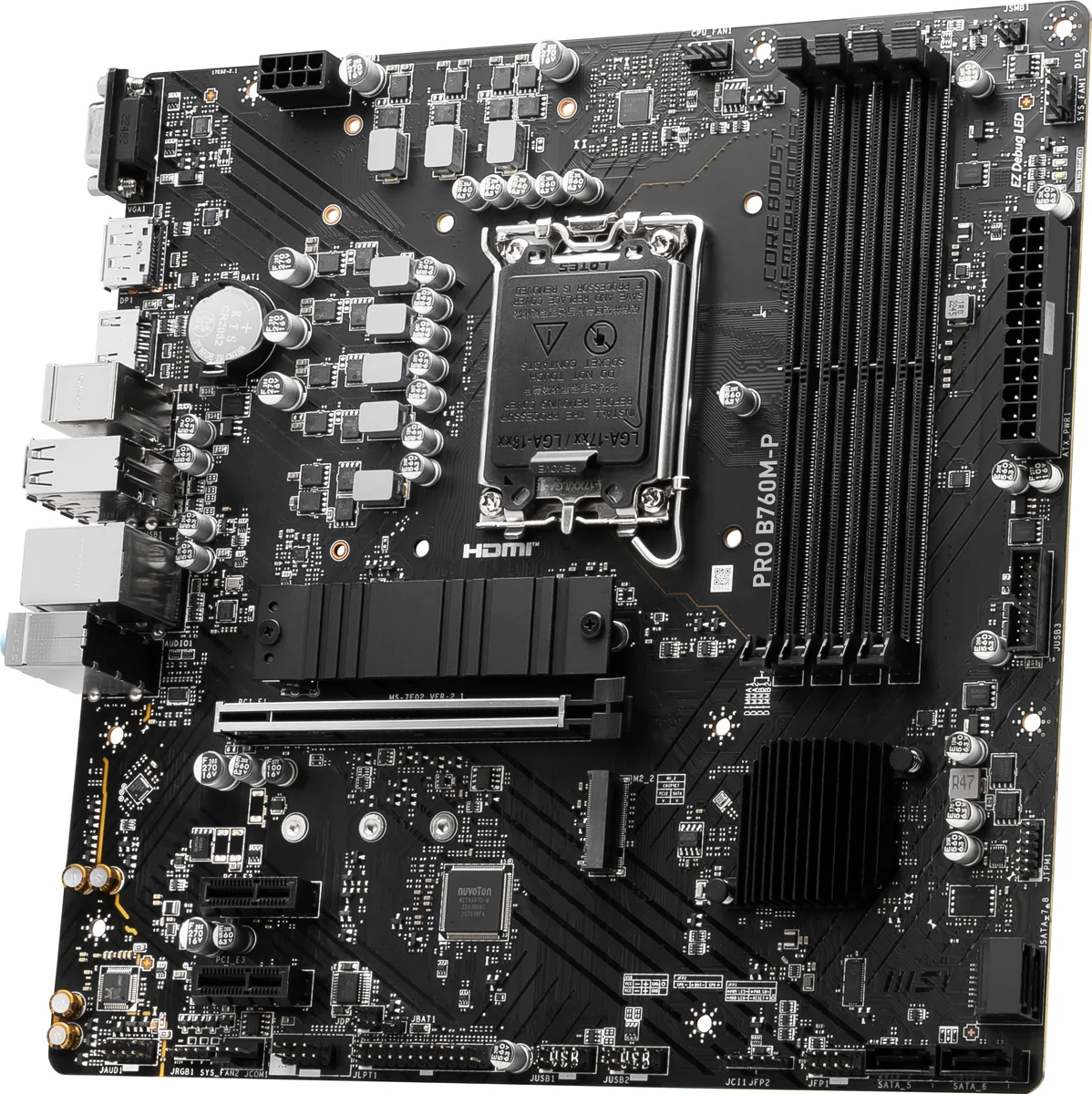

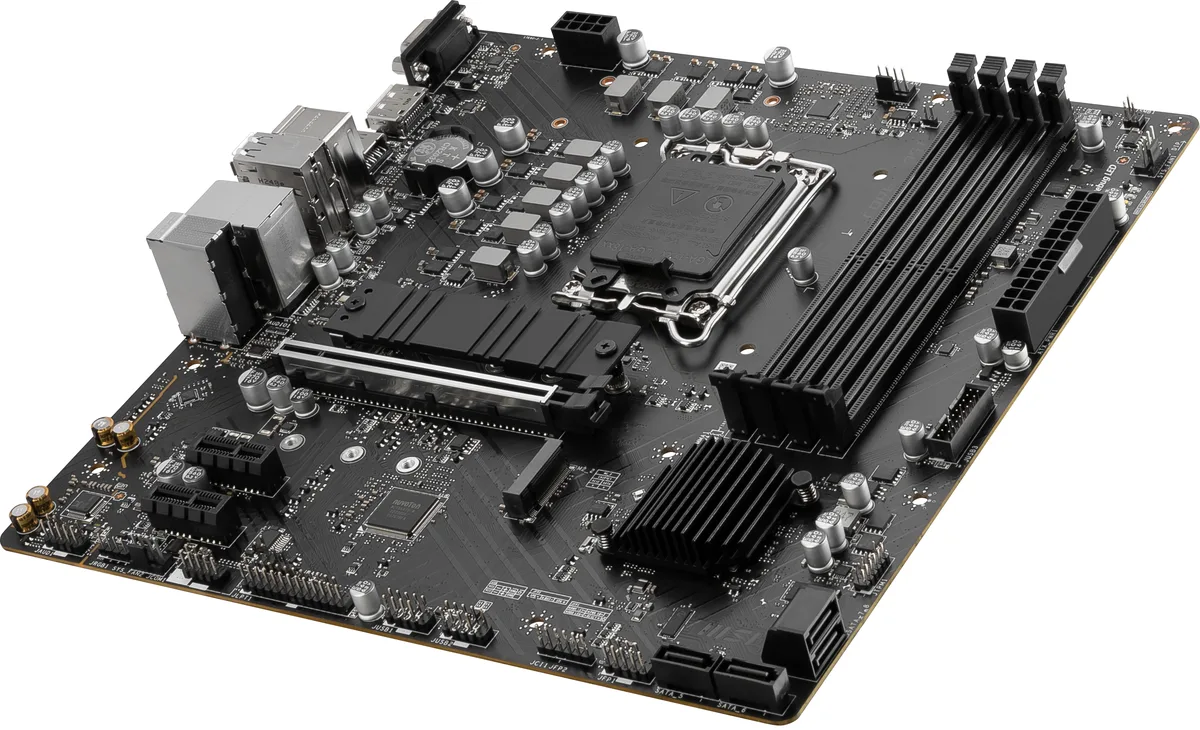

The MSI PRO B760M-P is a Micro-ATX motherboard built on the Intel B760 chipset for LGA 1700 processors. It accepts Intel Core 12th, 13th and 14th Gen CPUs plus Pentium Gold and Celeron models. Four DDR5 slots support up to 256 GB in dual-channel mode. The layout targets business and mainstream desktop builds.

Passive chipset cooling and M.2 shield

A chipset heatsink provides passive cooling while the M.2 Shield Frozr covers the primary slot to limit SSD throttling. Frozr AI Cooling adjusts system fan curves based on CPU and GPU temperatures. The board draws power through standard ATX and CPU connectors and runs quietly under typical office or home workloads.

Dual M.2 and Steel Armor slot

Two PCIe 4.0 M.2 sockets accept 2280, 2260 and 2242 drives; the second slot shares bandwidth with a SATA port. A reinforced PCIe 4.0 x16 slot with extra solder points holds heavy graphics cards. Rear I/O includes HDMI, DisplayPort, VGA, Gigabit LAN, USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1 Type-A and four USB 2.0 ports.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • Four DDR5 slots deliver up to 256 GB at 6800+ MHz overclocked speeds
  • PCIe 4.0 x16 slot with Steel Armor resists heavy graphics-card bending
  • M.2 Shield Frozr cools PCIe 4.0 x4 storage to prevent thermal throttling
  • Realtek ALC897 codec provides 7.1-channel high-definition audio output

Specifications

BrandMSI
ModelPRO B760M-P
Part NumberPRO B760M-P
CPU Socket TypeLGA 1700
CPU TypeCore / Pentium / Celeron (12th Gen, LGA1700) / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory StandardMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileSupports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x12x PCIe 4.0 x1 slots
Serial ATA (SATA)* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Audio ChipsetRealtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN ChipsetRealtek® RTL8111H Gigabit LAN

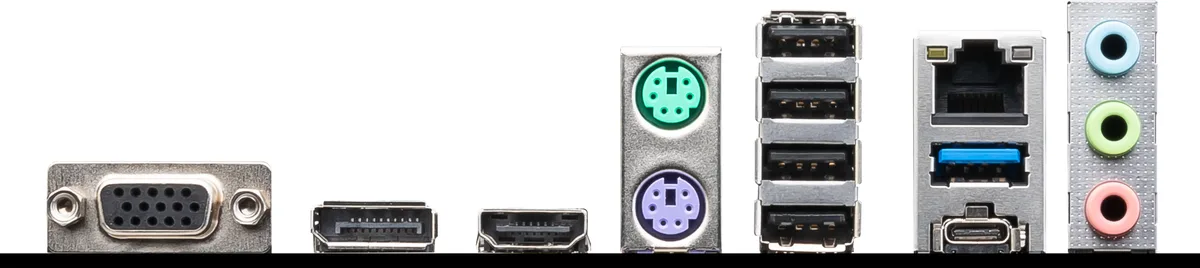

Back I/O Ports1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 1 Type-A / 1 x USB 3.2 Gen 2 Type-C / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/21 x PS/2 keyboard/mouse port
Video Ports1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
HDMI1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
RJ451 x RJ45
DisplayPort1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
USB 1.1/2.04 x USB 2.0
USB Type-C1 x USB Type-C® port, with USB 3.2 Gen 2 support
Audio Ports3 Ports
Onboard USB2 x USB 3.1 + 4 x USB 2.0
Other Connectors1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
Windows 11Support for Windows® 11 64-bit, Windows® 10 64-bit
Form FactorMicro ATX
Dimensions (W x L)243.84mmx243.84mm
Shipping weight0.91 kg
Package size305 × 279 × 51 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the motherboard in a Micro-ATX case and which standoffs do I use?

Align the board with the Micro-ATX mounting holes in the chassis, fit the supplied I/O shield, and secure it using the standard standoff positions marked for Micro-ATX. The step people miss is checking that no extra standoffs touch the back of the PCB.

What maintenance will the M.2 Shield Frozr need over time?

The M.2 Shield Frozr is a passive heatsink; dust can reduce its cooling. Clean the fins with compressed air when you service the rest of the system to keep SSD temperatures stable.

Which limit appears first when the VRM runs under sustained load?

The VRM uses a passive heatsink design. Under heavy continuous current the heatsink temperature rises until thermal throttling or fan-curve response becomes the limiting factor.
