ATX motherboard, dark PCB, silver heatsinks, LGA 1700 socket, four DDR4 slots, rear I/O shield visible

MSI

MSI PRO B760-P WIFI DDR4 Intel motherboard

SKU CH-5QDN-GWTWK MPN PRO B760-P WIFI DDR4

ATX Intel B760 board with LGA 1700 socket, four DDR4 slots up to 128 GB, dual M.2, Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gbps LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th G
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardMemory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(
  • Maximum Memory Supported128GB

Option PRO B760-P WIFI DDR4

Struck-through versions exist but are not stocked here.

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • Dual-channel DDR4 memory up to 128 GB with speeds to 5333 MHz OC
  • Two M.2 slots with PCIe 4.0 x4 and M.2 Shield Frozr cooling
  • Intel 2.5 Gbps LAN plus Wi-Fi 6E and Bluetooth 5.3 wireless
  • Extended VRM heatsink and Frozr AI Cooling keep temperatures under control

Business ATX Platform

The MSI PRO B760-P WIFI DDR4 is an ATX motherboard built on the Intel B760 chipset for LGA 1700 processors. It supports 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron CPUs. Four DDR4 slots accept up to 128 GB of memory with Intel XMP 2.0 profiles. The board targets business and productivity systems that need wired and wireless connectivity.

Build Integration

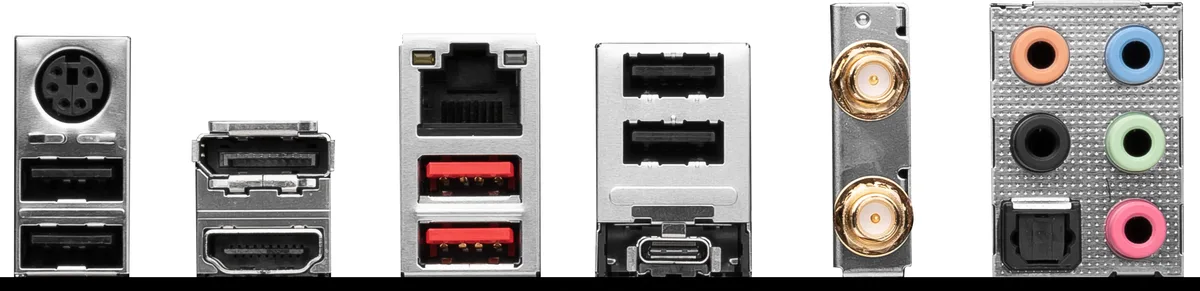

Two PCIe 4.0 x16 slots and three PCIe 3.0 x1 slots provide expansion for graphics and add-in cards. Four SATA 6Gb/s ports and two M.2 sockets handle storage; the CPU-linked M.2_1 supports PCIe 4.0 x4 and 22110 lengths while the chipset-linked M.2_2 supports PCIe 4.0 x4 or SATA mode. Rear I/O includes 2.5 Gbps LAN, Intel Wi-Fi 6E, Bluetooth 5.3, HDMI, DisplayPort, USB 3.2 Gen 2 Type-C, two USB 3.2 Gen 2 Type-A, four USB 2.0, PS/2, optical S/PDIF and 7.1 audio jacks.

Sustained Operation

A 12+1+1 Duet Rail power design with 8-pin plus 4-pin CPU connectors feeds the VRM under continuous load. Extended heatsinks, 7W/mK MOSFET pads and choke pads dissipate heat from the power phases. The 6-layer PCB with 2 oz copper improves thermal conductivity. M.2 Shield Frozr covers both M.2 slots to limit SSD throttling. Frozr AI Cooling monitors CPU and GPU temperatures to adjust system fan curves automatically.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • Dual-channel DDR4 memory up to 128 GB with speeds to 5333 MHz OC
  • Two M.2 slots with PCIe 4.0 x4 and M.2 Shield Frozr cooling
  • Intel 2.5 Gbps LAN plus Wi-Fi 6E and Bluetooth 5.3 wireless
  • Extended VRM heatsink and Frozr AI Cooling keep temperatures under control

Specifications

BrandMSI
ModelPRO B760-P WIFI DDR4
CPU Socket TypeLGA 1700
CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR4)
Memory StandardMemory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 2.0
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x13 x PCI Express 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Audio Channels8 Channels (7.1) HD Audio with Audio Boost
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E
BluetoothBluetooth 5.3
Back I/O Ports1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1 / 5 x Audio Jacks
Form FactorATX
Shipping weight1.50 kg
Package size351 × 272 × 66 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much DDR4 memory can the four slots on the PRO B760-P WIFI DDR4 accept in total?

The board supports up to 128 GB of DDR4 across its four 288-pin slots running in dual-channel mode.

What are the thermal features for the voltage regulators and M.2 drives when the system runs all day?

An extended heatsink with 7 W/mK MOSFET pads and choke pads cools the 12+1+1 phase VRM, while M.2 Shield Frozr covers both M.2 slots to prevent SSD throttling.

Which CPU power connectors must the power supply provide for this motherboard?

The board requires both an 8-pin and a 4-pin ATX 12 V connector to feed its 12+1+1 phase Duet Rail power design.
