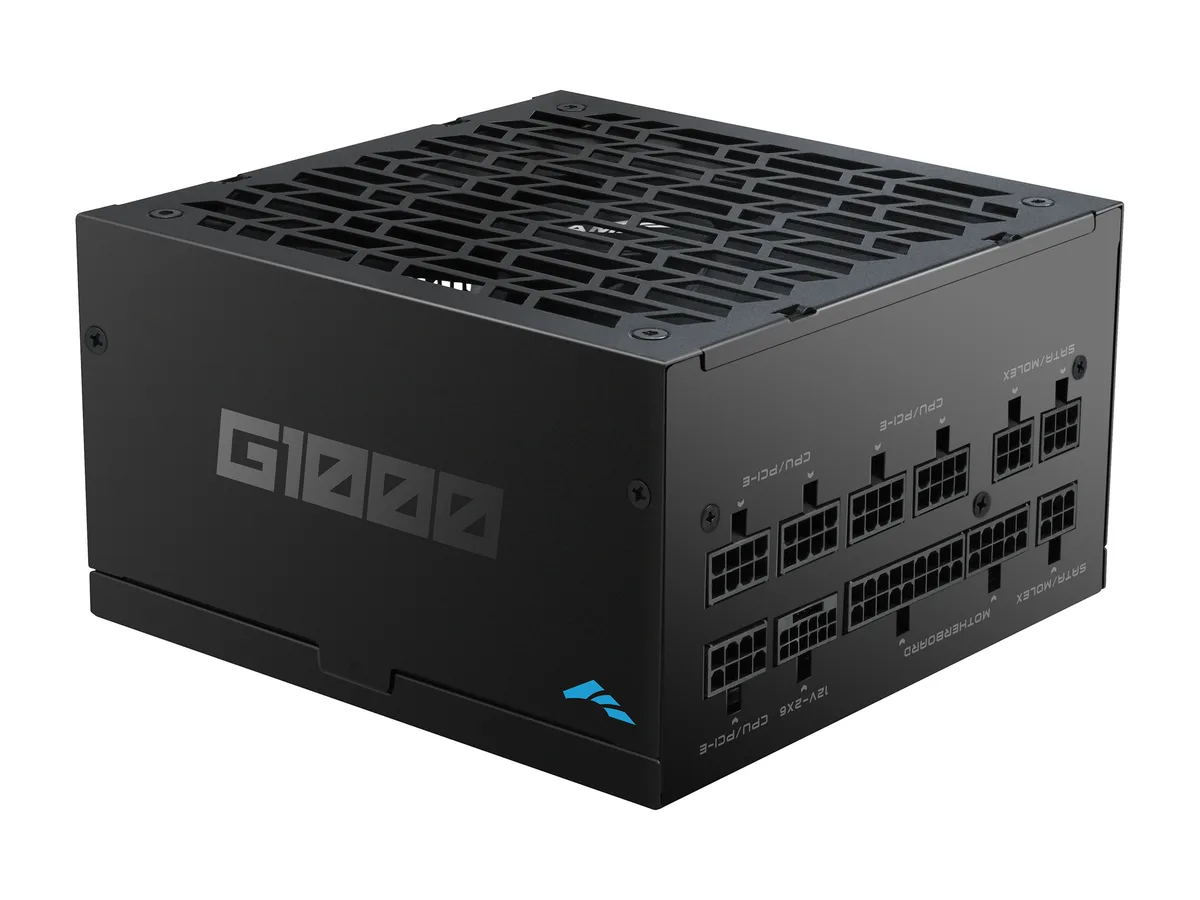

Black rectangular ATX power supply with 140mm fan and modular cable sockets

SAMA

SAMA HAT-1000yzB2G G-Series 1000W ATX 3.1 power supply

SKU CH-GQ65-VD6JF MPN HAT-1000yzB2G

ATX 3.1 compatible 1000 W unit with Cybenetics Gold efficiency, fully modular cabling and a 140 mm FDB fan for quiet operation

  • TypeATX 3.1 Compatible
  • Maximum Power1000 W
  • ModularYes
  • Fans1 x 140 mm
  • PFCActive
  • Main Connector24Pin

Option G1000W Black

  • Cybenetics Gold efficiency keeps waste heat low
  • ATX 3.1 and PCIe 5.1 ready with 12VHPWR 16pin for 600W GPU power
  • Fully modular cables let you connect only what the build needs
  • 100% Japanese capacitors deliver stable output and long life

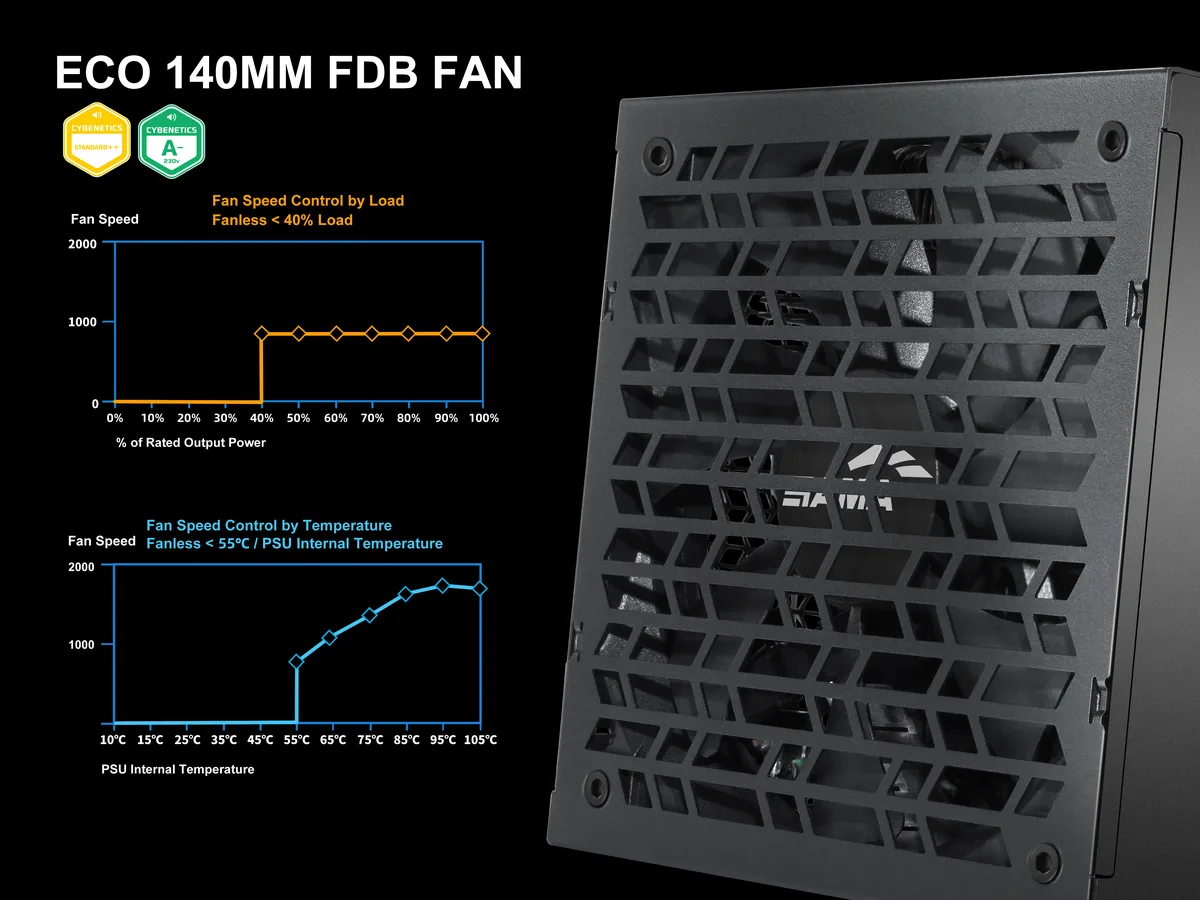

  • 140mm FDB fan runs silent under 40% load with ECO mode

1000W ATX 3.1 Power Supply

The SAMA HAT-1000yzB2G is a 1000W ATX 3.1 power supply from the G-Series range. It targets builders of high-performance gaming PCs and content-creation workstations who need reliable, efficient power delivery. The fully modular design allows users to connect only the cables required for a clean internal layout. A 140mm FDB fan with ECO mode keeps operation quiet under light loads.

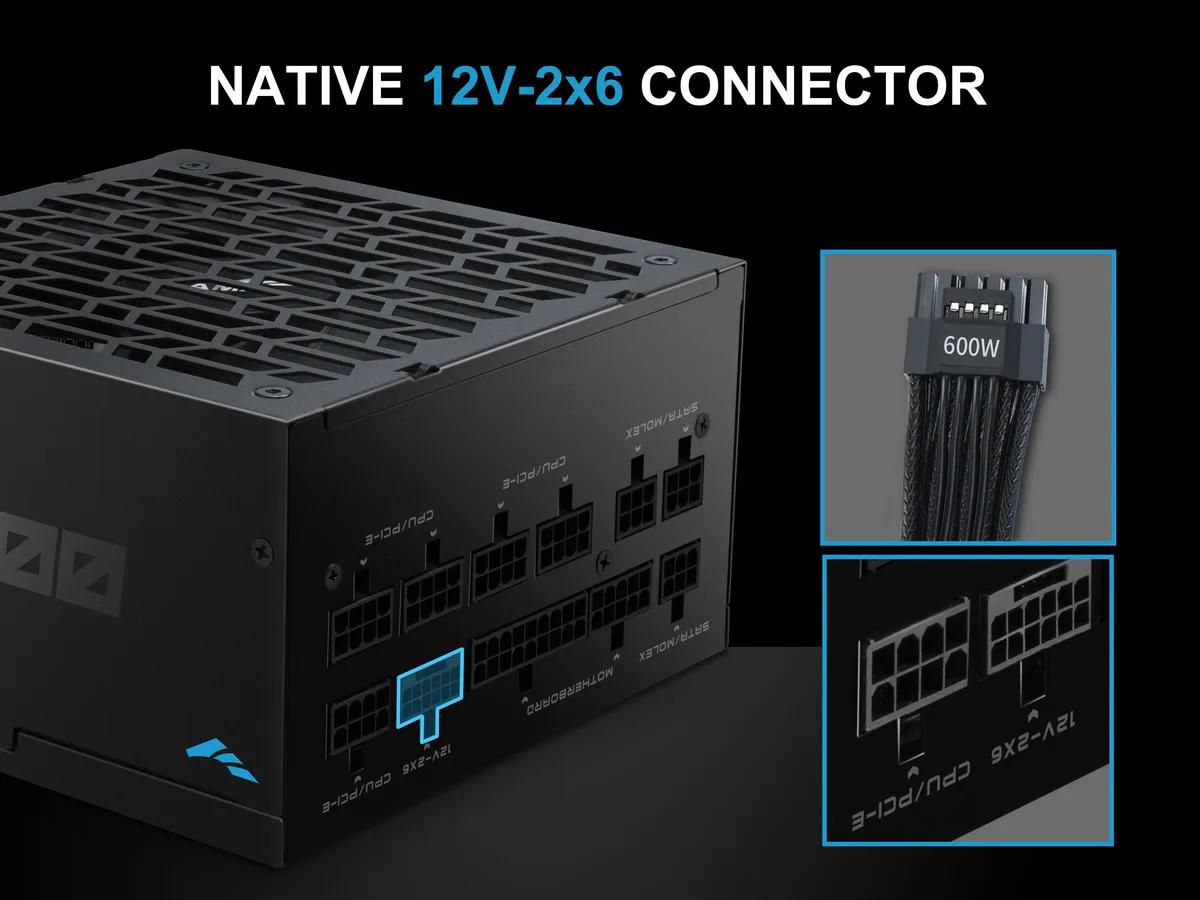

Single 12V Rail with 12V-2x6 Connector

The unit uses a single +12V rail rated for the full 1000W output and includes a native 12V-2x6 connector capable of delivering 600W to modern graphics cards. Cybenetics Gold certification confirms efficiency above 90% across typical loads. Hold-up time exceeds 12 ms at full load, and 100% Japanese capacitors support stable voltage regulation. Active PFC operates across a 100-240V input range.

Suits RTX 40 and 50 Series Builds

This supply suits compact and silent builds thanks to a 150mm chassis depth and a fan that stops below 40% load. It provides three 6+2-pin PCIe connectors alongside the 12V-2x6 port, two SATA connectors and a 24-pin main cable. Builders needing more SATA drives or additional PCIe cables for multi-GPU setups should look at a unit with higher peripheral counts.

Highlights

  • Cybenetics Gold efficiency keeps waste heat low
  • ATX 3.1 and PCIe 5.1 ready with 12VHPWR 16pin for 600W GPU power
  • Fully modular cables let you connect only what the build needs
  • 100% Japanese capacitors deliver stable output and long life
  • 140mm FDB fan runs silent under 40% load with ECO mode

Specifications

BrandSAMA
ModelHAT-1000yzB2G
SeriesG-Series
Part NumberG1000-BKGFF001-US
TypeATX 3.1 Compatible
Maximum Power1000 W
ModularYes
Fans1 x 140 mm
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector3 x 6+2-Pin
SATA Power Connector2
Hold-up Time> 12 ms @ 100% load
Efficiency> 90%
Energy-EfficientCybenetics Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Output1000W
MTBF>100,000 Hours
Connectors1 x 24 pin ATX
ColorBlack
Max PSU Length150 mm

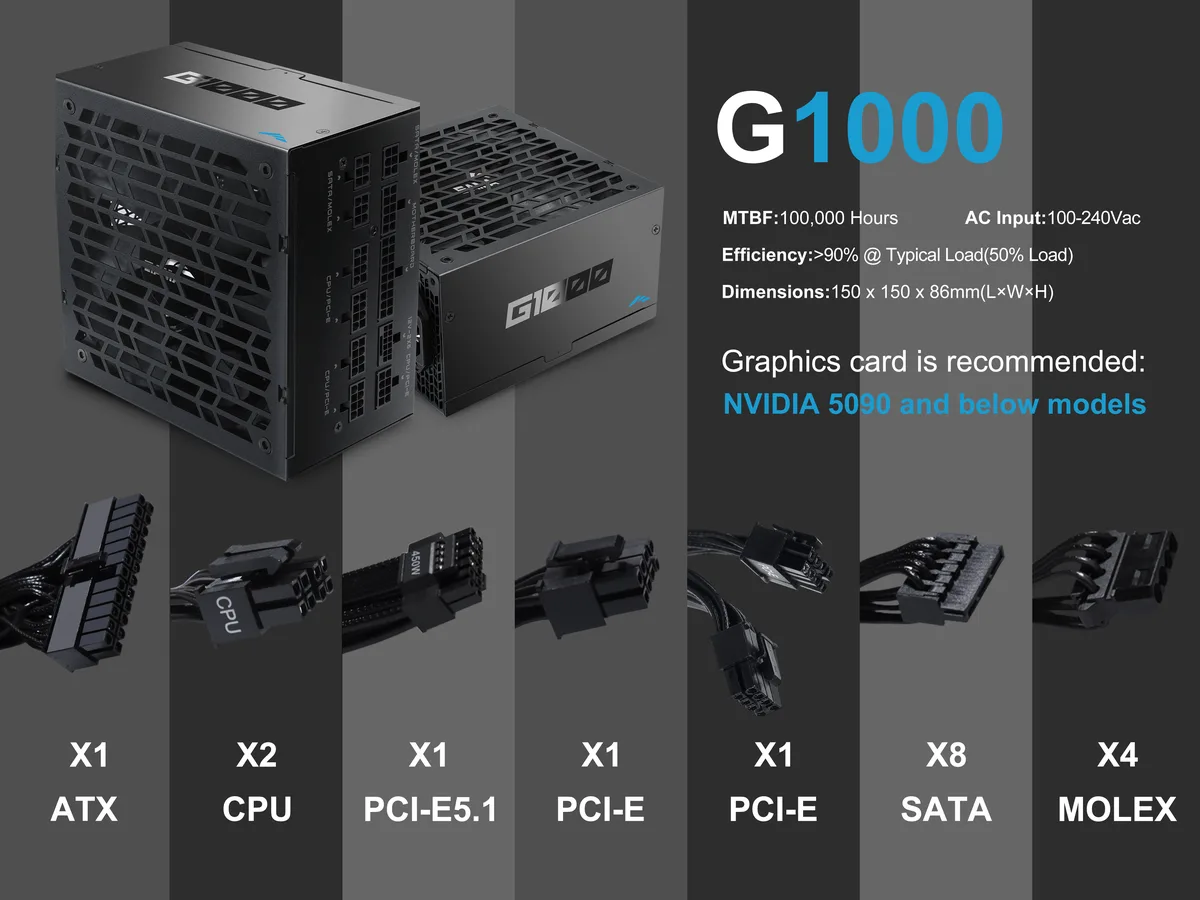

Cable Spec1x MB ATX 24Pin 550mm
2x CPU (4+4)Pin 700mm
3x PCI-E (6+2)Pin 600mm
1x 12V-2x6 (12+4)Pin 600mm
2x (SATA+SATA+SATA+SATA) 450+150+150+150mm
1x (Molex+Molex+Molex+Molex) 450+150+150+150mm
Top Fans Size140mm
Top Fans Bearing TypeFluid Dynamic Bearing
Shipping weight2.56 kg
Package size267 × 203 × 114 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 12VHPWR 16-pin cable reach a large RTX 40 or 50 series card in a full-tower case?

The fully modular design lets you route the native 12VHPWR cable directly from the PSU to the GPU without adapters, keeping the path short and tidy.

Does the unit fit in a compact case that only accepts 150 mm deep power supplies?

Yes, the chassis is 150 mm long, so it fits most small-form-factor and standard ATX cases that limit PSU depth to that dimension.

How loud is the fan during typical gaming loads?

The 140 mm FDB fan stays silent under 40 % load thanks to ECO mode, and runs quietly at higher loads due to the fluid-dynamic bearing.
