Black rectangular ATX power supply with 140mm fan and modular cable sockets

SAMA

SAMA HAT-850yzB1G 850 W ATX 3.1 power supply

SKU CH-830Q-DERQT MPN HAT-850yzB1G

An ATX 3.1 compatible unit delivering 850 W through fully modular cables, a 140 mm FDB fan with ECO mode below 40 % load, Japanese capacitors and a 12VHPWR 16-pin connector for RTX 40

  • TypeATX 3.1 Compatible
  • Maximum Power850 W
  • ModularYes
  • Fans1 x 140 mm
  • PFCActive
  • Main Connector24Pin

Option G850W Black

  • Cybenetics Gold certified for > 90 % efficiency with minimal noise
  • ATX 3.1 & PCIe 5.1 ready with 12VHPWR 16pin connector delivering up to 600 W to latest RTX GPUs
  • Fully modular cabling lets you connect only what you need for a clean build

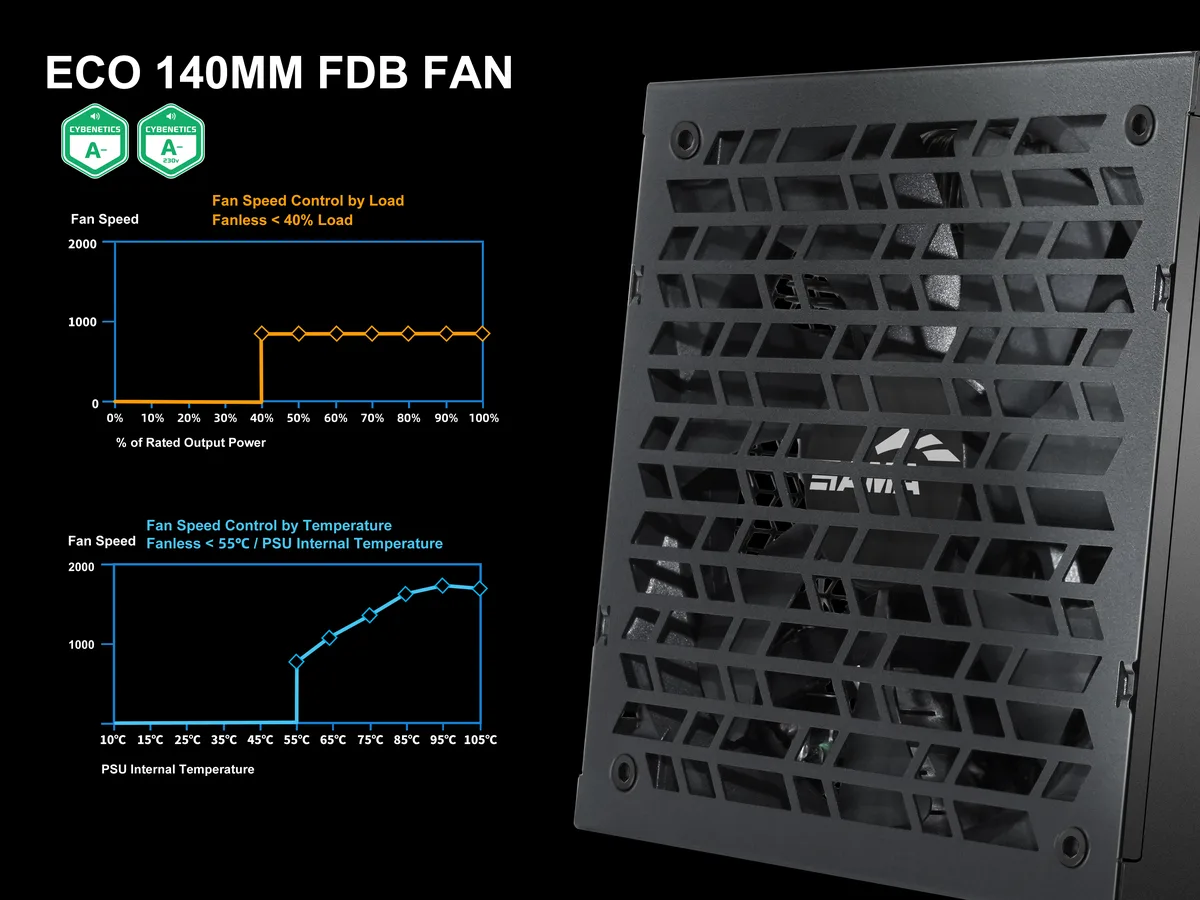

  • 140 mm FDB fan runs silent under 40 % load via ECO mode
  • 100 % Japanese capacitors ensure stable power delivery and long-term durability

850 W ATX 3.1 Power Supply

This fully modular 850 W unit meets ATX 3.1 and PCIe 5.1 specifications. It uses a single +12 V rail and a 140 mm FDB fan. Japanese capacitors and Cybenetics Gold certification support high efficiency and low noise. The compact 150 mm depth fits most cases.

Suits high-performance PCs and compact silent builds

Ideal for systems with RTX 40 or 50 series graphics cards that draw up to 600 W through the 12V-2x6 connector. Builders who need multiple PCIe or SATA connections should check the cable count before choosing this model.

850 W capacity with 600 W GPU headroom

The 12V-2x6 connector delivers 600 W to a single graphics card. One 6+2-pin PCIe and two SATA power connectors cover basic storage and peripherals. Heavy multi-GPU or many-drive configurations will exceed the provided cables.

Highlights

  • Cybenetics Gold certified for > 90 % efficiency with minimal noise
  • ATX 3.1 & PCIe 5.1 ready with 12VHPWR 16pin connector delivering up to 600 W to latest RTX GPUs
  • Fully modular cabling lets you connect only what you need for a clean build
  • 140 mm FDB fan runs silent under 40 % load via ECO mode
  • 100 % Japanese capacitors ensure stable power delivery and long-term durability

Specifications

BrandSAMA
ModelHAT-850yzB1G
SeriesG-Series
Part NumberHAT-850yzB1G
TypeATX 3.1 Compatible
Maximum Power850 W
ModularYes
Fans1 x 140 mm
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector1 x 6+2-Pin
SATA Power Connector2
Hold-up Time> 12 ms @ 100% load
Efficiency> 90%
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Output850W
MTBF>100,000 Hours
Connectors1 x 24 pin ATX
ColorBlack
Max PSU Length150 mm

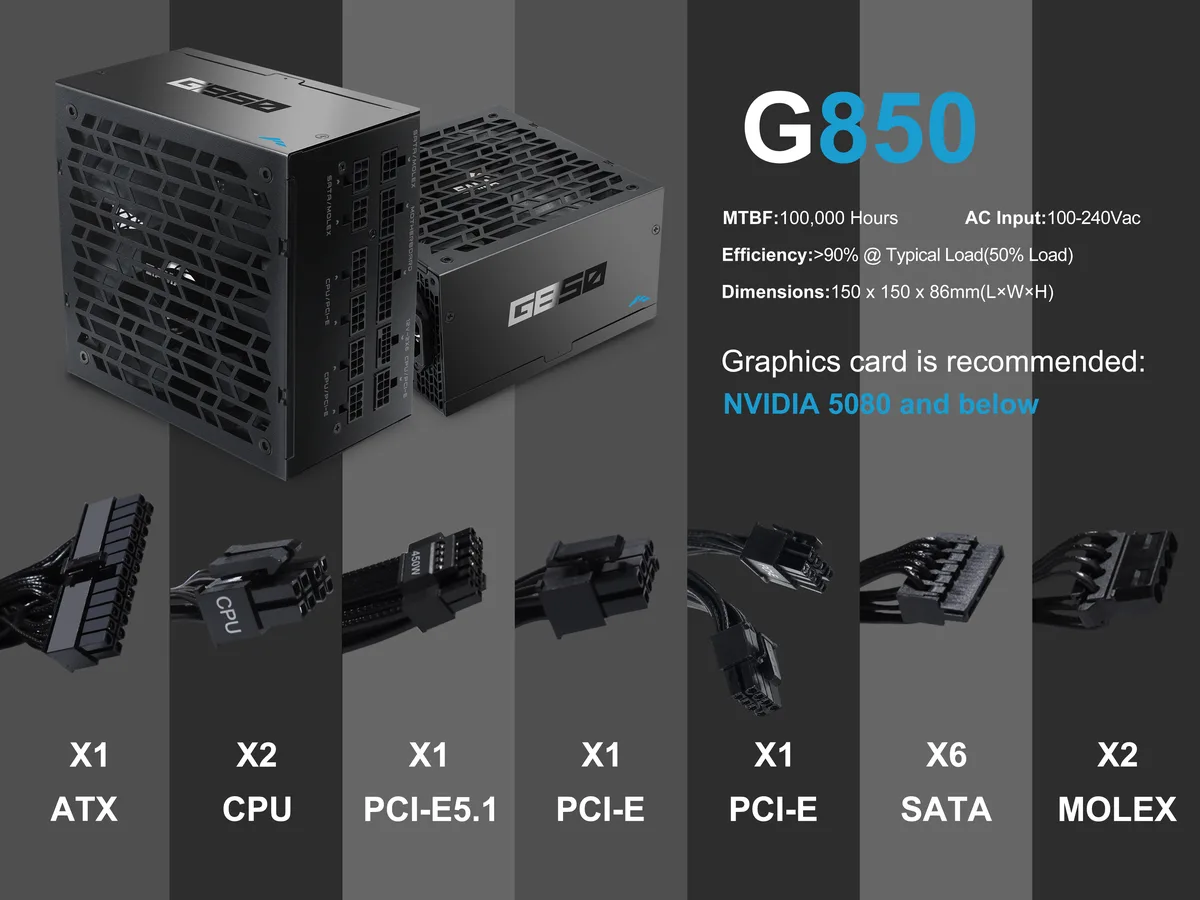

Cable Spec1x MB ATX 24Pin 550mm
2x CPU (4+4)Pin 700mm
1x PCI-E (6+2)Pin 600mm
1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm
1x 12V-2x6 (12+4)Pin 600mm
2x (SATA+SATA+SATA+Molex) 450+150+150+150mm
Energy-EfficientCybenetics Certified
Top Fans Size140mm
Top Fans Bearing TypeFluid Dynamic Bearing
Shipping weight2.27 kg
Package size259 × 198 × 114 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What motherboard connector does the HAT-850yzB1G need to power the board?

The unit ships with a standard 24Pin ATX main connector that plugs directly into any ATX motherboard.

Will the included 12VHPWR 16pin cable work with an older GPU that only has 6+2-pin sockets?

The PSU provides one native 6+2-pin PCIe connector; for older cards you would use that cable instead of the 12VHPWR lead.

How can I confirm the fan is running in ECO mode after the build is complete?

The 140 mm FDB fan stays off below 40 % load, so silence at idle or light desktop use means ECO mode is active.
