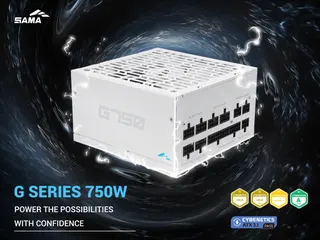

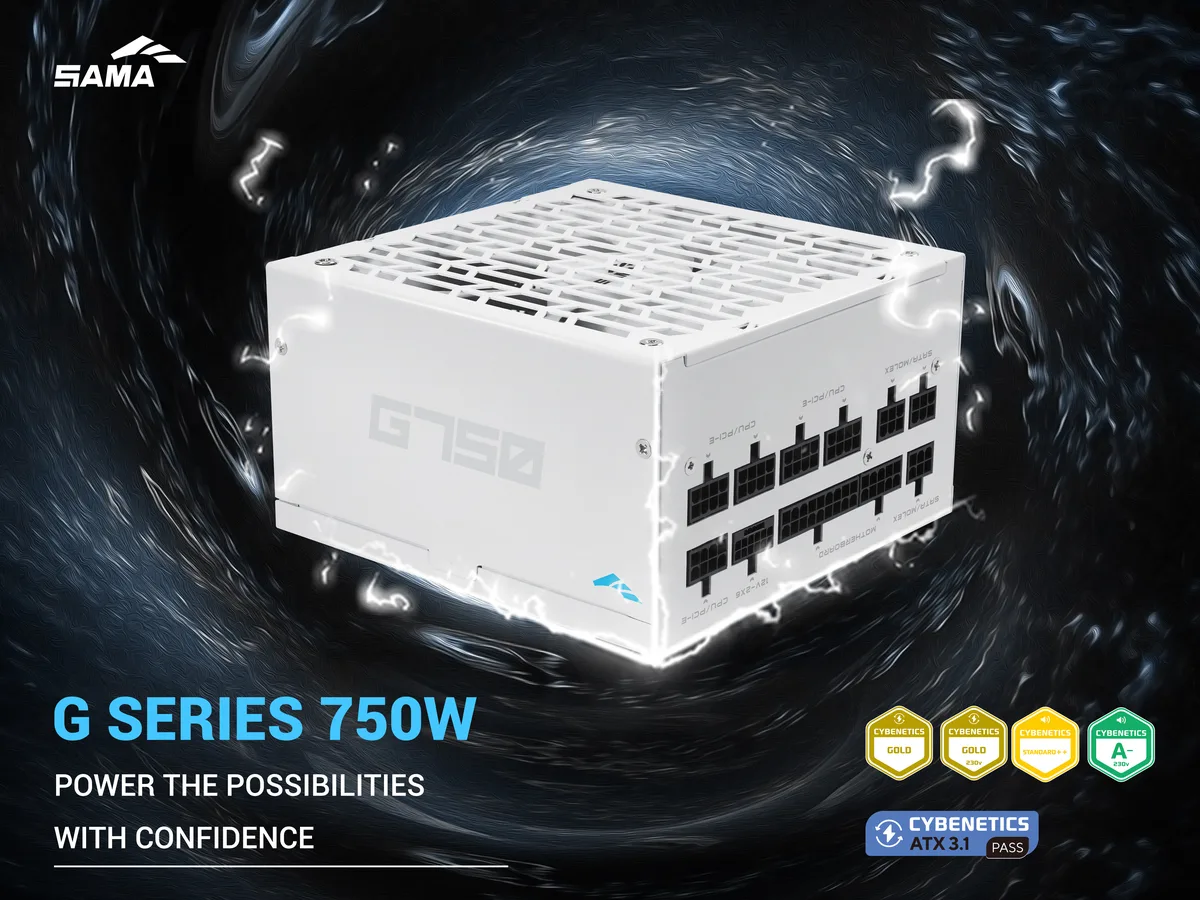

White fully modular ATX power supply with 140 mm fan

SAMA

SAMA HAT-750yzB1G 750W ATX 3.1 power supply

SKU CH-7PGK-28AP9 MPN HAT-750yzB1G

A 750 W ATX 3.1 unit with Cybenetics Gold efficiency, fully modular cables, a 140 mm FDB fan and Japanese capacitors for quiet, reliable power

  • TypeATX 3.1 Compatible
  • Maximum Power750 W
  • ModularYes
  • Fans1 x 140 mm
  • PFCActive
  • Main Connector24Pin

Option G750W White

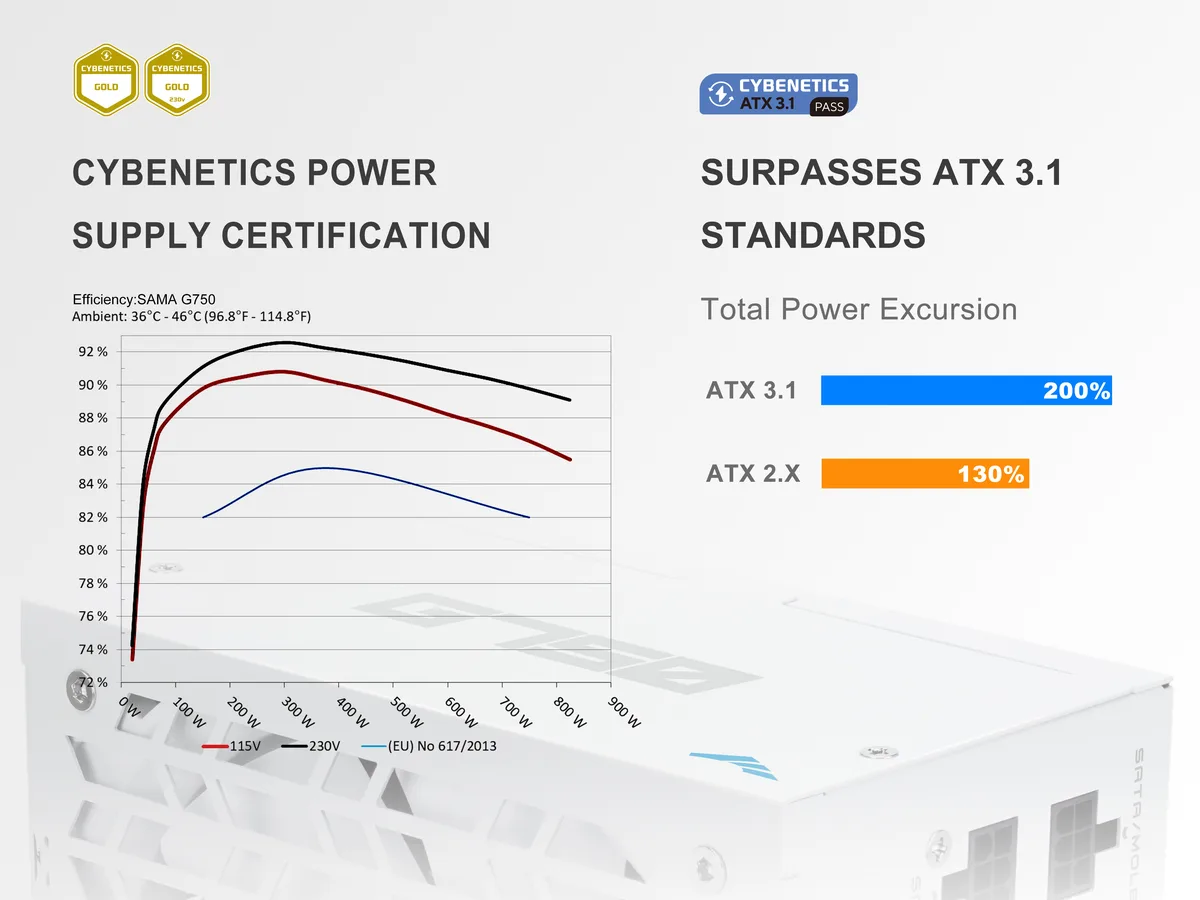

  • Cybenetics Gold certified for over 90 % efficiency
  • ATX 3.1 and PCIe 5.1 ready with 16 pin 12VHPWR connector
  • Fully modular cabling keeps builds clean and flexible

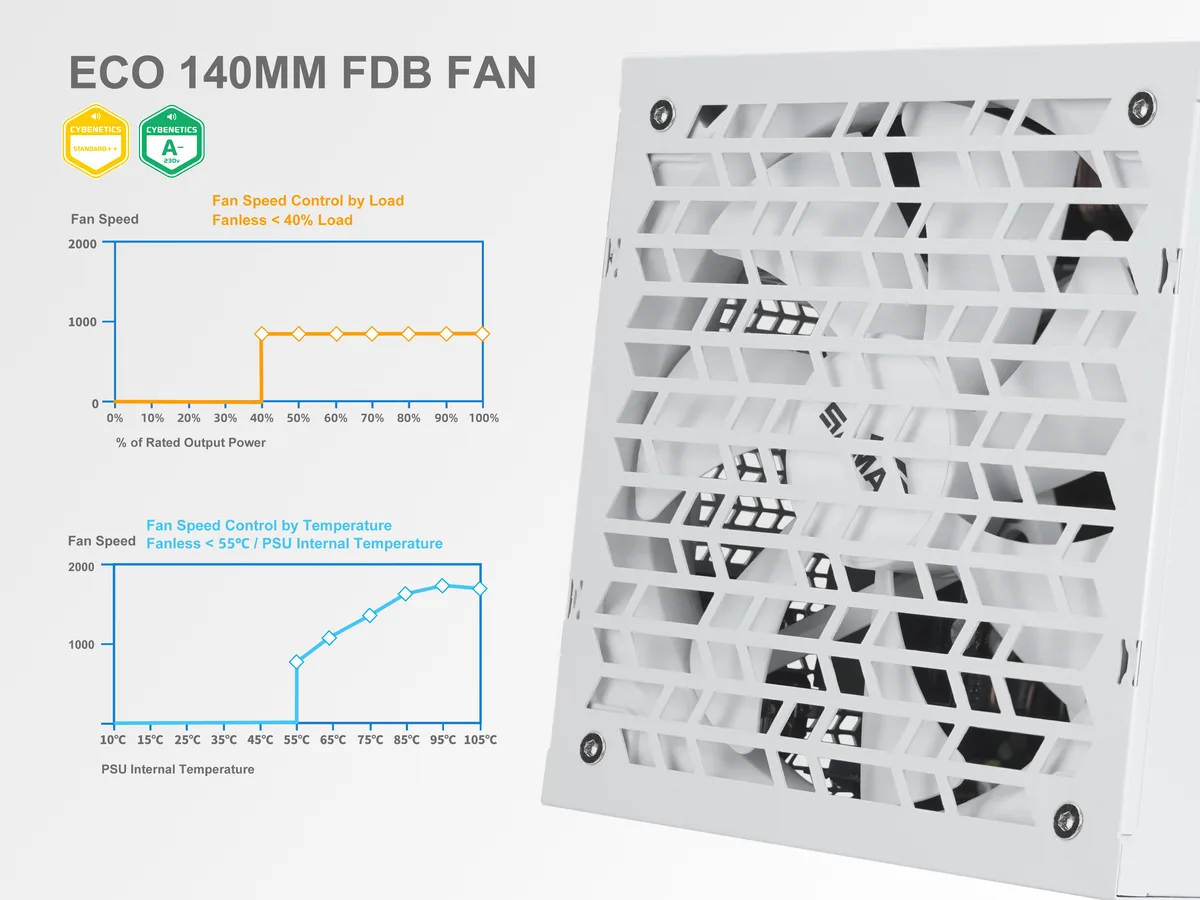

  • 140 mm FDB fan runs silent below 40 % load
  • 100 % Japanese capacitors deliver stable 750 W power

Power for modern GPUs

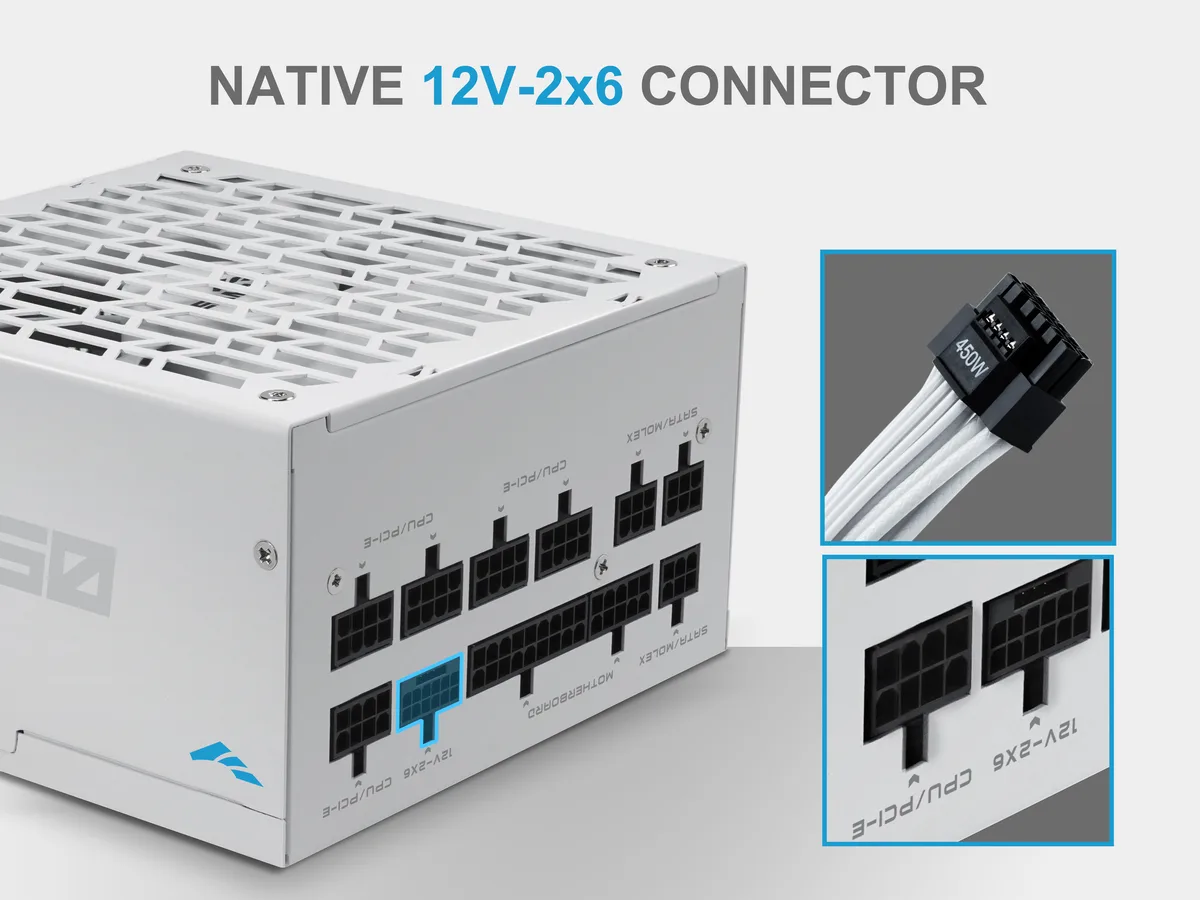

This 750 W ATX 3.1 unit delivers a single +12 V rail and a native 12V-2x6 connector rated for 600 W. It targets builders assembling high-performance gaming PCs or content-creation workstations that need clean, efficient power for current RTX graphics cards.

Build integration

Fully modular cabling lets you connect only the 24-pin, one 6+2-pin PCIe and two SATA leads required, reducing clutter in compact 150 mm deep cases. The 140 mm FDB fan runs in ECO mode below 40 % load, keeping acoustic output low while Japanese capacitors maintain stable voltage regulation.

Who it suits

Ideal for energy-efficient systems that value Cybenetics Gold efficiency above 90 % and quiet operation. Builders needing more than two SATA power ports or multiple 6+2-pin PCIe cables for multi-GPU arrays should look at higher-wattage models in the same series.

Highlights

  • Cybenetics Gold certified for over 90 % efficiency
  • ATX 3.1 and PCIe 5.1 ready with 16 pin 12VHPWR connector
  • Fully modular cabling keeps builds clean and flexible
  • 140 mm FDB fan runs silent below 40 % load
  • 100 % Japanese capacitors deliver stable 750 W power

Specifications

BrandSAMA
ModelHAT-750yzB1G
SeriesG-Series
Part NumberG0750-WHGFF001-US
TypeATX 3.1 Compatible
Maximum Power750 W
ModularYes
Fans1 x 140 mm
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector1 x 6+2-Pin
SATA Power Connector2
Hold-up Time> 12 ms @ 100% load
Efficiency> 90%
Energy-EfficientCybenetics Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Output750W
MTBF>100,000 Hours
Connectors1 x 24 pin ATX
ColorWhite
Max PSU Length150 mm

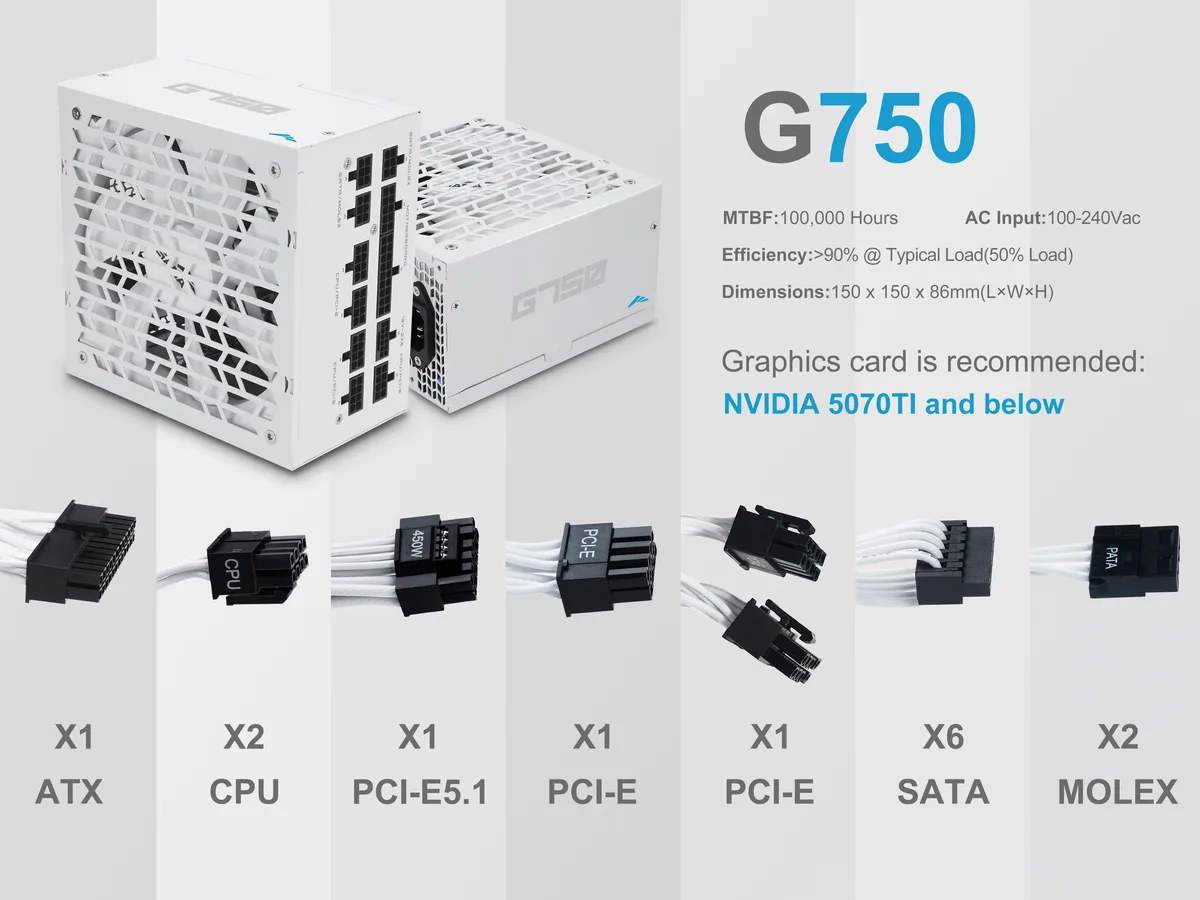

Cable Spec1x MB ATX 24Pin 550mm
1x CPU (4+4)Pin+(4+4)Pin 600+150mm
1x PCI-E (6+2)Pin 600mm
1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm
1x 12V-2x6 (12+4)Pin 600mm
2x (SATA+SATA+SATA+Molex) 450+150+150+150mm
Top Fans Size140mm
Top Fans Bearing TypeFluid Dynamic Bearing
Shipping weight2.20 kg
Package size267 × 203 × 114 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What limits output first during sustained 750 W operation?

The single +12 V rail and active PFC manage continuous delivery while Cybenetics Gold certification confirms efficiency above 90 % under load.

How loud and hot does the 140 mm FDB fan get in all-day use?

ECO mode keeps the fan silent below 40 % load; Japanese capacitors and full modular cabling reduce internal heat during extended sessions.

Which existing parts must I already own for this unit to work?

A motherboard with a 24-pin ATX socket and a graphics card using the 12V-2x6 or 6+2-pin PCIe connectors are required.
