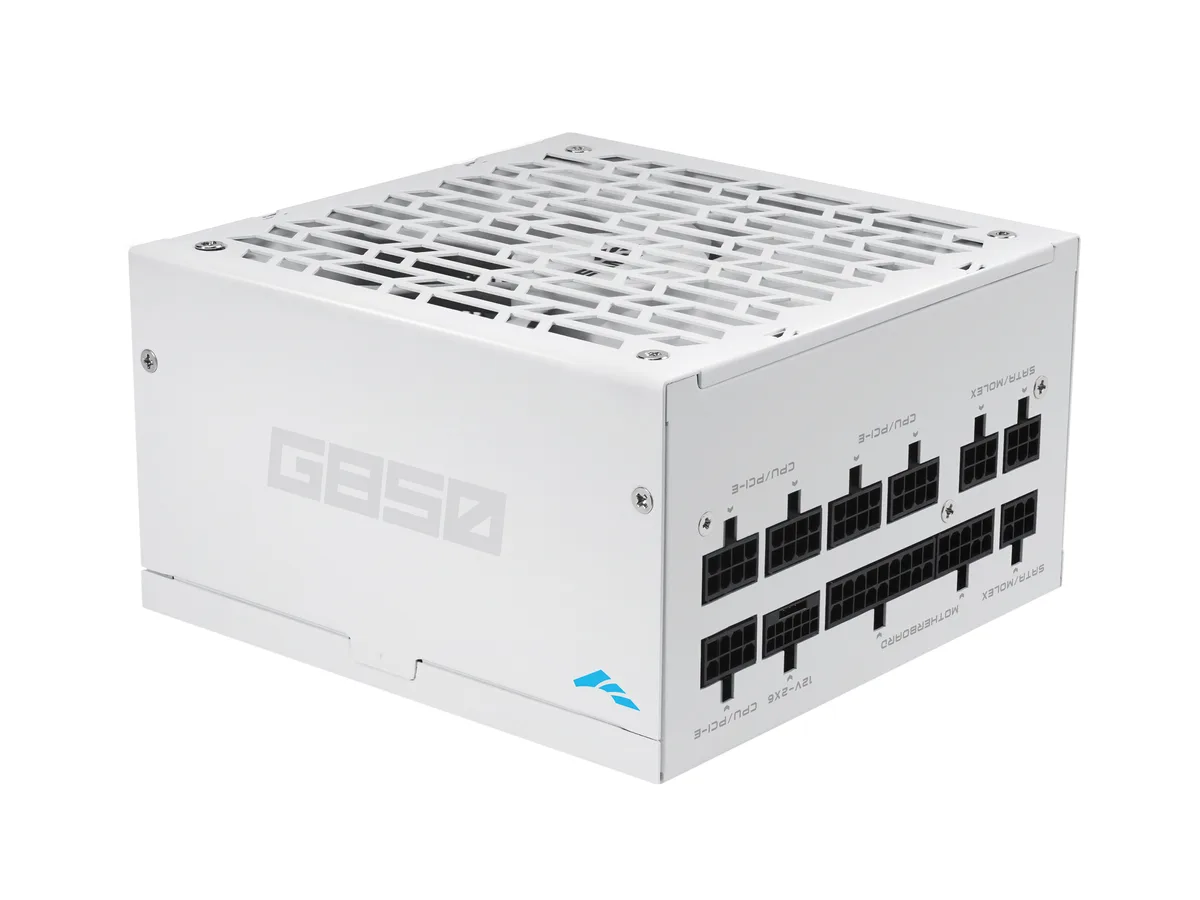

White ATX power supply with 140 mm fan and modular cables

SAMA

SAMA HAT-850yzB1G 850W ATX 3.1 power supply

SKU CH-RM96-FNRWS MPN HAT-850yzB1G

An 850 W ATX 3.1 unit with Cybenetics Gold efficiency, fully modular cables, a 140 mm FDB fan, Japanese capacitors and a 12V-2x6 connector for RTX 40 and 50 series GPUs

  • TypeATX 3.1 Compatible
  • Maximum Power850 W
  • ModularYes
  • Fans1 x 140 mm
  • PFCActive
  • Main Connector24Pin

Option G850W White

  • High efficiency with minimal noise backed by Cybenetics Gold certification
  • Ready for latest GPUs with ATX 3.1 and PCIe 5.1 support including 12VHPWR 16pin connector
  • Clean builds enabled by fully modular cabling design
  • Stable power delivery from 100% Japanese capacitors
  • Quiet operation under 40% load with 140mm FDB fan and ECO mode

ATX 3.1 850W Fully Modular Unit

This 850W ATX 3.1 power supply targets high-performance gaming PCs and content creation workstations. Its fully modular cabling lets builders connect only the cables required for a clean interior. The unit carries Cybenetics Gold certification for verified efficiency and noise levels.

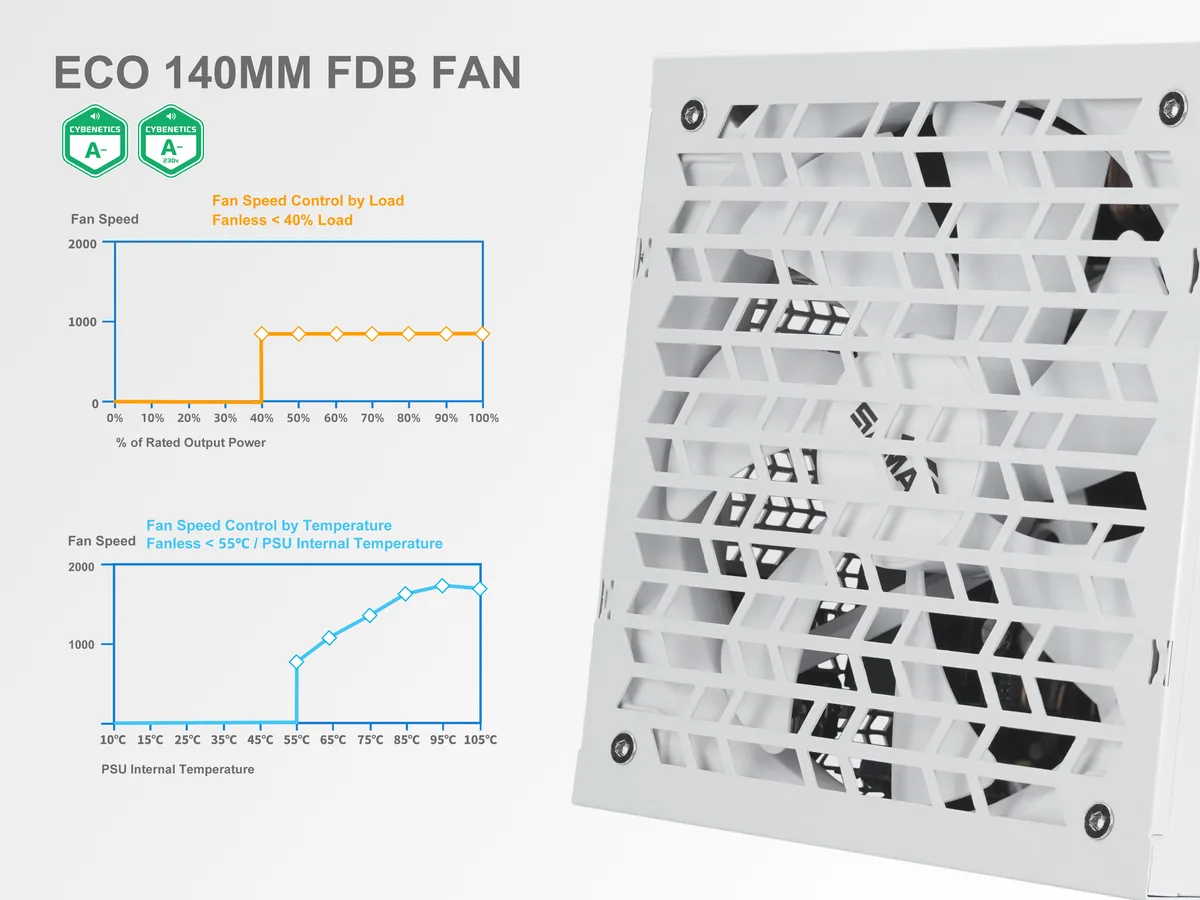

Cybenetics Gold Thermals and 140mm FDB Fan

A 140mm fluid-dynamic-bearing fan runs in ECO mode under 40 percent load for silent operation. Cybenetics Gold coverage confirms high efficiency with minimal noise across typical workloads. Active PFC and a single +12V rail deliver stable power with hold-up time exceeding 12ms at full load.

12VHPWR 16-Pin Connector for PCIe 5.1 Graphics

The native 12VHPWR 16-pin connector supplies up to 600W to PCIe 5.1 graphics cards including RTX 40 and 50 series. This single specification decides whether the unit matches a modern GPU without adapters. Japanese capacitors and full protection circuits back the connection.

Highlights

  • High efficiency with minimal noise backed by Cybenetics Gold certification
  • Ready for latest GPUs with ATX 3.1 and PCIe 5.1 support including 12VHPWR 16pin connector
  • Clean builds enabled by fully modular cabling design
  • Stable power delivery from 100% Japanese capacitors
  • Quiet operation under 40% load with 140mm FDB fan and ECO mode

Specifications

BrandSAMA
ModelHAT-850yzB1G
SeriesG-Series
Part NumberG0850-WHGFF001-US
TypeATX 3.1 Compatible
Maximum Power850 W
ModularYes
Fans1 x 140 mm
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector1 x 6+2-Pin
SATA Power Connector2
Hold-up Time> 12 ms @ 100% load
Efficiency> 90%
Energy-EfficientCybenetics Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Output850W
MTBF>100,000 Hours
Connectors1 x 24 pin ATX
ColorWhite
Max PSU Length150 mm

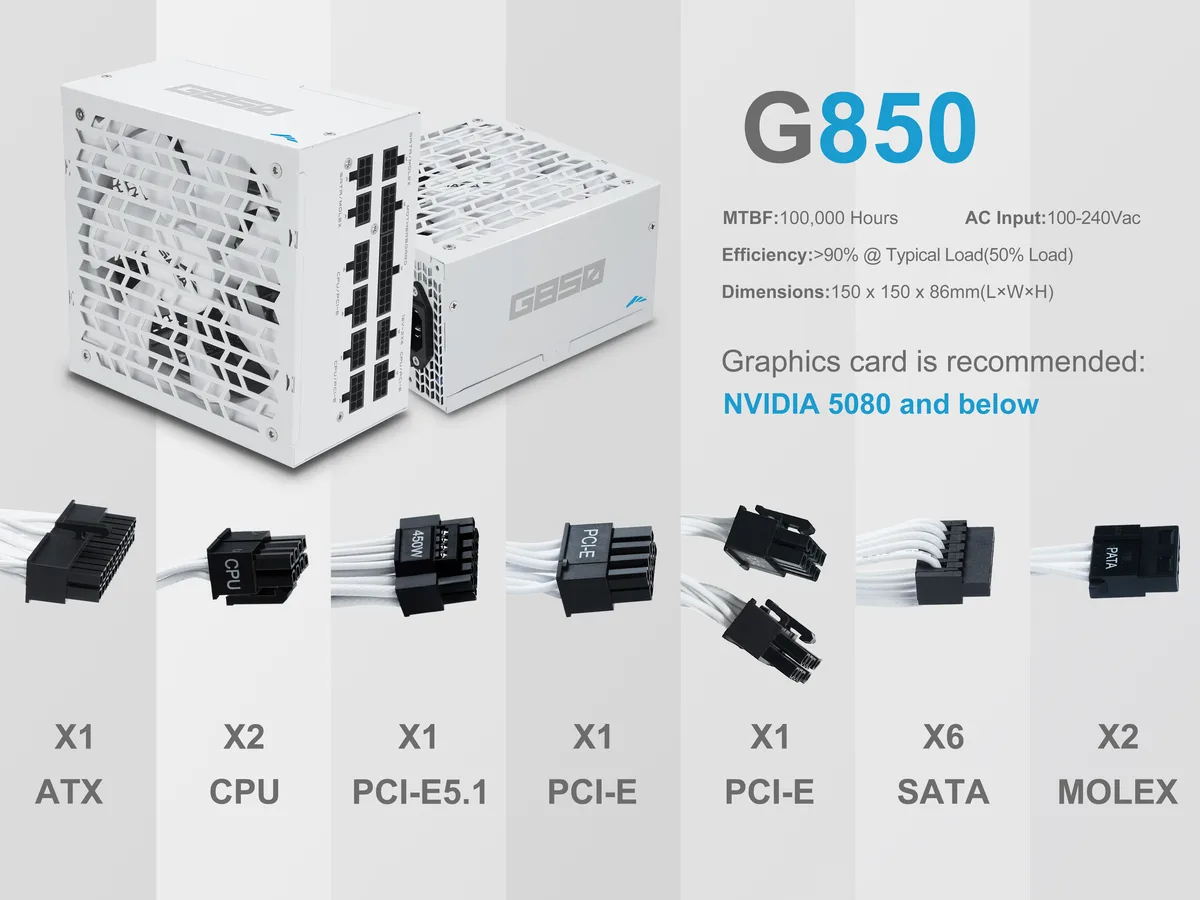

Cable Spec1x MB ATX 24Pin 550mm
2x CPU (4+4)Pin 700mm
1x PCI-E (6+2)Pin 600mm
1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm
1x 12V-2x6 (12+4)Pin 600mm
2x (SATA+SATA+SATA+Molex) 450+150+150+150mm
Top Fans Size140mm
Top Fans Bearing TypeFluid Dynamic Bearing
Shipping weight2.27 kg
Package size267 × 198 × 114 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 12VHPWR 16-pin connector and what step do builders often miss?

Plug the 16-pin cable fully until the latch clicks; the step many miss is seating all twelve power pins and four sense pins evenly so the GPU detects 600 W capability.

What maintenance will the 140 mm FDB fan need after long use?

The fluid-dynamic bearing is sealed for life; only occasional dust removal with compressed air is required to keep airflow steady.

At what load does the fan spin up and become the first audible limit?

The ECO mode keeps the fan stopped until roughly 40 % load, after which the 140 mm FDB fan ramps up and becomes the first noticeable noise source.
