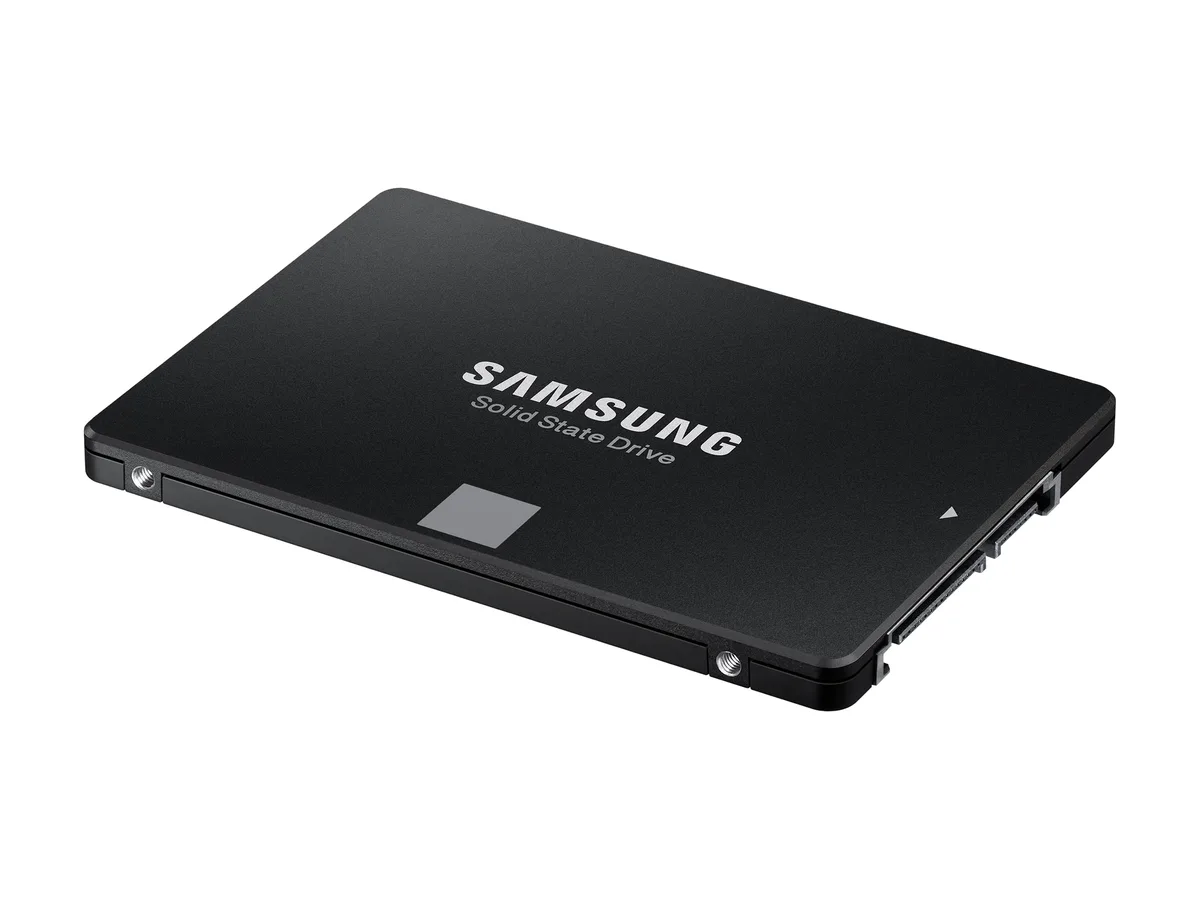

Rectangular 2.5 inch black metal drive with SATA connectors on one end

SAMSUNG

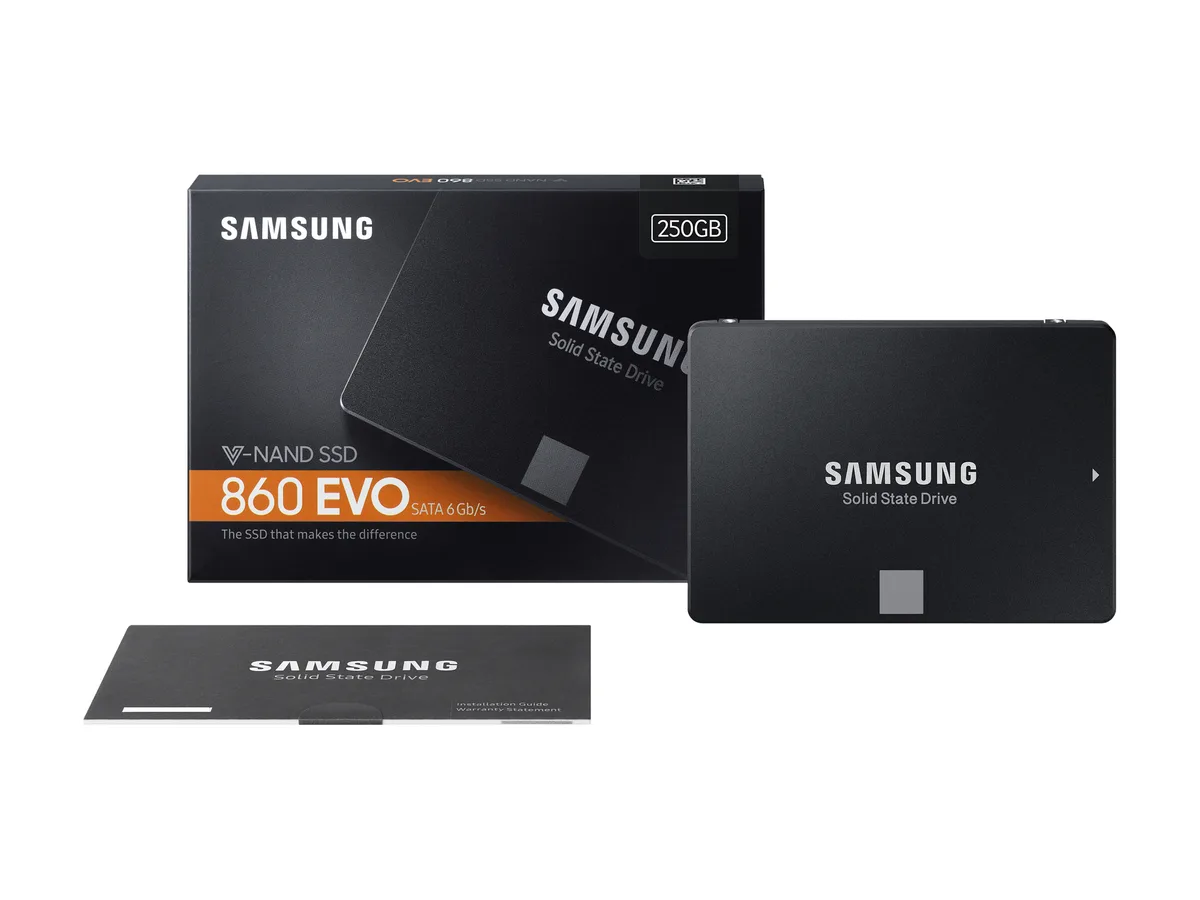

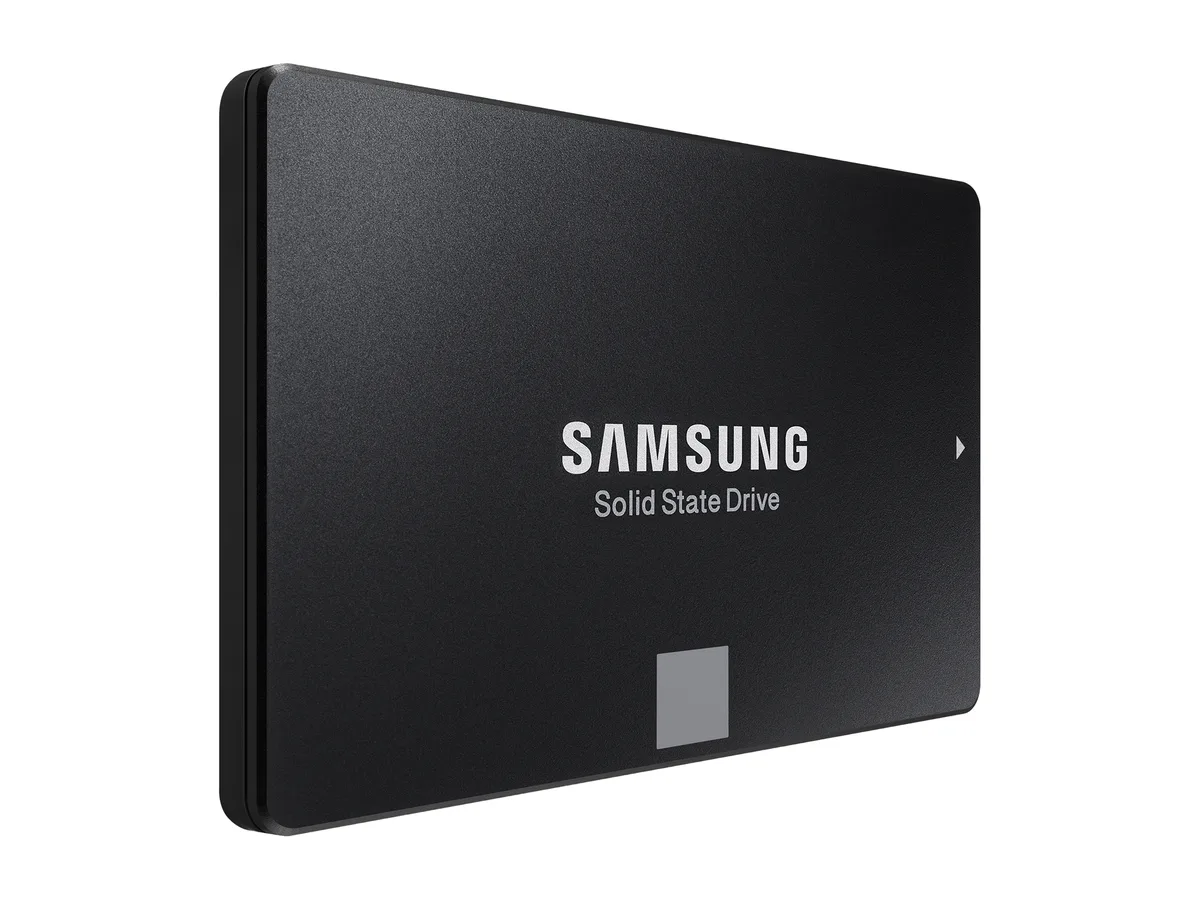

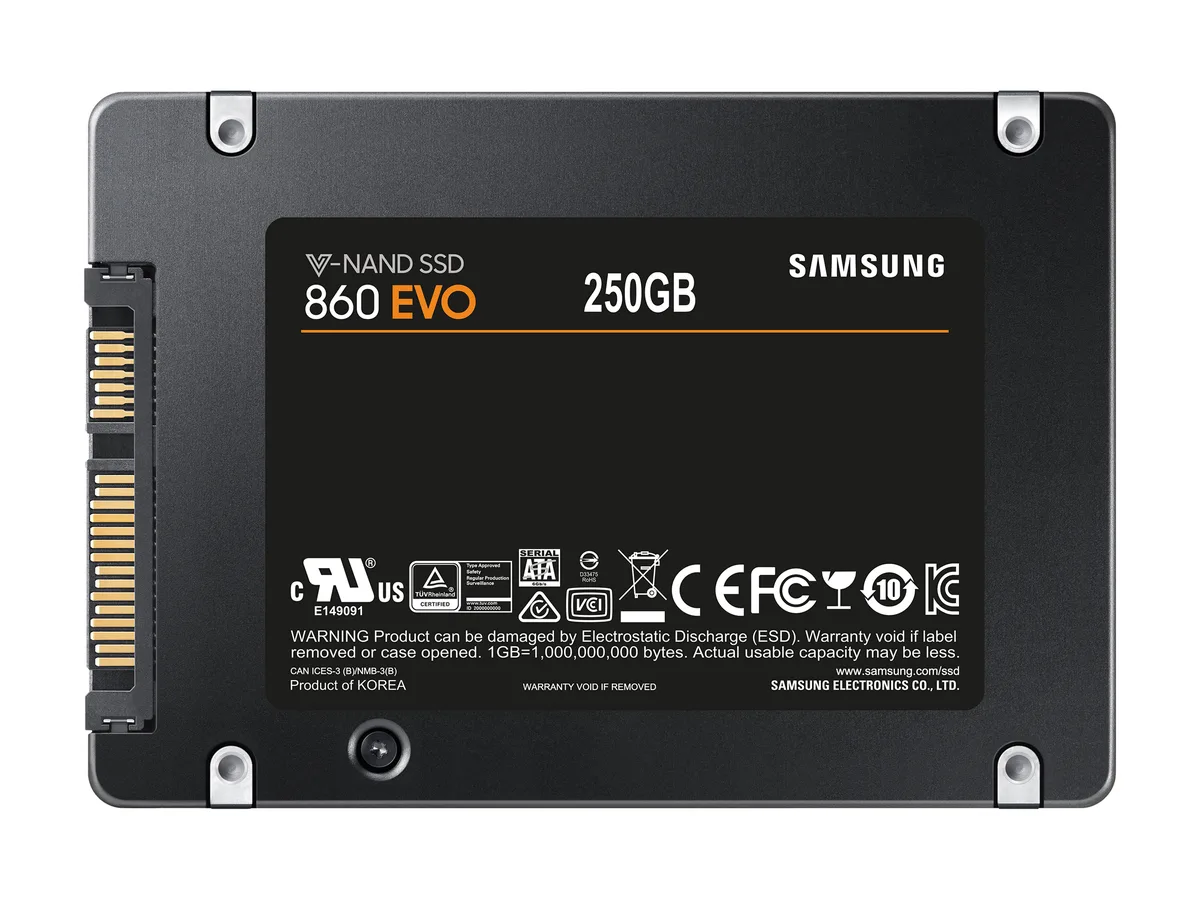

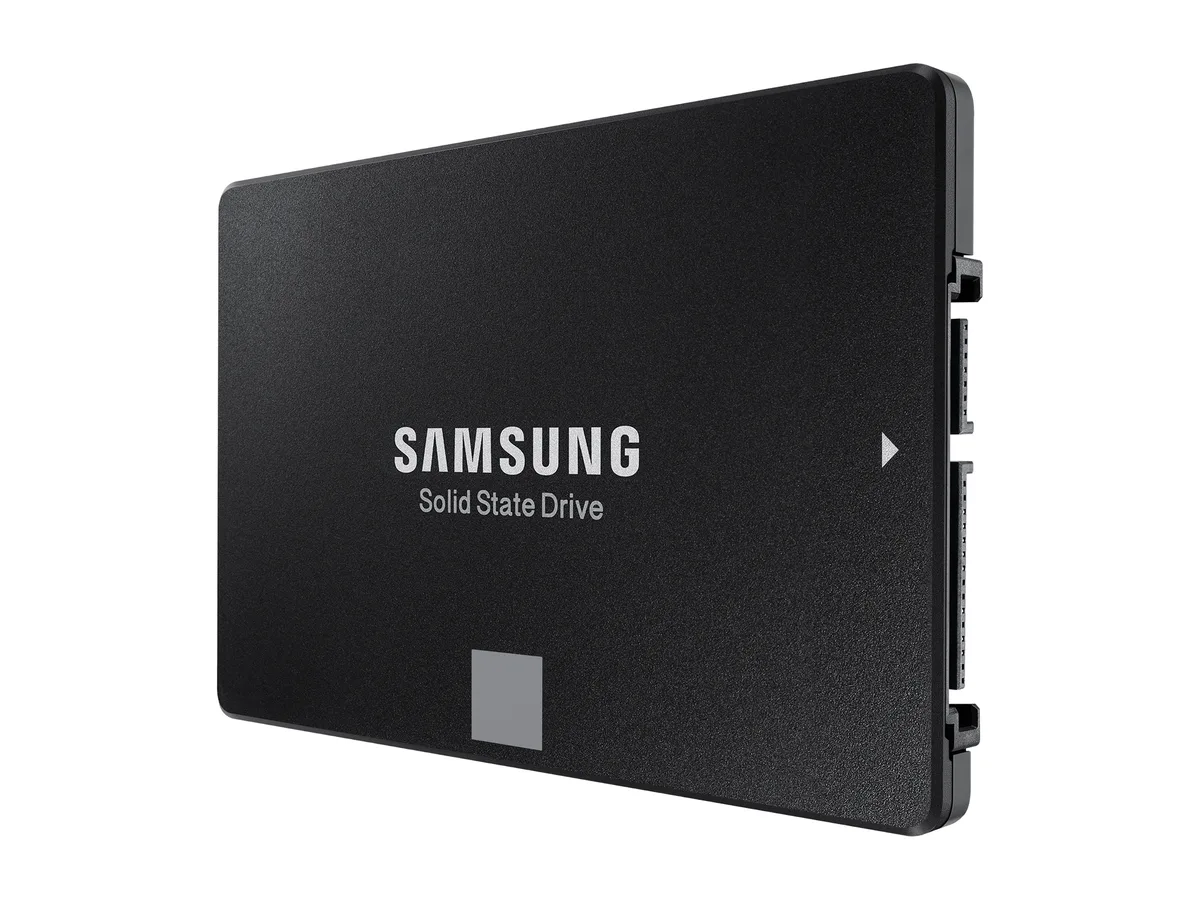

SAMSUNG 860 EVO 2.5" 250GB SATA III internal SSD MZ-76E250B/AM

SKU CH-N8FE-81090 MPN MZ-76E250B/AM

A 2.5 inch SATA internal SSD with 250GB capacity, V-NAND 3-bit MLC memory, 512MB DDR4 cache, up to 550 MBps sequential read and 520 MBps write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity250GB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfaceSATA III

Options 250GB

  • Faster boot and file transfers with sequential reads up to 550 MBps
  • Sustained write performance up to 520 MBps for large projects
  • Responsive multitasking from random read IOPS up to 98,000 at QD32
  • Low power draw averages 2.2W active with 512MB DDR4 cache
  • Built for longevity with 1,500,000-hour MTBF and 1,500G shock resistance

250GB SATA III SSD for mainstream PCs

The Samsung 860 EVO 250GB drive uses V-NAND 3-bit MLC memory and a Samsung MJX controller. It fits 2.5-inch bays in laptops and desktops. The 512MB Low Power DDR4 cache helps sustain performance across everyday workloads.

Capacity and headroom at 250GB

Sequential reads reach up to 550 MBps and writes up to 520 MBps. Random read IOPS hit 10,000 at QD1 and 98,000 at QD32. Random write IOPS reach 42,000 at QD1 and 90,000 at QD32. Heavy sustained writes will eventually saturate the SLC buffer and slow down.

Thermals noise and power draw

Active power averages 2.2W with a 4.0W burst maximum. The drive operates from 0°C to 70°C and tolerates 1,500G shock. With no moving parts it runs silently in normal use.

Highlights

  • Faster boot and file transfers with sequential reads up to 550 MBps
  • Sustained write performance up to 520 MBps for large projects
  • Responsive multitasking from random read IOPS up to 98,000 at QD32
  • Low power draw averages 2.2W active with 512MB DDR4 cache
  • Built for longevity with 1,500,000-hour MTBF and 1,500G shock resistance

Specifications

BrandSAMSUNG
Series860 EVO Series
ModelMZ-76E250B/AM
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity250GB
Memory ComponentsV-NAND 3-bit MLC
InterfaceSATA III
ControllerSamsung MJX
Cache512MB Low Power DDR4 SDRAM
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 520 MBps
4KB Random ReadRandom (QD1): Up to 10,000 IOPS
Random (QD32): Up to 98,000 IOPS
4KB Random WriteRandom (QD1): Up to 42,000 IOPS
Random (QD32): Up to 90,000 IOPS
MTBF1,500,000 hours
FeaturesThe SSD you trust
The newest edition to the world's best-selling SATA SSD series, the Samsung 860 EVO is specially designed to enhance performance of mainstream PCs and laptops. With the latest V-NAND technology, this fast and reliable SSD comes in a wide range of compatible form factors and capacities.
Enhanced performance
Speeds are consistent, even under heavy workloads and multi-tasking allowing for faster file transfer. The 860 EVO performs at sequential read speeds up to 550 MB/s with Intelligent TurboWrite technology, and sequential write speeds up to 520 MB/s.
Boosted enduran
Power Consumption (Active)Average: 2.2W
Maximum: 4.0W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height7.00mm
Width70.00mm
Depth100.00mm
Weight86.18g
Shipping weight0.09 kg
Package size146 × 98 × 24 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 2.5 inch SATA III 860 EVO fit and work in my older laptop that only has a SATA II port?

The drive uses a standard 2.5 inch SATA connector, so it physically fits any 2.5 inch bay. It will operate on a SATA II port at the port's native speed.

How can I verify the Samsung MJX controller and V-NAND 3-bit MLC are performing correctly after installation?

Run a benchmark tool such as CrystalDiskMark; sequential reads should approach 550 MBps and writes 520 MBps, while 4KB random reads at QD32 should near 98,000 IOPS and writes 90,000 IOPS.

Does the MZ-76E250B/AM retail box include a 2.5 to 3.5 inch mounting bracket or a SATA data cable?

The package contains only the 250GB 2.5 inch SSD itself; mounting hardware and SATA cables must be purchased separately if your system does not already have them.
