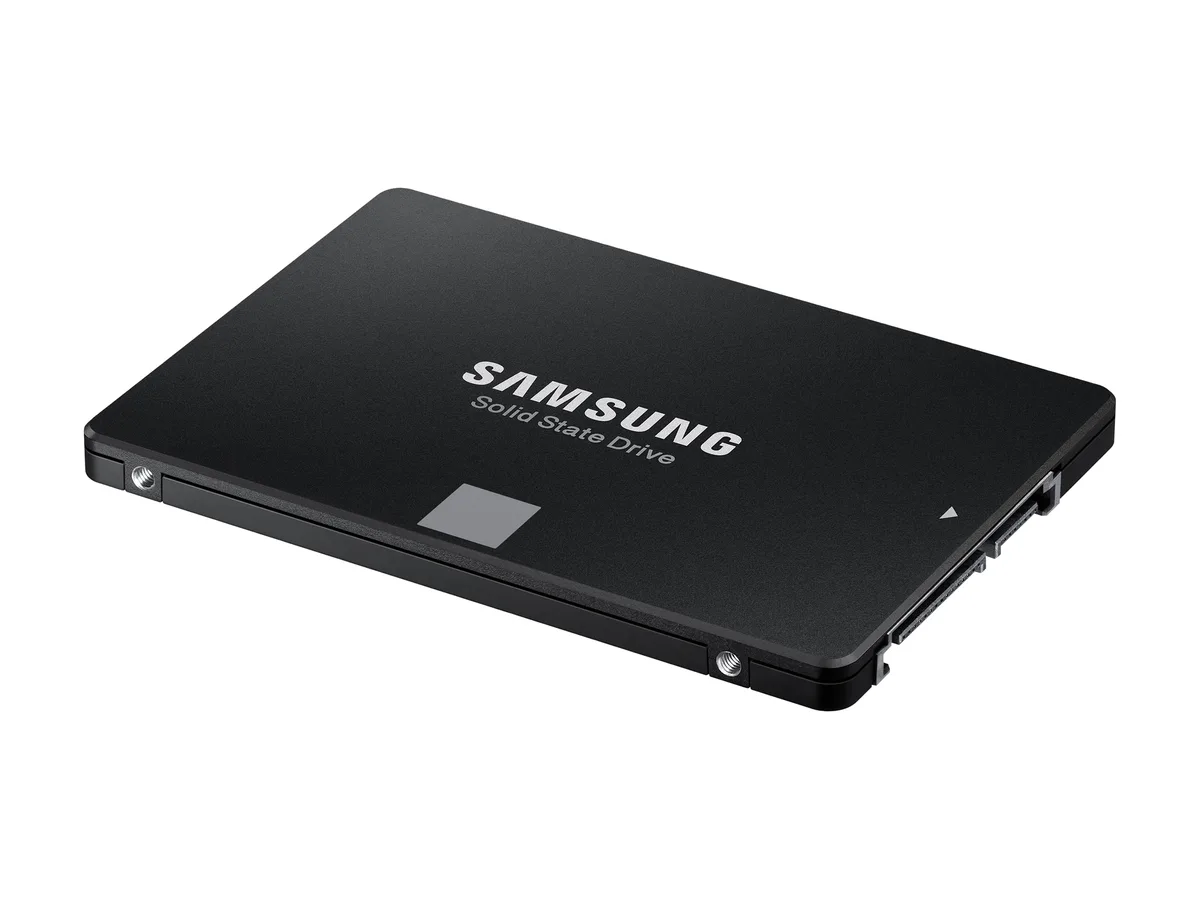

Rectangular 2.5 inch black metal enclosure with SATA connectors on one end

SAMSUNG

SAMSUNG 860 EVO 2.5" 2TB SATA Internal SSD MZ-76E2T0B/AM

SKU CH-5EN7-BNRYR MPN MZ-76E2T0B/AM

A 2.5-inch SATA internal solid state drive with 2TB capacity, V-NAND 3-bit MLC memory, sequential read up to 550 MBps and write up to 520 MBps

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity2TB
  • Memory ComponentsSamsung V-NAND 3-bit MLC
  • InterfaceSATA III

Options 2TB

  • Fast boot and load times with sequential reads up to 550 MBps
  • Quick file saves and transfers with sequential writes up to 520 MBps
  • Responsive multitasking from random read IOPS up to 98000 at QD32
  • Smooth heavy workloads using random write IOPS up to 90000 at QD32
  • Reliable long-term storage backed by 1500000-hour MTBF rating

2.5 Inch SATA III 2TB SSD

The Samsung 860 EVO is a 2.5 inch internal solid state drive with a 2TB capacity and a SATA III interface. It uses Samsung V-NAND 3-bit MLC memory and an MJX controller paired with 2GB of Low Power DDR4 cache. Sequential reads reach up to 550 MBps and writes up to 520 MBps.

Suits SATA storage upgrades

This drive suits users upgrading a laptop or desktop that has a 2.5 inch SATA bay and wants a large 2TB volume for applications and files. It is not intended for systems that only accept M.2 modules or that require a different interface. Buyers needing higher throughput than SATA III provides should consider other form factors.

Check SATA bay and height

Verify that your system has a free 2.5 inch SATA connection and enough clearance for a 7.00mm drive height. Confirm the operating temperature range of 0°C to 70°C matches your chassis airflow. Ensure the power supply can deliver up to 4.0W burst power for the drive.

Highlights

  • Fast boot and load times with sequential reads up to 550 MBps
  • Quick file saves and transfers with sequential writes up to 520 MBps
  • Responsive multitasking from random read IOPS up to 98000 at QD32
  • Smooth heavy workloads using random write IOPS up to 90000 at QD32
  • Reliable long-term storage backed by 1500000-hour MTBF rating

Specifications

BrandSAMSUNG
Series860 EVO Series
ModelMZ-76E2T0B/AM
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity2TB
Memory ComponentsSamsung V-NAND 3-bit MLC
InterfaceSATA III
ControllerMJX
CacheSamsung 2GB Low Power DDR4 SDRAM
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 520 MBps
4KB Random ReadRandom (QD1): Up to 10,000 IOPS
Random (QD32): Up to 98,000 IOPS
4KB Random WriteRandom (QD1): Up to 42,000 IOPS
Random (QD32): Up to 90,000 IOPS
MTBF1,500,000 hours
Power Consumption (Active)Average: 3.0W
Maximum: 4.0W (Burst mode)
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5ms (Half sine)
Height7.00mm
Width70.00mm
Depth100.00mm
Weight100.00g
Shipping weight0.10 kg
Package size141 × 98 × 24 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What SATA interface does my motherboard need for the 860 EVO 2TB to work?

The drive uses SATA III and is backward compatible with SATA II and SATA I ports, so any standard SATA connector on your motherboard will work.

Will the 860 EVO 2TB fit in the same 2.5-inch bay as my old mechanical hard drive?

Yes, it shares the standard 2.5-inch form factor with a 7.00mm height, matching most laptop and desktop drive bays designed for traditional hard drives.

How can I verify the 860 EVO 2TB is performing at its rated 550 MBps read speed after installation?

Run a sequential read benchmark such as CrystalDiskMark or AS SSD; a healthy drive on a SATA III link should report speeds close to 550 MBps.
