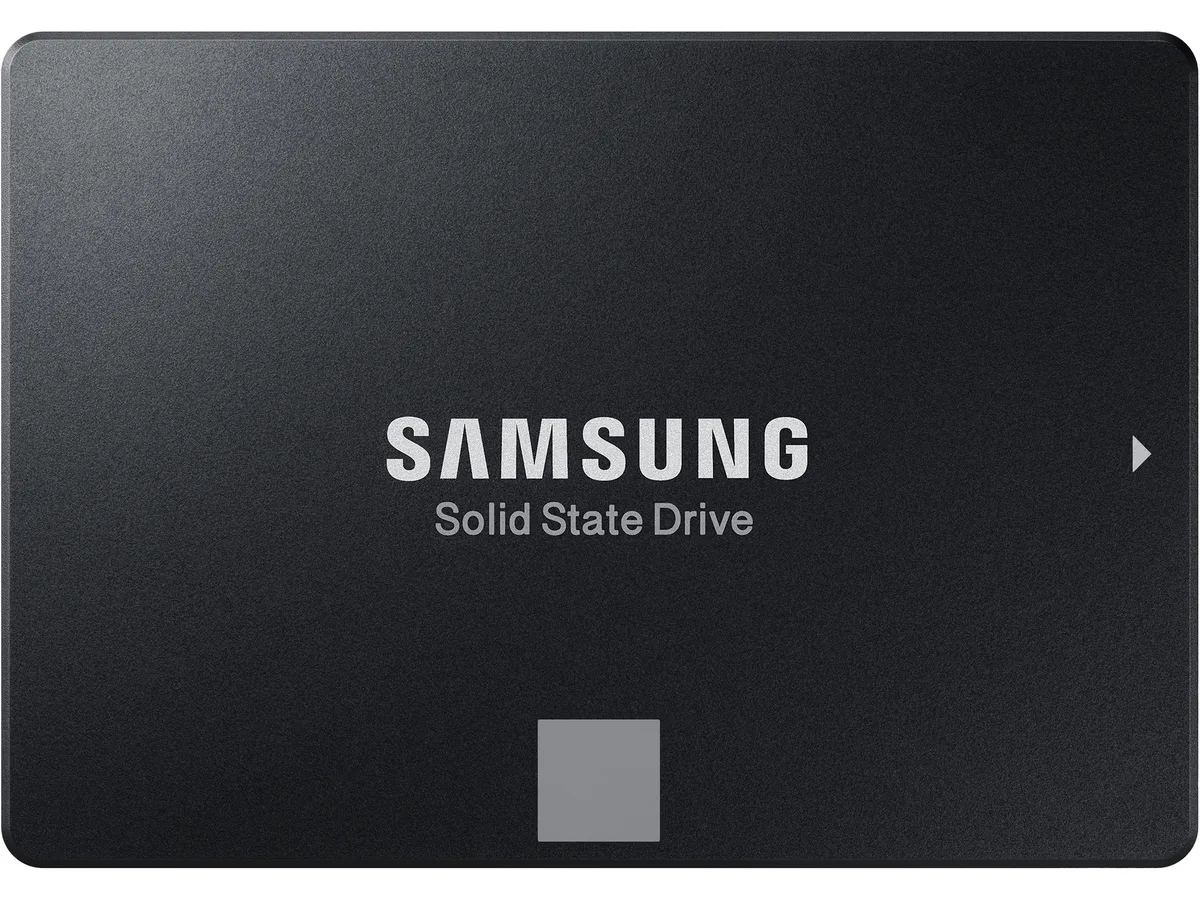

Black rectangular 2.5 inch SATA SSD with silver label

SAMSUNG

SAMSUNG 860 EVO 2.5" 500GB SATA III internal SSD MZ-76E500B/AM

SKU CH-E1FA-38PP4 MPN MZ-76E500B/AM

A 2.5-inch SATA internal SSD with 500GB capacity, V-NAND 3-bit MLC memory, 512MB DDR4 cache and sequential speeds up to 550 MBps read and 520 MBps write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity500GB
  • Memory ComponentsV-NAND 3-bit MLC
  • InterfaceSATA III

Options 500GB

  • Faster boot and load times with sequential read up to 550 MBps
  • Quick file saves and transfers with sequential write up to 520 MBps
  • Responsive multitasking from random read up to 98,000 IOPS
  • Sustained write performance with random write up to 90,000 IOPS
  • Data protected by AES 256-bit encryption and TCG Opal compliance

860 EVO 500GB SATA SSD

The Samsung 860 EVO is a 2.5 inch internal solid state drive with a 500GB capacity. It uses V-NAND 3-bit MLC memory and a Samsung MJX controller backed by 512MB of Low Power DDR4 cache. The drive connects through a SATA III interface and is built for consumer workloads.

Check SATA port and 2.5 inch bay

Verify that your motherboard has a free SATA III port and that your chassis includes a 2.5 inch drive bay or a suitable adapter bracket. Ensure the system can supply a standard SATA power connector for the drive. The operating temperature range is 0°C to 70°C, so confirm adequate airflow in the mounting location.

Low power draw and silent operation

With no moving parts the drive runs silently in normal use. Active power consumption averages 2.2W and peaks at 4.0W in burst mode. The 1,500,000 hour MTBF and 1,500G shock resistance indicate robust reliability for daily computing.

Highlights

  • Faster boot and load times with sequential read up to 550 MBps
  • Quick file saves and transfers with sequential write up to 520 MBps
  • Responsive multitasking from random read up to 98,000 IOPS
  • Sustained write performance with random write up to 90,000 IOPS
  • Data protected by AES 256-bit encryption and TCG Opal compliance

Specifications

BrandSAMSUNG
Series860 EVO Series
ModelMZ-76E500B/AM
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity500GB
Memory ComponentsV-NAND 3-bit MLC
InterfaceSATA III
ControllerSamsung MJX Controller
CacheSamsung 512MB Low Power DDR4 SDRAM
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 520 MBps
4KB Random ReadRandom (QD1): Up to 10,000 IOPS
Random (QD32): Up to 98,000 IOPS
4KB Random WriteRandom (QD1): Up to 42,000 IOPS
Random (QD32): Up to 90,000 IOPS
MTBF1,500,000 hours
FeaturesTrim Support: Yes
AES Encryption: AES 256-bit Encryption (Class 0) TCG / Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support: Yes
GC (Garbage Collection): Auto Garbage Collection Algorithm
WWN Support: World Wide Name supported
Device Sleep Mode Support: Yes
Management SW: Magician Software for SSD management
Power Consumption (Active)Average: 2.2W
Maximum: 4.0W (Burst mode)
* Actual power consumption may vary depending on system hardware & configuration
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,500G & 0.5 ms (Half sine)
Height7.00mm
Width70.00mm
Depth100.00mm
Weight86.18g
Shipping weight0.09 kg
Package size142 × 97 × 20 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 860 EVO 500GB come with a SATA cable or mounting bracket, or must I buy them separately?

The drive ships as the bare 2.5" unit only; a SATA data cable, power cable and any 3.5" adapter bracket are not included and must be purchased separately.

I see 500GB and 1TB versions of the 860 EVO — which capacity should I choose for a general-purpose laptop upgrade?

The 500GB model provides 500GB usable space with 550 MBps read and 520 MBps write, while the 1TB version doubles capacity but uses the same SATA III interface and controller.

What does the 550 MBps sequential read figure mean when the drive is installed in a typical laptop?

In a SATA III laptop the drive can sustain up to 550 MBps on large file transfers, with 4 KB random reads up to 98,000 IOPS at queue depth 32 and 10,000 IOPS at queue depth 1.
