Green rectangular M.2 2280 SSD with gold contacts and black controller chips

SanDisk

SanDisk Optimus 5100 1TB M.2 2280 internal SSD SDSP51100TAN-000E0

SKU CH-95A2-A4GTK MPN SDSP51100TAN-000E0

1TB M.2 2280 internal SSD with PCI-Express 4.0 x4 interface delivering up to 7100 MBps read and 6700 MBps write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory ComponentsQLC 3D CBA NAND
  • InterfacePCI-Express 4.0 x4
  • ProtocolNVMe

Capacity 1TB

  • Fast boot and load times from up to 7100 MBps sequential read
  • Quick file saves and installs with up to 6700 MBps sequential write
  • Responsive multitasking via up to 1,000,000 IOPS random read
  • Smooth heavy workloads through up to 1,300,000 IOPS random write
  • Long service life backed by 600TB written endurance

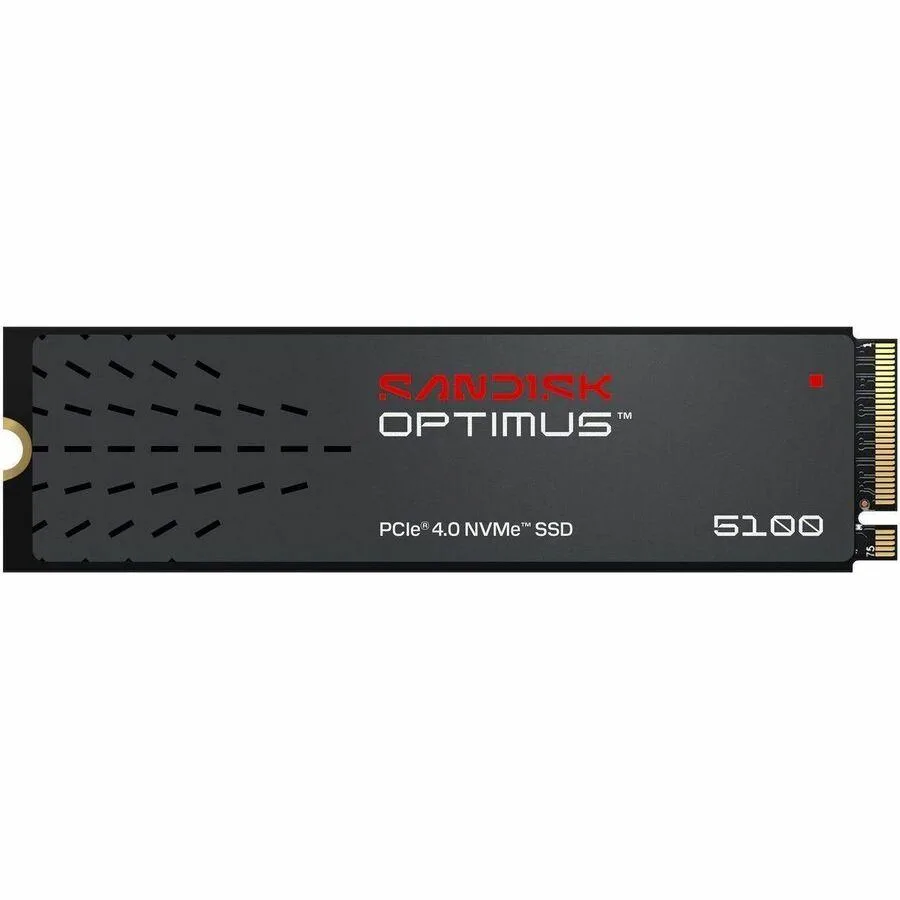

Optimus 5100 1TB M.2 2280 SSD

The SanDisk Optimus 5100 is a 1TB internal solid state drive built in the M.2 2280 form factor. It uses QLC 3D CBA NAND and connects through a PCI-Express 4.0 x4 interface with the NVMe protocol. The drive targets desktop and laptop upgrades that need high throughput without a heatsink.

PCI-Express 4.0 x4 interface limits

The PCI-Express 4.0 x4 link caps theoretical bandwidth at roughly 8 GB/s per direction. Sequential reads reach up to 7100 MBps and writes up to 6700 MBps within that ceiling. Random performance scales to 1,000,000 read IOPS and 1,300,000 write IOPS. The controller draws 4.1 W active and 4 mW idle.

1TB capacity and 600 TBW endurance

At 1TB the drive stores operating systems, applications and large media libraries with room for growth. The 600 TBW rating covers heavy daily writes for years of typical workloads. Sustained write-heavy tasks such as continuous video capture will consume that budget faster. Operating range spans 0°C to 85°C.

Highlights

  • Fast boot and load times from up to 7100 MBps sequential read
  • Quick file saves and installs with up to 6700 MBps sequential write
  • Responsive multitasking via up to 1,000,000 IOPS random read
  • Smooth heavy workloads through up to 1,300,000 IOPS random write
  • Long service life backed by 600TB written endurance

Specifications

BrandSanDisk
SeriesOptimus 5100
ModelSDSP51100TAN-000E0
Device TypeInternal Solid State Drive (SSD)
Form FactorM.2 2280
Capacity1TB
Memory ComponentsQLC 3D CBA NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe
Max Sequential ReadUp to 7100 MBps
Max Sequential WriteUp to 6700 MBps
4KB Random ReadUp to 1,000,000 IOPS
4KB Random WriteUp to 1,300,000 IOPS
Terabytes Written (TBW)600TB
MTBF1,750,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)4 mW
Power Consumption (Active)Average Active Power Read: 4.1W
Average Active Power Write: 4.1W
Operating Temperature0°C ~ +85°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1,500G @ 0.5 ms half-sine
Max Vibration ResistanceOperating Vibration: 5 gRMS, 10-2000 Hz, 3 axes
Non-operating Vibration: 4.9 gRMS, 7-800 Hz, 3 axes
Height2.38mm
Width22mm
Depth80mm
Weight5.7g
Shipping weight0.05 kg
Package size127 × 102 × 23 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Is this the only capacity available for the Optimus 5100?

The Optimus 5100 is listed here as a 1TB drive. Other capacities may exist in the range but are not shown in this listing.

What does the 7100 MBps sequential read mean for everyday use?

Large files and game levels load near the drive's peak speed. Typical mixed workloads will run lower, but still well above PCIe 3.0 limits.

Does the PCIe 4.0 x4 interface limit performance on older motherboards?

On a PCIe 3.0 slot the drive will operate at 3.0 x4 speeds, capping sequential throughput below the rated 7100 MBps.
