Rectangular green circuit board, gold edge connector, black chips, no heatsink

SanDisk

SanDisk Optimus 5100 4TB M.2 2280 internal SSD SDSP51400TAN-000E0

SKU CH-PT57-C289H MPN SDSP51400TAN-000E0

M.2 2280 4TB PCI-Express 4.0 x4 NVMe SSD with QLC 3D CBA NAND, up to 6900 MBps read, 6700 MBps write, 1200TB TBW, no DRAM cache

  • Device TypeInternal Solid State Drive (SSD)
  • Form FactorM.2 2280
  • Capacity4TB
  • Memory ComponentsQLC 3D CBA NAND
  • InterfacePCI-Express 4.0 x4
  • ProtocolNVMe

Capacity 4TB

  • High capacity 4TB stores large files and games
  • PCIe 4.0 x4 interface enables up to 6900 MBps sequential read
  • QLC 3D CBA NAND delivers up to 1100000 IOPS random write
  • DRAM-less design with SLC cache keeps idle power at 4.5 mW
  • 1200TB written endurance and 1750000 hours MTBF for long-term reliability

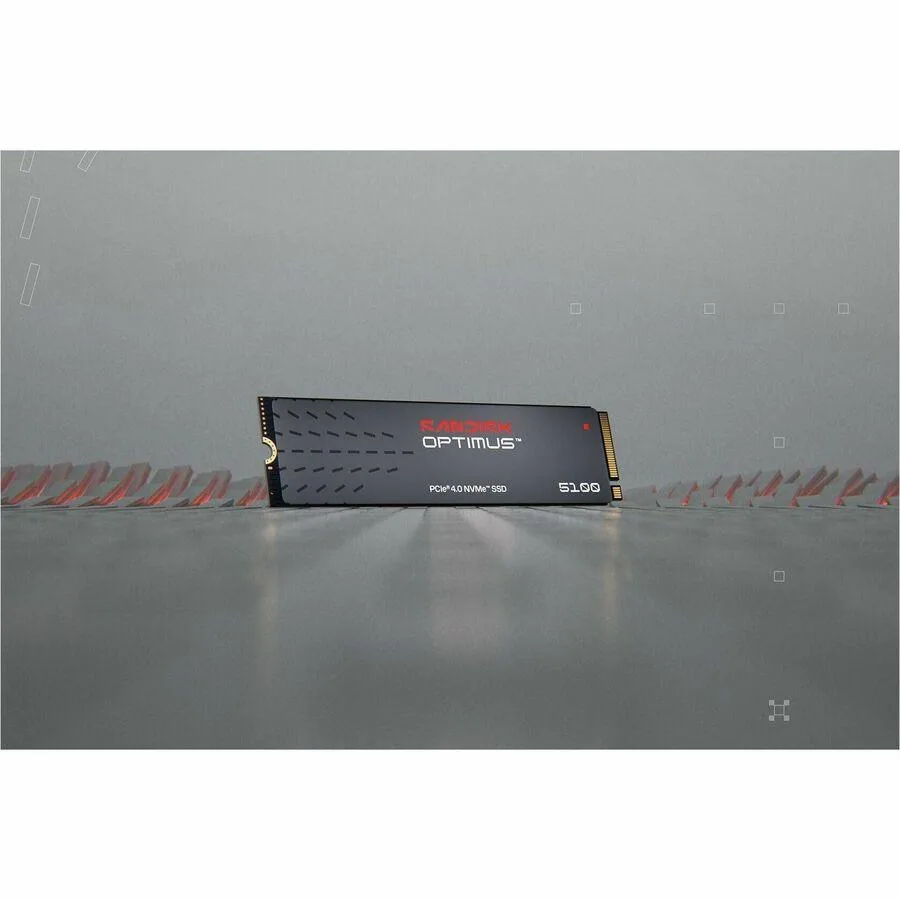

SanDisk Optimus 5100 4TB Internal SSD

The SanDisk Optimus 5100 is a 4TB internal solid state drive built for desktop and laptop upgrades. It uses QLC 3D CBA NAND and a PCI-Express 4.0 x4 interface with NVMe protocol. The drive suits users who need high-capacity storage for large media libraries or game installs. No DRAM cache is present, relying on SLC caching instead.

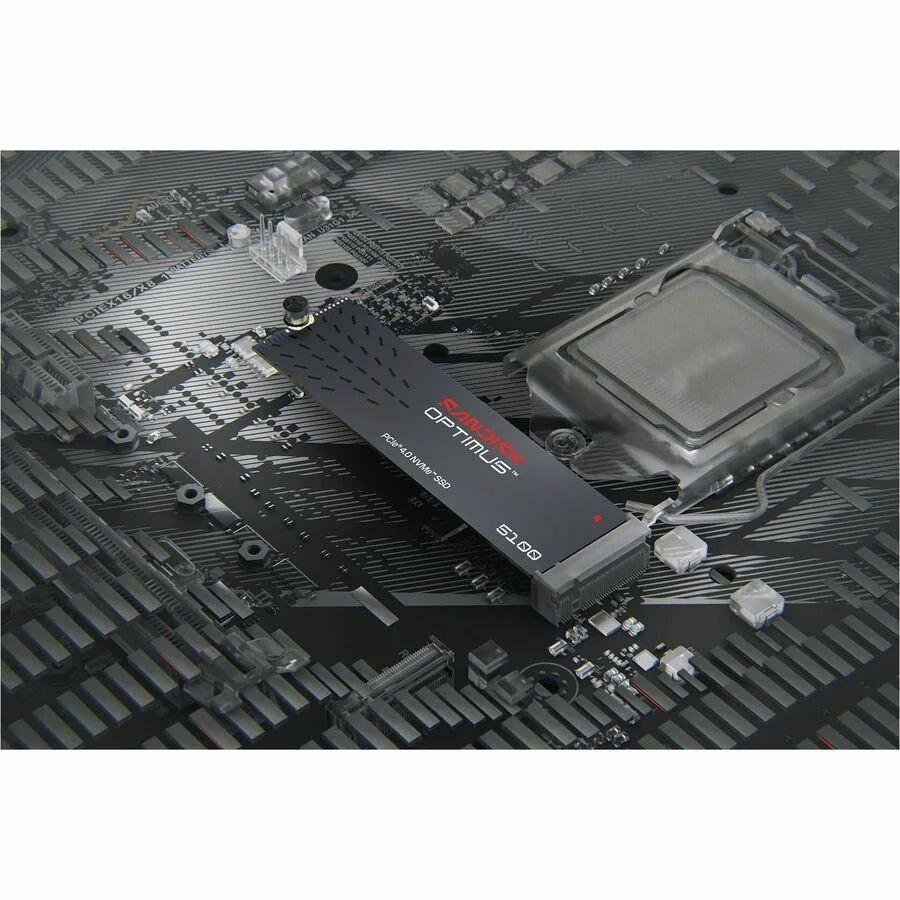

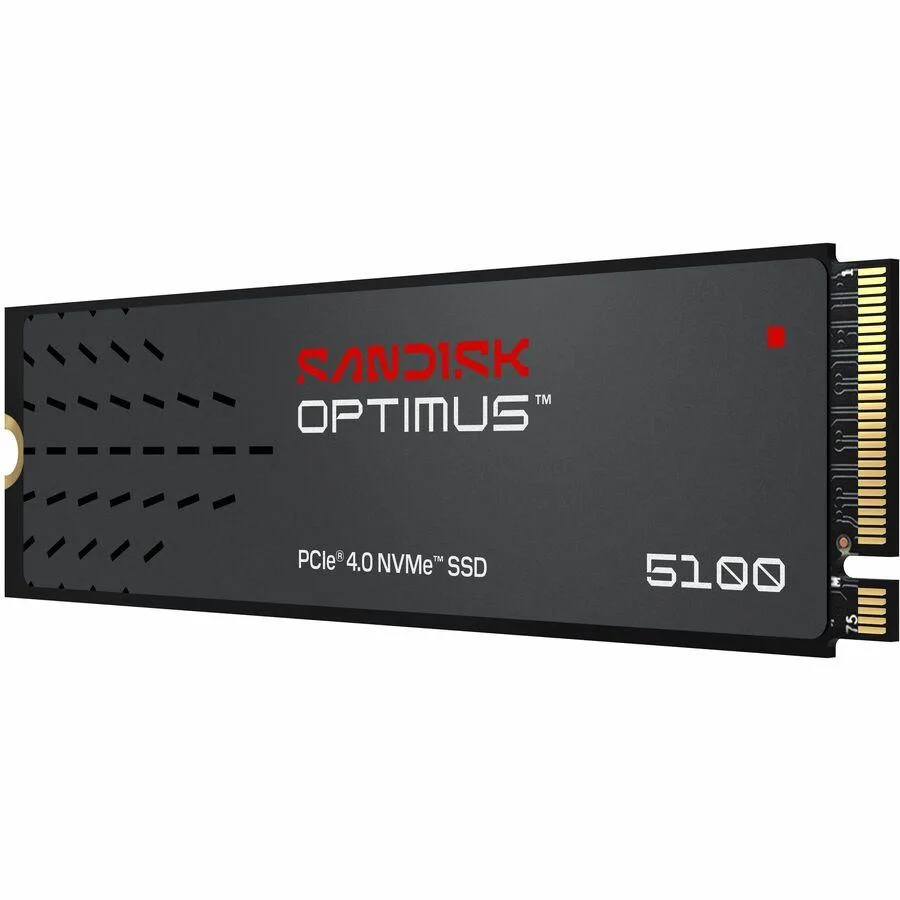

M.2 2280 form factor without heatsink

The drive adopts the standard M.2 2280 form factor measuring 22mm by 80mm and 2.38mm high. It weighs 5.7g and ships without a heatsink, so it fits directly into motherboard slots or laptop bays that accept single-sided modules. The PCI-Express 4.0 x4 edge connector provides the data and power path. Ensure your platform supports the length and keying before installation.

Thermals and power in daily use

Idle power draw is 4.5 mW while average active read and write power is 4.3W each. The operating temperature range spans 0°C to 85°C. With no integrated heatsink, thermal performance depends on airflow from the system or a motherboard shield. The drive is rated for 1200TB written and 1,750,000 hours MTBF, indicating endurance for heavy workloads.

Highlights

  • High capacity 4TB stores large files and games
  • PCIe 4.0 x4 interface enables up to 6900 MBps sequential read
  • QLC 3D CBA NAND delivers up to 1100000 IOPS random write
  • DRAM-less design with SLC cache keeps idle power at 4.5 mW
  • 1200TB written endurance and 1750000 hours MTBF for long-term reliability

Specifications

BrandSanDisk
SeriesOptimus 5100
ModelSDSP51400TAN-000E0
Device TypeInternal Solid State Drive (SSD)
Form FactorM.2 2280
Capacity4TB
Memory ComponentsQLC 3D CBA NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe
CacheNo DRAM (SLC)
Max Sequential ReadUp to 6900 MBps
Max Sequential WriteUp to 6700 MBps
4KB Random ReadUp to 900,000 IOPS
4KB Random WriteUp to 1,100,000 IOPS
Terabytes Written (TBW)1200TB
MTBF1,750,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)4.5 mW
Power Consumption (Active)Average Active Power Read: 4.3W
Average Active Power Write: 4.3W
Operating Temperature0°C ~ +85°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1,500G @ 0.5 ms half-sine
Max Vibration ResistanceOperating Vibration: 5 gRMS, 10-2000 Hz, 3 axes
Non-operating Vibration: 4.9 gRMS, 7-800 Hz, 3 axes
Height2.38mm
Width22mm
Depth80mm
Weight5.7g
Shipping weight0.05 kg
Package size127 × 102 × 22 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the PCI-Express 4.0 x4 interface cap sequential read and write speeds at?

The PCI-Express 4.0 x4 interface supports up to 6900 MBps sequential read and up to 6700 MBps sequential write on this drive.

What are the exact M.2 2280 dimensions and weight for motherboard clearance?

The drive measures 22mm wide, 80mm deep, 2.38mm high and weighs 5.7g, fitting standard M.2 2280 slots.

How is the drive installed in an M.2 slot and which step is often missed?

Insert the drive at an angle into the M.2 slot, press it flat, and secure it with the motherboard screw; the step often missed is fastening that screw.
