Single-sided green M.2 2280 SSD with black label and gold edge connector

SanDisk

SanDisk WDS250G3B0C 250GB M.2 2280 NVMe internal SSD

SKU CH-4P3H-FB584 MPN WDS250G3B0C

A 250GB M.2 2280 NVMe SSD with PCIe 3.0 x4 interface delivering up to 3300 MB/s read and 1200 MB/s write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity250GB
  • Memory ComponentsTLC
  • InterfacePCI-Express 3.0 x4

Options 250GB

  • Sequential reads up to 3300 MBps for fast boot and load times
  • Sequential writes up to 1200 MBps to move large files quickly
  • Random read 190000 IOPS and random write 210000 IOPS for responsive multitasking
  • 150TB written endurance and 1.5M hours MTTF for long-term reliability
  • Single-sided M.2 2280 form factor fits thin laptops and small desktops

SanDisk 250GB NVMe SSD for consumer builds

This M.2 2280 drive uses PCI-Express 3.0 x4 and TLC memory to deliver sequential reads up to 3300 MBps and writes up to 1200 MBps. Random performance reaches 190000 IOPS read and 210000 IOPS write. It suits everyday workloads and light content creation.

Thermals and power in normal use

Active power draw is 3.5W while idle states drop to 90 mW average, 30 mW in PS3 and 5 mW in PS4. The drive operates from 0°C to 70°C and stores safely down to -40°C and up to 85°C. Shock resistance is rated at 1500G.

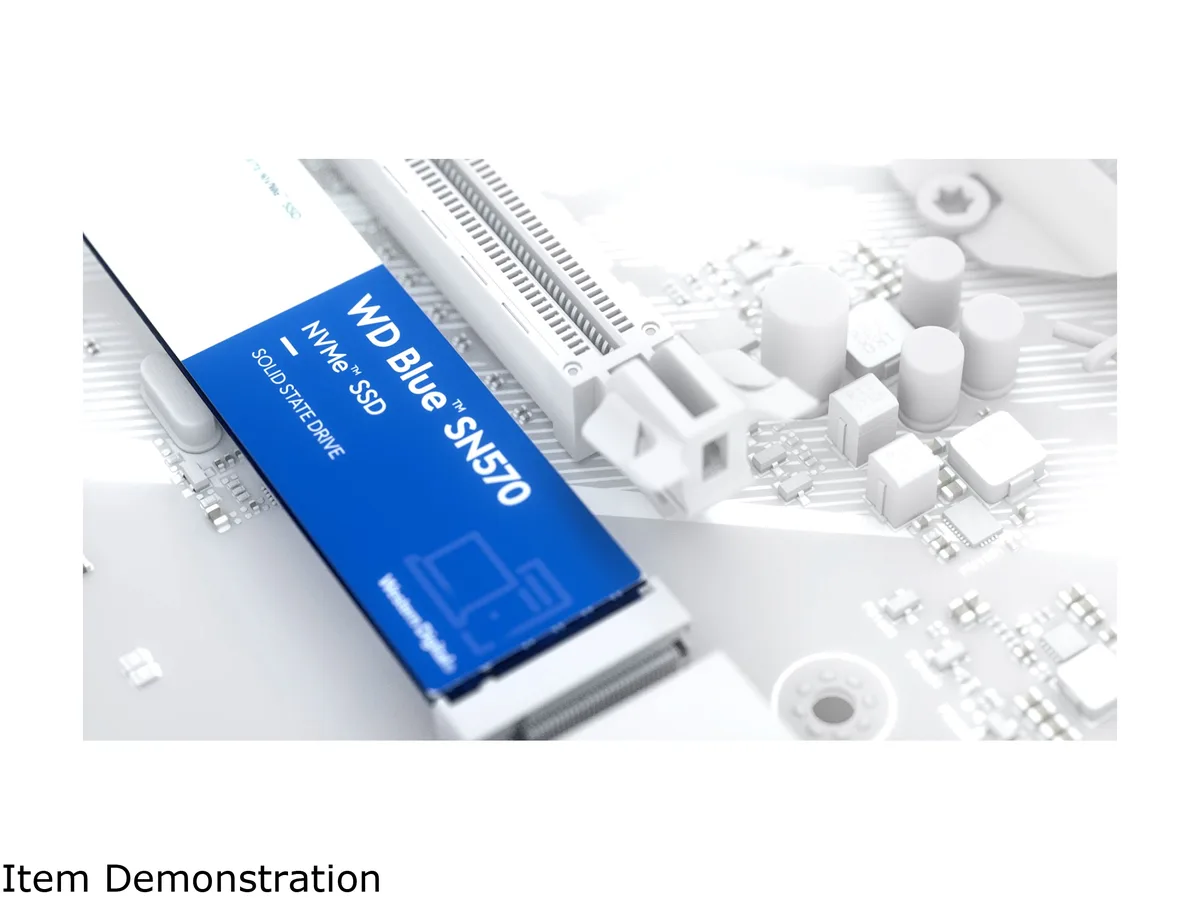

Single-sided M.2 2280 frees motherboard space

The 2.38mm height, 22.00mm width and 80.00mm depth single-sided layout fits tight laptop or desktop slots without blocking adjacent components. Endurance is 150TB written with a 1.5M hour MTTF. Western Digital SSD Dashboard software monitors health.

Highlights

  • Sequential reads up to 3300 MBps for fast boot and load times
  • Sequential writes up to 1200 MBps to move large files quickly
  • Random read 190000 IOPS and random write 210000 IOPS for responsive multitasking
  • 150TB written endurance and 1.5M hours MTTF for long-term reliability
  • Single-sided M.2 2280 form factor fits thin laptops and small desktops

Specifications

BrandWestern Digital
SeriesBlue SN570 NVMe
ModelWDS250G3B0C
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity250GB
Memory ComponentsTLC
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 3300 MBps
Max Sequential WriteUp to 1200 MBps
4KB Random ReadUp to 190,000 IOPS
4KB Random WriteUp to 210,000 IOPS
Terabytes Written (TBW)150TB
MTTF1.5M Hours
Power Consumption (Idle)Average Active Power: 90 mW
PS3 (Low Power): 30 mW
PS4 (Sleep): 5 mW
Power Consumption (Active)3.5W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1,500G @0.5 ms half sine
Max Vibration ResistanceOperating Vibration: 5 gRMS, 10-2000 Hz, 3 axes
Non-operating Vibration: 4.9 gRMS, 7-800 Hz, 3 axes
Height2.38mm
Width22.00mm
Depth80.00mm
Weight6.50g
Shipping weight0.02 kg
Package size100 × 60 × 10 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the M.2 2280 NVMe drive and what step is often missed?

Insert the drive at an angle into the PCIe 3.0 x4 slot, press it flat, and secure it with the motherboard screw; the step often missed is enabling NVMe in the BIOS before cloning or installing the OS.

What maintenance or replacement will the 250GB TLC SSD need later?

The drive has a 150TB TBW rating and 1.5M hour MTTF; no user maintenance is required, but once the TBW limit is reached the NAND may enter read-only mode, so plan a replacement when the SSD Dashboard health indicator approaches that threshold.

What limit appears first under sustained heavy writes on this PCIe 3.0 x4 SSD?

Sequential write speed is rated up to 1200 MB/s; under continuous load the SLC cache fills and throughput drops toward the native TLC rate, while the controller may also throttle if the drive temperature nears the 70°C operating maximum.
