Green M.2 2280 circuit board with black controller and gold edge connector

Western Digital

Western Digital WD Blue SN570 500GB M.2 2280 NVMe internal SSD WDS500G3B0C

SKU CH-YZDT-2RG27 MPN WDS500G3B0C

500GB PCIe 3.0 x4 NVMe M.2 2280 internal SSD reaching 3500 MB/s read and 2300 MB/s write with 300TB endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity500GB
  • Memory ComponentsTLC
  • InterfacePCI-Express 3.0 x4

Options 500GB

  • Sequential reads reach 3500 MBps for fast boot and load times
  • Sequential writes hit 2300 MBps to move large files quickly
  • 300 TBW endurance rating supports heavy daily workloads
  • 5 million-hour MTTF indicates long-term drive reliability
  • Single-sided M.2 2280 design fits thin laptops and compact desktops

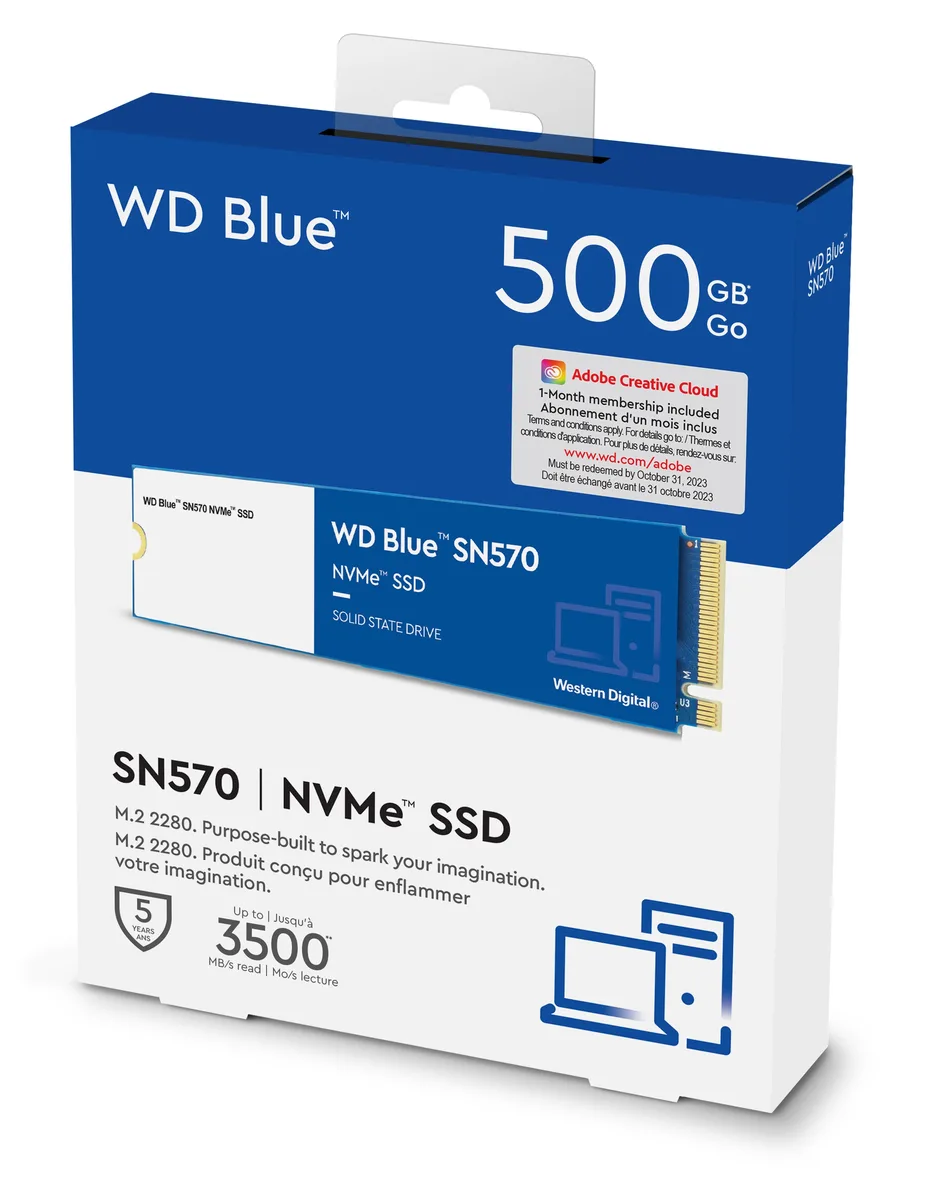

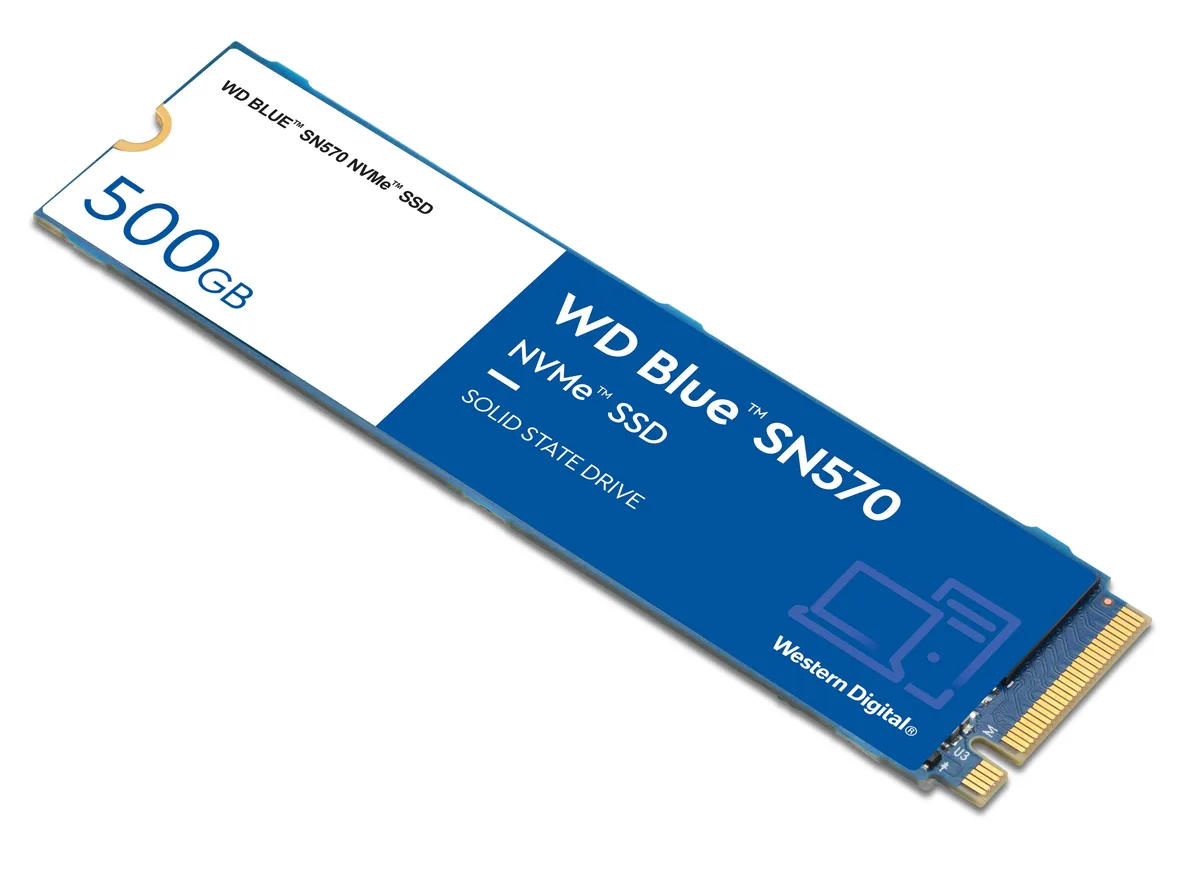

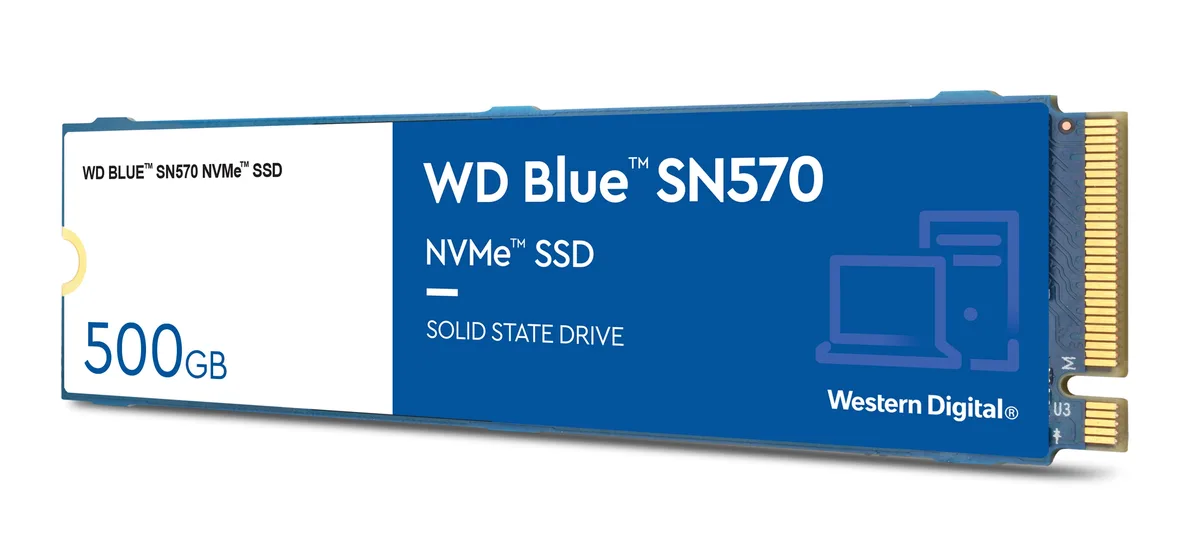

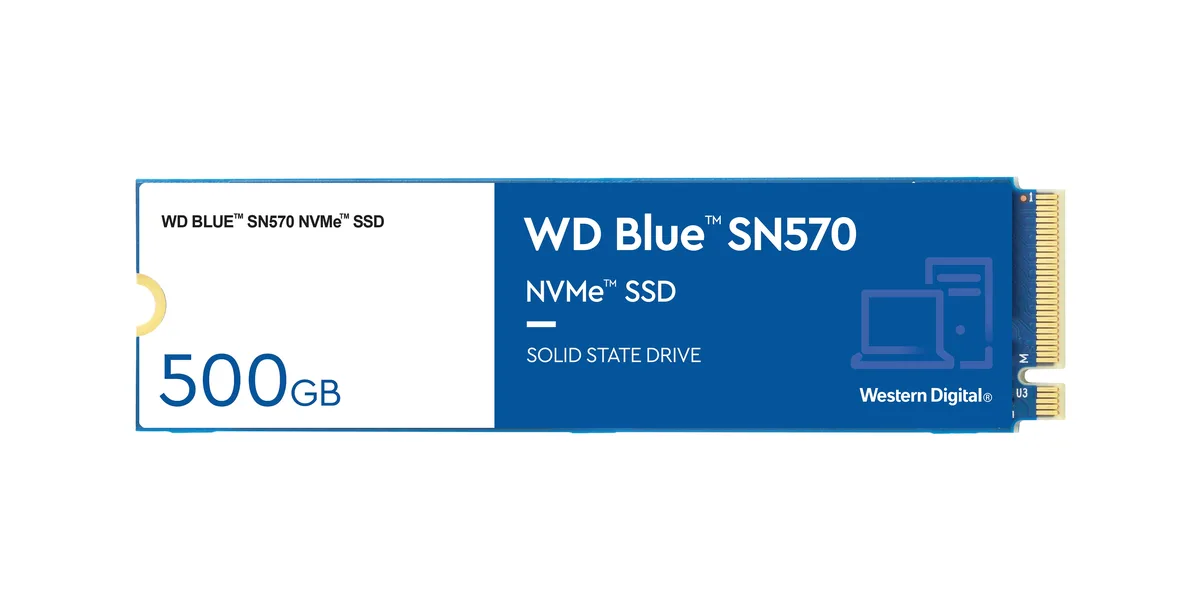

WD Blue SN570 500GB NVMe drive

The WD Blue SN570 is a 500GB internal SSD built on a single-sided M.2 2280 form factor. It connects through a PCI-Express 3.0 x4 interface and uses TLC memory. The drive targets everyday computing, content creation and gaming workloads.

Upgrade from SATA or PCIe 3.0 x2 SSDs

Moving from a SATA SSD limited to 500 MB/s or an older PCIe 3.0 x2 drive lifting the sequential read ceiling to 3500 MB/s and write to 2300 MB/s. Random performance reaches 360000 IOPS read and 390000 IOPS write. The jump matters when large project files or game assets load repeatedly.

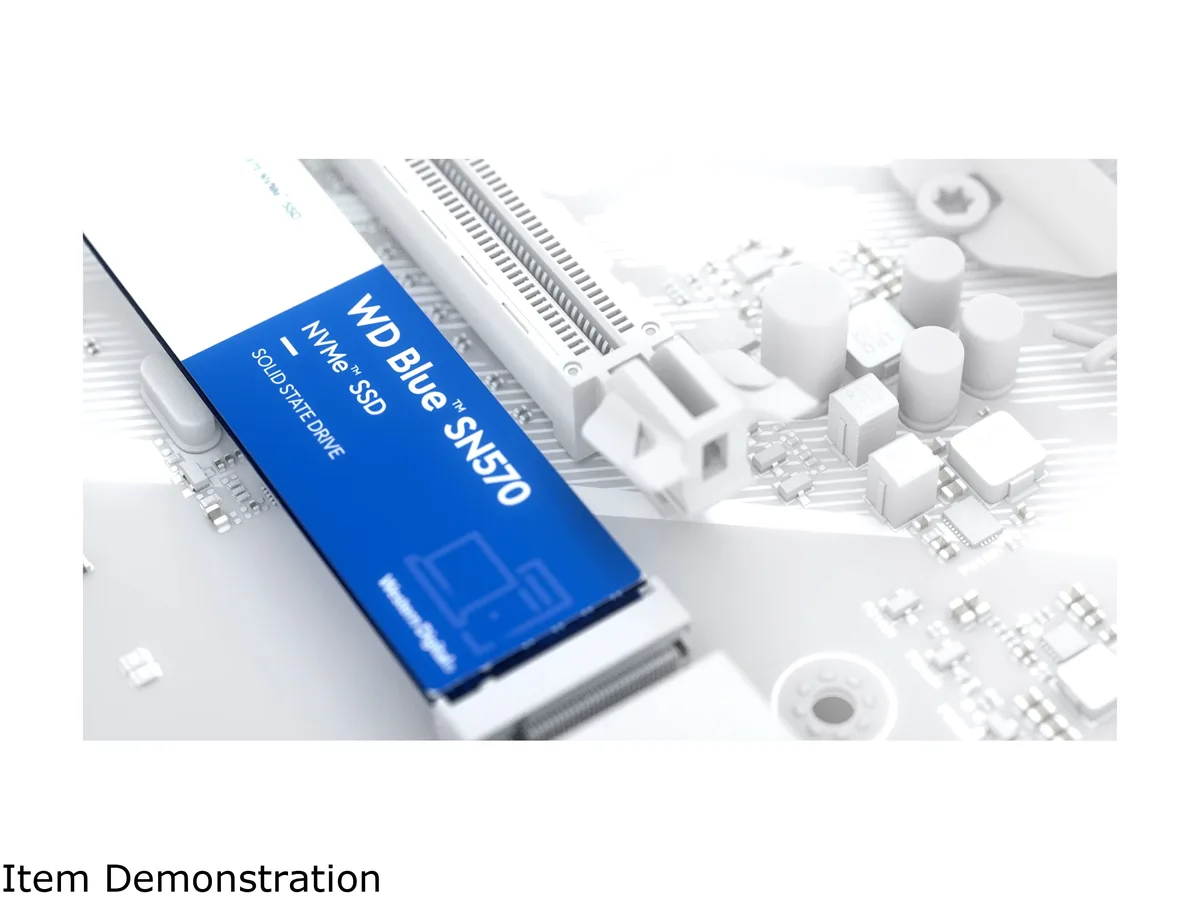

Fits any M.2 2280 slot with PCIe 3.0 x4 wiring

The single-sided 2.38mm profile clears tight laptop bays and compact desktops. A motherboard with an M.2 key-M slot wired for four lanes is required to hit the rated speeds. Active power peaks at 4.0W while idle states drop to 90 mW average, 30 mW in PS3 and 5 mW in PS4, leaving thermal headroom for other components.

Highlights

  • Sequential reads reach 3500 MBps for fast boot and load times
  • Sequential writes hit 2300 MBps to move large files quickly
  • 300 TBW endurance rating supports heavy daily workloads
  • 5 million-hour MTTF indicates long-term drive reliability
  • Single-sided M.2 2280 design fits thin laptops and compact desktops

Specifications

BrandWestern Digital
SeriesBlue SN570 NVMe
ModelWDS500G3B0C
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity500GB
Memory ComponentsTLC
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 3500 MBps
Max Sequential WriteUp to 2300 MBps
4KB Random ReadUp to 360,000 IOPS
4KB Random WriteUp to 390,000 IOPS
Terabytes Written (TBW)300TB
MTTF1.5M Hours
Power Consumption (Idle)Average Active Power: 90 mW
PS3 (Low Power): 30 mW
PS4 (Sleep): 5 mW
Power Consumption (Active)4.0W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1,500G @0.5 ms half sine
Max Vibration ResistanceOperating Vibration: 5 gRMS, 10-2000 Hz, 3 axes
Non-operating Vibration: 4.9 gRMS, 7-800 Hz, 3 axes
Height2.38mm
Width22.00mm
Depth80.00mm
Weight6.50g
Shipping weight0.05 kg
Package size127 × 102 × 20 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the M.2 2280 form factor fit a standard 2280 slot on my motherboard?

The drive is built to the M.2 2280 specification measuring 22.00mm wide by 80.00mm long with a single-sided 2.38mm height, matching the standard slot and screw position on most current boards.

What is the common mistake when inserting the PCIe 3.0 x4 NVMe SSD into the M.2 slot?

Installers often leave the drive tilted and forget to secure it with the retention screw, which can break PCIe contact; press the drive flat until the notch engages, then fasten the screw.

How can I track the 300TB TBW endurance limit over the life of the drive?

Use the downloadable Western Digital SSD Dashboard to monitor the percentage-used SMART attribute, which increments as host writes approach the 300TB warranty threshold.
