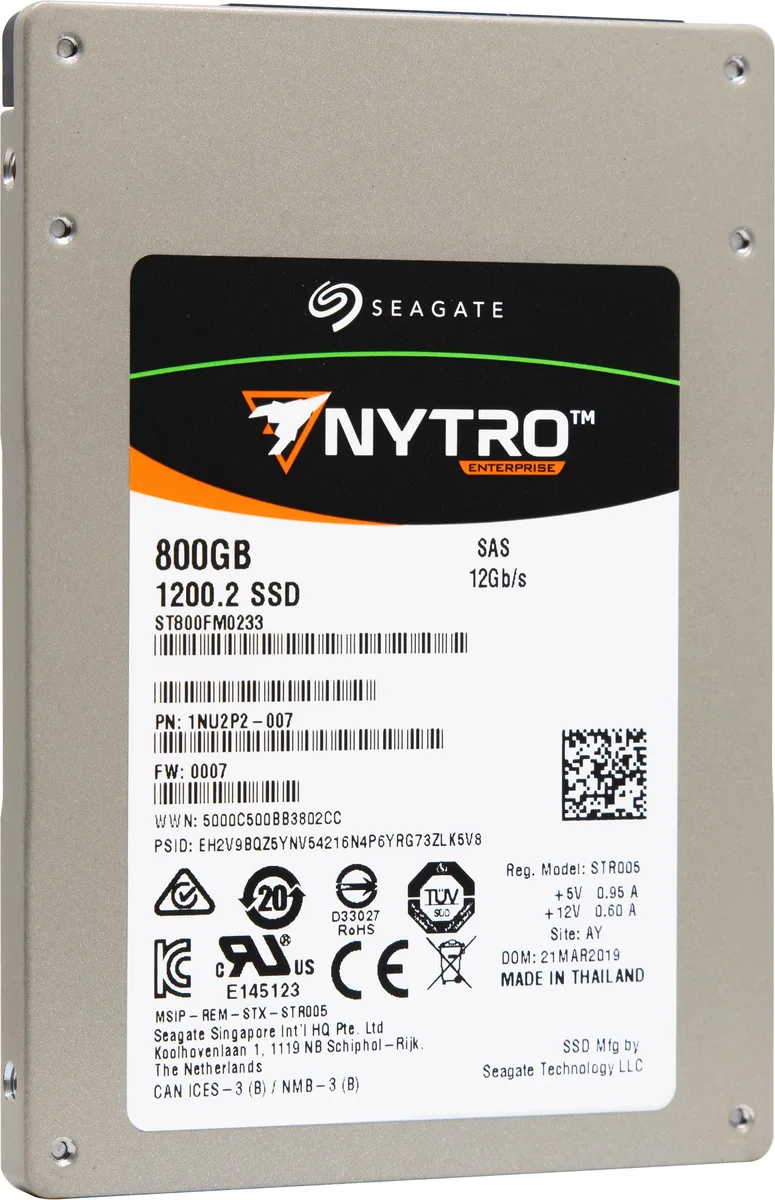

Silver 2.5 inch SAS enterprise SSD with label showing ST800FM0233 800GB

Seagate

Seagate ST800FM0233 800GB SAS 12Gb/s 2.5" enterprise SSD

SKU CH-KVQ3-V06JX MPN ST800FM0233

Enterprise 2.5" SAS SSD delivering 800GB capacity with 1400 MB/s reads and 1100 MB/s writes

  • Form Factor2.5"
  • Capacity800GB
  • Memory ComponentseMLC
  • InterfaceSAS 12Gb/s
  • Max Sequential ReadUp to 1400 MBps
  • Max Sequential WriteUp to 1100 MBps

Options 800GB

Struck-through versions exist but are not stocked here.

  • 800GB capacity supports demanding enterprise workloads
  • SAS 12Gb/s interface delivers up to 1400 MB/s sequential read speed
  • eMLC technology enables 180000 random read IOPS for low-latency access
  • 5-inch 7.00mm form factor fits dense server deployments
  • Power loss data protection safeguards data during unexpected outages

Enterprise 800GB SAS SSD

The Seagate ST800FM0233 is a 2.5-inch enterprise solid-state drive with an 800GB capacity and a dual-port SAS 12Gb/s interface. It uses eMLC memory components and delivers sequential reads up to 1400 MBps and writes up to 1100 MBps. Random 4KB performance reaches 180,000 read IOPS and 20,000 write IOPS.

Suited for virtualisation and OLTP

This drive fits server virtualisation, OLTP databases, software-defined storage, all-flash arrays and caching or tiering workloads. The 7mm height suits standard 2.5-inch bays. It is not for systems without a 12Gb/s SAS backplane or controller, nor for platforms requiring a different interface or physical form factor.

Dual-port 12Gb/s SAS interface

The dual-port SAS 12Gb/s connection provides redundant, failover I/O communication paths. This specification determines compatibility with the host backplane and controller. The drive also includes power-loss data protection and advanced error correction for data integrity.

Highlights

  • 800GB capacity supports demanding enterprise workloads
  • SAS 12Gb/s interface delivers up to 1400 MB/s sequential read speed
  • eMLC technology enables 180000 random read IOPS for low-latency access
  • 5-inch 7.00mm form factor fits dense server deployments
  • Power loss data protection safeguards data during unexpected outages

Specifications

BrandHP
ModelST800FM0233
Form Factor2.5"
Capacity800GB
Memory ComponentseMLC
InterfaceSAS 12Gb/s
Max Sequential ReadUp to 1400 MBps
Max Sequential WriteUp to 1100 MBps
4KB Random ReadUp to 180,000 IOPS
4KB Random WriteUp to 20,000 IOPS
Height7.00mm
Width70.10mm
Depth100.45mm
Weight85g
Shipping weight1.13 kg
Package size76 × 51 × 13 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How fast will the 1400 MBps sequential read actually be inside a server?

The 1400 MBps figure is the drive's internal maximum; real throughput depends on the controller, queue depth and workload mix.

What does the SAS 12Gb/s interface limit in practice?

Dual-port 12Gb/s SAS caps the link at 12Gb/s per port and provides redundant failover paths.

Will the 7.00mm height fit every 2.5-inch bay?

The drive measures 7.00mm high, 70.10mm wide and 100.45mm deep, matching the standard 2.5-inch form factor.
