Black curved 6.67 inch AMOLED screen on square water block with three 120mm ARGB fans on 360mm radiator

TRYX

TRYX L-P360A-AS3M-G1K PANORAMA 360 ARGB liquid cooler 360mm 6.67 AMOLED 320w

SKU CH-Q6CT-MKNG1 MPN L-P360A-AS3M-G1K

A 360 mm AIO with a 6.67 inch AMOLED curved display, Asetek 8th Gen V2 pump rated for 320w TDP, 30 mm radiator and three magnetic 120 mm ARGB fans

  • TypeAIO
  • Block Compatibility - AMDAM4/AM5
  • Block Compatibility - IntelIntel LGA 1851/1700/1200/1151/1150/1155
  • Block Dim.118*92*92mm
  • Block MaterialPC + ABS
  • DisplayAMOLED

Series PANORAMA ARGB

Fan Size 3 Fan Slots (120mm)

  • 2 Fan Slots (140mm)
  • 2 Fan Slots (120mm)
  • 3 Fan Slots (120mm)

Struck-through versions exist but are not stocked here.

Color|Model|LED Color Black|360mm|Addressable RGB

Struck-through versions exist but are not stocked here.

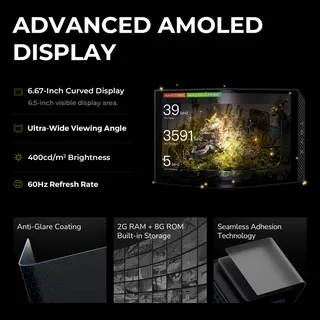

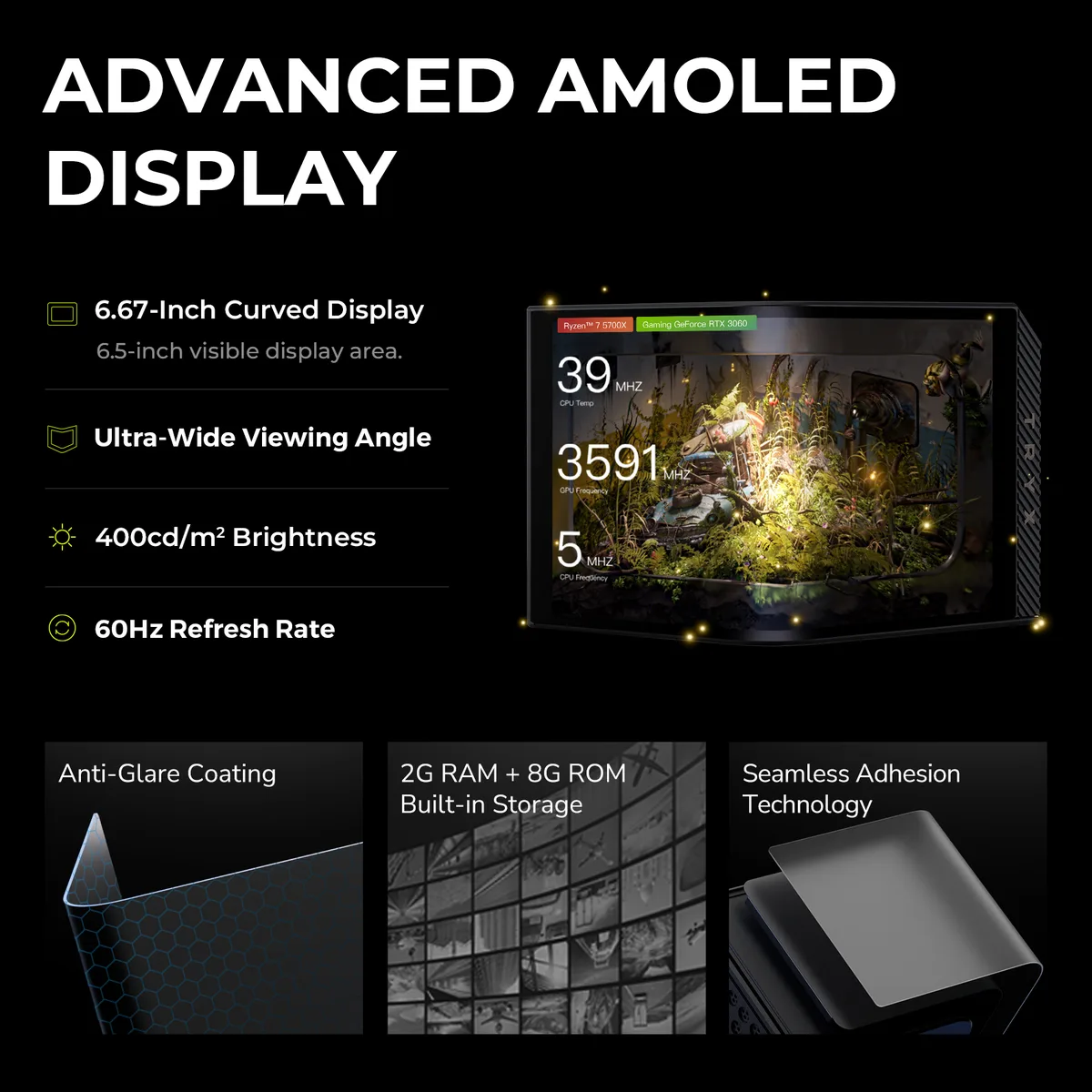

  • 67-inch AMOLED curved display at 372 PPI for vivid custom visuals
  • Asetek 8th Gen V2 pump handles up to 320w TDP for sustained cooling
  • 30mm thick radiator with 40% thicker tubes and high-density fins boosts heat dissipation

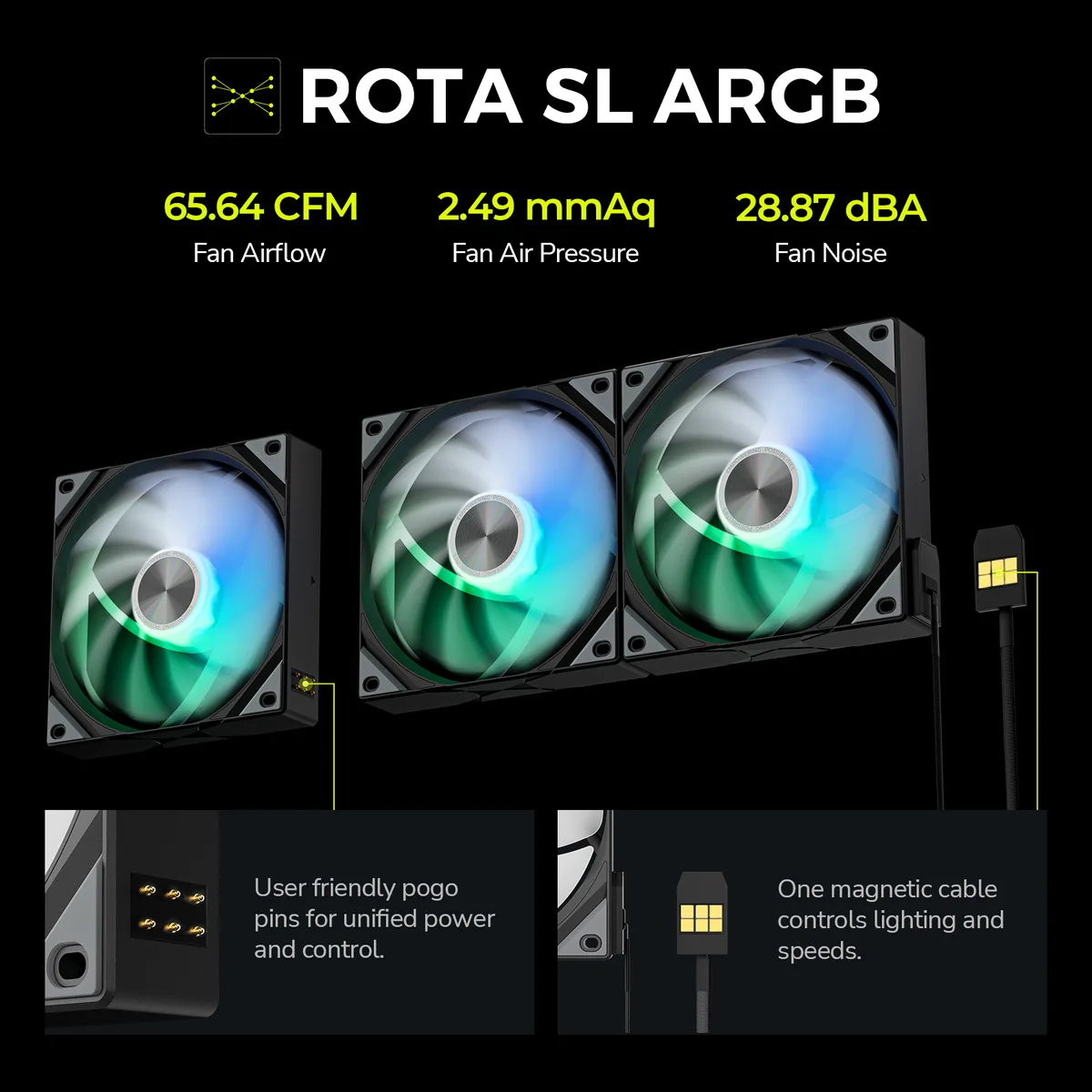

  • Three magnetic 120mm FDB fans deliver 2.49 mmAq pressure at 27.86 dBA under full load
  • KANALI software runs pre-loaded 3D animations and custom media with near-zero system resources

6.67-inch AMOLED display AIO

The TRYX PANORAMA 360 ARGB is an all-in-one liquid cooler built around a 6.67-inch curved AMOLED screen. It targets PC builders who want real-time system monitoring and custom media playback directly on the pump block. The unit supports Intel LGA 1851, 1700, 1200, 1151, 1150 and 1155 sockets plus AMD AM4 and AM5 platforms.

320w TDP cooling ceiling

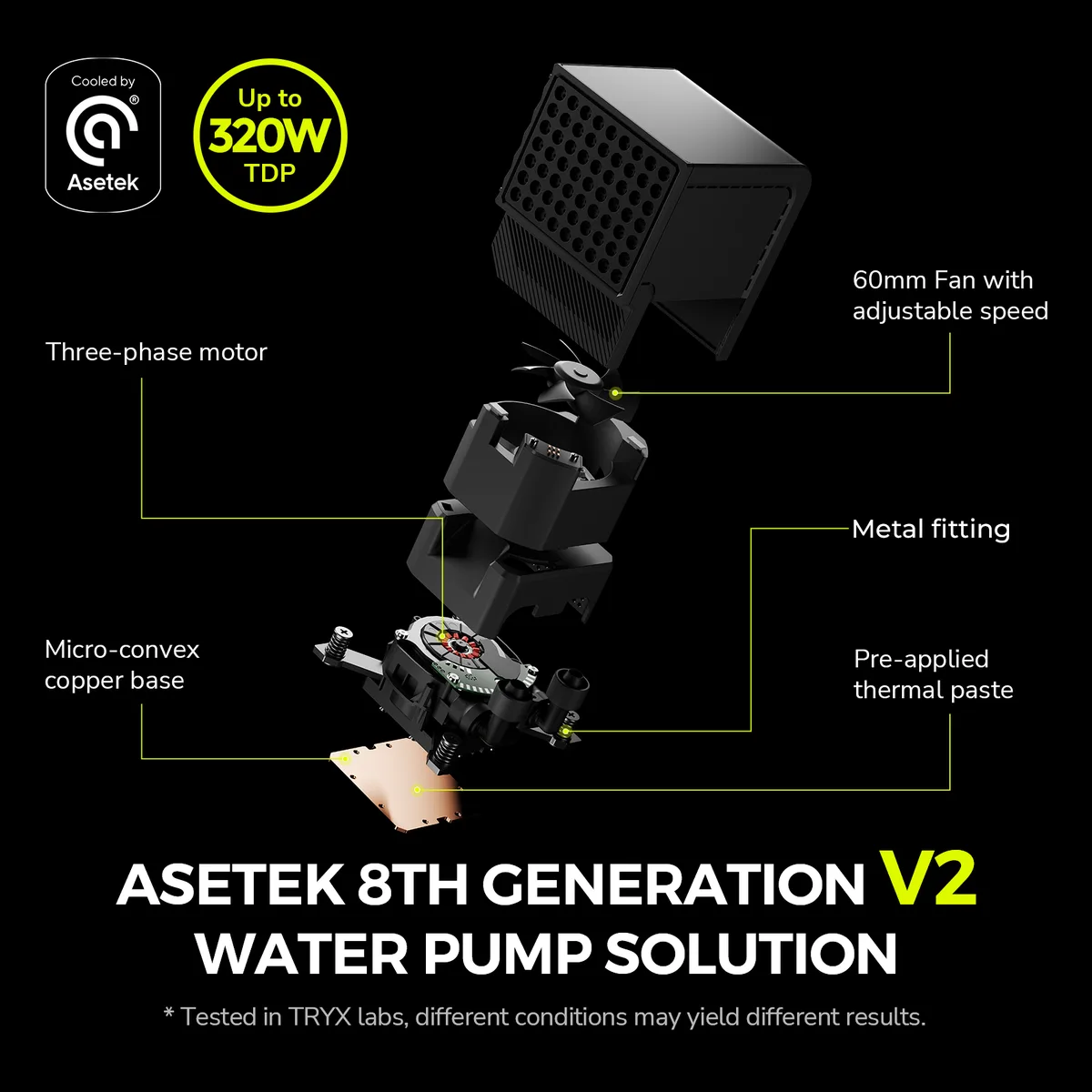

The Asetek 8th Gen V2 pump delivers a rated 320w TDP capacity, setting the practical thermal limit for the loop. A 30mm thick radiator with high-density fins and 40% thicker tubes moves heat away from the cold plate. Three 120mm magnetic-cable ARGB fans push up to 2.49mmAq static pressure at 27.86dB(A) under full load.

2240x1080 media headroom

The 60Hz panel accepts PNG, JPG, GIF, MP4 and AVI files up to 1080P resolution and 500MB each, giving ample space for animated wallpapers and monitoring widgets. KANALI software runs pre-loaded 3D animations with near-zero system overhead. Buyers who need screen rotation or a lower 280w TDP variant should look at the SE series instead.

Highlights

  • 67-inch AMOLED curved display at 372 PPI for vivid custom visuals
  • Asetek 8th Gen V2 pump handles up to 320w TDP for sustained cooling
  • 30mm thick radiator with 40% thicker tubes and high-density fins boosts heat dissipation
  • Three magnetic 120mm FDB fans deliver 2.49 mmAq pressure at 27.86 dBA under full load
  • KANALI software runs pre-loaded 3D animations and custom media with near-zero system resources

Specifications

BrandTRYX
SeriesPANORAMA ARGB
ModelP360A
Part NumberL-P360A-AS3M-G1K
TypeAIO
Block Compatibility - AMDAM4/AM5
Block Compatibility - IntelIntel LGA 1851/1700/1200/1151/1150/1155
Block Dim.118*92*92mm
Block MaterialPC + ABS
DisplayAMOLED
Pump Speed800-3600±10%
Pump Dim.118*92*92mm
Pump BearingCeramic
Pump Noise25.3dBA
Radiator Size360mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 25mm
Bearing TypeFluid Dynamic Bearing
Fan RPM500~1850 RPM +/- 10%
Fan Air Flow65.64CFM
Fan Noise27.86 dBA
Fan Connector6 Pin
ColorBlack
LED ColorARGB
Pressure2.49mmAq
Tube Dim.400mm
Tube MaterialEPDM
Features320w TDP
Package ContentsAIO Cooler, ARGB Controller, AMD/ Intel Brackets, Thermal Paste, Manual, Accessories for Installation
Shipping weight2.74 kg
Package size419 × 229 × 152 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the PANORAMA 360 ARGB or the SE 360 ARGB for my build?

The PANORAMA 360 ARGB uses the Asetek 8th Gen V2 pump rated for 320w TDP with 30mm radiator thickness and 2.49mmAq fan pressure, while the SE 360 ARGB uses the ADELA pump rated for 280w TDP with 27mm radiator and 1.8mmAq pressure.

What does the 320w TDP rating mean when the cooler is installed?

It indicates the Asetek 8th Gen V2 pump and 30mm thick radiator are designed to dissipate up to 320 watts of heat from the CPU, supported by three 120mm fans delivering 65.64CFM airflow at 2.49mmAq pressure.

How does the magnetic cable fan connection affect the ARGB and power setup?

The three pre-installed 120mm fans use a magnetic cable system that carries both power and ARGB signals, reducing cable clutter and allowing daisy-chained control through a single connection point.
