White 360mm AIO with curved 6.67 inch AMOLED screen on pump block three white 120mm ARGB fans on white radiator

TRYX

TRYX L-P360L-AM3M-G0W Panorama SE 360 ARGB White liquid cooler

SKU CH-1WDQ-88HCN MPN L-P360L-AM3M-G0W

A 360 mm AIO with a rotatable 6.67" AMOLED screen, 280 W TDP cooling and three 120 mm ARGB fans

  • TypeAIO
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA
  • Block Dim.125x94x92mm
  • Block MaterialPC + ABS
  • Display6.67" AMOLED , 2240 x 1080, 60Hz
  • Pump Speed2800-3600 +/- 300RPM

Series PANORAMA SE

Fan Size 3 Fan Slots (120mm)

  • 2 Fan Slots (140mm)
  • 2 Fan Slots (120mm)
  • 3 Fan Slots (120mm)

Struck-through versions exist but are not stocked here.

Color|Model|LED Color White|360mm|Addressable RGB

Struck-through versions exist but are not stocked here.

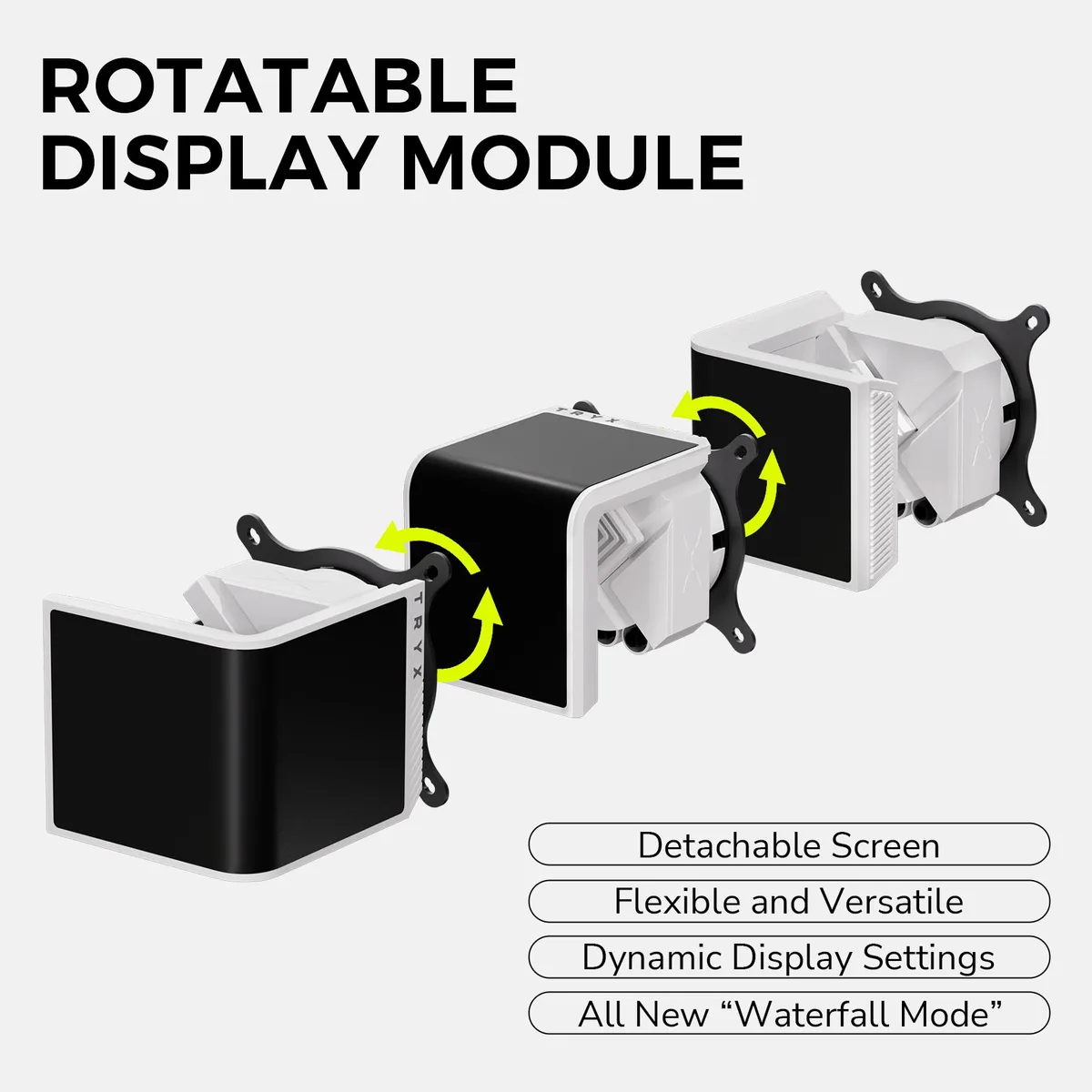

  • Rotatable 6.67" AMOLED screen enables custom viewing angles
  • 280 W TDP Asetek Adela pump handles high thermal loads
  • Three 120 mm FDB fans run as quiet as 27.86 dBA
  • 2240 × 1080 resolution at 372 PPI for sharp visuals
  • Broad socket support covers Intel LGA 1150/1151/1155/1156/1200/1700/1851 and AMD AM4/AM5

Panorama SE 360 ARGB White AIO

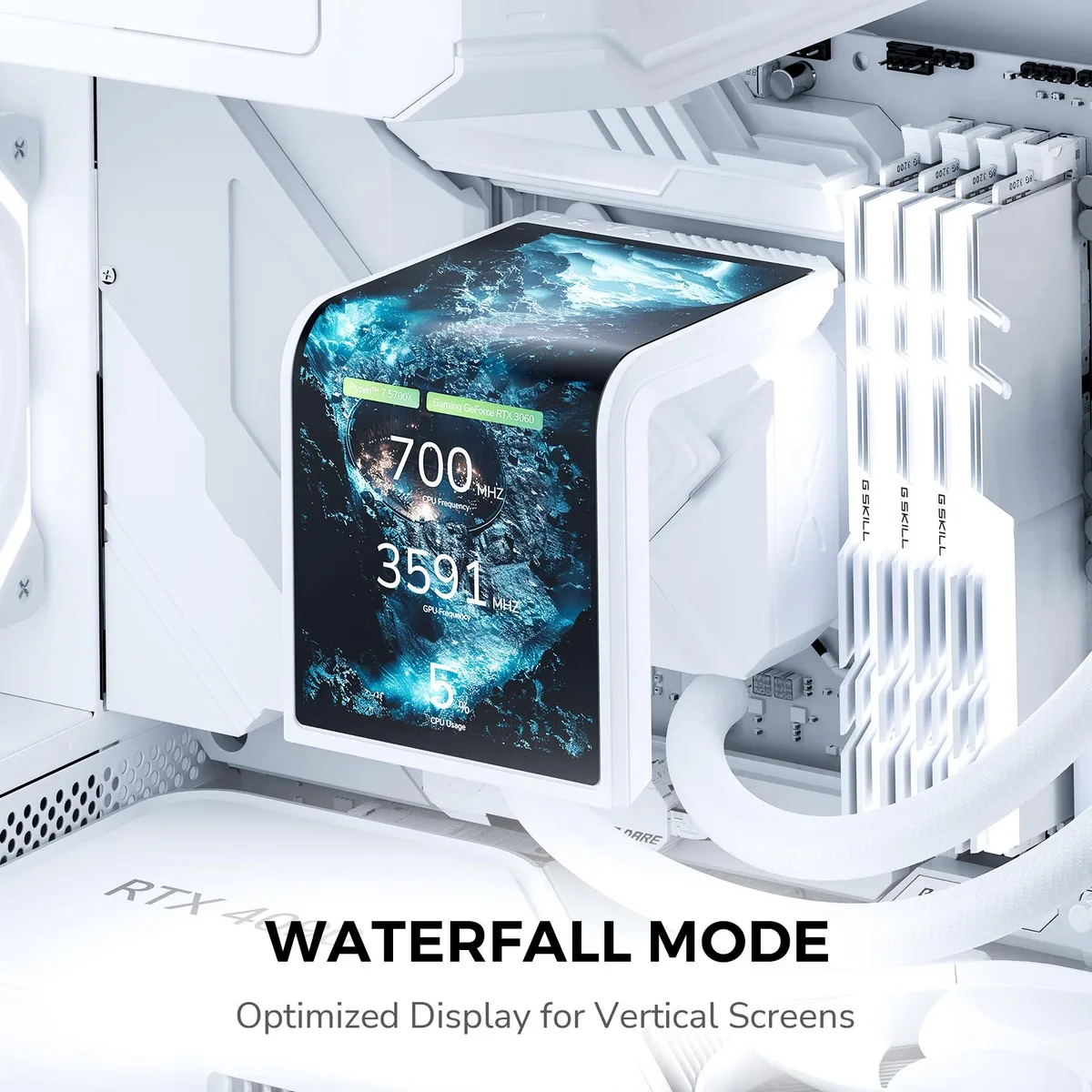

The TRYX Panorama SE 360 ARGB White is a 360 mm all-in-one liquid cooler built around an Asetek Adela pump rated for 280 W TDP. It fits Intel LGA 1150, 1151, 1155, 1156, 1200, 1700 and 1851 plus AMD AM4 and AM5 sockets. A 6.67 inch curved AMOLED screen sits on the pump block and can rotate 90 or 180 degrees. Three 120 mm ROTA ARGB fans with fluid-dynamic bearings come pre-installed on the 394 mm radiator.

Builders wanting an integrated display

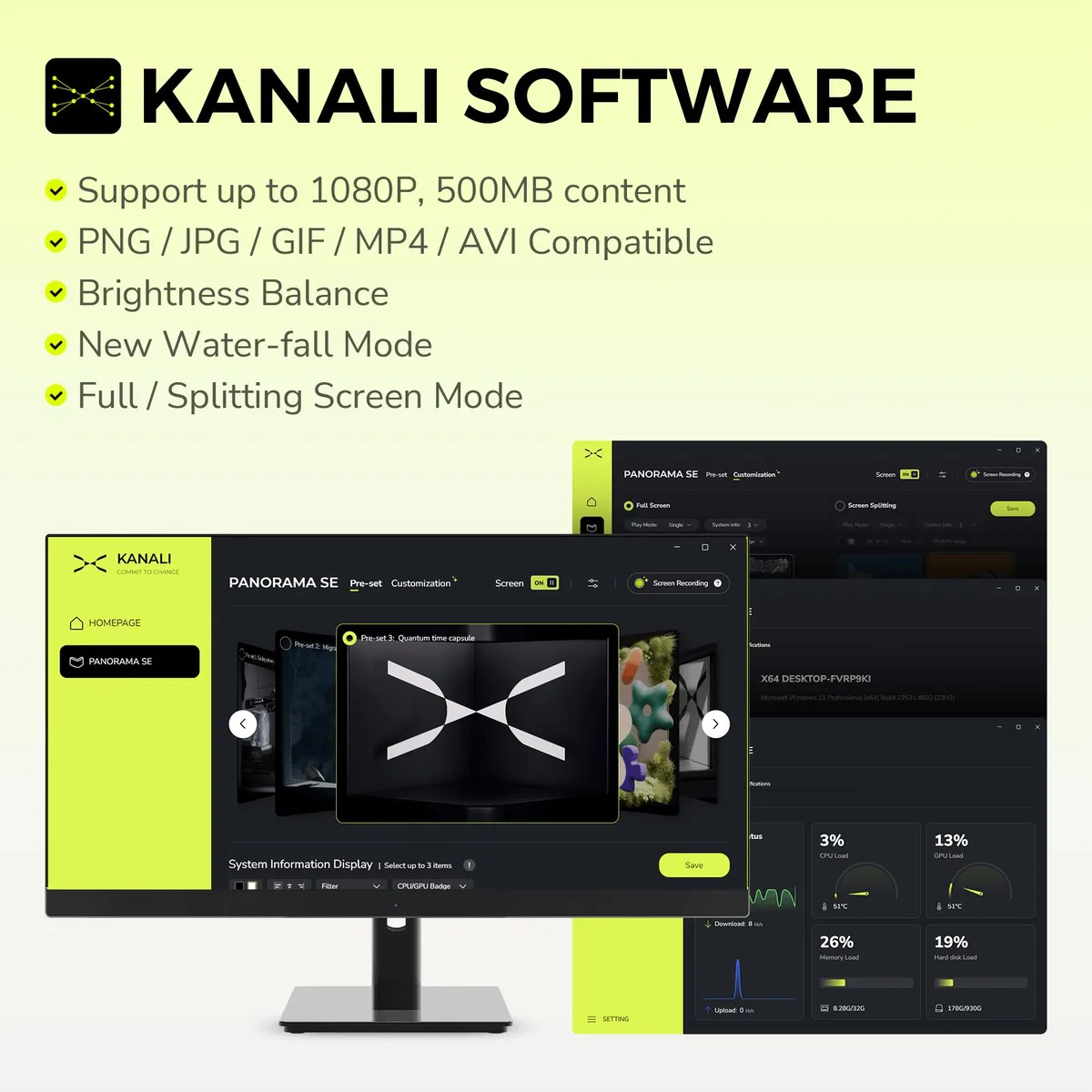

This cooler suits builders who want a 6.67 inch 2240 x 1080 AMOLED screen showing custom media through KANALI software and who need compatibility across current Intel and AMD desktop platforms. The pump runs at 800 to 3600 RPM with a rated noise of 25.3 dBA. Buyers who do not want a screen on the water block or who prefer air cooling should look at other solutions. Systems requiring more than 280 W of cooling capacity are not a match for this unit.

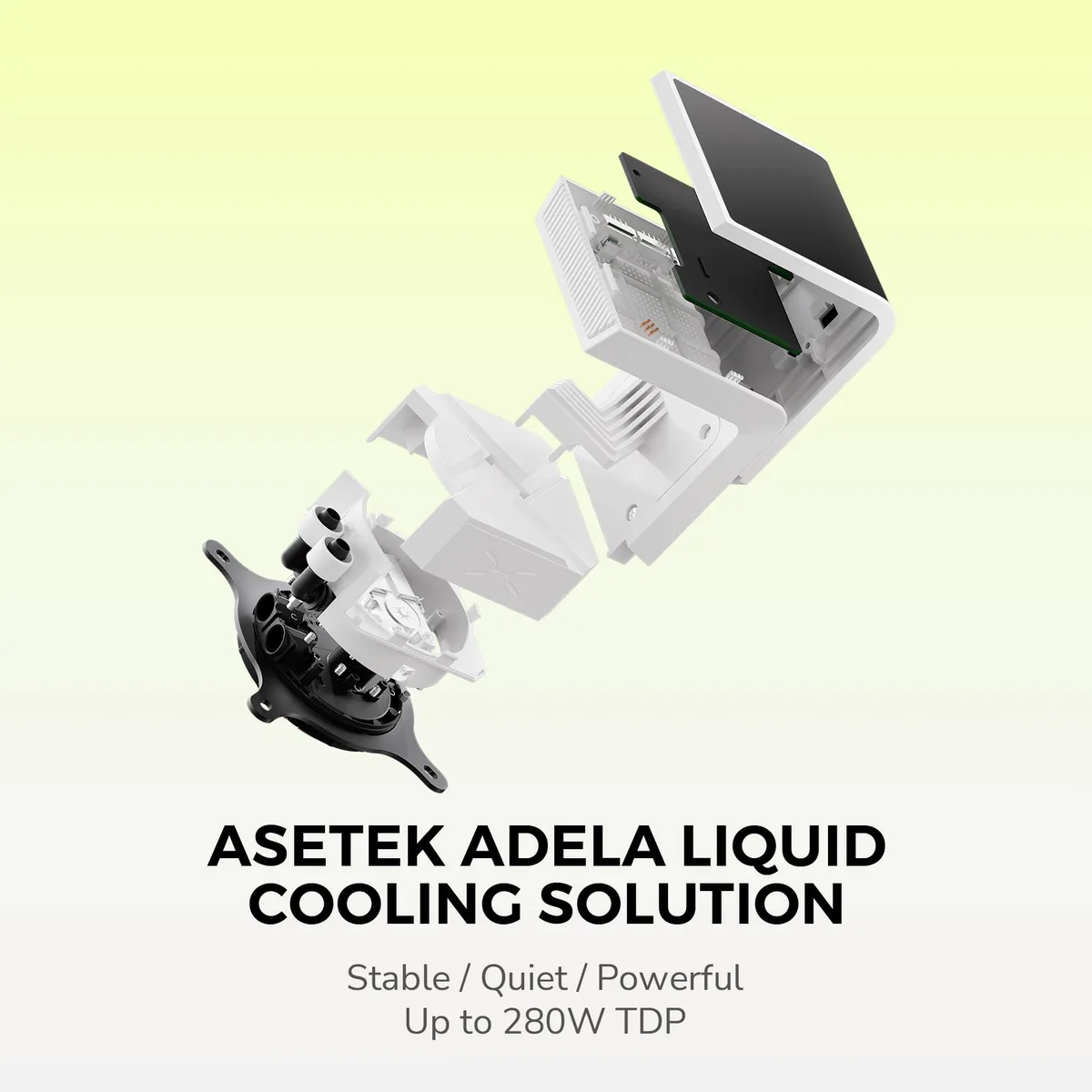

280 W TDP rating from the Asetek Adela pump

The pump’s 280 W thermal design power is the single figure that decides whether this AIO can handle your CPU. Radiator dimensions are 394 x 120 x 27 mm with three 120 mm fan slots. Fans spin from 500 to 1850 RPM delivering 66.09 CFM at 27.86 dBA. The block measures 125 x 94 x 92 mm and the screen runs at 60 Hz with 400 nit brightness and 1000000:1 contrast. Tempered glass covers the display with full adhesion bonding.

Highlights

  • Rotatable 6.67" AMOLED screen enables custom viewing angles
  • 280 W TDP Asetek Adela pump handles high thermal loads
  • Three 120 mm FDB fans run as quiet as 27.86 dBA
  • 2240 × 1080 resolution at 372 PPI for sharp visuals
  • Broad socket support covers Intel LGA 1150/1151/1155/1156/1200/1700/1851 and AMD AM4/AM5

Specifications

BrandTRYX
SeriesPANORAMA SE ARGB
Part NumberL-P360L-AM3M-G0W
TypeAIO
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200 / Intel LGA 1700 / Intel LGA 1851
Block Dim.125x94x92mm
Block MaterialPC + ABS
Display6.67" AMOLED , 2240 x 1080, 60Hz
Pump Speed2800-3600 +/- 300RPM
Pump Dim.125 x 94 x 92mm
Pump Noise25.3 dBA
Radiator Size394 x 120 x 27 mm
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25mm
Bearing TypeFDB (Fluid Dynamic Bearing)
Fan RPM500~1850 RPM +/- 10%
Fan Air Flow66.09 CFM
Fan Noise27.86 dBA
ColorWhite
LED ColorARGB
Pressure1.8 mmAq
Tube Dim.450mm
Features280w TDP
Shipping weight2.27 kg
Package size429 × 231 × 140 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud are the pump and fans when the cooler runs continuously?

The pump operates at 25.3 dBA and the three FDB fans reach 27.86 dBA at full speed of 1850 RPM.

Which motherboard headers and software are required to control the 6.67 inch AMOLED screen and ARGB lighting?

The display connects via USB and HDMI to the motherboard; KANALI software handles screen content while ARGB syncs through the board 5 V header.

Will the 394 mm radiator and 125 mm tall block fit alongside tall RAM or VRM heatsinks on an LGA 1700 board?

The block measures 125 x 94 x 92 mm and the radiator is 394 x 120 x 27 mm; verify case and motherboard clearance before installing.
