TRYX

TRYX L-P360L-AM3M-G0K Panorama SE 360 ARGB liquid cooler

SKU CH-21E5-FDV8Y MPN L-P360L-AM3M-G0K

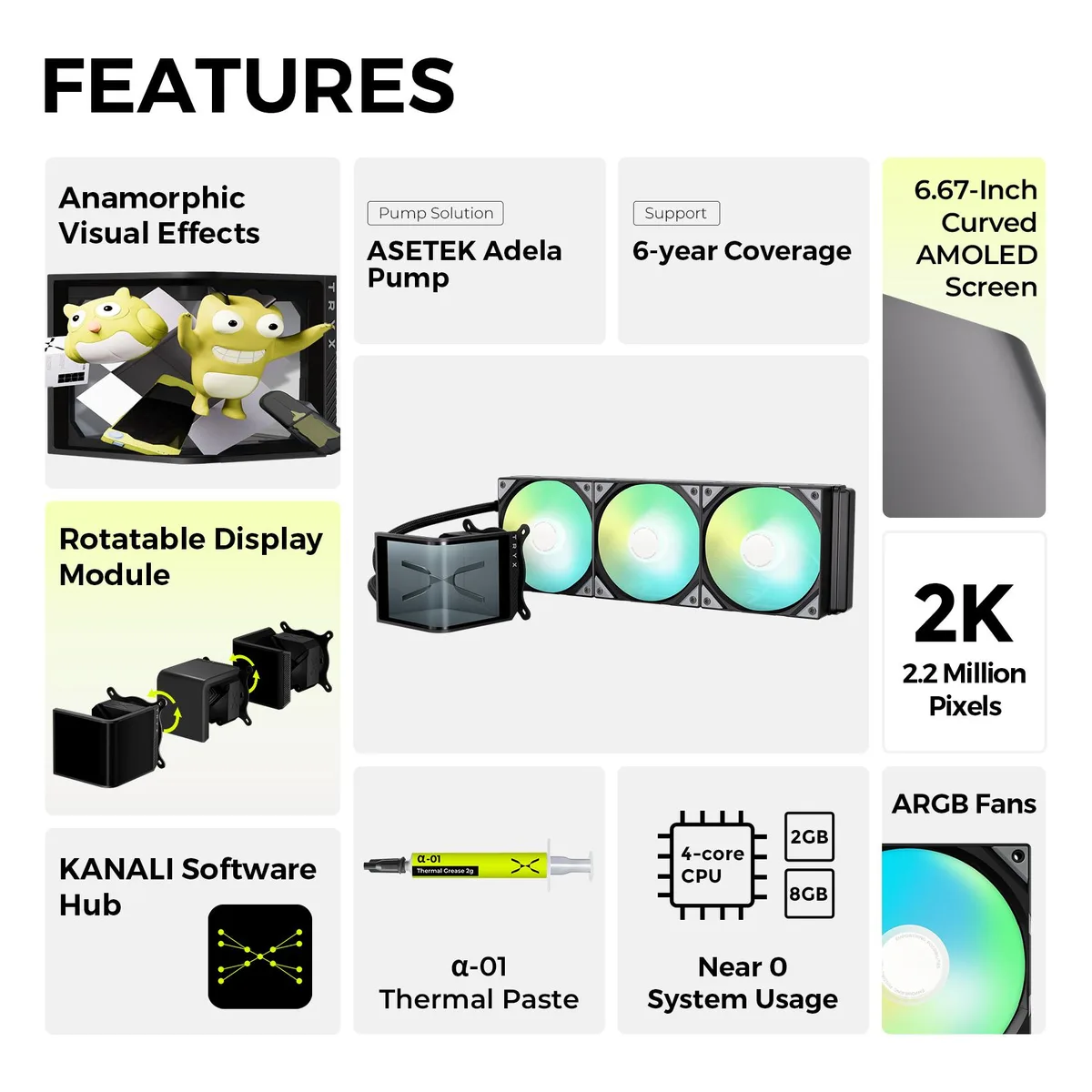

A 360 mm AIO liquid cooler with a rotatable 6.67 inch AMOLED display, ASETEK Adela pump rated for 280w TDP and three 120 mm ARGB fans

  • TypeAIO
  • Block Dim.125x94x92mm
  • Block MaterialPC + ABS
  • DisplayAMOLED
  • Pump Speed800-3600±300RPM?
  • Pump Dim.125x94x92mm

Series PANORAMA SE

Fan Size 3 Fan Slots (120mm)

  • 2 Fan Slots (140mm)
  • 2 Fan Slots (120mm)
  • 3 Fan Slots (120mm)

Struck-through versions exist but are not stocked here.

Color|Model|LED Color Black|360mm|Addressable RGB

Struck-through versions exist but are not stocked here.

  • 67 inch 2240×1080 AMOLED curved screen rotates 90° or 180° for flexible viewing
  • ASETEK Adela pump delivers 280 W TDP cooling capacity for sustained high loads
  • Three 120 mm ROTA ARGB FDB fans push 66.09 CFM at 27.86 dBA
  • Pump speed adjustable 800 to 3600 RPM with ceramic bearing at 25.3 dBA
  • KANALI software runs pre-loaded 3D animations and custom media at 60 Hz refresh rate

Liquid cooler with AMOLED screen

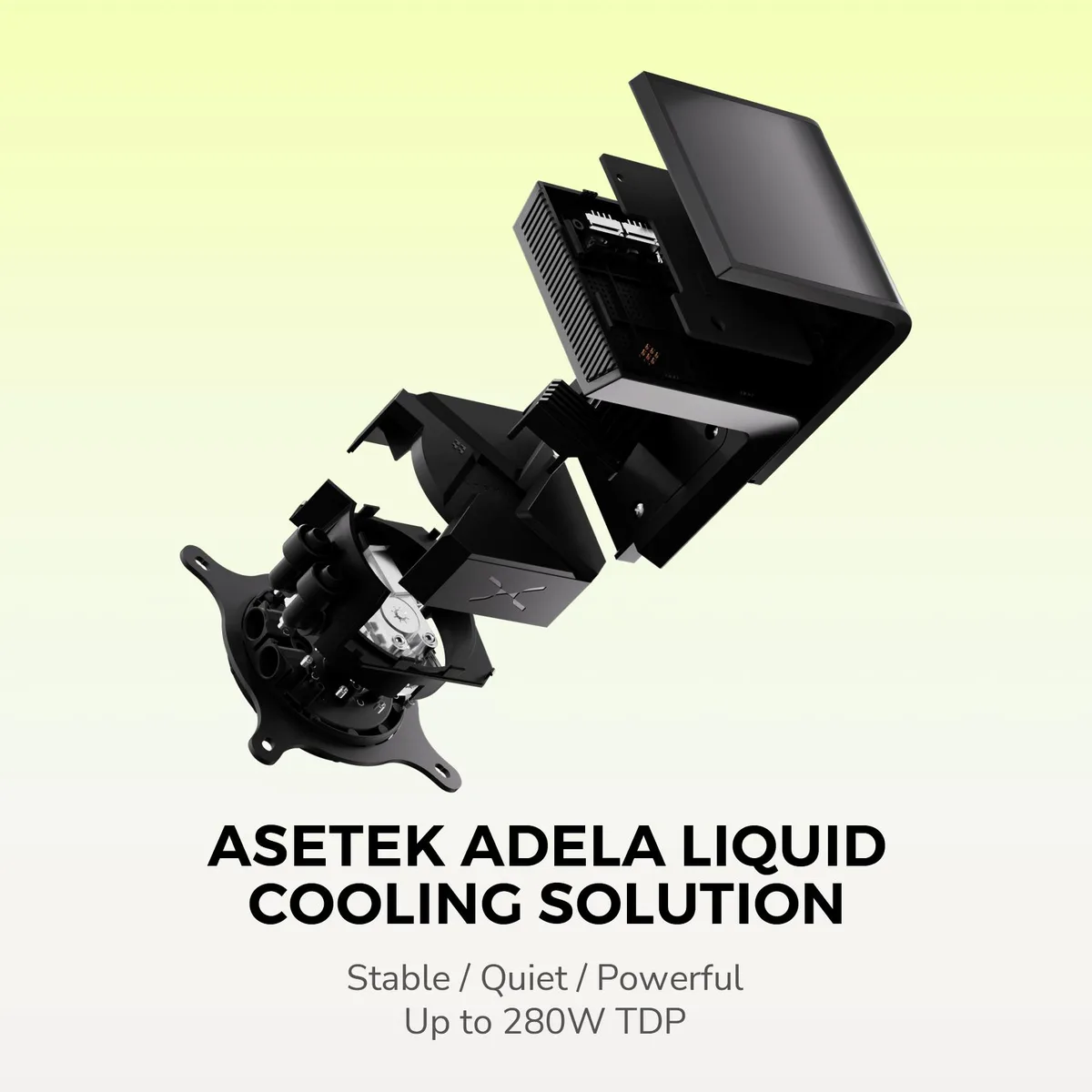

The TRYX Panorama SE 360 ARGB is a 360 mm all-in-one liquid cooler built around an Asetek Adela pump rated for 280w TDP. It targets enthusiasts who want a prominent curved display on the CPU block while keeping a high-heat processor under control. The block measures 125x94x92 mm and fits Intel LGA 1851, 1700, 1200, 115X and AMD AM5, AM4 sockets.

Rotatable 6.67 inch AMOLED and three FDB fans

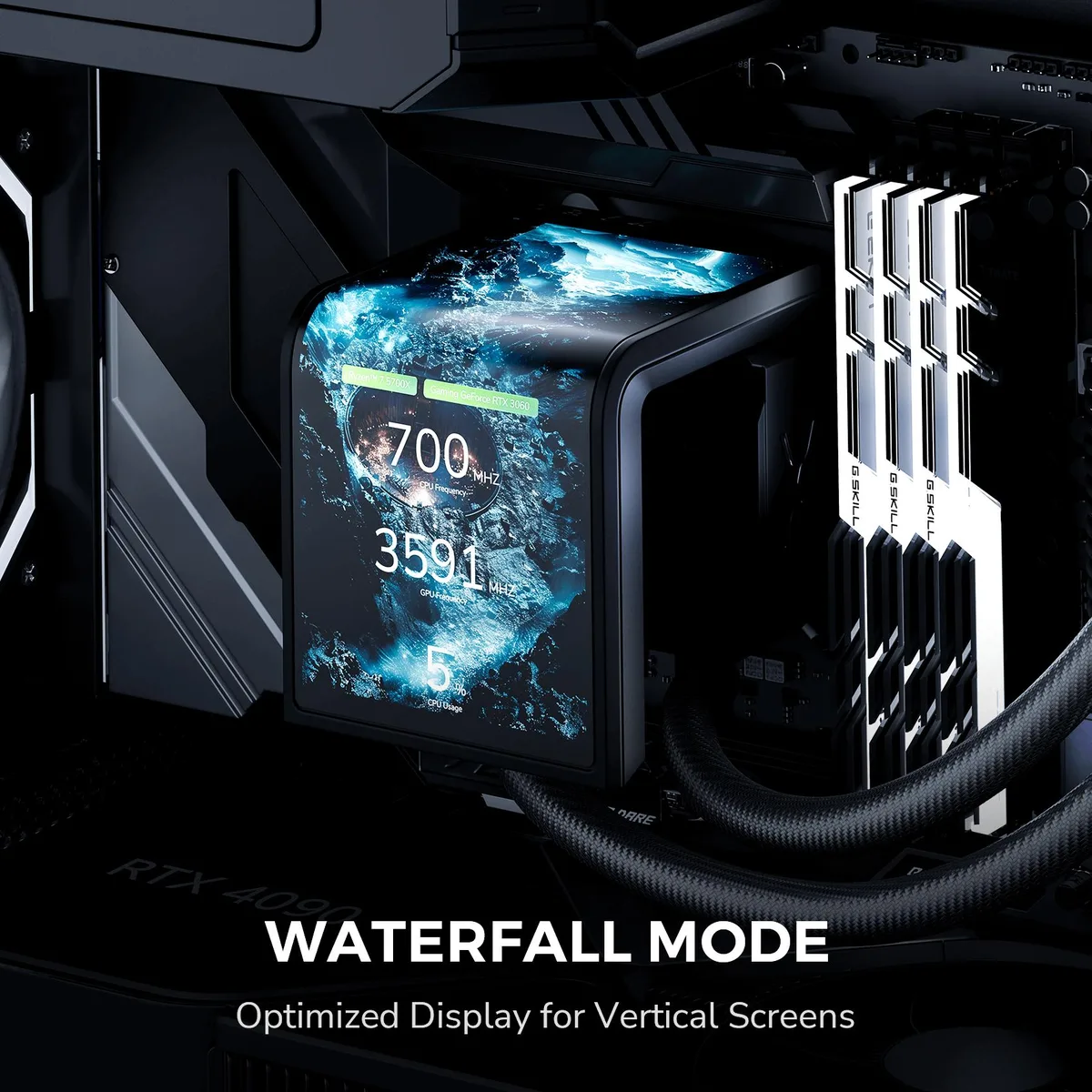

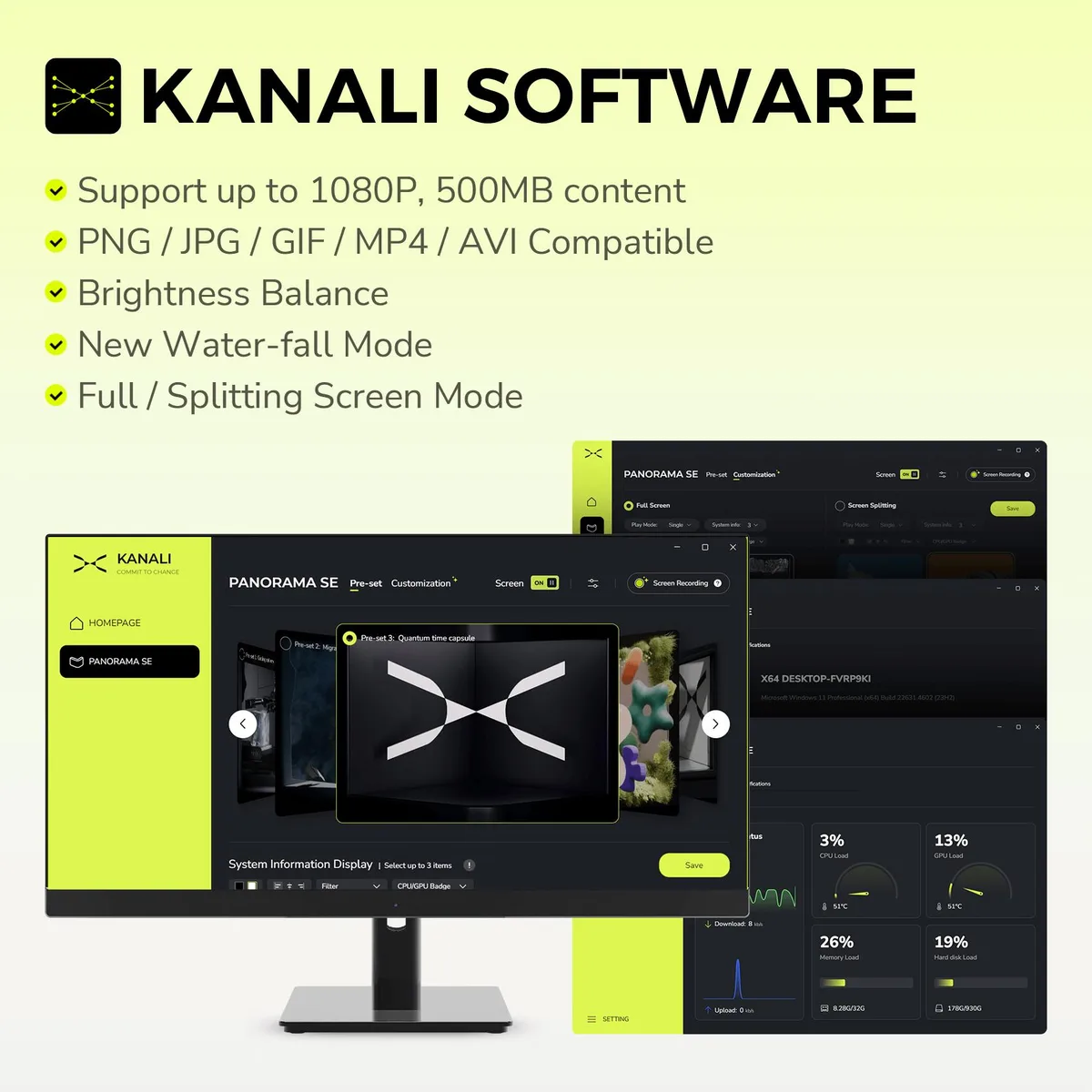

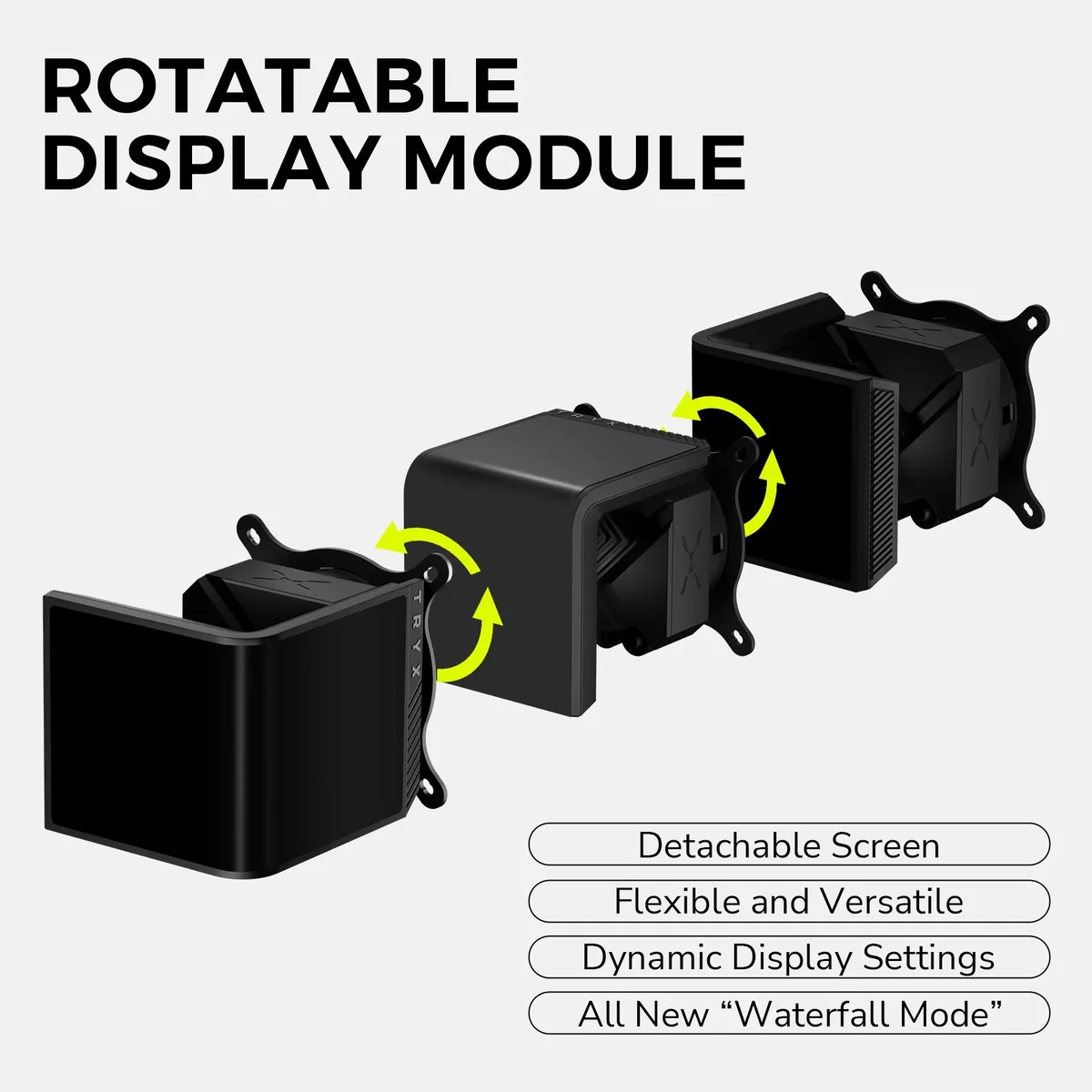

A 6.67 inch AMOLED panel with 2240x1080 resolution, 60 Hz refresh, 400 nit brightness and 1,000,000:1 contrast sits behind tempered glass bonded by full-adhesion technology. The screen rotates 90° or 180° for flexible viewing angles. KANALI software supplies pre-loaded 3D animations and accepts custom PNG, JPG, GIF, MP4 or AVI files up to 1080P and 500 MB. Three pre-installed 120 mm ROTA ARGB fans use fluid dynamic bearings and connect to motherboard ARGB headers for lighting sync.

Pump noise 25.3 dBA and fans up to 27.86 dBA

The pump runs between 800 and 3600 RPM with a ceramic bearing and produces 25.3 dBA. Fans operate from 500 to 1850 RPM, delivering 66.09 CFM each at a maximum of 27.86 dBA. The aluminium radiator and 280w TDP rating support sustained loads on modern high-performance CPUs without excessive acoustic output.

Highlights

  • 67 inch 2240×1080 AMOLED curved screen rotates 90° or 180° for flexible viewing
  • ASETEK Adela pump delivers 280 W TDP cooling capacity for sustained high loads
  • Three 120 mm ROTA ARGB FDB fans push 66.09 CFM at 27.86 dBA
  • Pump speed adjustable 800 to 3600 RPM with ceramic bearing at 25.3 dBA
  • KANALI software runs pre-loaded 3D animations and custom media at 60 Hz refresh rate

Specifications

BrandTRYX
SeriesPANORAMA SE ARGB
ModelPANORAMA SE 360 ARGB
Part NumberL-P360L-AM3M-G0K
TypeAIO
Block Dim.125x94x92mm
Block MaterialPC + ABS
DisplayAMOLED
Pump Speed800-3600±300RPM?
Pump Dim.125x94x92mm
Pump BearingCeramic
Pump Noise25.3 dBA
Radiator Size360 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 25mm
Bearing TypeFDB (Fluid Dynamic Bearing)
Fan RPM500~1850 RPM±10%?
Fan Air Flow66.09 CFM?
Fan Noise27.86 dBA?
Fan Connector7-Pin
ColorBlack
LED ColorARGB
Pressure1.8 mmAq?
Tube Dim.450mm
Tube MaterialEPDM
Features280w TDP
Package ContentsAIO Cooler,AMD/ Intel Brackets,Thermal Paste,Manual,Accessories
Shipping weight2.77 kg
Package size451 × 225 × 146 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What display interface does the 6.67" AMOLED use and what refresh rate does it cap at?

The 6.67" AMOLED screen runs at a 60Hz refresh rate and shows a 2240*1080 resolution with 372PPI pixel density and 400nit brightness.

What case clearance and radiator space does the 360mm AIO need to fit?

The 360mm aluminum radiator takes three 120mm fan slots and the water block measures 125x94x92mm, so the case must support a 360mm radiator and that block footprint.

How is the cooler installed on Intel LGA 1700 and AMD AM5, and what step is often missed?

Mount the supplied backplate and standoffs for your socket, seat the pump on the CPU with pre-applied paste, then connect the pump power, fan headers and the display cable to a USB 2.0 header so the AMOLED screen works.
