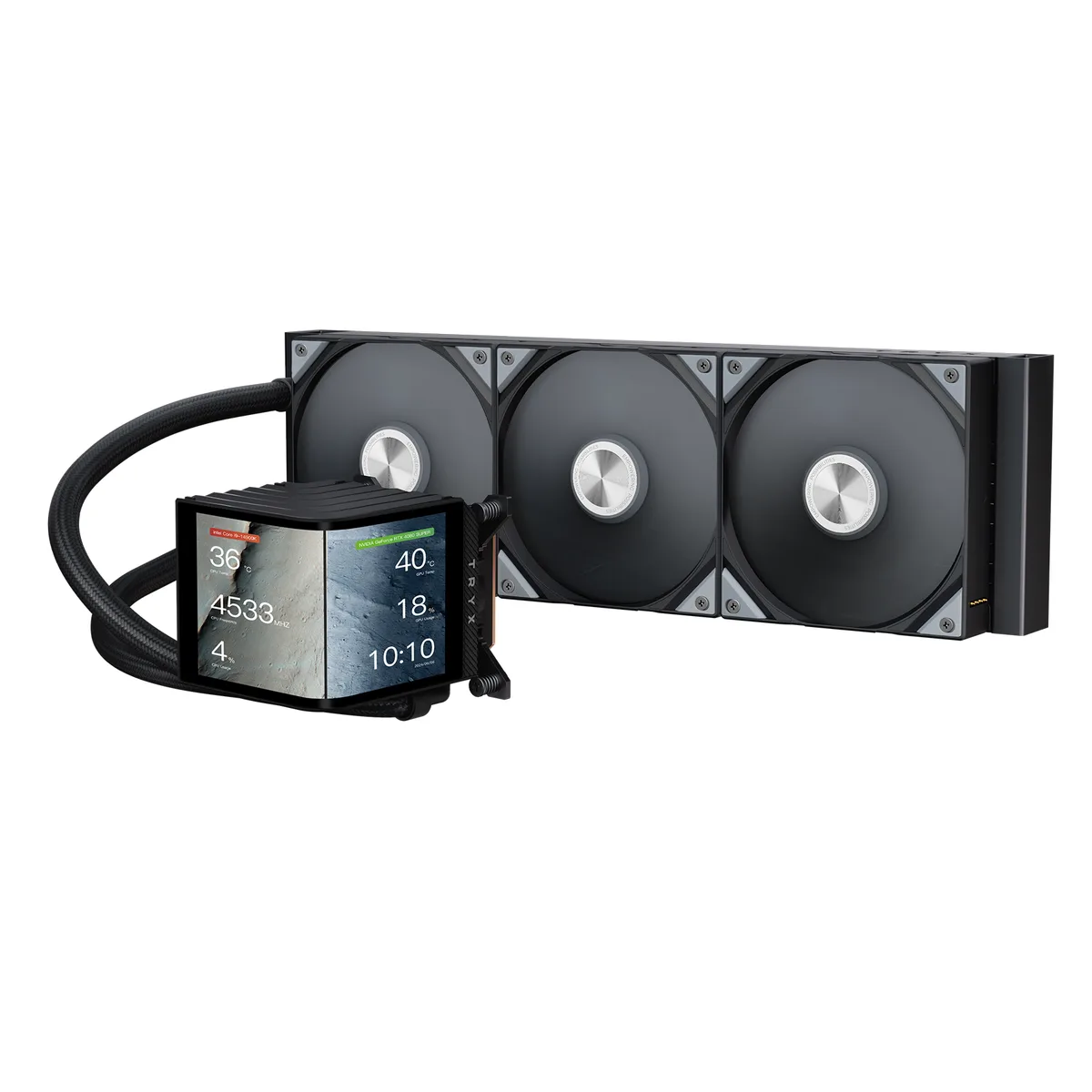

Black rectangular pump block with curved 6.67 inch AMOLED screen, three 120mm fans on 360mm radiator

TRYX

TRYX L-P360N-DS3M-G1K liquid cooler 360mm AMOLED 6.67" 320w TDP

SKU CH-JF7Y-GETV9 MPN L-P360N-DS3M-G1K

A 360 mm liquid cooler with a 6.67 inch AMOLED curved screen, Asetek 8th Gen V2 pump and 320 W TDP capacity

  • TypeLiquid Cooling System
  • Block Compatibility - AMDAM4/AM5
  • Block Compatibility - IntelIntel LGA 1851/1700/1200/1151/1150/1155
  • Block Dim.118*92*92mm
  • Block MaterialPC + ABS
  • DisplayAMOLED

Series PANORAMA

Fan Size 3 Fan Slots (120mm)

  • 2 Fan Slots (140mm)
  • 2 Fan Slots (120mm)
  • 3 Fan Slots (120mm)

Struck-through versions exist but are not stocked here.

Color|Model|LED Color Black|360mm|Non-RGB

Struck-through versions exist but are not stocked here.

  • Sharp visuals from 6.67" AMOLED curved screen at 2240*1080 resolution
  • 320w TDP cooling capacity via Asetek 8th Gen V2 pump
  • 30mm thick radiator with 40% thicker tubes and high-density fins
  • Three magnetic 120mm FDB fans deliver 81.32CFM airflow and 3.66mmAq pressure
  • KANALI software runs custom media with near-zero system resources

TRYX PANORAMA 360 liquid cooler with AMOLED display

The TRYX PANORAMA 360 is an all-in-one liquid cooler rated for 320w TDP. It fits Intel LGA 1851, 1700, 1200, 1151, 1150 and 1155 sockets plus AMD AM5 and AM4 platforms. A 6.67 inch curved AMOLED screen with 2240 by 1080 resolution and 60Hz refresh rate sits on the pump block. Builders who want a high-capacity cooler with an integrated customisable display will find it suitable. Buyers who need a cooler without a built-in screen or who require a smaller radiator should look elsewhere.

Installation uses magnetic cable fans

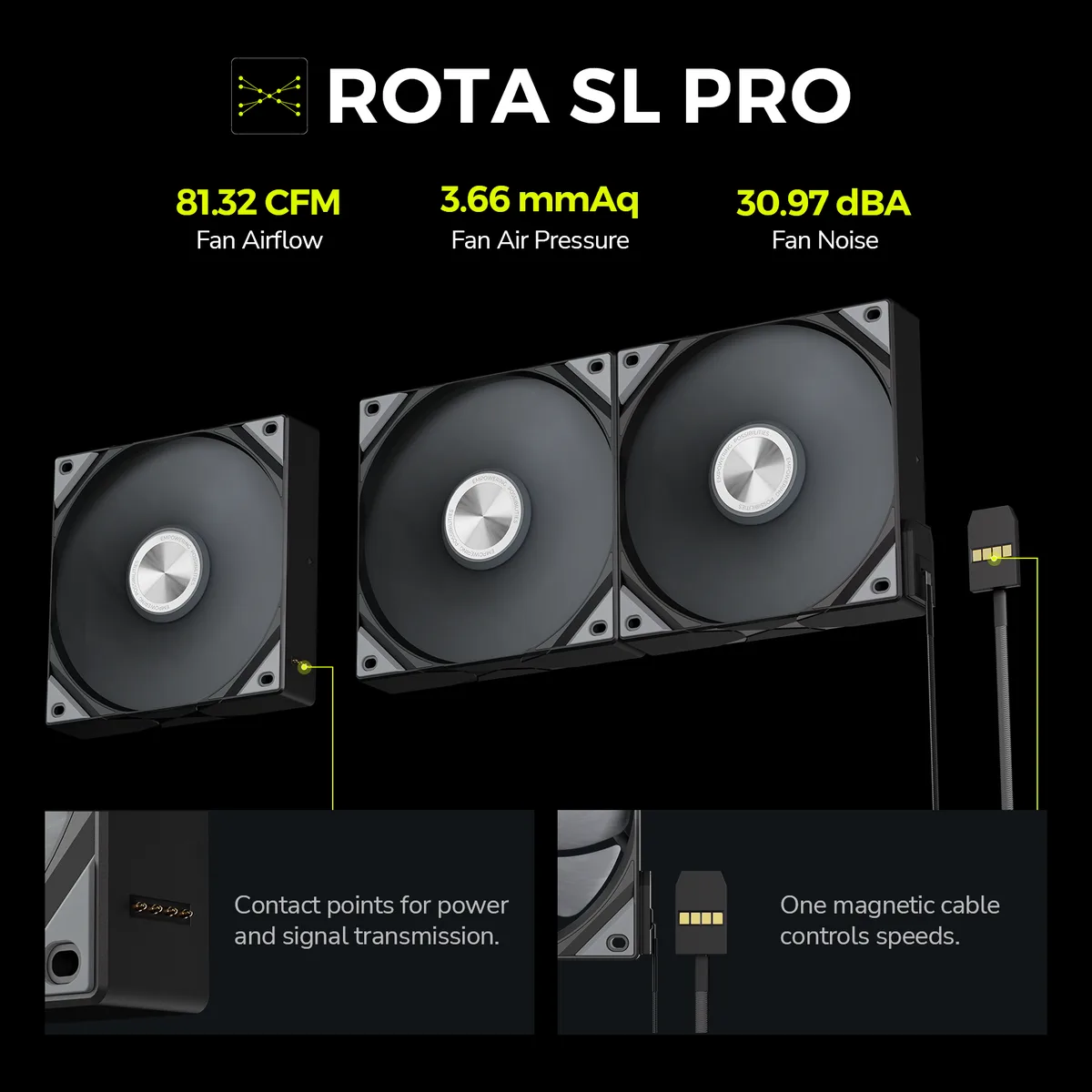

Three 120mm fluid dynamic bearing fans come pre-installed on the 30mm thick radiator and connect via magnetic cables to simplify wiring. The pump block measures 118 by 92 by 92mm and uses a ceramic bearing rated at 25.3dBA. Clearance around the 118mm tall block and the 360mm radiator must be verified in the chosen case. Installers who skip the magnetic connectors or overtighten the mounting screws risk damaging the pump or stripping threads.

320w TDP capacity with 30mm radiator

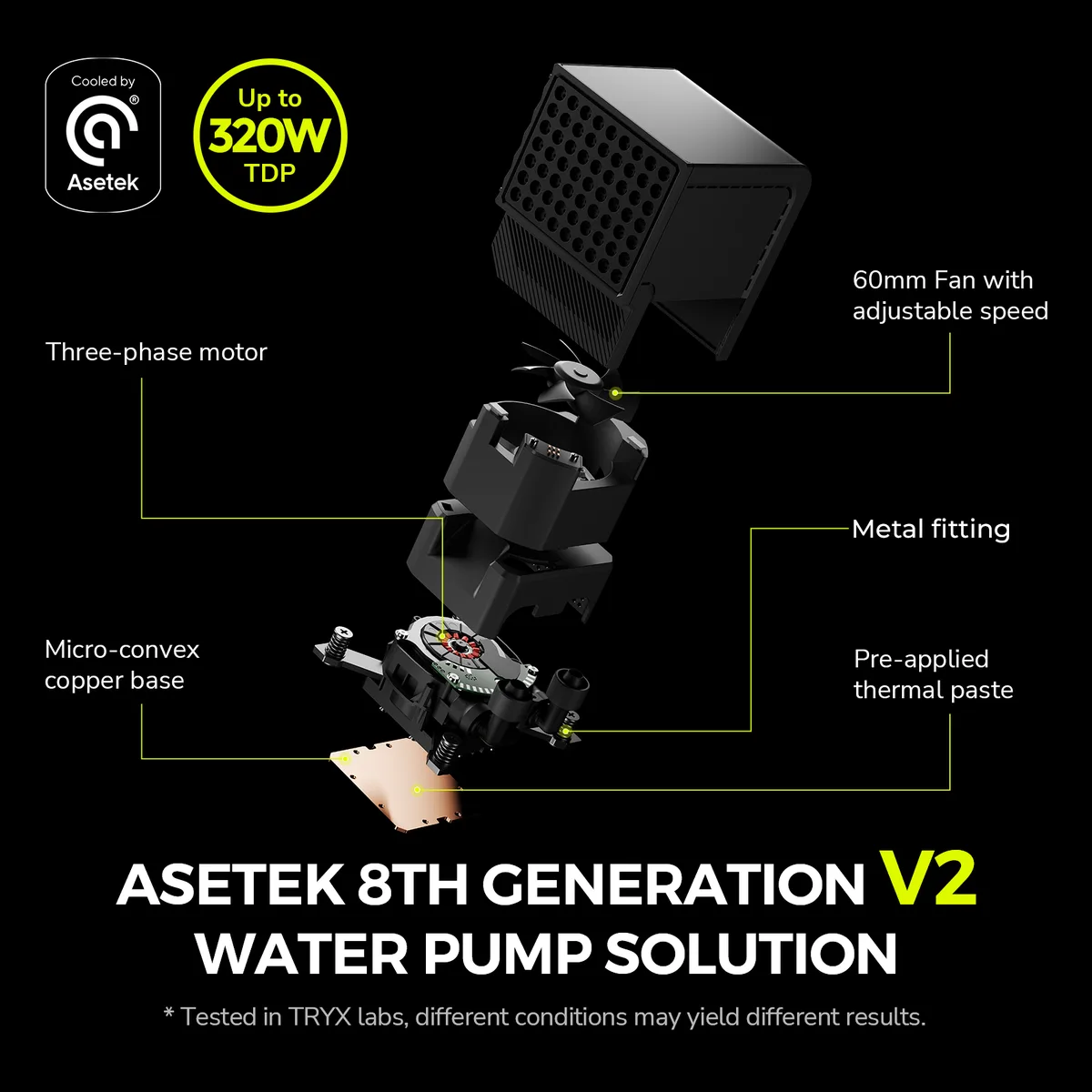

The Asetek 8th Gen V2 pump runs between 800 and 3600 RPM while fans operate from 500 to 2250 RPM delivering 81.32 CFM airflow and 3.66 mmAq static pressure. This combination handles sustained loads up to the rated 320w TDP. Workloads that exceed this thermal envelope or cases with restricted front or top airflow will see temperatures climb beyond comfortable limits.

Highlights

  • Sharp visuals from 6.67" AMOLED curved screen at 2240*1080 resolution
  • 320w TDP cooling capacity via Asetek 8th Gen V2 pump
  • 30mm thick radiator with 40% thicker tubes and high-density fins
  • Three magnetic 120mm FDB fans deliver 81.32CFM airflow and 3.66mmAq pressure
  • KANALI software runs custom media with near-zero system resources

Specifications

BrandTRYX
SeriesPANORAMA
ModelP360
Part NumberL-P360N-DS3M-G1K
TypeLiquid Cooling System
Block Compatibility - AMDAM4/AM5
Block Compatibility - IntelIntel LGA 1851/1700/1200/1151/1150/1155
Block Dim.118*92*92mm
Block MaterialPC + ABS
DisplayAMOLED
Pump Speed800-3600±10%
Pump Dim.118*92*92mm
Pump BearingCeramic
Pump Noise25.3dBA
Radiator Size360mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 25mm
Bearing TypeFluid Dynamic Bearing
Fan RPM500~2250RPM±10%
Fan Air Flow81.32CFM
Fan Noise30.97dBA
Fan Connector6 Pin
ColorBlack
LED ColorNon LED
Pressure3.66 mmH2O
Tube Dim.400mm
Tube MaterialEPDM
Features320w TDP
Package ContentsAIO Cooler, AMD/ Intel Brackets, Thermal Paste, Manual, Accessories for Installation
Shipping weight2.27 kg
Package size417 × 213 × 145 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the 6.67" AMOLED screen is working correctly after installation?

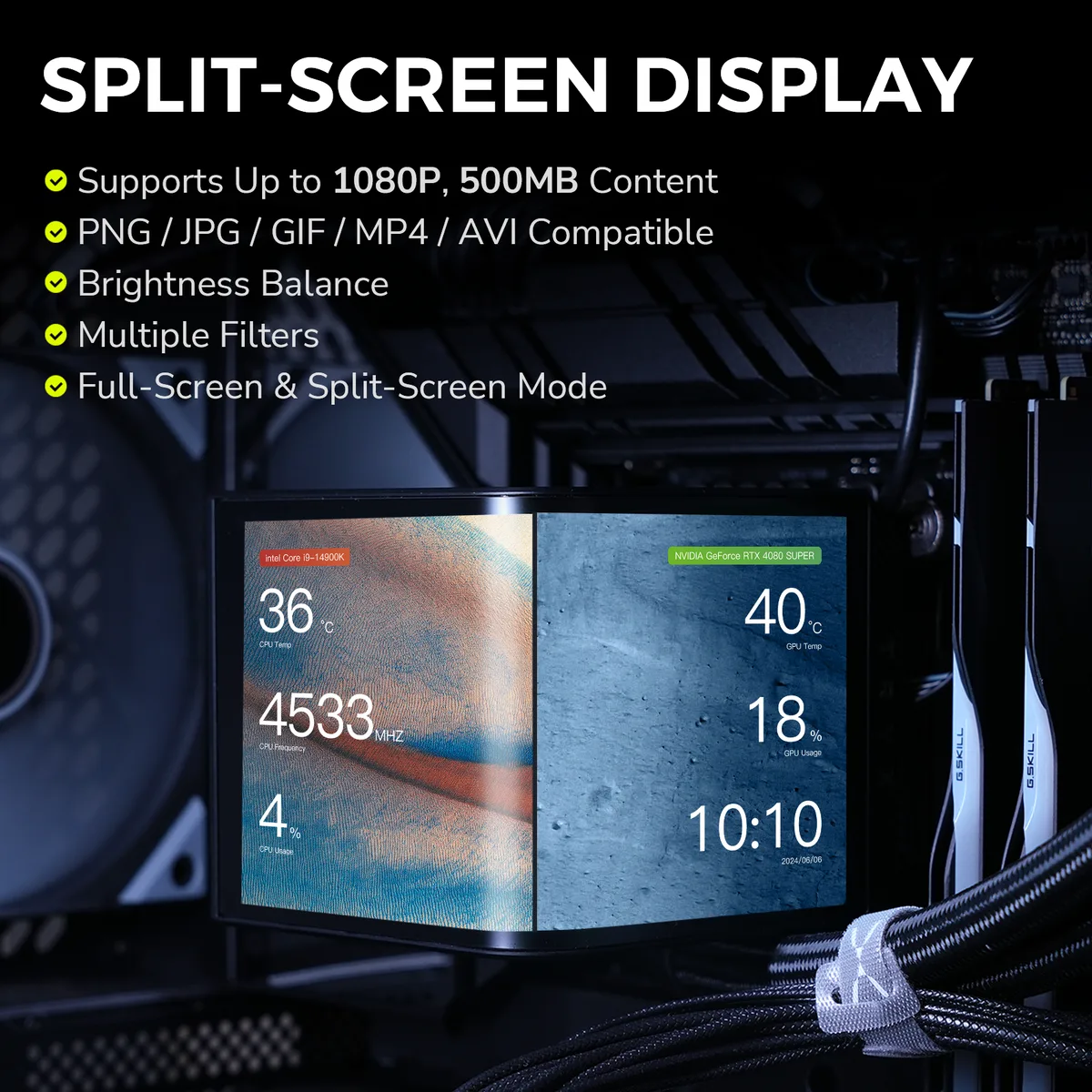

The display should show a 2240*1080 image at 60Hz with 500nit brightness and 1000000:1 contrast. KANALI software lets you load PNG, JPG, GIF, MP4 or AVI files up to 1080P and 500MB to confirm touch-free operation.

What comes in the box and what must I source separately for the PANORAMA 360?

The box contains the 360mm radiator, water block with 6.67" AMOLED, three pre-installed 120mm magnetic FDB fans, and mounting hardware for Intel LGA 1851/1700/1200/1151/1150/1155 and AMD AM5/AM4. No extra parts are required for a standard install.

Which PANORAMA variant should I choose if I need the 320w TDP rating and 3.66mmAq fan pressure?

Select the PANORAMA 360 (non-SE) in either colour; it delivers the Asetek 8th Gen V2 pump rated for 320w TDP, 30mm radiator, and three magnetic-cable fans rated at 3.66mmAq and 81.32CFM. The SE models drop to 280w TDP and 1.8mmAq.
