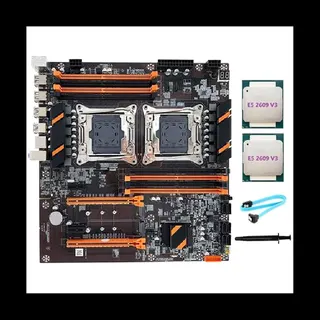

Black rectangular server motherboard with two CPU sockets and silver heatsinks

YINGHUA

YINGHUA X99 Dual CPU Server Motherboard LGA2011 2×E5-2609 V3

SKU CH-ZJCB-BSK0T

Dual-socket X99 server board with two E5-2609 V3 CPUs, eight DDR4 ECC slots up to 32 GB each, six SATA 3.0 ports and dual PCIe x16 slots

  • CPU TypeIntel Atom
  • Dual LGA2011 sockets with two E5-2609 V3 processors included
  • Eight DDR4 slots supporting up to 32 GB per module at 2800 MHz
  • Six SATA 3.0 ports plus two M.2 PCIe interfaces for storage
  • Four USB 3.0 and four USB 2.0 ports for peripheral connectivity
  • Dual PCIe 16x slots plus two additional PCIe slots for expansion

Dual LGA2011 server board with two E5-2609 V3 CPUs

This motherboard pairs an Intel X99 chipset with two LGA2011 sockets and ships with a matched pair of E5-2609 V3 processors. It targets builders who need a ready-to-run dual-CPU platform for multi-threaded server workloads without sourcing CPUs separately. Eight DDR4 slots accept ordinary or ECC modules up to 32 GB each at 2133, 2400 or 2800 MT/s.

Upgrades single-socket X99

Moving from a single-socket X99 board doubles the physical CPU count and the available memory channels, which benefits virtualization hosts and render farms that scale across cores. The jump is worth it when the workload can use the extra threads and the memory capacity of sixteen DIMM slots across two boards is not required. Six SATA 3.0 ports and two PCIe x16 slots carry over existing storage and add-in cards.

Limited to PCIe-only M.2 and 100 Mbit Ethernet

The single M.2 slot labelled M.2 supports PCIe signalling only, so SATA-based M.2 drives will not function in that slot. A second M.1 slot accepts both PCIe and SATA M.2 devices, giving one flexible option for solid-state storage. Network connectivity is provided by a Realtek 8106E or 8111H controller capped at 100 Mbit/s, which restricts throughput for modern network-attached storage or backup tasks.

Highlights

  • Dual LGA2011 sockets with two E5-2609 V3 processors included
  • Eight DDR4 slots supporting up to 32 GB per module at 2800 MHz
  • Six SATA 3.0 ports plus two M.2 PCIe interfaces for storage
  • Four USB 3.0 and four USB 2.0 ports for peripheral connectivity
  • Dual PCIe 16x slots plus two additional PCIe slots for expansion

Specifications

CPU TypeIntel Atom

Questions about this item

Will the 290 x 280 mm board fit in a standard E-ATX server chassis?

The board measures 290 x 280 mm, which matches the common E-ATX footprint used in many 2U and 4U server cases. Verify your chassis specifications for exact mounting-hole alignment before purchase.

What is the correct order for installing the two LGA 2011 CPUs and applying the included thermal grease?

Install each E5-2609 V3 processor into its socket, apply a thin layer of the supplied thermal grease on the heat-spreader, then attach the heatsinks. The step often missed is tightening the heatsink screws in a diagonal pattern to ensure even pressure.

How often should the DDR4 ECC memory modules be reseated or replaced in a 24/7 server workload?

DDR4 ECC modules do not have a scheduled replacement interval. Reseat them only if the system reports correctable memory errors or fails to POST after a hardware change; otherwise they run for the life of the motherboard.
