Green circuit board with two M.2 slots on opposite sides and an extra PCIe x16 slot, full-height bracket

RIITOP

RIITOP PCIe 4.0 x16 Dual NVMe Adapter with PCIe x16 (x8 Signal)

SKU CH-A1PH-YE5RC

Adds two M.2 NVMe slots and a PCIe x16 (x8 signal) slot via a PCIe 4.0 x16 connection, requiring motherboard bifurcation support

  • TypeNVME to PCIe 4.0
  • Add two NVMe SSDs via PCIe 4.0 x16
  • Extra PCIe x16 slot runs at x8 signal
  • Supports M.2 2230, 2242, 2260, 2280, 22110 sizes
  • Requires motherboard PCIe x8x4x4 bifurcation
  • Individual LED shows each SSD working status

Dual NVMe adapter with extra PCIe slot

This RIITOP adapter adds two M.2 NVMe slots and an additional PCIe x16 slot running at x8 signal through a single PCIe 4.0 x16 connection. It targets builders who want to install multiple NVMe drives while retaining an expansion slot for another card. The board requires a motherboard that supports PCIe bifurcation set to x8x4x4 in the BIOS. Without that setting the M.2 slots will not be recognised.

Compact double-sided layout with per-drive LEDs

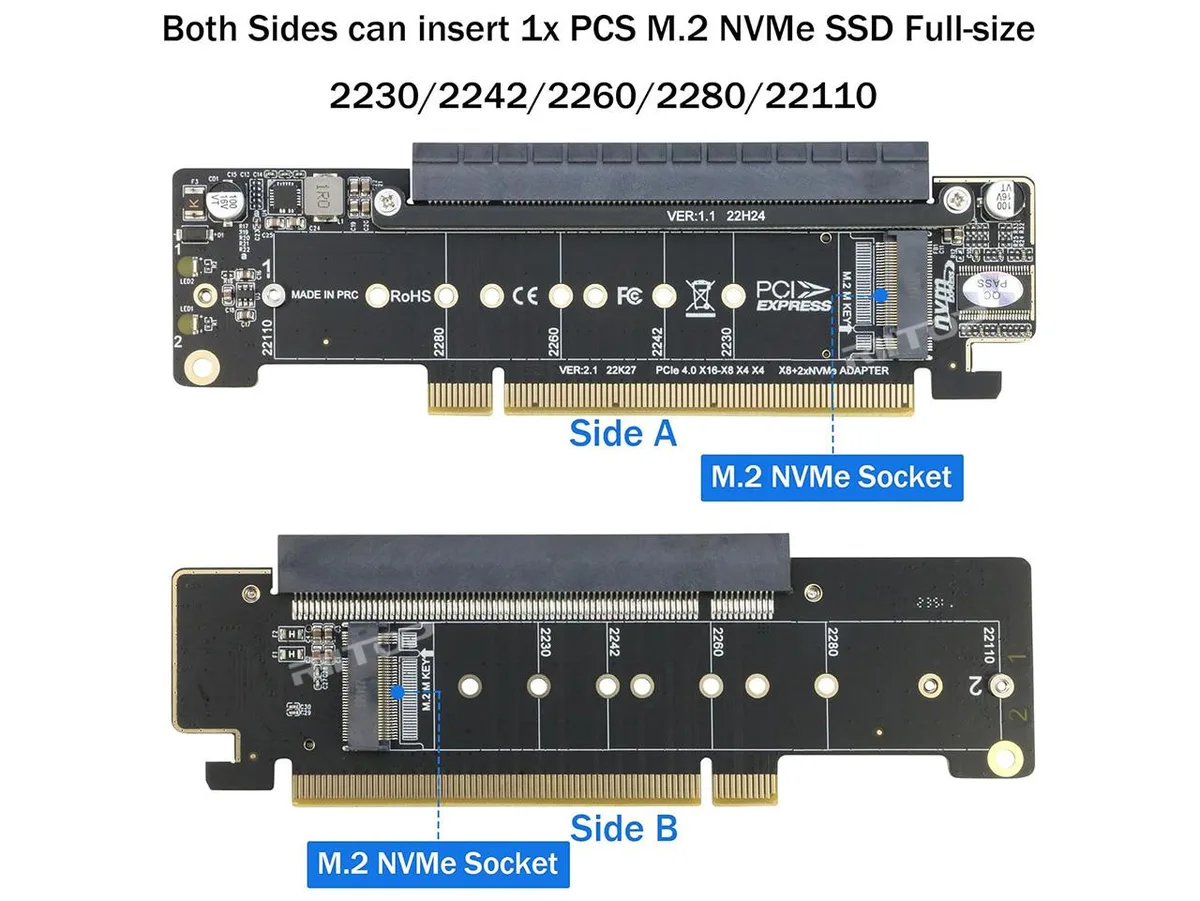

Both M.2 slots are placed on opposite sides of the PCB, keeping the card short enough for tight chassis. Each slot has its own LED indicator so you can see drive activity at a glance. The extra PCIe x16 connector accepts any standard add-in card at x8 electrical speed. Supported drive lengths are 2230, 2242, 2260, 2280 and 22110. SATA-based M.2 drives are not compatible.

Replaces single-slot NVMe risers when bifurcation

If your platform already offers x8x4x4 bifurcation — typical on X299 or X399 systems — this card upgrades from a basic one-drive riser to dual NVMe plus a spare x8 slot. The jump is worth it only when the CPU and chipset provide enough lanes for all three endpoints. Buyers whose motherboards lack bifurcation or only support x4x4x4x4 will not see the M.2 drives appear.

Pontos fortes

  • Add two NVMe SSDs via PCIe 4.0 x16
  • Extra PCIe x16 slot runs at x8 signal
  • Supports M.2 2230, 2242, 2260, 2280, 22110 sizes
  • Requires motherboard PCIe x8x4x4 bifurcation
  • Individual LED shows each SSD working status

Especificações

TypeNVME to PCIe 4.0

Perguntas sobre este artigo

Does the PCIe 4.0 x16 interface require motherboard bifurcation to run both NVMe slots at full speed?

Yes, the board must support PCIe x16 bifurcation set to x8x4x4 in BIOS; without it only the extra PCIe x16 slot works and the NVMe drives are not recognised.

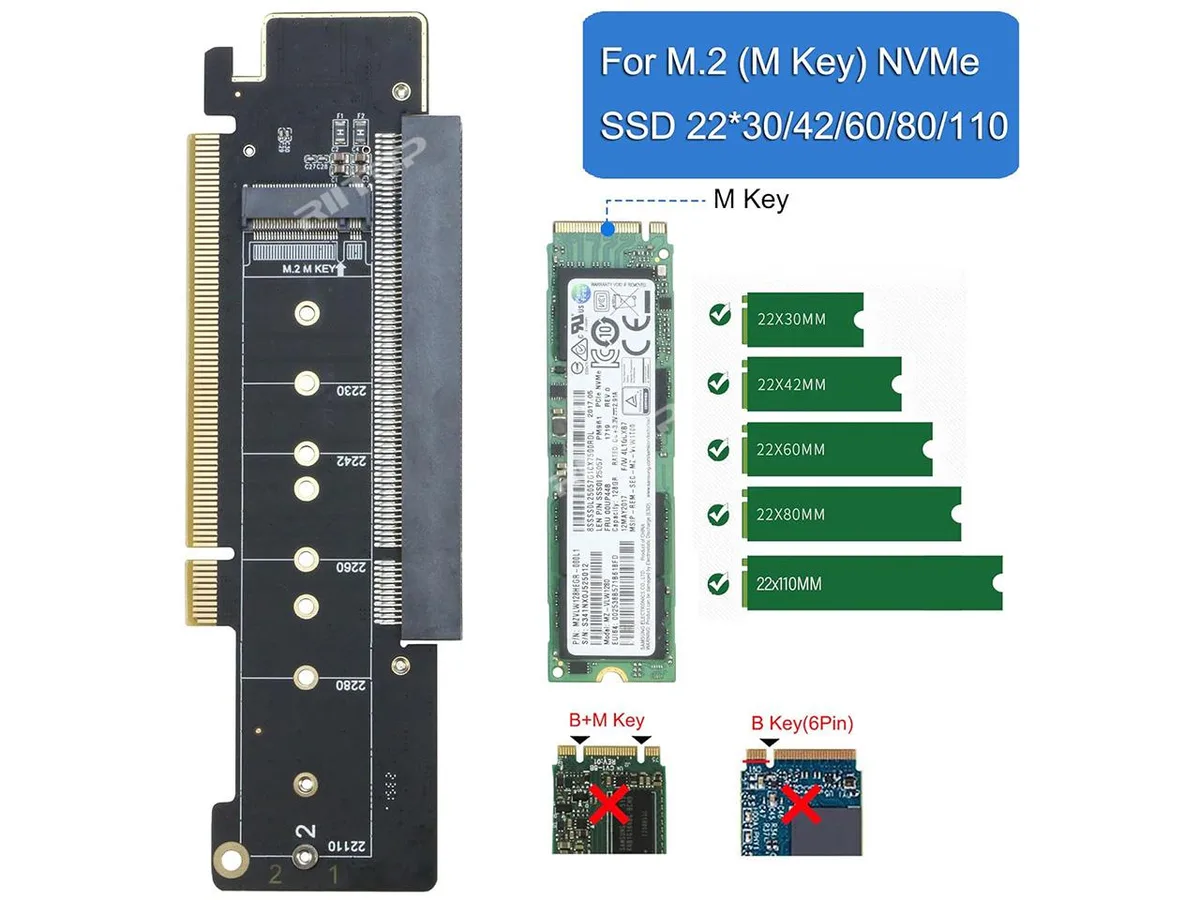

Which M.2 form factors fit the two NVMe slots on this card?

The slots accept M-key NVMe SSDs in 2230, 2242, 2260, 2280 and 22110 sizes; SATA-based B+M key drives are not supported.

How is the adapter installed and what step is often missed?

Insert the card into a PCIe 4.0 or 3.0 x16 slot, mount the NVMe drives on both sides of the PCB, then enable x8x4x4 bifurcation in the motherboard BIOS — skipping the BIOS setting is the common mistake.
