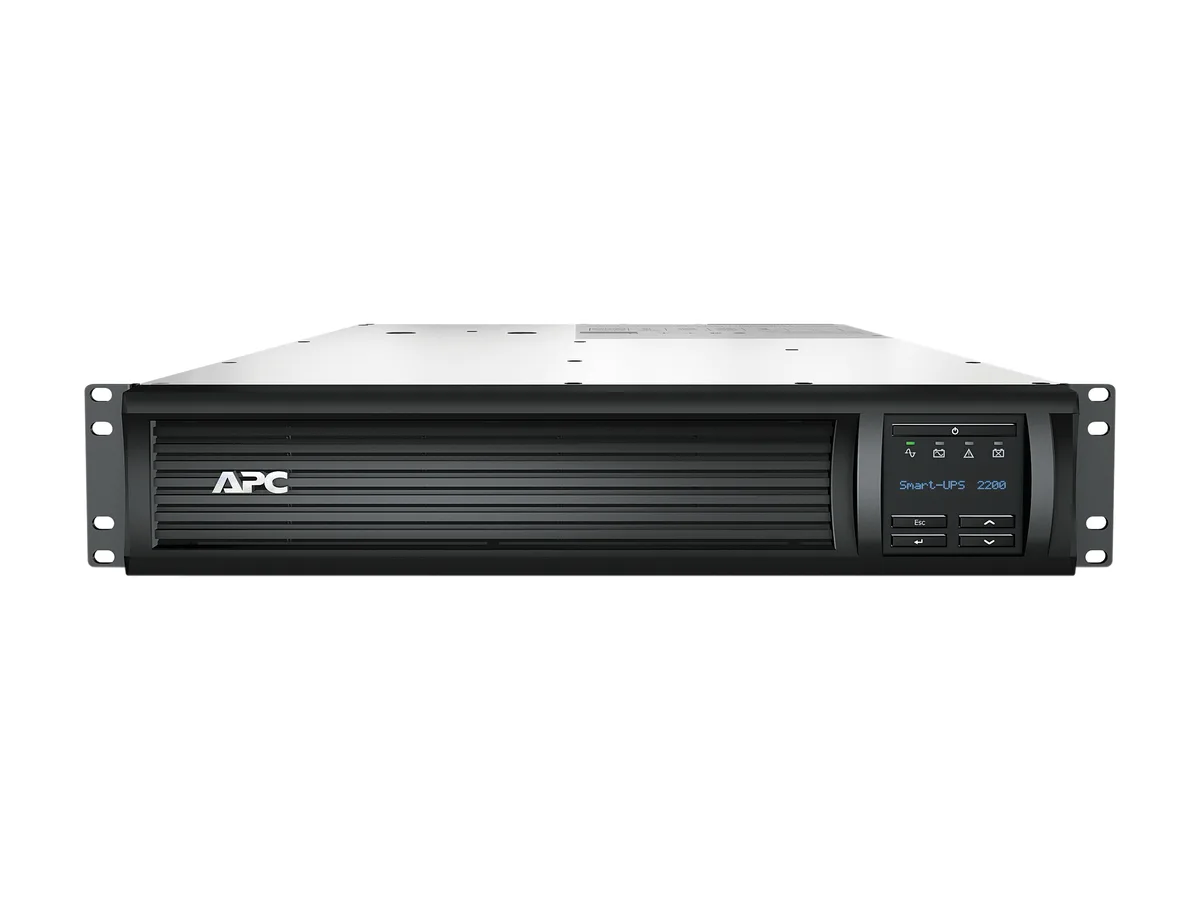

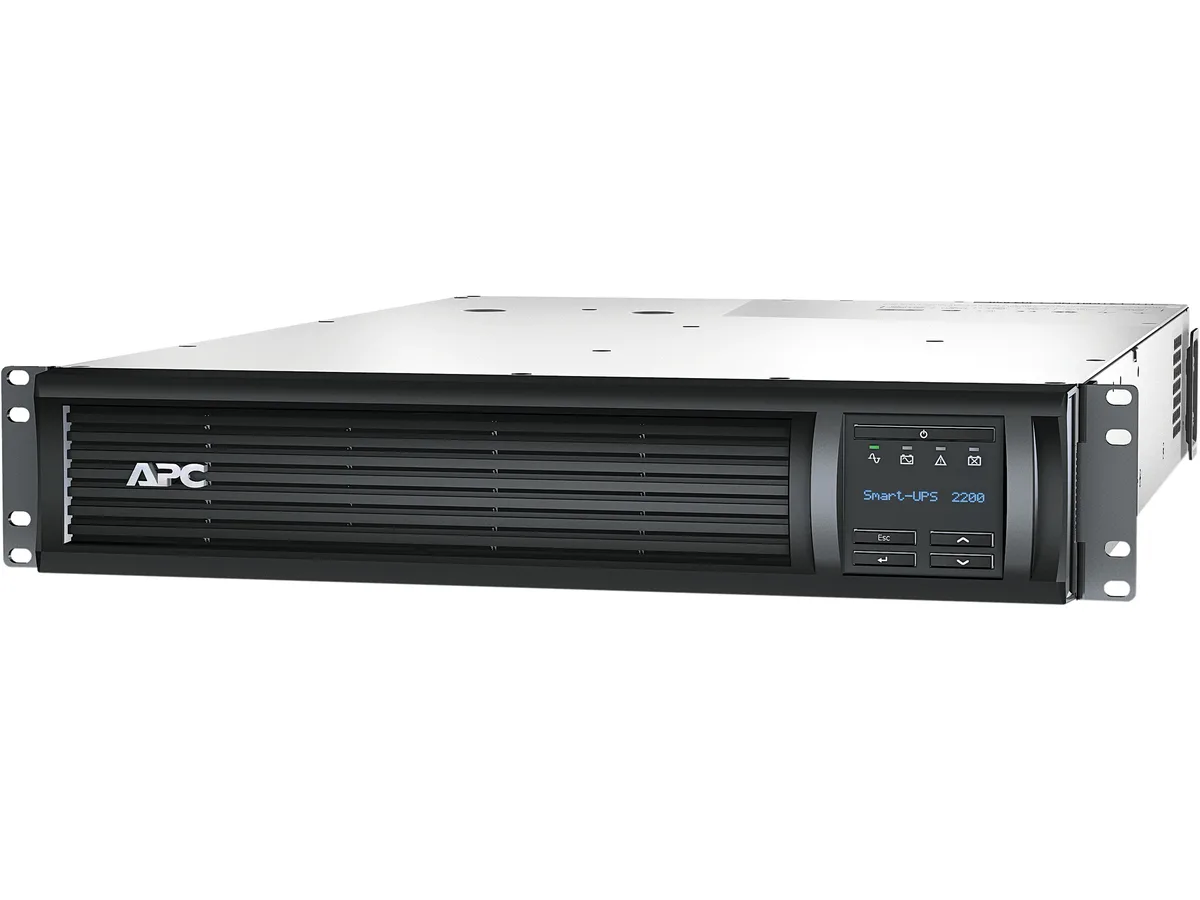

APC SMT2200RM2UC 2U rackmount UPS, black metal chassis, LCD screen, eight outlets on rear

APC

APC SMT2200RM2UC UPS 2200VA 120V 2U Rackmount 8 Outlets

SKU CH-PXZZ-TWDXF MPN SMT2200RM2UC

Line-interactive UPS delivers 2200 VA / 1980 W sine-wave output with automatic voltage regulation, eight NEMA outlets, LCD status screen and SmartSlot for network management

  • International Version120V
  • Input Voltage Range82 - 144V
  • Input Frequency50/60 Hz +/- 3 Hz
  • Input ConnectionNEMA 5-20P
  • VA Rating2200 VA
  • Watts1980 Watts

Options SMT2200RM2UC

顯示另外 2 款選項

被劃上刪除線的選項確實存在，但本站並無供貨。

  • 2200 VA capacity supports critical rack equipment
  • Pure sine-wave output protects sensitive servers
  • Automatic voltage regulation corrects 82–144 V input without battery drain
  • LCD panel shows runtime, load and power status at a glance
  • SmartConnect and SmartSlot enable remote monitoring and management

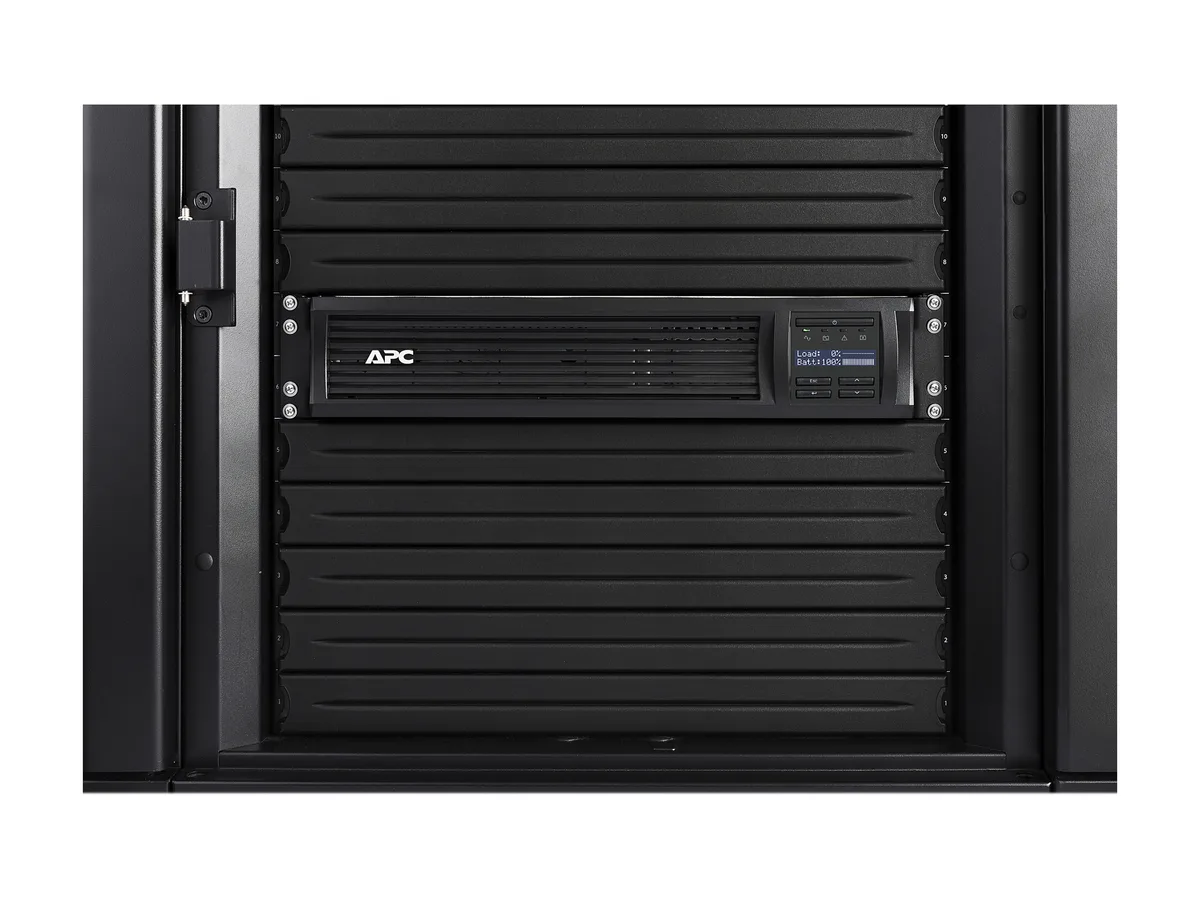

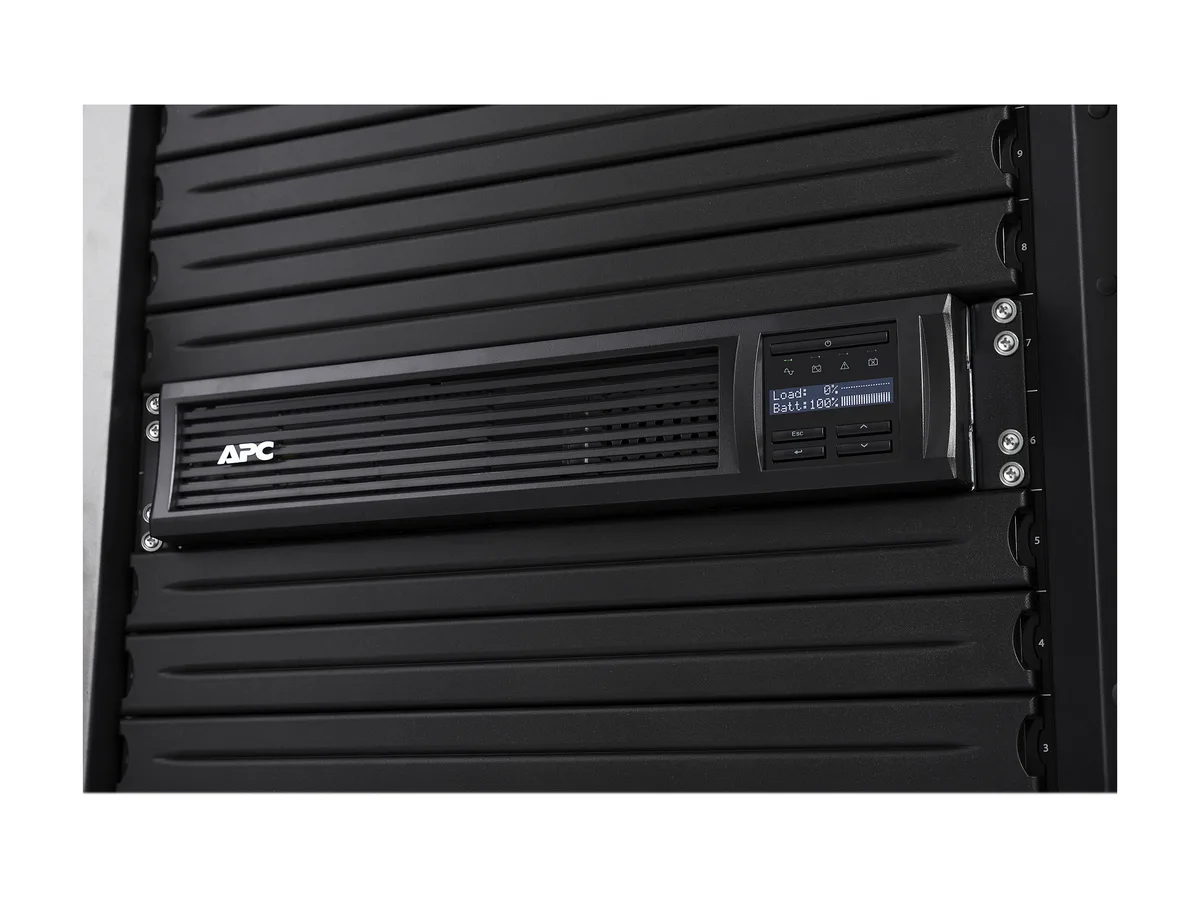

Rackmount UPS for server rooms

The APC SMT2200RM2UC is a line-interactive uninterruptible power supply rated at 2200 VA and 1980 W. It fits a standard 19-inch rack in a 2U form factor and operates from a 120 V supply. The unit is designed for network closets and small data centres that need battery backup with automatic voltage regulation.

Eight outlets and replaceable battery

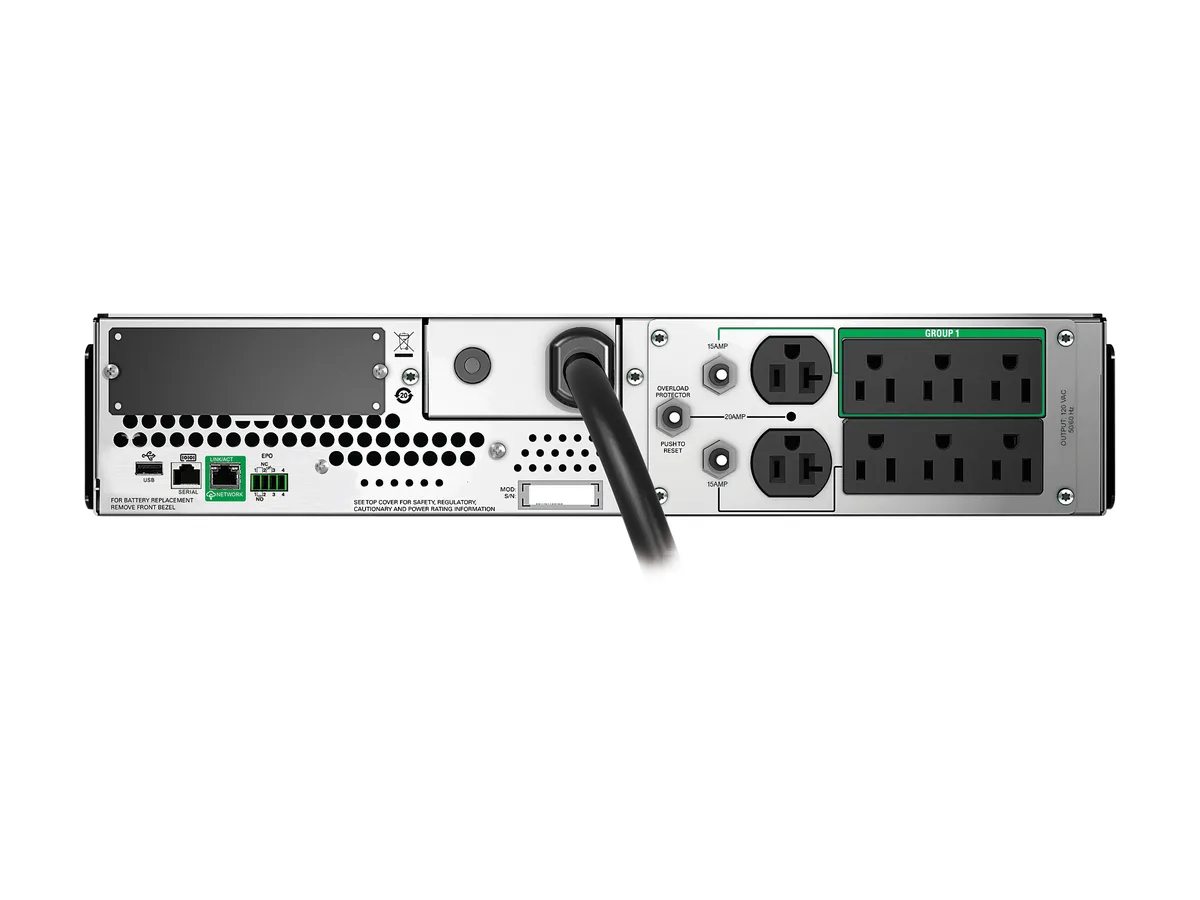

Six NEMA 5-15R and two NEMA 5-20R receptacles provide battery-backed power for multiple devices. The input connects via a NEMA 5-20P plug. A user-replaceable RBC43 cartridge simplifies service without shutting down the load. An LCD panel shows operating mode, load, runtime and battery capacity at a glance.

Transfer time and input window constraints

The UPS switches to battery in 10 ms, which suits most modern power supplies but may challenge highly sensitive equipment. Input voltage is accepted between 82 V and 144 V, and frequency between 47 Hz and 53 Hz. Surge protection is rated at 530 joules. Approvals include UL 1778 and CSA.

商品特色

  • 2200 VA capacity supports critical rack equipment
  • Pure sine-wave output protects sensitive servers
  • Automatic voltage regulation corrects 82–144 V input without battery drain
  • LCD panel shows runtime, load and power status at a glance
  • SmartConnect and SmartSlot enable remote monitoring and management

商品規格

BrandAPC
ModelSMT2200RM2UC
International Version120V
Input Voltage Range82 - 144V
Input Frequency50/60 Hz +/- 3 Hz
Input ConnectionNEMA 5-20P
VA Rating2200 VA
Watts1980 Watts
Output Voltage120V
Output Frequency47 - 53 Hz
Outlets8
Outlet Type6 x NEMA 5-15R
2 x NEMA 5-20R
Battery TypeSealed Lead Acid
Battery Run TimeAt Full load: 5 Minutes
Battery ReplaceableRBC43
Interface PortRJ-45, USB, Smart-Slot
ApprovalsUL 1778, CSA
FeaturesLCD Display Screen - Clear, Consistent, and detailed information in your choice of basic or advanced menus
Power Status- Operating mode, efficiency, load, input / output frequency, battery capacity, runtime and more
Configuration - Easily configure: language, power quality, alarms, delay and threshold settings
Test and Diagnostics - Initiate battery and runtime calibration tests
Control - UPS and outlet group settings
Quick Status Indicators - Online, on battery, fault, and replace battery LEDs for quick status identification
Escape, Return and navigation buttons - Intuitive navigati
Dimensions3.50" x 19.00" x 27.00"
Weight93.00 lbs.
出貨重量49.73 kg
包裝尺寸980 × 600 × 254 mm

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Does the NEMA 5-20P input plug require a dedicated 20 A circuit?

Yes, the unit draws up to 1980 W at 120 V, so a 20 A branch circuit is needed for the NEMA 5-20P inlet.

What rack depth and hardware are needed to mount the 2U chassis?

The chassis is 27.00 inches deep and fits a standard 19-inch rack; cage nuts or threaded rails for 3.50 inches of vertical space are required.

What is the correct order for connecting the battery and starting the UPS?

Plug the UPS into the 20 A supply, press the front-panel power button, then allow the self-test to complete before attaching loads.
