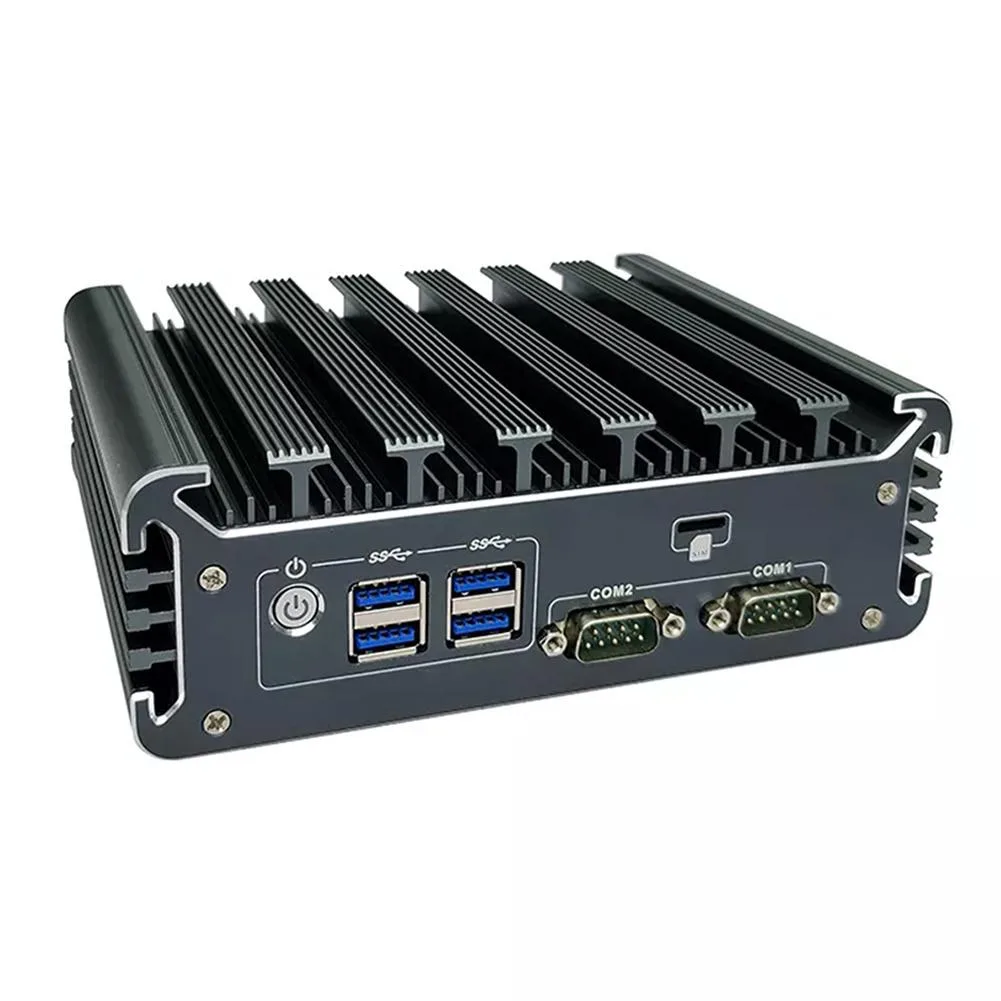

Compact fanless aluminium mini PC in dark grey, square shape with rounded edges, front ports and power button visible

partaker

partaker B5 barebone mini PC i5-7360U 32GB 1TB

SKU CH-5TG6-78AMZ

Fanless aluminium mini PC with Intel Core i5-7360U, 32 GB DDR4, 1 TB storage, dual 2.5G LAN, HDMI and DisplayPort

  • ColorGray
  • CPU TypeIntel Core i5 7th Gen
  • M.2 Slot1 x M.2
  • Integrated GraphicsIntel Iris Plus Graphics 640
  • DisplayPort1 x DisplayPort

Group 32G RAM / 1T SSD

  • Intel Core i5-7360U dual-core processor reaches 3.6 GHz for responsive multi-tasking
  • 32 GB DDR4 memory and 1 TB storage handle demanding workloads and large files
  • Dual Intel i225-V 2.5 GbE ports provide high-speed wired networking for servers or NAS
  • HDMI and DisplayPort drive two independent displays for signage or productivity
  • Fanless aluminium chassis operates silently from 0 °C to 50 °C in industrial environments

Industrial mini PC with i5-7360U

The Partaker B5 is a fanless barebone system built around an Intel Core i5 7360U dual-core processor reaching 3.6 GHz. It arrives with 32 GB of DDR4 2133 memory and a 1 TB M.2 2280 drive, all housed in an anodised aluminium chassis measuring 166 x 127 x 55.5 mm.

Suited for digital signage and edge deployments

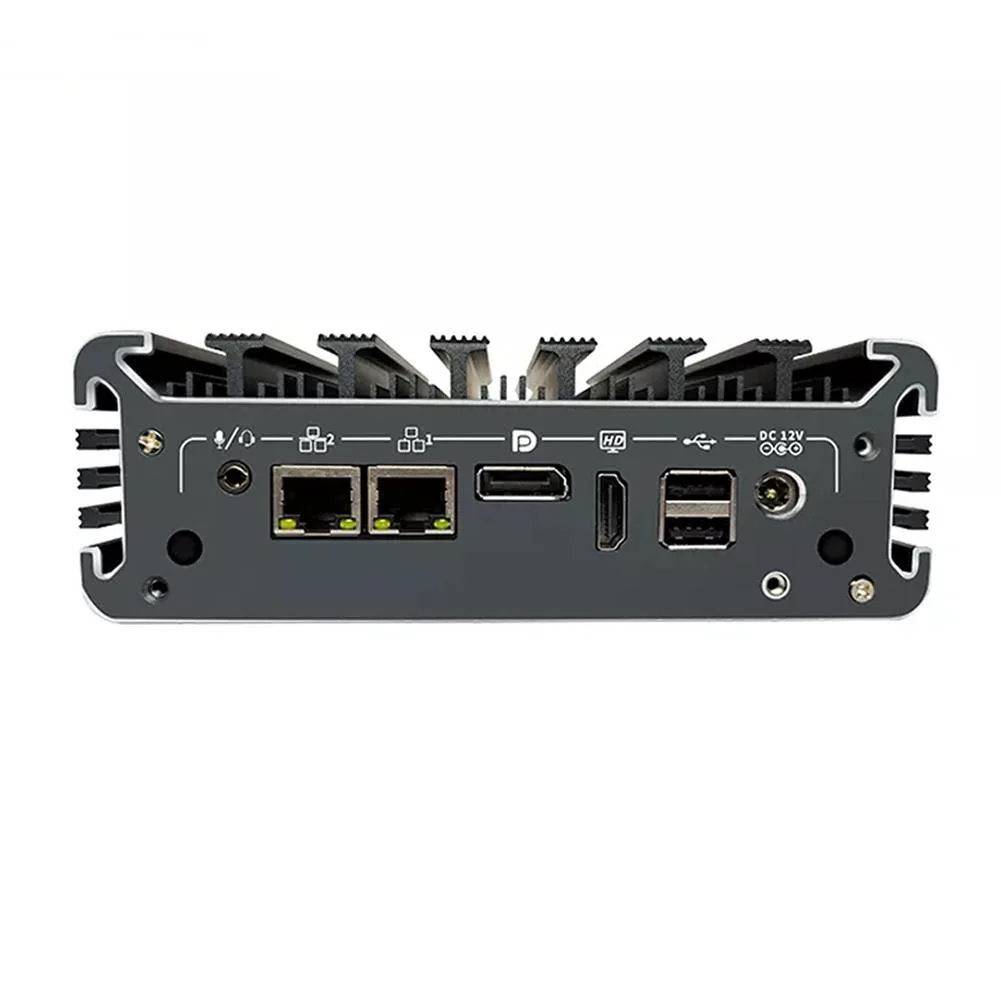

Dual 2.5 GbE Intel i225-V ports, HDMI and DisplayPort outputs, plus two COM headers make it a natural fit for kiosks, automation controllers or thin-client fleets. Buyers needing internal 2.5-inch drive bays, discrete graphics performance or active cooling for sustained heavy loads should look at larger form factors.

Single M.2 2280 slot supports SATA and NVME

Storage expansion is limited to one M-key socket accepting either protocol, with RAID 0/1 possible only when a second drive is added externally. Verify that your workload fits within this single-slot constraint before ordering.

商品特色

  • Intel Core i5-7360U dual-core processor reaches 3.6 GHz for responsive multi-tasking
  • 32 GB DDR4 memory and 1 TB storage handle demanding workloads and large files
  • Dual Intel i225-V 2.5 GbE ports provide high-speed wired networking for servers or NAS
  • HDMI and DisplayPort drive two independent displays for signage or productivity
  • Fanless aluminium chassis operates silently from 0 °C to 50 °C in industrial environments

商品規格

ColorGray
CPU TypeIntel Core i5 7th Gen
M.2 Slot1 x M.2
Integrated GraphicsIntel Iris Plus Graphics 640
DisplayPort1 x DisplayPort

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Does the barebone ship with RAM and storage already installed or do I need to add them?

The unit arrives with 32GB DDR4 2133 SODIMM and a 1TB M.2 2280 SSD fitted, so no separate memory or drive purchase is required.

Should I choose the M.2 2280 slot for SATA or NVME protocol when adding a second drive?

The M.2 2280 M-Key slot accepts both SATA and NVME protocols, so you can install either type of SSD as the second drive.

What does the Intel Iris Plus Graphics 640 with 2.5G LAN mean for dual-display 4K output?

Intel Iris Plus Graphics 640 drives one HDMI and one DisplayPort simultaneously, while dual Intel i225-V 2.5G LAN provides two 2500M network links for high-throughput tasks.
