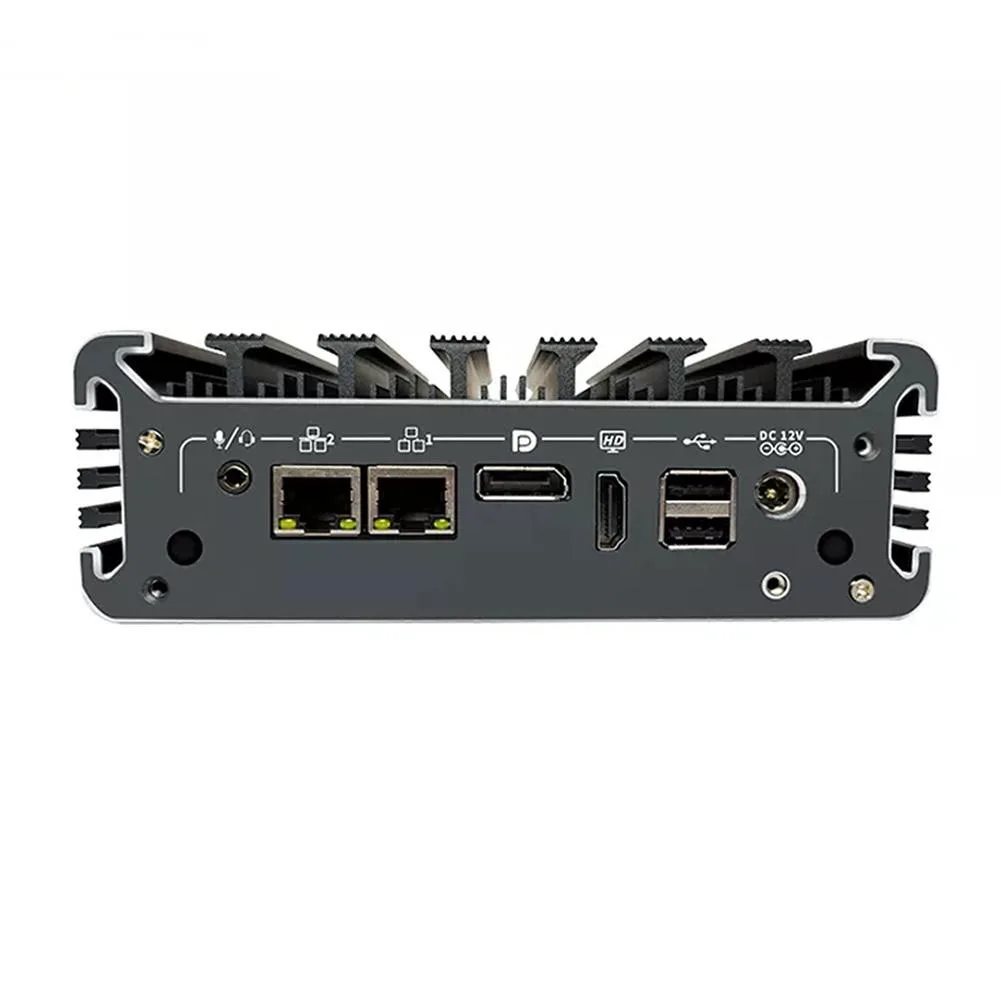

Small grey aluminium box with front ports and rear connectors

partaker

partaker B5 i5-7360U 8GB 128GB barebone mini PC

SKU CH-Q7WG-4P6CH

Fanless aluminium mini PC with an Intel Core i5-7360U, 8 GB DDR4, 128 GB storage and dual 2.5 GbE LAN ports

  • ColorGray
  • CPU TypeIntel Core i5 7th Gen
  • M.2 Slot1 x M.2
  • Integrated GraphicsIntel Iris Plus Graphics 640
  • DisplayPort1 x DisplayPort

Group 8GB / 128GB

  • Dual 2.5G LAN ports for fast wired networking
  • Fanless aluminium chassis runs silently in industrial settings
  • Expandable to 32GB DDR4 and dual drives with RAID 0/1
  • HDMI plus DisplayPort drives two 4K displays
  • Wide -20°C to 50°C operating range with SSD

Fanless mini PC for industrial sites

The partaker B5 is a new fanless barebone built around an Intel Core i5 7360U processor with two cores and four threads running up to 3.6 GHz. It ships with 8 GB of DDR4 2133 memory and a 128 GB M.2 2280 SSD. Dual Intel i225-V 2.5G LAN ports, HDMI and DisplayPort outputs, two COM ports and a SIM slot support embedded and signage deployments.

Who should choose this unit and who should not

Buyers needing silent operation in dusty or vibration-prone environments will appreciate the aluminium chassis and wide temperature range. The box also suits kiosks and automation cabinets that require dual 2.5G Ethernet and legacy serial ports. It is not for users who want discrete graphics performance, more than two display outputs, or a higher core count for heavy compute workloads.

The spec that decides fit

The CPU is a 7th-generation Intel Core i5 7360U with Iris Plus Graphics 640, so the platform tops out at DDR4 2133 and supports Windows 10, Windows 11 or Linux. If your software demands a newer instruction set or more memory bandwidth, this barebone will not meet that requirement.

商品特色

  • Dual 2.5G LAN ports for fast wired networking
  • Fanless aluminium chassis runs silently in industrial settings
  • Expandable to 32GB DDR4 and dual drives with RAID 0/1
  • HDMI plus DisplayPort drives two 4K displays
  • Wide -20°C to 50°C operating range with SSD

商品規格

ColorGray
CPU TypeIntel Core i5 7th Gen
M.2 Slot1 x M.2
Integrated GraphicsIntel Iris Plus Graphics 640
DisplayPort1 x DisplayPort

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How do I add storage to the M.2 2280 slot on this B5 mini PC?

Insert the M.2 2280 module into the M-Key slot and secure it with the retaining screw; the step most often missed is fastening that screw so the drive stays seated under vibration.

What maintenance will the fanless aluminium chassis need over time?

The chassis relies on surface air flow for cooling, so periodically clear dust from the fins and verify the unit stays within the 0 to 40 °C commercial or -20 to 50 °C industrial operating range.

Which thermal limit appears first during a sustained heavy workload?

The passively cooled case reaches its maximum operating temperature before the Intel Core i5 7360U hits its 3.6 GHz turbo ceiling, so the chassis thermal capacity is the first bottleneck.
