Compact grey aluminium mini PC with fanless chassis

partaker

partaker B5 barebone mini PC i5-7360U 8GB 256GB

SKU CH-WBS8-93AAV

Fanless aluminium mini PC with Intel Core i5-7360U, 8 GB DDR4, 256 GB SSD, dual 2.5 GbE LAN and HDMI plus DisplayPort outputs

  • ColorGray
  • CPU TypeIntel Core i5 7th Gen
  • M.2 Slot1 x M.2
  • Integrated GraphicsIntel Iris Plus Graphics 640
  • DisplayPort1 x DisplayPort

Group 8GB / 256GB SSD

  • Dual 2.5G Intel LAN ports enable fast wired networking
  • Fanless aluminium chassis runs silently in industrial environments
  • Iris Plus 640 graphics drives two displays via HDMI and DP
  • 8 GB DDR4 and 256 GB storage ready for Windows 11
  • Expandable to 32 GB RAM with M.2 and 2.5-inch bays

Fanless industrial mini PC

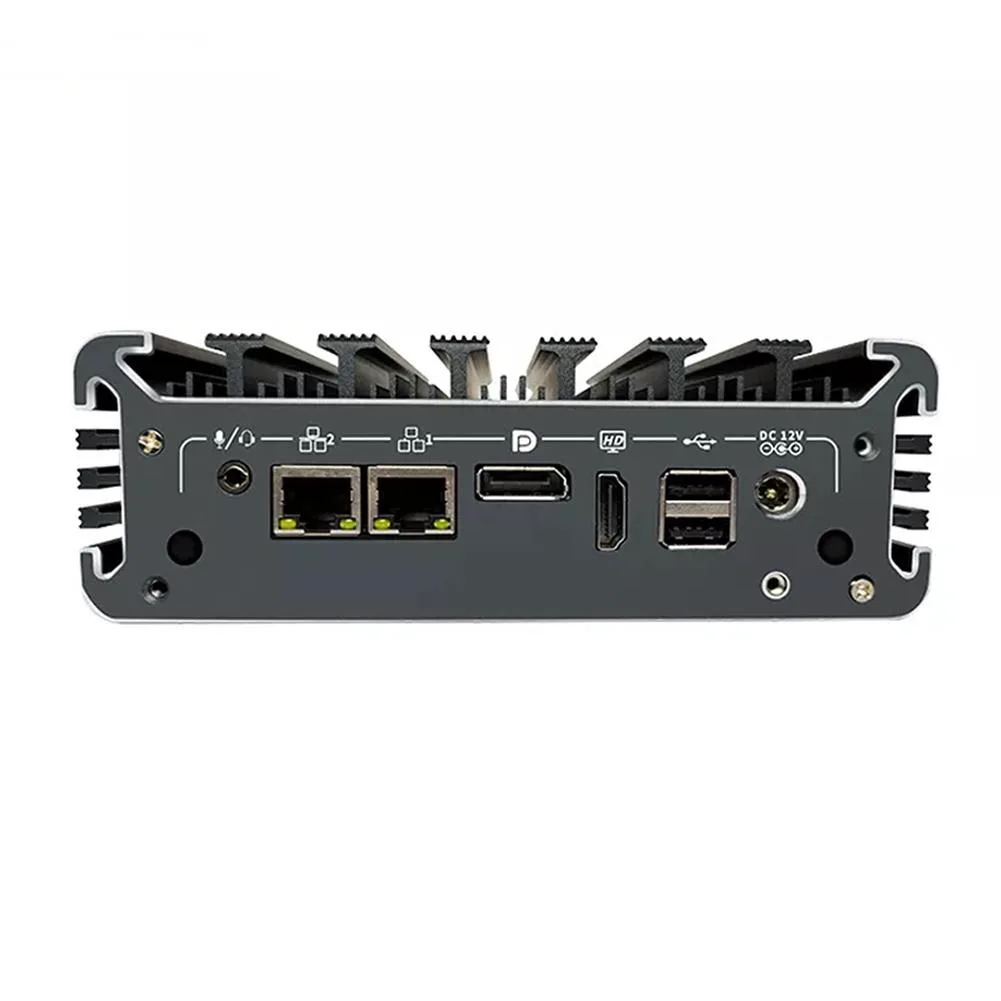

The Partaker B5 is a fanless mini PC built on an Intel Core i5 7360U processor with two cores and four threads reaching 3.6 GHz. It ships with 8 GB of DDR4 2133 memory and a 256 GB M.2 2280 drive, leaving one SODIMM slot and a 2.5 inch bay for expansion. Dual Intel i225-V 2.5G LAN ports and HDMI plus DisplayPort outputs suit embedded and signage deployments.

Best for space-constrained embedded roles

This unit fits industrial automation, digital signage and kiosk projects that need silent operation, dual 2.5G Ethernet and legacy COM ports in a 166 x 127 x 55.5 mm aluminium chassis. It is not suited for workloads demanding discrete graphics, high core counts or more than 32 GB of memory, and builders needing additional PCIe slots should consider a larger platform.

32 GB DDR4 memory ceiling

The single DDR4 2133 SODIMM slot caps system memory at 32 GB, which determines whether the B5 can host your intended virtual machines, databases or edge analytics workloads. Storage can grow through the M.2 2280 slot supporting both SATA and NVME protocols plus the 2.5 inch SATA bay with RAID 0/1 support.

商品特色

  • Dual 2.5G Intel LAN ports enable fast wired networking
  • Fanless aluminium chassis runs silently in industrial environments
  • Iris Plus 640 graphics drives two displays via HDMI and DP
  • 8 GB DDR4 and 256 GB storage ready for Windows 11
  • Expandable to 32 GB RAM with M.2 and 2.5-inch bays

商品規格

ColorGray
CPU TypeIntel Core i5 7th Gen
M.2 Slot1 x M.2
Integrated GraphicsIntel Iris Plus Graphics 640
DisplayPort1 x DisplayPort

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Will this B5 barebone connect to my older peripherals using its COM ports and USB 2.0 ports?

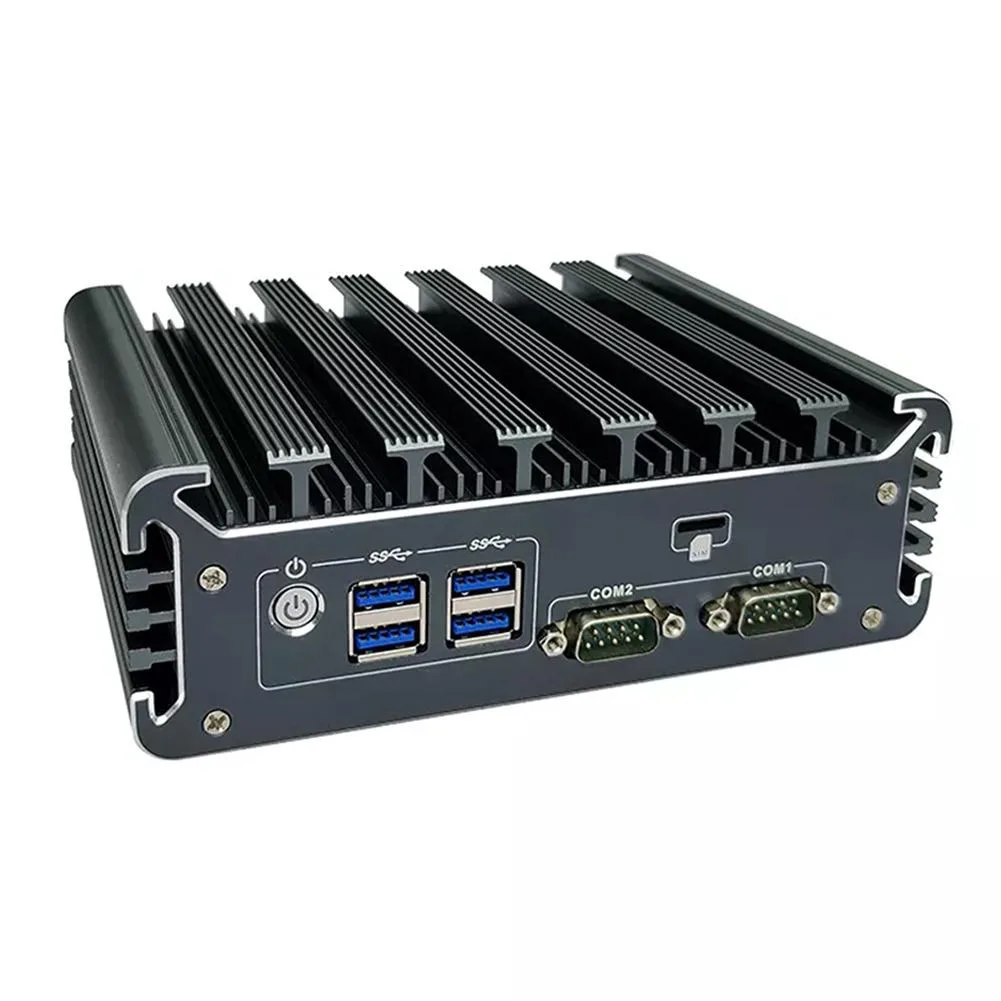

Yes, the front panel has two COM ports configurable as RS232 or RS485, and the rear provides two USB 2.0 ports alongside four USB 3.0 ports.

How can I verify the Intel Core i5 7360U and Iris Plus Graphics 640 are running correctly after setup?

Check Device Manager for the CPU and graphics entries, confirm dual-display output on HDMI and DisplayPort, and run a stress test to see clocks reach 3.6 GHz.

What is included in the box and what must I buy separately for this B5 unit?

The barebone ships with 8 GB DDR4 2133 RAM, a 256 GB M.2 2280 SSD, 12 V DC power supply, and AC adapter; no extra parts are required.
