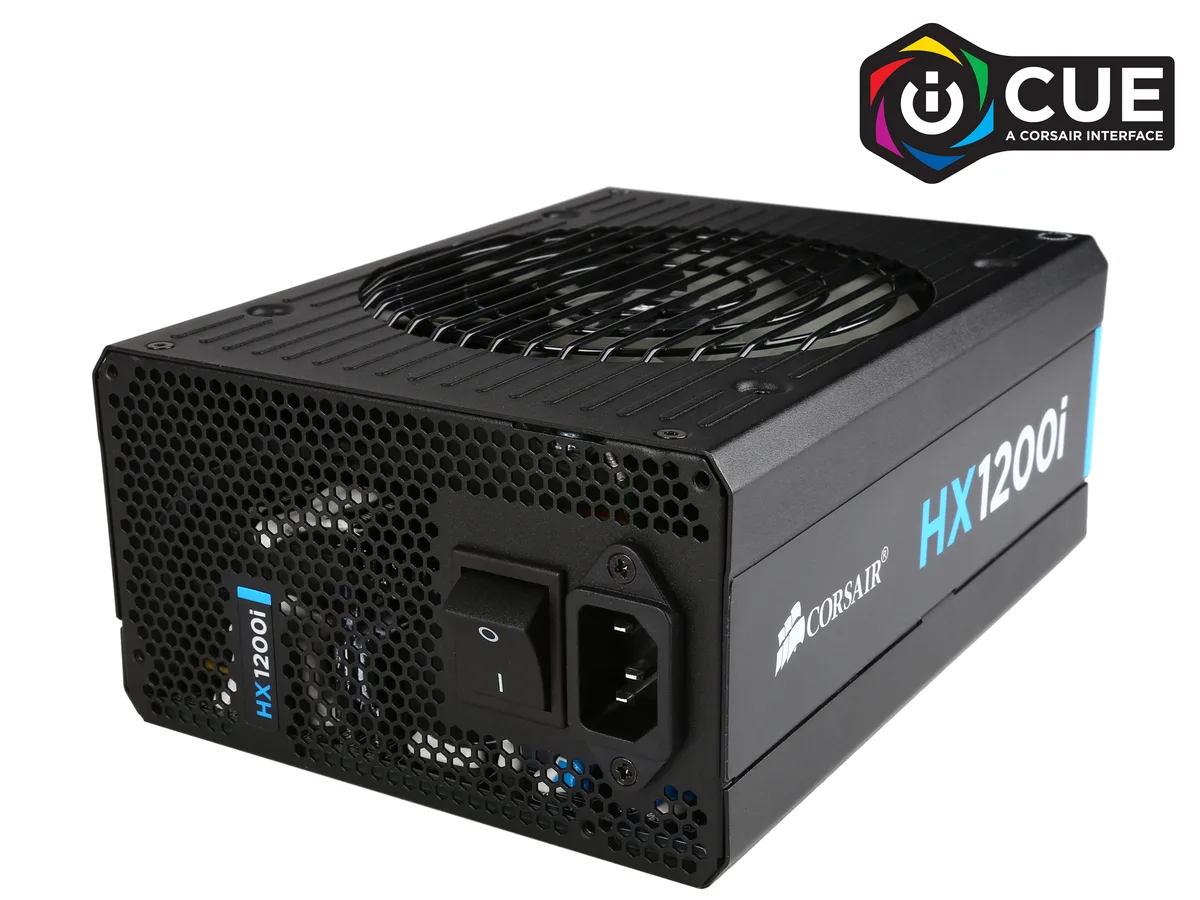

Rectangular black metal ATX power supply unit with a 140mm fan grill on one side and modular cable ports on the rear face

Corsair

Corsair CP-9020070-NA HX1200i 1200W 80 PLUS PLATINUM power supply

SKU CH-1C64-FHZ62 MPN CP-9020070-NA

A 1200 W fully modular ATX power supply with 80 PLUS Platinum efficiency, a single +12 V rail, eight PCIe connectors, twelve SATA connectors and a 140 mm fluid dynamic bearing fan that stops at low

  • TypeATX12V / EPS12V
  • Maximum Power1200 W

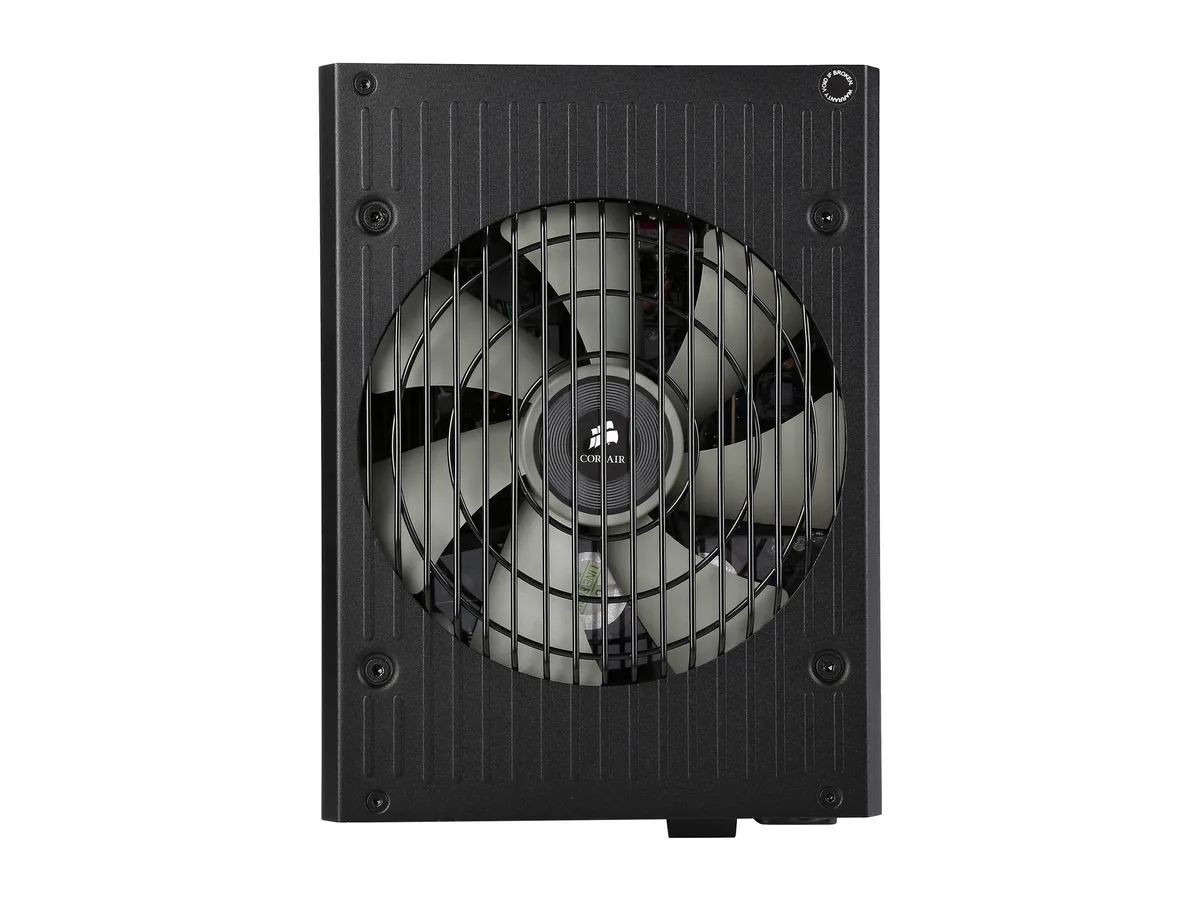

  • Fans1 x 140mm Fluid Dynamic Bearing Fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle

Options ATX 80+ Platinum (1200W) HXi Series

  • 1200 W output supports multi-GPU builds with eight 6+2-pin PCIe connectors
  • 92% efficiency at typical loads backed by 80 PLUS PLATINUM certification
  • Zero RPM mode keeps the 140 mm fluid-dynamic-bearing fan off at low loads

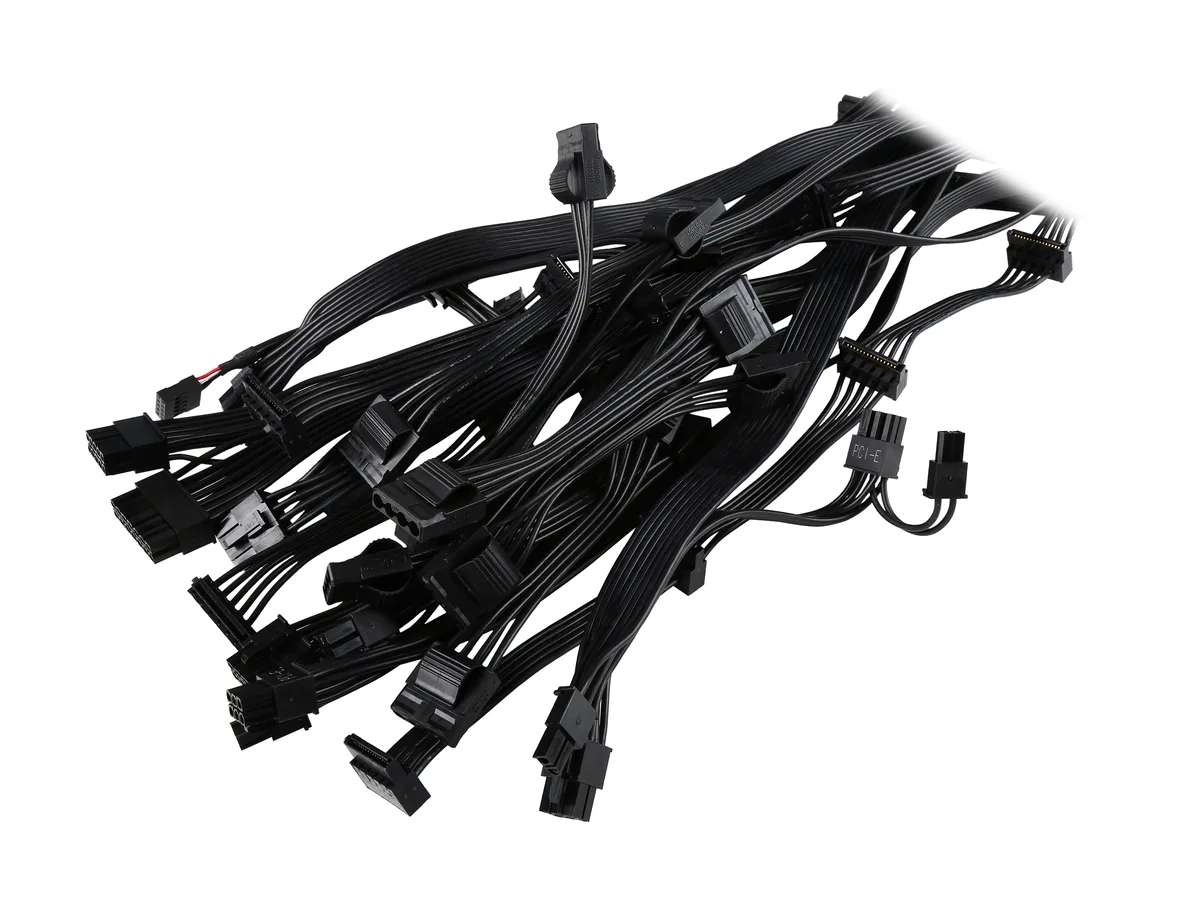

  • Full modular cabling reduces clutter and improves chassis airflow
  • Corsair Link USB 2.0 interface enables software monitoring and fan-speed control

1200W 80 PLUS PLATINUM ATX supply

The Corsair HXi Series HX1200i is a fully modular ATX12V and EPS12V power supply rated at 1200 watts. It carries 80 PLUS PLATINUM certification for 92% efficiency at typical loads. A 140mm fluid dynamic bearing fan supports ZeroRPM mode for silent running at low demand. Corsair Link integration provides monitoring and fan-speed control via a USB 2.0 interface.

High-output builds needing full modularity

This unit suits enthusiasts assembling multi-GPU rigs or workstations that can draw several hundred watts from the +12V rail. The single-rail design simplifies cable planning while delivering up to 100A on +12V. Builds with modest power requirements will not benefit from the headroom and may prefer a lower-wattage model.

Single +12V rail rated at 100A

The defining specification is the single +12V rail capable of 100A continuous output. If your graphics cards and CPU combined demand approaches that limit, this supply delivers the current without rail-balancing concerns. If the total +12V draw stays well below that figure, a smaller unit will be more cost-effective.

Highlights

  • 1200 W output supports multi-GPU builds with eight 6+2-pin PCIe connectors
  • 92% efficiency at typical loads backed by 80 PLUS PLATINUM certification
  • Zero RPM mode keeps the 140 mm fluid-dynamic-bearing fan off at low loads
  • Full modular cabling reduces clutter and improves chassis airflow
  • Corsair Link USB 2.0 interface enables software monitoring and fan-speed control

Specifications

BrandCORSAIR
SeriesHXi Series HX1200i
ModelCP-9020070-NA
TypeATX12V / EPS12V
Maximum Power1200 W
Fans1 x 140mm Fluid Dynamic Bearing Fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector8 x 6+2-Pin
SATA Power Connector12
SLISLI Ready
Haswell SupportYes
CrossFireCrossFire Ready
Max PSU Length200 mm
ModularFull Modular
Efficiency92%
Energy-Efficient80 PLUS PLATINUM Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current15 - 7.5 A
Output+3.3V@30A, +5V@30A, +12V@100A, [email protected] , [email protected]
MTBF100,000 hours
ApprovalsFCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH
Connectors1 x ATX Connector
2 x EPS Connector
2 x Floppy Connector
12 x 4-Pin Peripheral Connector
8 x PCIe Connector
12 x SATA Connector
FeaturesCorsair Link Integration for monitoring performance and adjustment of fan speed and multi-rail/single rail mode.
80 PLUS Platinum efficiency, delivering 92% energy efficiency at real world load conditions.
ZeroRPM mode for fanless operation at low loads and outstanding noise reduction.
140mm thermally controlled fluid dynamic bearing fan spins up as needed.
Fully Modular low profile cables for easy installation, less clutter, and helps maximize airflow through your computer’s chassis.
Engineered to meet maximum power output at a server-grade 50C temperature rating.
Fan self-test swit

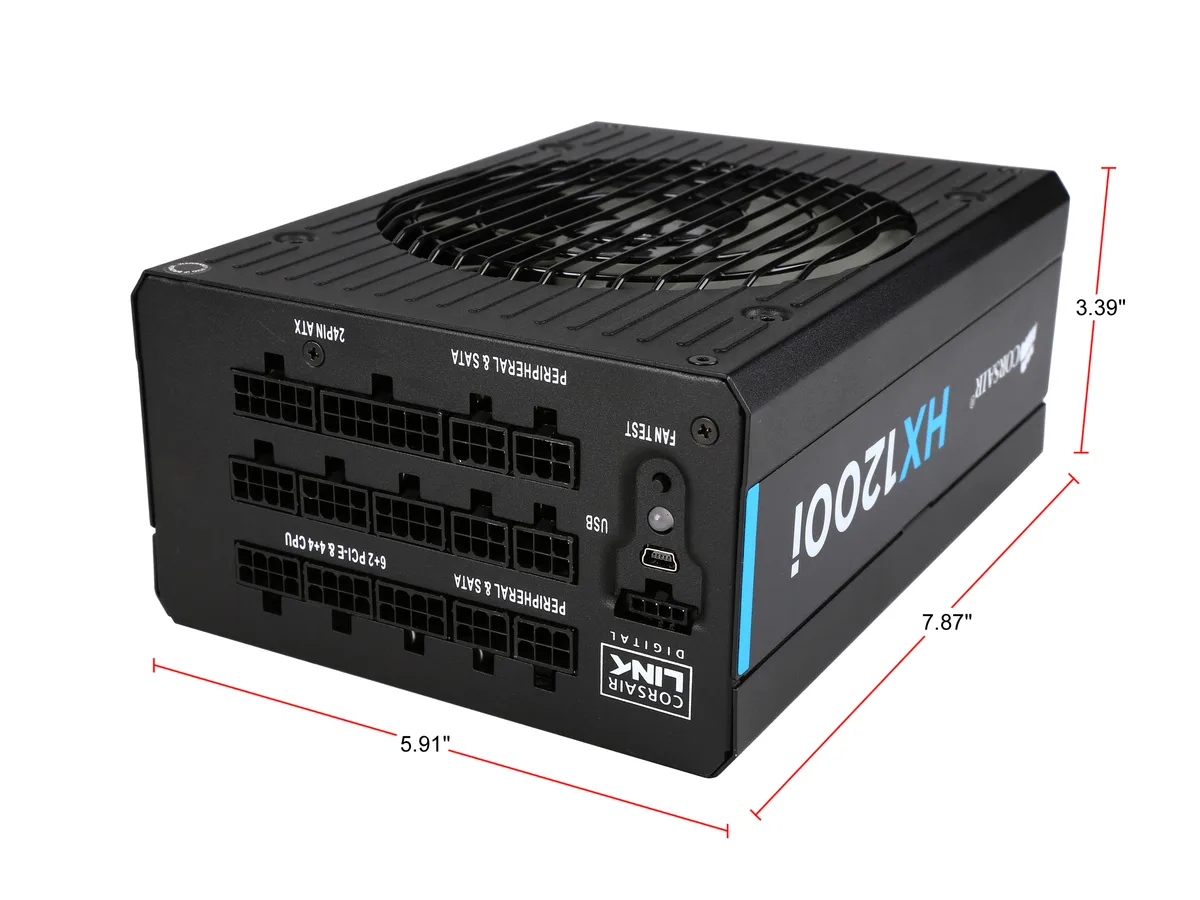

Dimensions3.39" x 5.91" x 7.87"
Weight8.40 lbs.
Shipping weight4.58 kg
Package size396 × 229 × 152 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which capacity should I pick for a multi-GPU build?

The unit delivers 1200 W on a single +12 V rail rated at 100 A and provides eight 6+2-pin PCIe connectors, so one model covers SLI or CrossFire configurations without needing a second PSU.

What does the 80 PLUS Platinum rating mean once the supply is installed?

It guarantees 92 % efficiency at typical loads, which lowers waste heat and keeps the 140 mm fluid-dynamic-bearing fan off completely during light work thanks to ZeroRPM mode.

What interface does the monitoring link use and what does it control?

A USB 2.0 port connects to Corsair Link software, letting you watch voltages, adjust the fan curve and switch between single-rail and multi-rail operation from Windows.
